Technical data
General data:
Electrical data:
Optical data:
Lighting data:
Product description
Luminaires from the INX series are designed for operation in the most demanding outdoor environments. Made of electropolished stainless steel 1.4301, they provide maximum resistance to corrosion and salinity, weather conditions, and mechanical damage, while offering a refined, high-quality surface finish. Electropolishing not only enhances the aesthetics of the luminaires but also increases the material’s resistance to dirt and harsh environmental conditions.

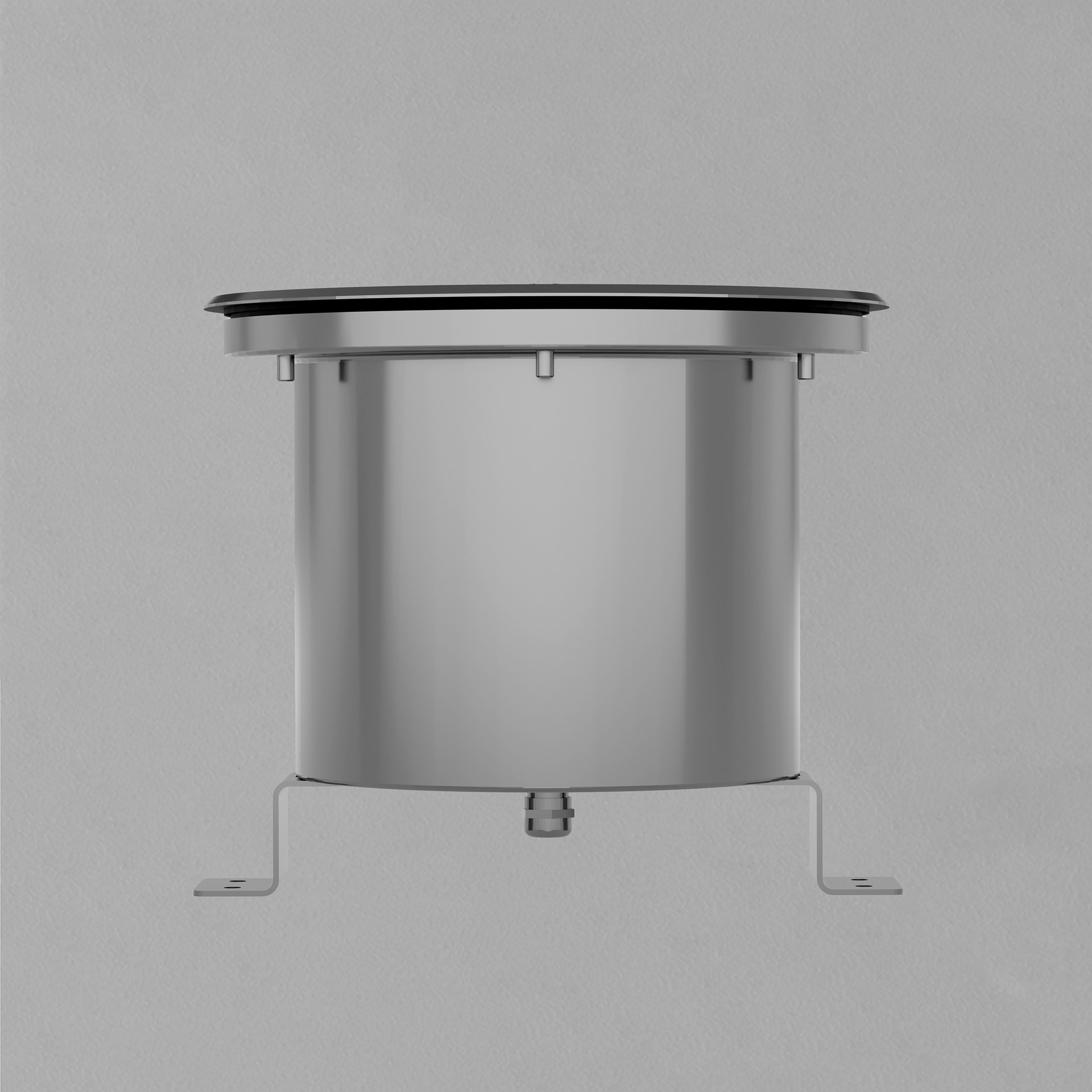

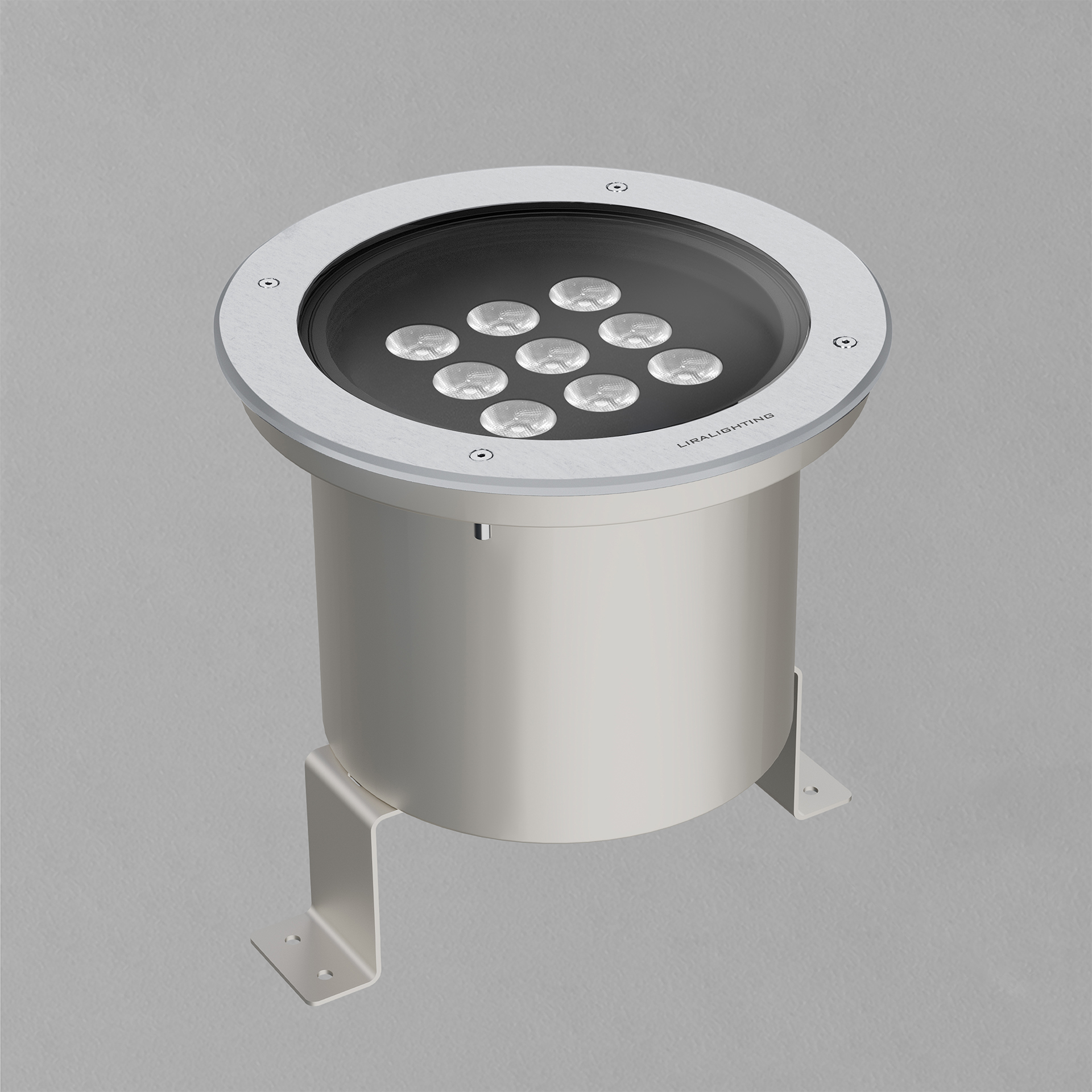

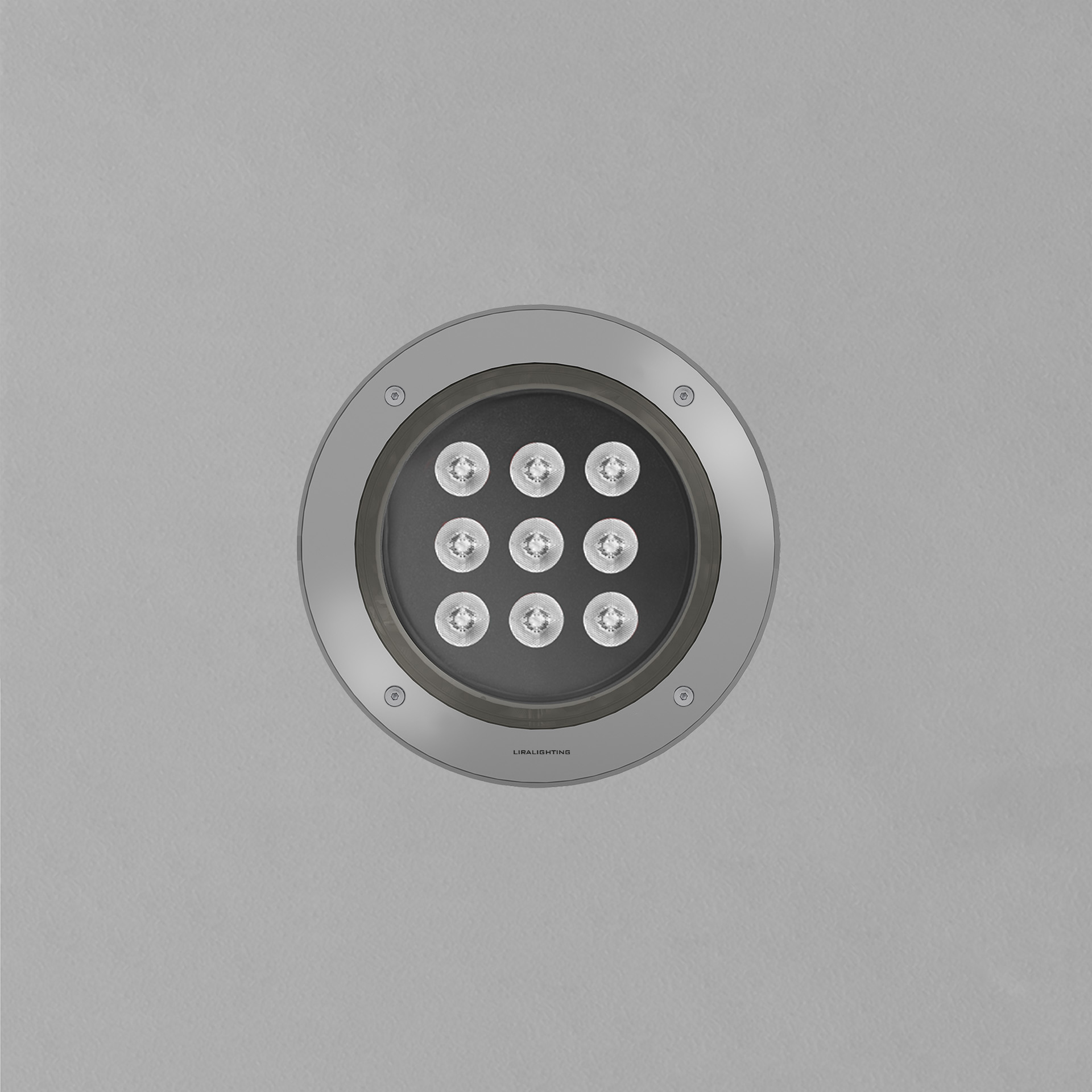

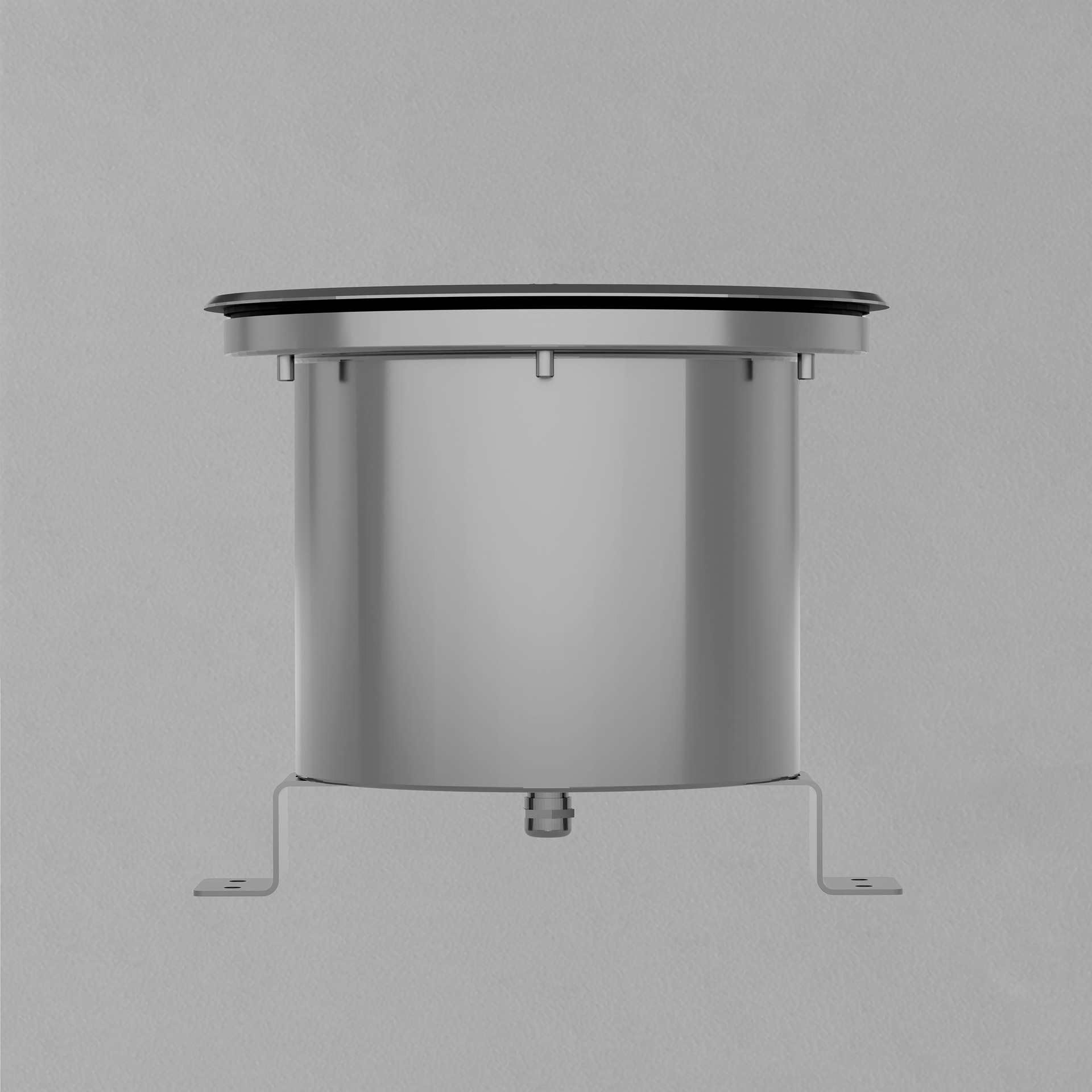

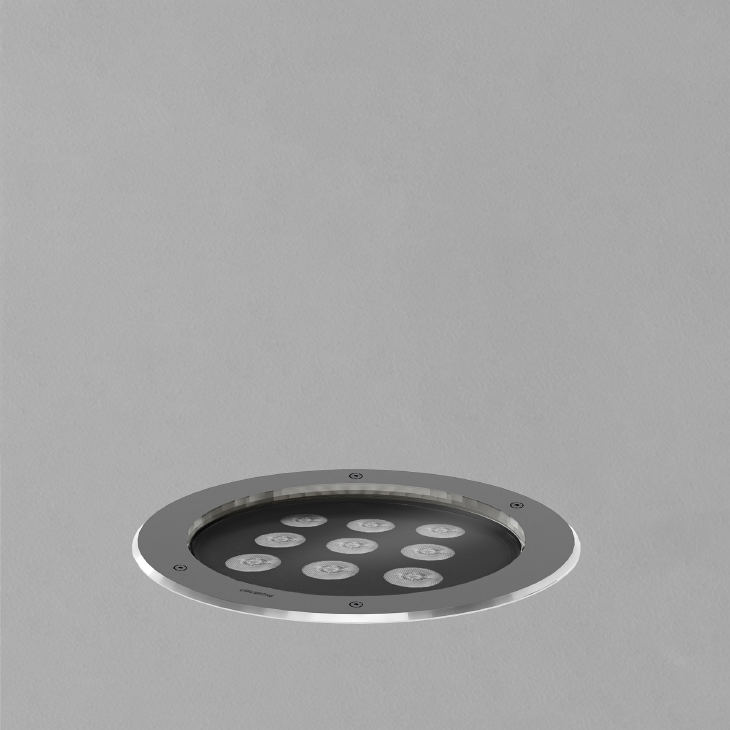

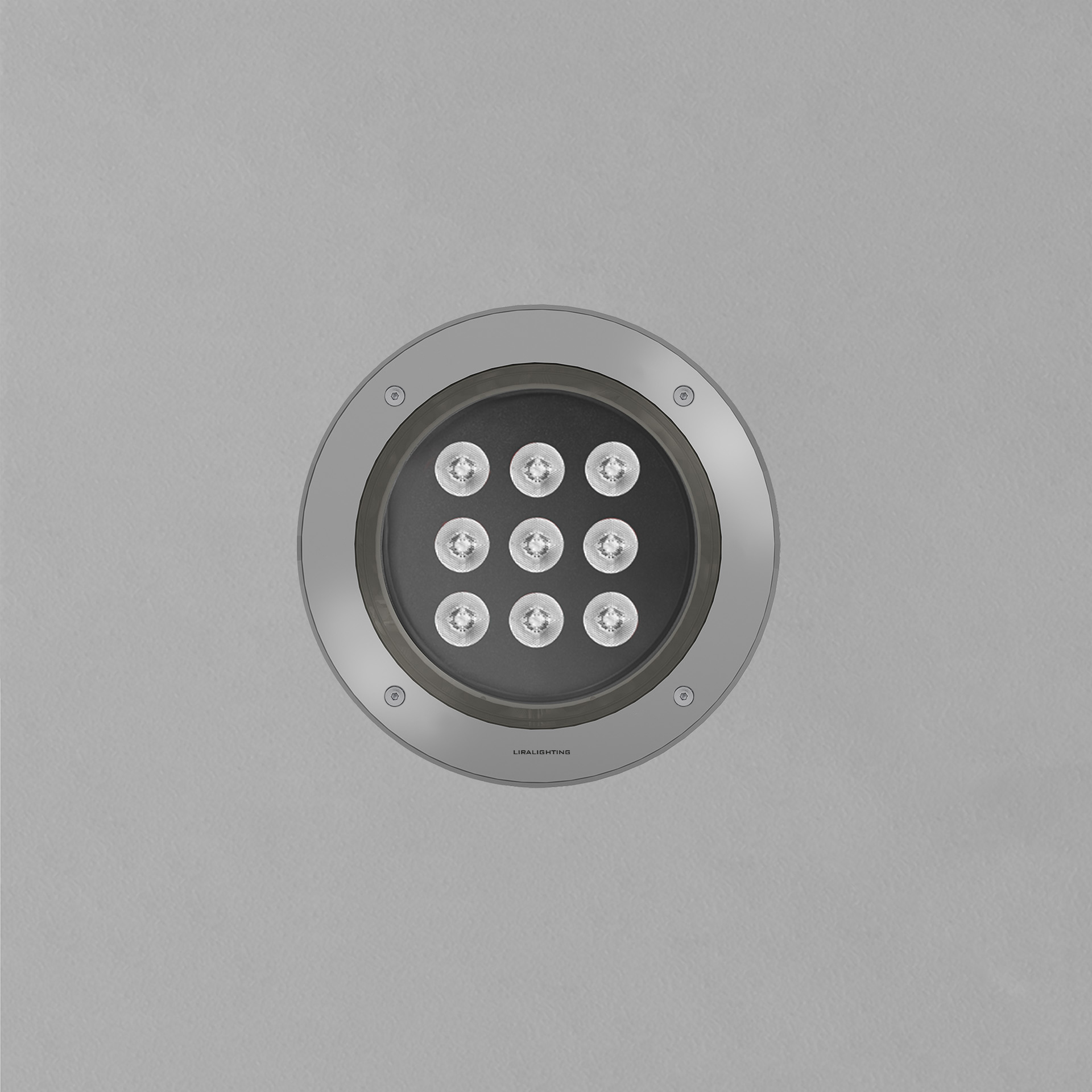

INX 225 RGBW In-Ground is a recessed luminaire designed with durability, safety, and aesthetics in mind. Equipped with 8 mm tempered glass, it ensures high resistance to pressure and mechanical damage. The luminaire is rated for loads of up to 5 tonnes at a speed of 30 km/h, allowing it to be used in circulation areas and intensively used outdoor spaces.

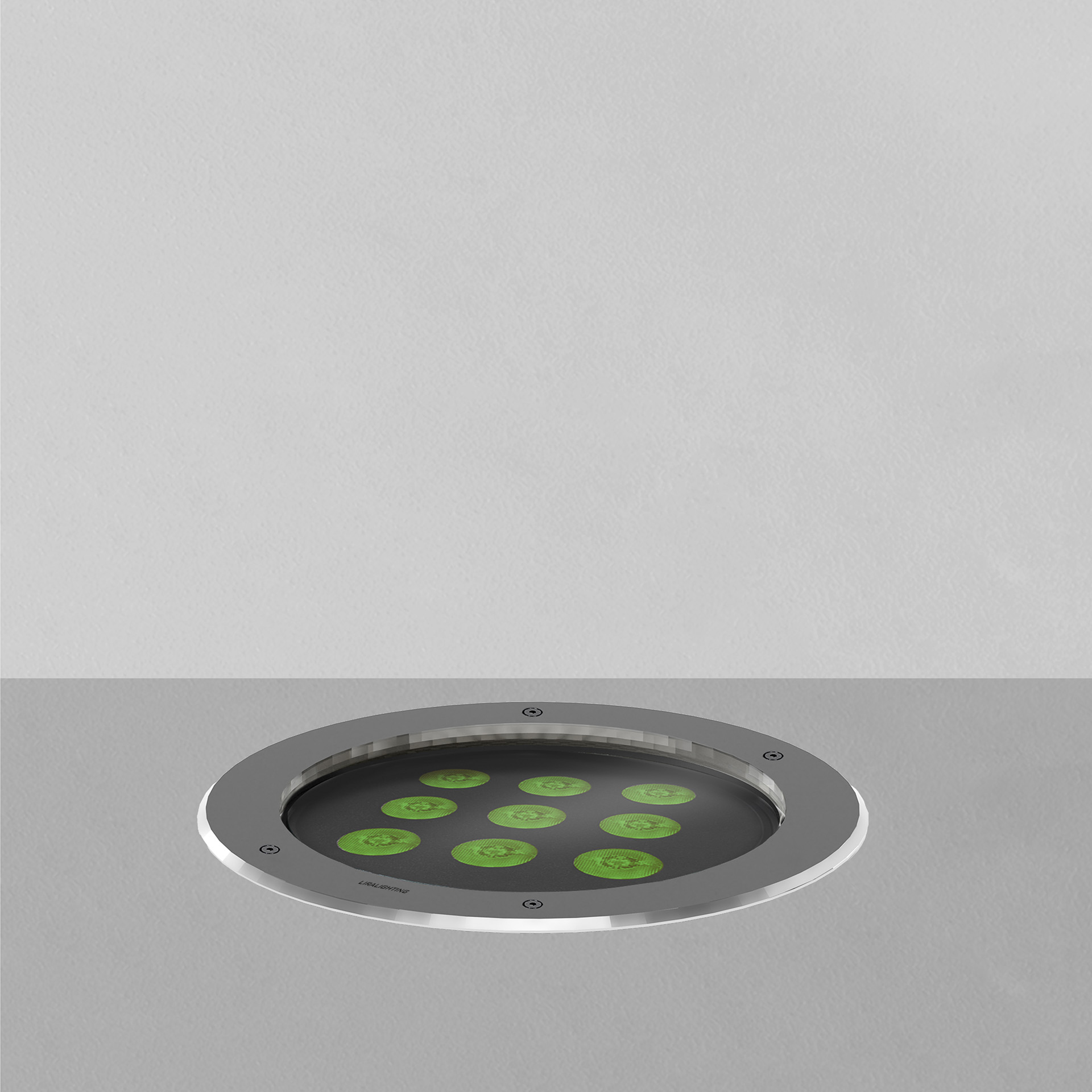

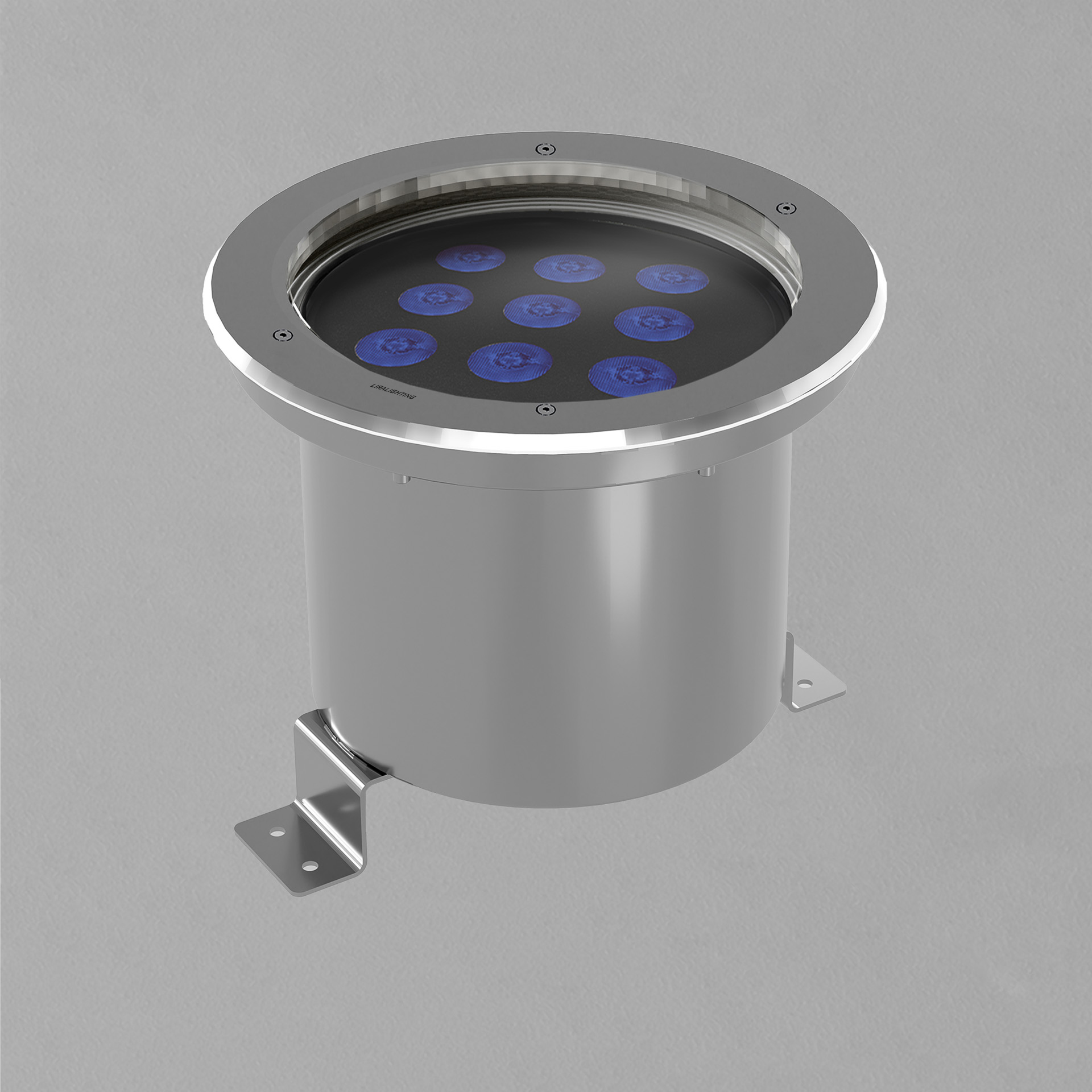

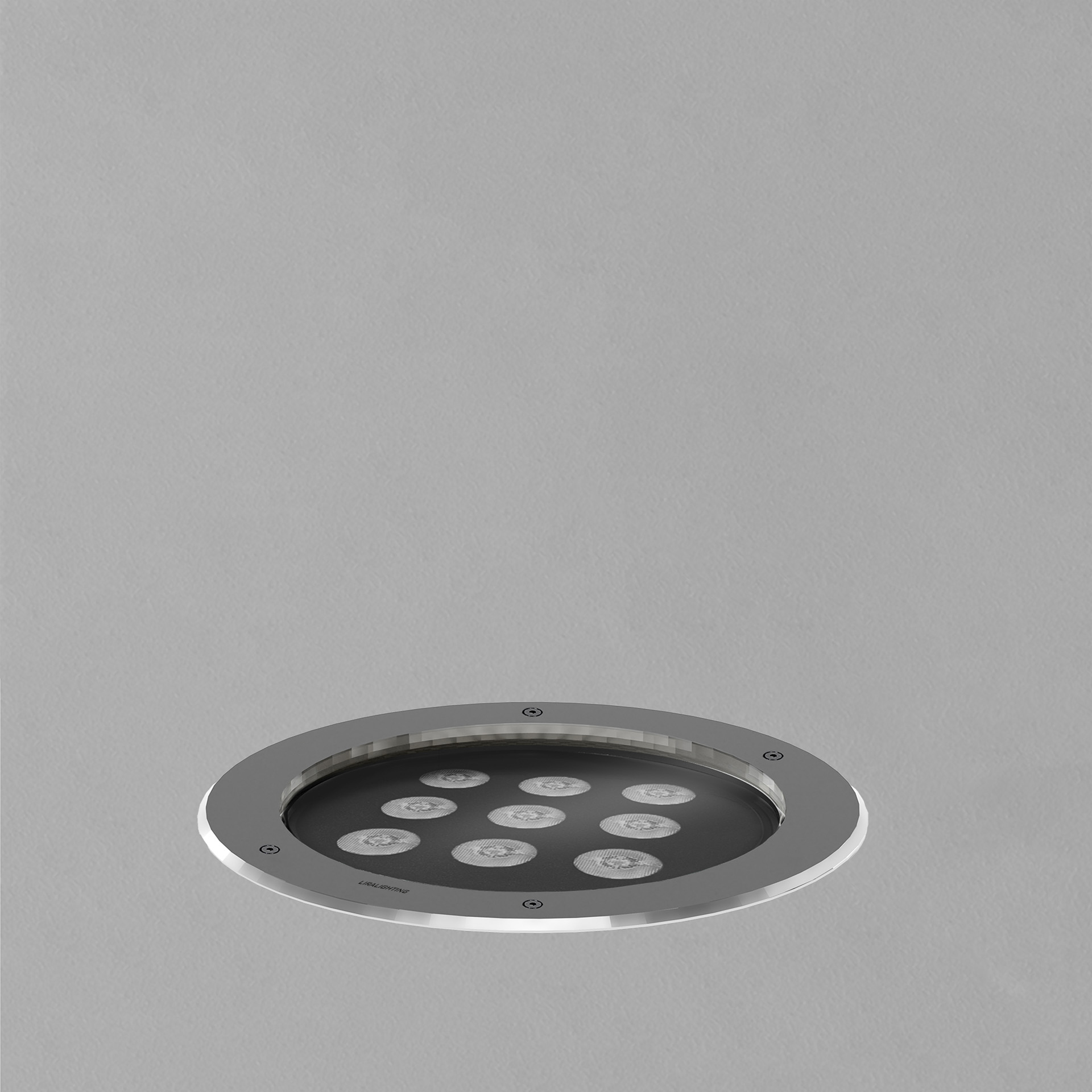

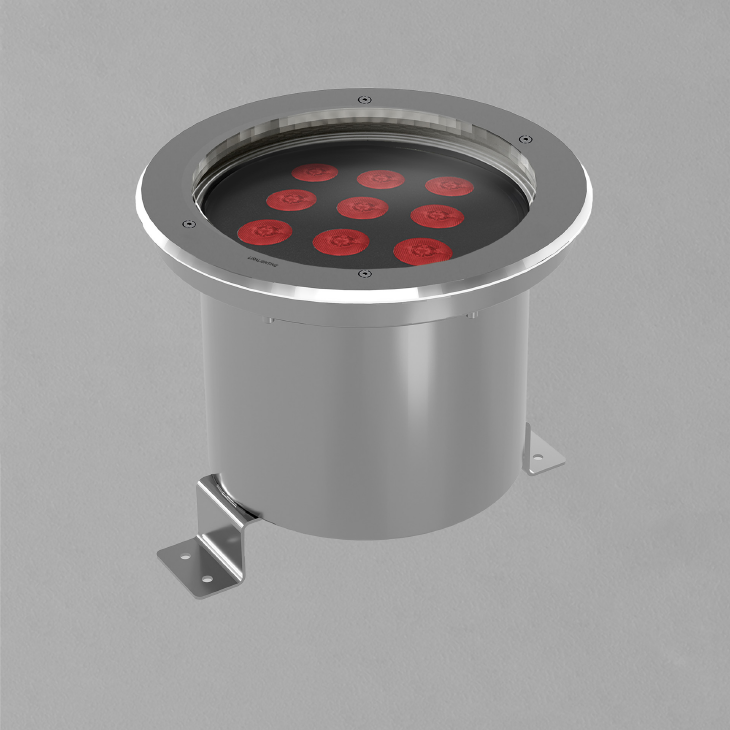

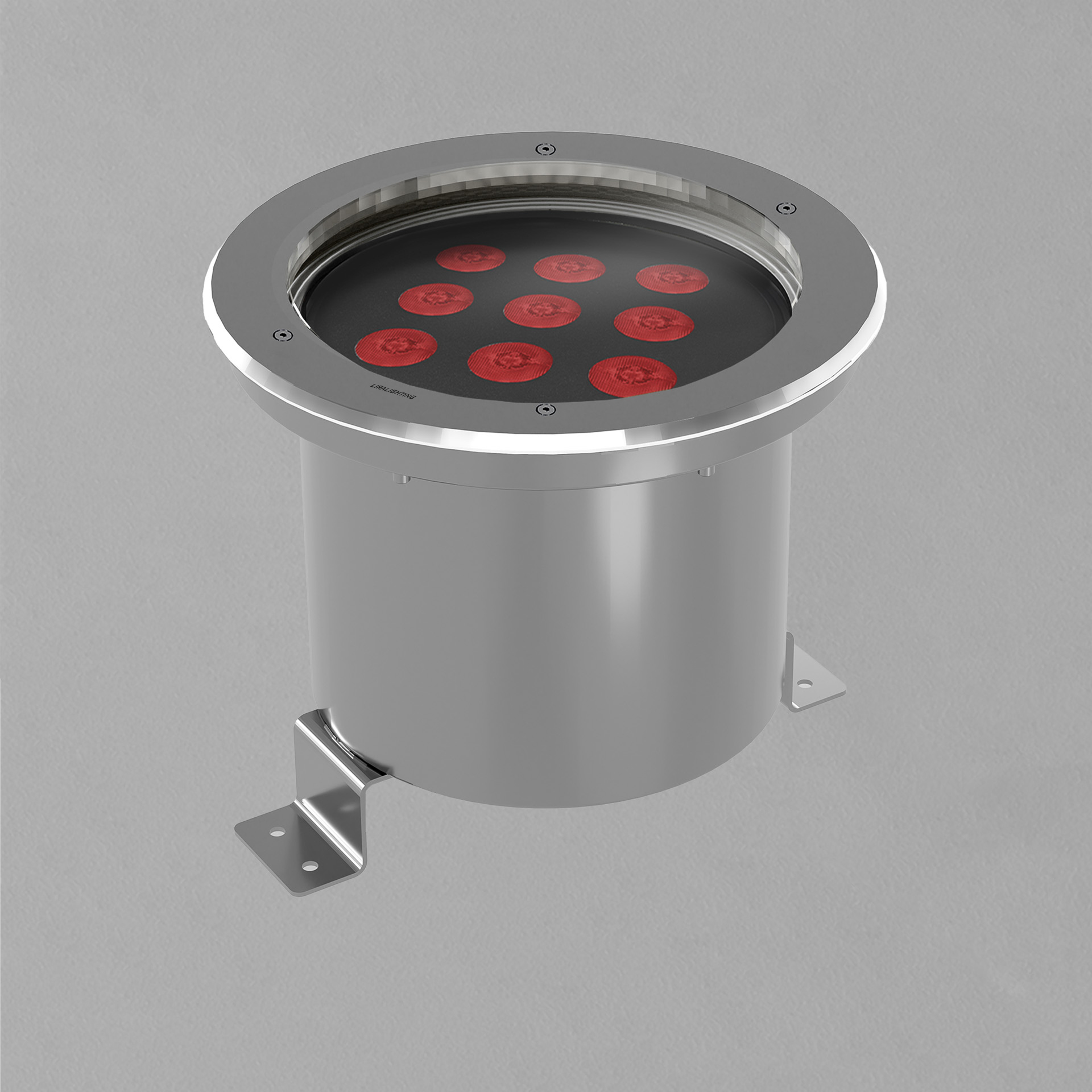

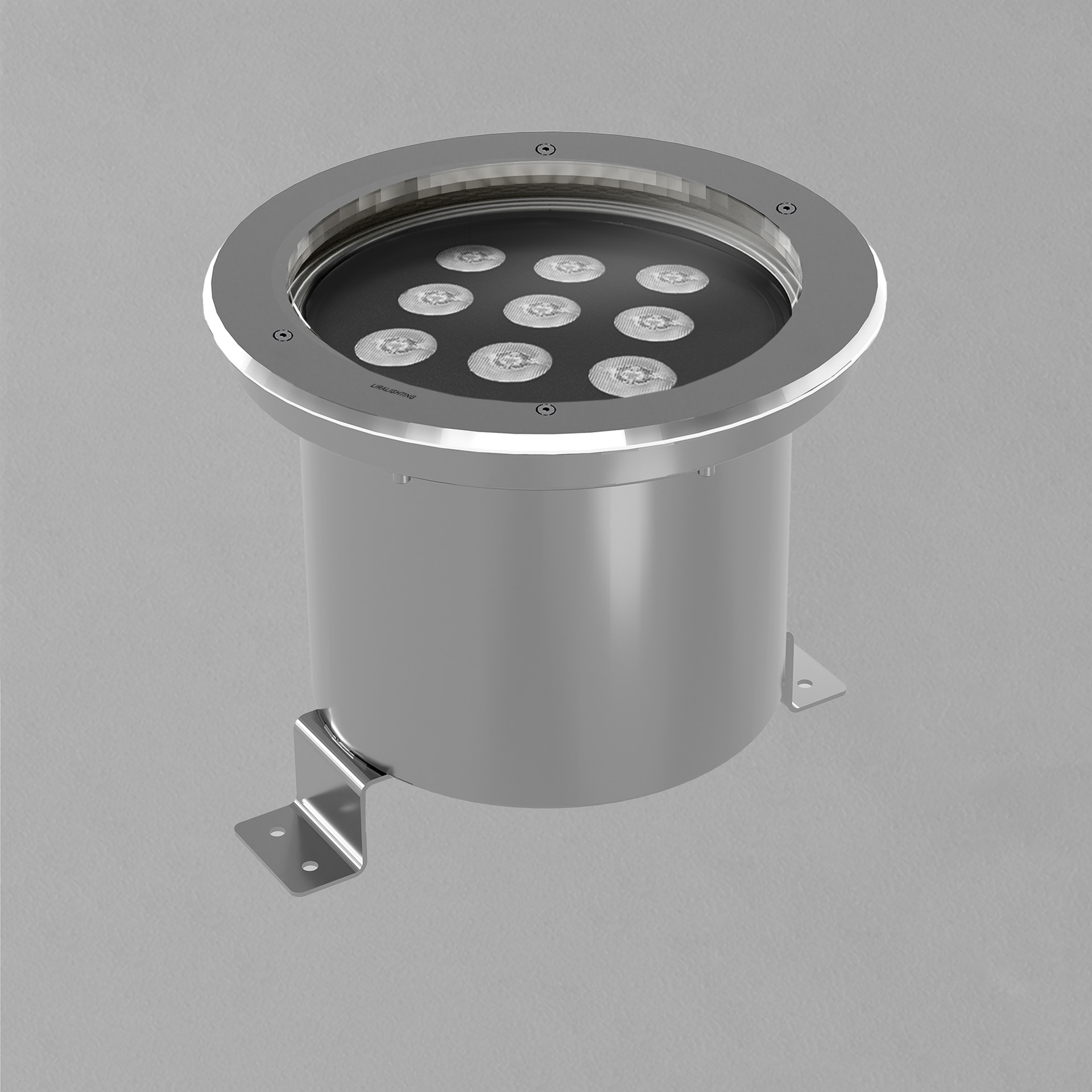

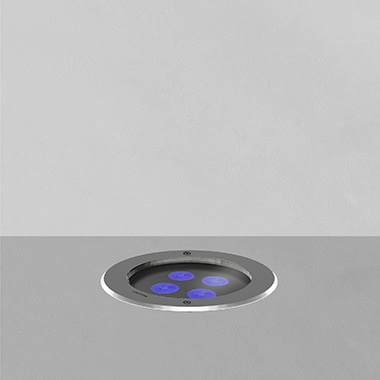

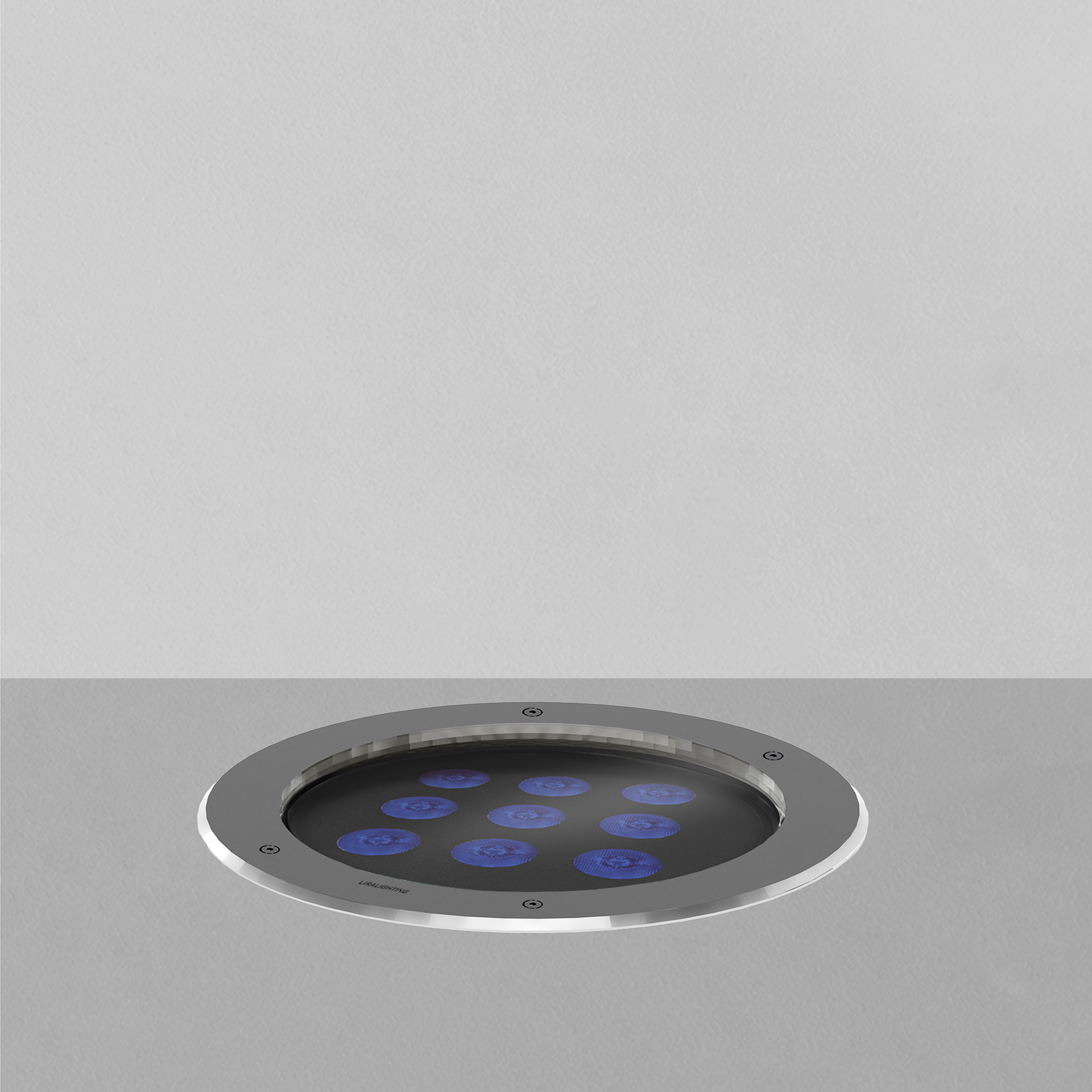

The availability of an RGBW version enables the creation of dynamic lighting scenes, striking colour illuminations, and high-quality white light tailored to the character of the illuminated object. With IP67 ingress protection and an IK10 impact rating, the luminaire is suitable for installation in pedestrian routes and public areas, providing reliable illumination of façades, trees, and architectural elements.
L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
| Catalogue code | Luminaire light flux | Power | Effectiveness | Box dimensions |
|---|---|---|---|---|
| 9535.1L | 3192lm | 36W | 89lm/W | 400x400x280mm |
