Ml 1 UGR<16

choose a luminaire variant ➔

Technical data

General data:

luminaire body:

steel, acoustic material

mounting type:

modular ceiling

ingress protection IP:

IP20

Optical data:

light emmission:

direct

light distribution:

symmetrical

Lighting data:

type of source:

LED

colour rendering index:

CRI≥80 (on request: CRI>90)

Electrical data:

nominal voltage:

220-240V

nominal frequency:

50-60Hz

protection class:

contains light source:

YES

dimming:

on/off, DALI, Casambi (on request: Active Ahead)

Downloads

Product data sheet Declaration of conformity Data sheet-German

Product description

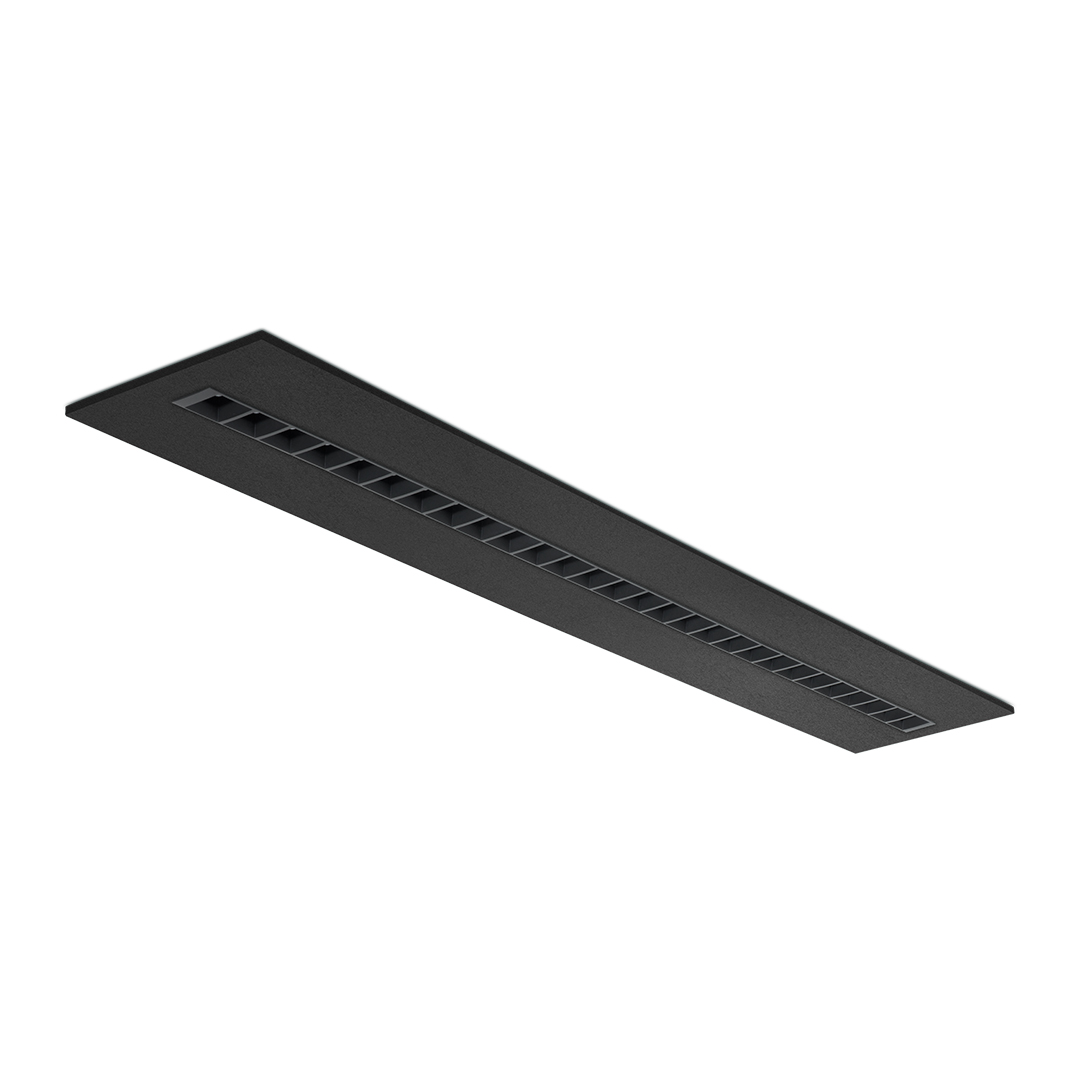

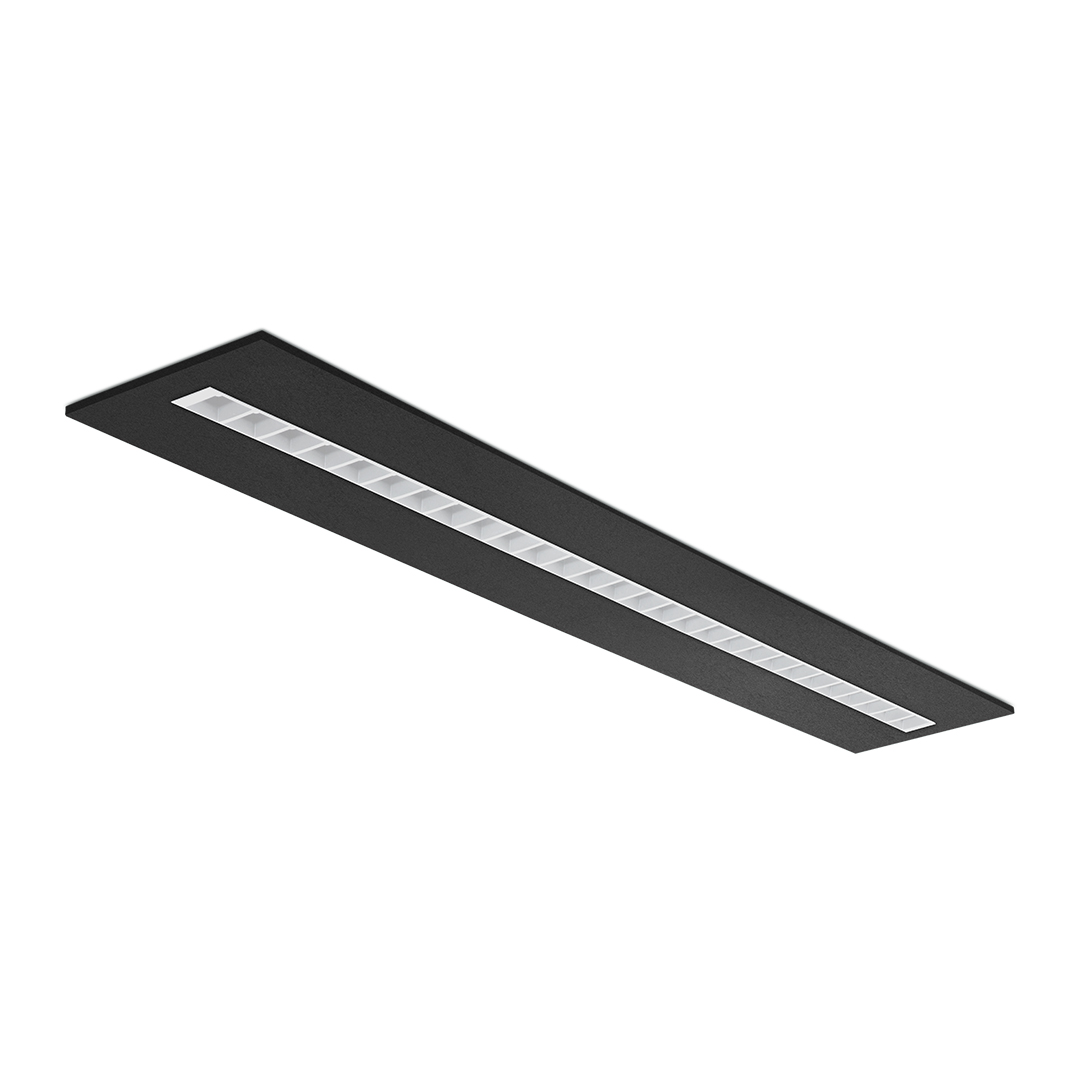

The ML luminaire is a modern solution that combines excellent lighting performance with acoustic enhancement capabilities. It features a lightweight construction and offers quick and easy installation. The housing is made from durable steel sheet, and the reflector is available in two colors: white and black.

Its optical system ensures high lighting efficiency with a low glare index (UGR<16), promoting visual comfort. Available light color options include 3000K and 4000K with CRI≥80 (CRI≥90 available upon request). Control options include on/off, DALI, and Casambi, with ActiveAhead available on demand.

The use of high-quality acoustic materials enables effective sound absorption, echo reduction, and noise control.

This luminaire is an ideal solution for offices, conference rooms, and lecture halls—environments where both lighting quality and acoustics are essential. Its elegant design complements modern interior arrangements. Advanced sound absorption technology: acoustic luminaires utilize advanced sound absorption technologies, eliminating echo effects and reducing noise. By using high-quality acoustic materials, the product effectively improves sound clarity in rooms. The pet material has anti-allergenic properties. They are officially certified by Intertek.

Available product colors

Standard:

grey

P1

‎ finish of the material
dark grey

P2

‎ finish of the material
dark green

P3

‎ finish of the material

C-colour

E- electronics

0- On-Off

D- DALI

C- Casambi

L – lenses
50 – 50°
80 – 80°

Catalogue code	Luminaire light flux	Power	Color temperature	CRI/RA	Beam angle	UGR
3142.103ELC	2991lm	22W	3000K	≥80	black reflector	<16
3142.104ELC	3182lm	22W	4000K	≥80	black reflector	<16
3142.203ELC	3186lm	22W	3000K	≥80	white reflector	<17
3142.204ELC	3389lm	22W	4000K	≥80	white reflector	<17
3143.103ELC	4187lm	31W	3000K	≥80	black reflector	<17
3143.104ELC	4455lm	31W	4000K	≥80	black reflector	<17
3143.203ELC	4460lm	31W	3000K	≥80	white reflector	<18
3143.204ELC	4745lm	31W	4000K	≥80	white reflector	<18

Catalogue code	Luminaire light flux	Power	Color temperature	CRI/RA	Beam angle	UGR
3142.103ELC	2991lm	22W	3000K	≥80	black reflector	<16
3142.104ELC	3182lm	22W	4000K	≥80	black reflector	<16
3142.203ELC	3186lm	22W	3000K	≥80	white reflector	<17
3142.204ELC	3389lm	22W	4000K	≥80	white reflector	<17
3143.103ELC	4187lm	31W	3000K	≥80	black reflector	<17
3143.104ELC	4455lm	31W	4000K	≥80	black reflector	<17
3143.203ELC	4460lm	31W	3000K	≥80	white reflector	<18
3143.204ELC	4745lm	31W	4000K	≥80	white reflector	<18
