Technical data
General data:
Luminaire body:
PC, aluminum
Mounting type :
recessed
Ingress protection IP:
40
Operating temperature range :
from -20℃ to +45℃
Lifetime L80B10:
50000h
Impact protection IK :
5
Optical data:
Nominal voltage :
220-240V
Nominal frequency :
50-60Hz
Protection class :
II
Wiring :
standard
Connection wire :
2x1.5mm2
Dimming :
DALI, Casambi
Lighting data:
Optical system :
opal diffuser
Material :
PC
Light emission :
direct
Light distribution :
symmetrical
Electrical data:
Light source :
LED
Colour rendering index :
>80
Colour tolerance SDCM :
3SDCM
Tolerance of luminous flux :
+/- 10%
Downloads

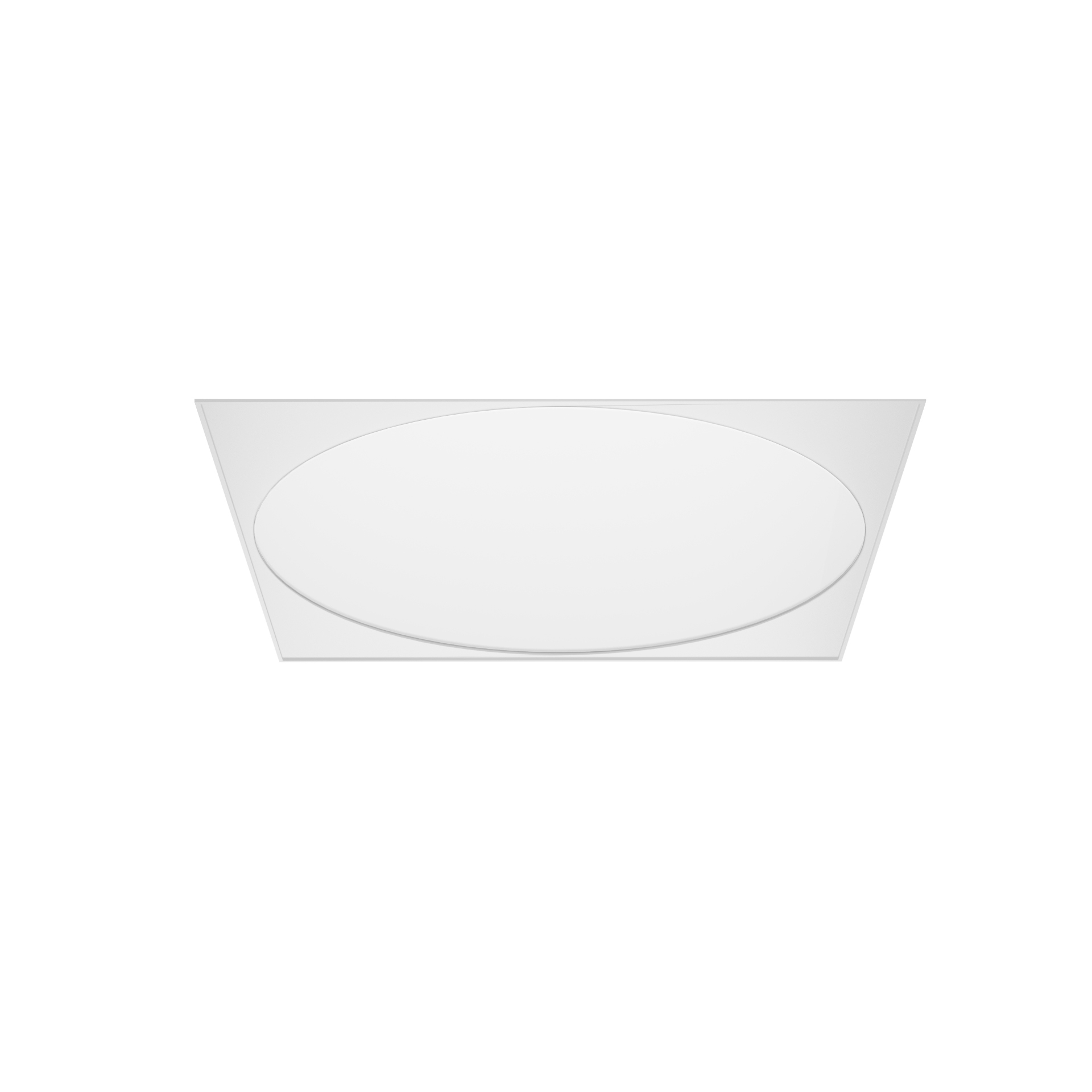

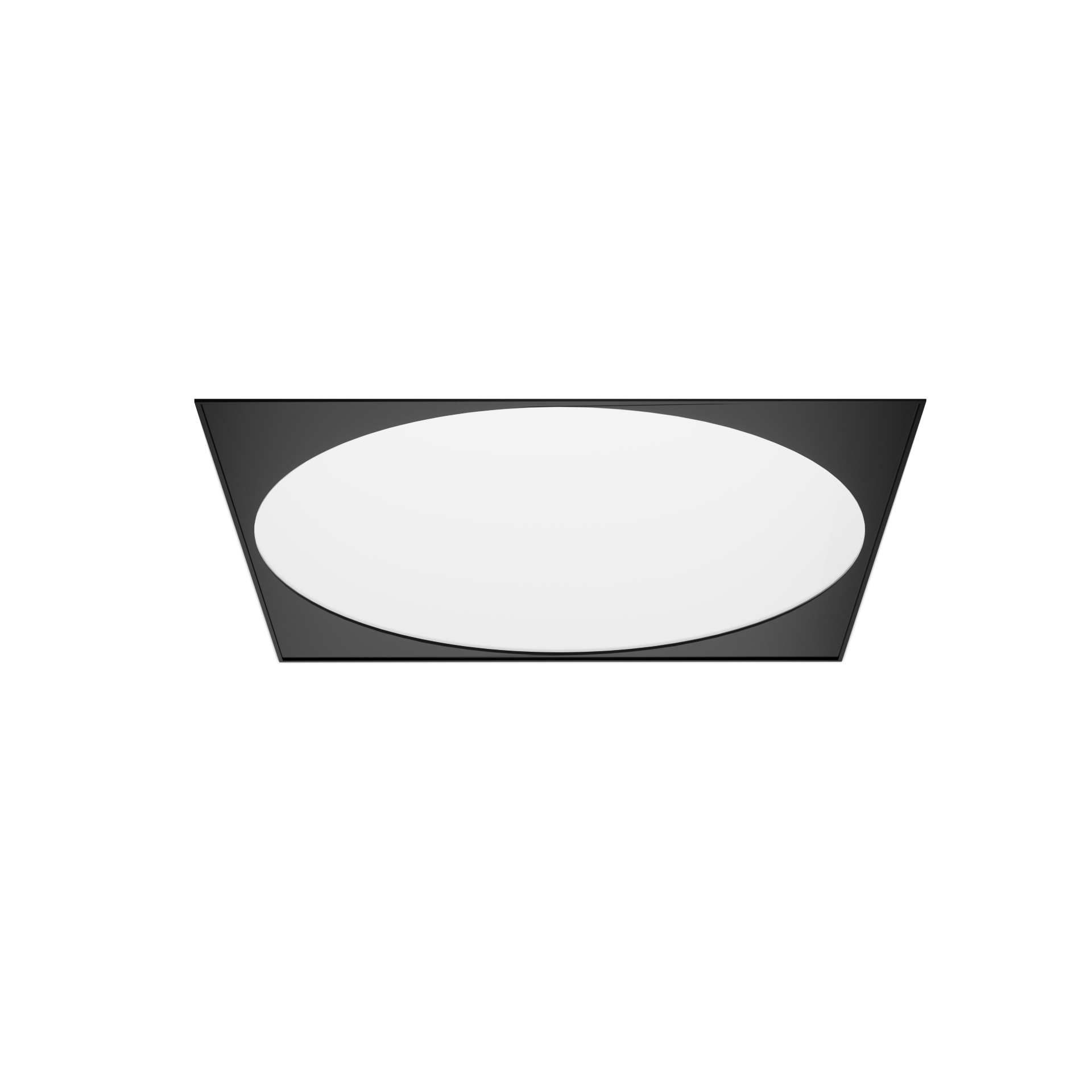

Available product colors
Standard:
-
white03 -
black05
E - electronics
D - DALI
C - Casambi
C - colour
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | UGR |
|---|---|---|---|---|---|
| 3165.03EC | 2774lm | 36W | 82lm/W | 3000K | <22 |
| 3165.04EC | 2951lm | 36W | 82lm/W | 4000K | <22 |
