Technical data
General data:
Electrical data:
Optical data:
Lighting data:
Product description
Luminaires from the INX series are designed for the most demanding outdoor environments and made of electropolished stainless steel 1.4301 for maximum durability and corrosion resistance.

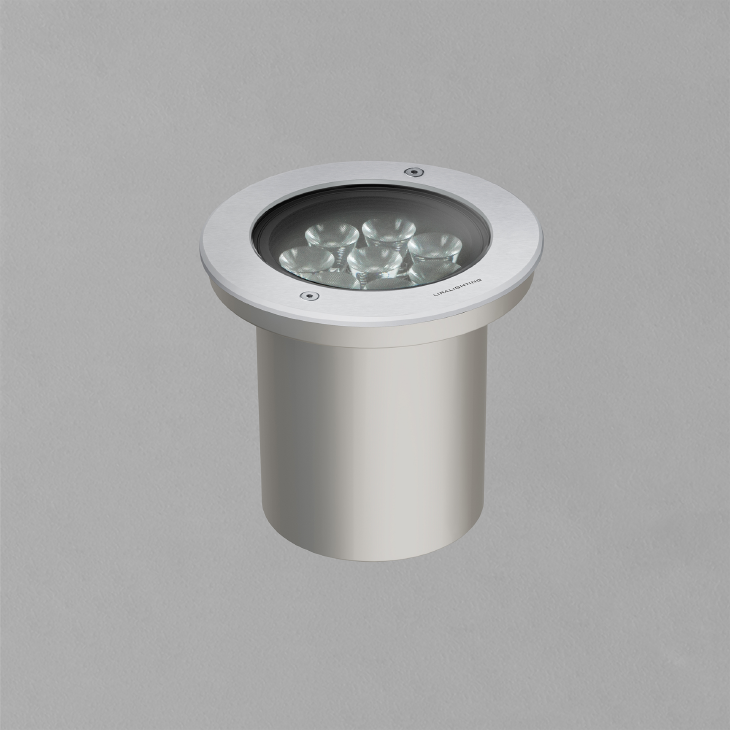

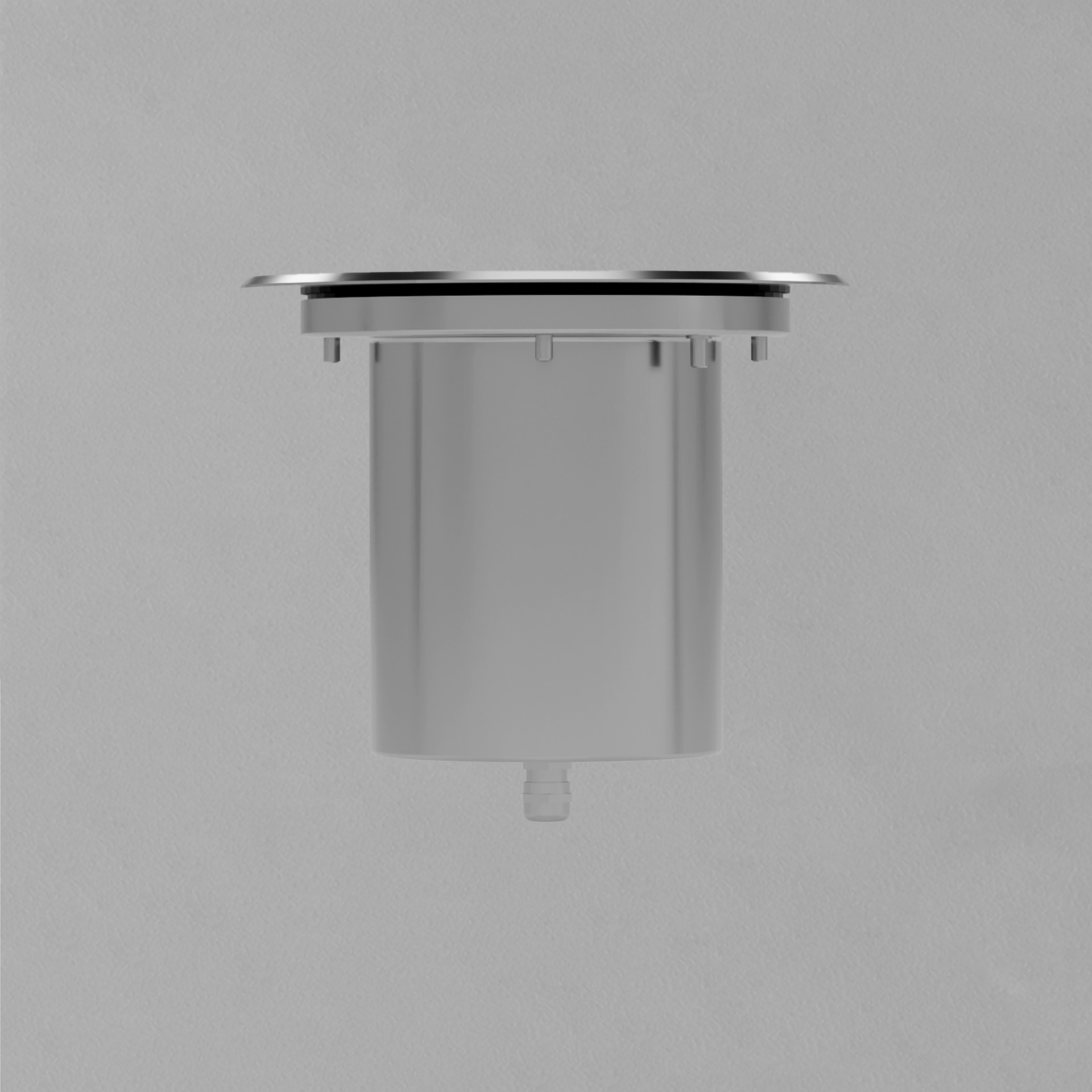

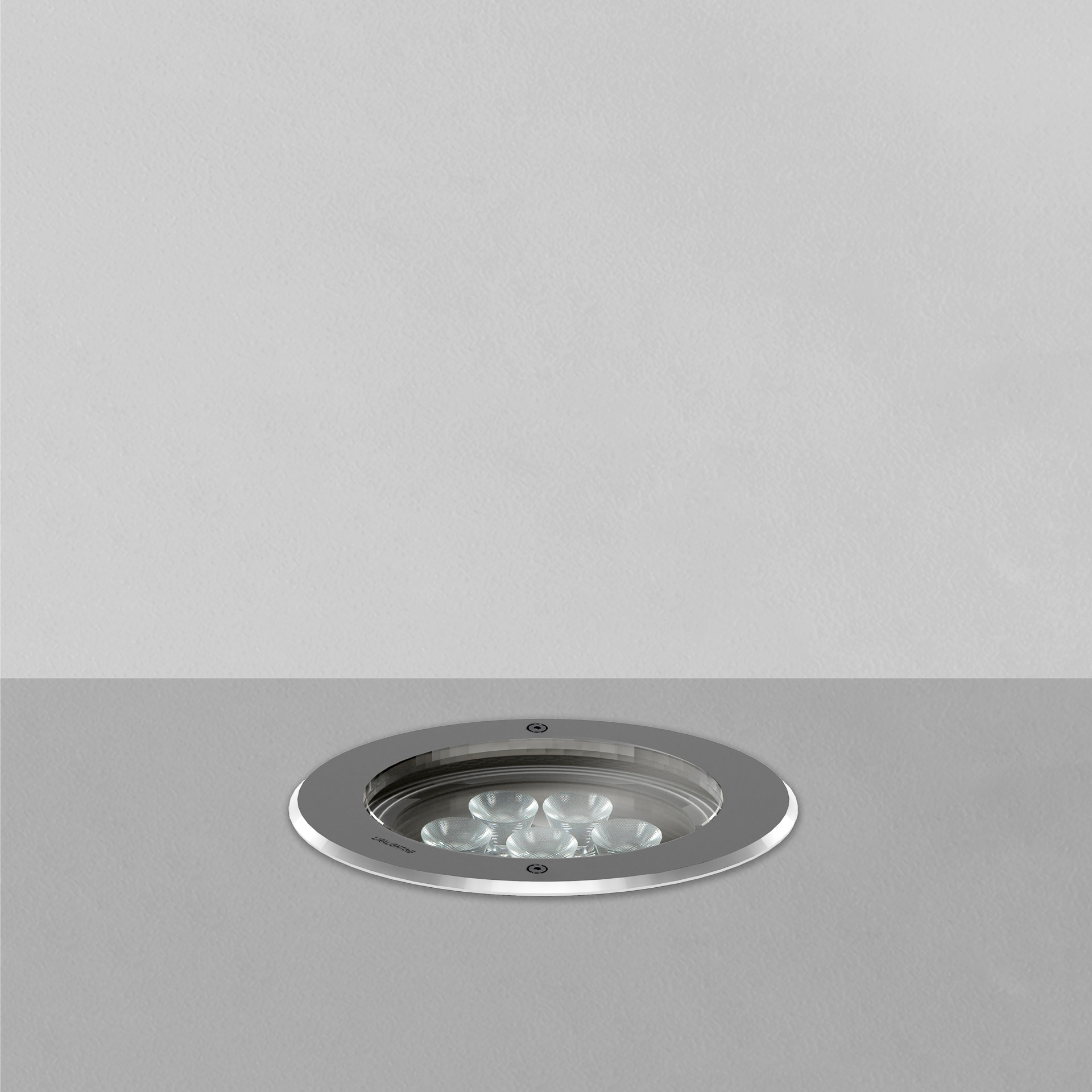

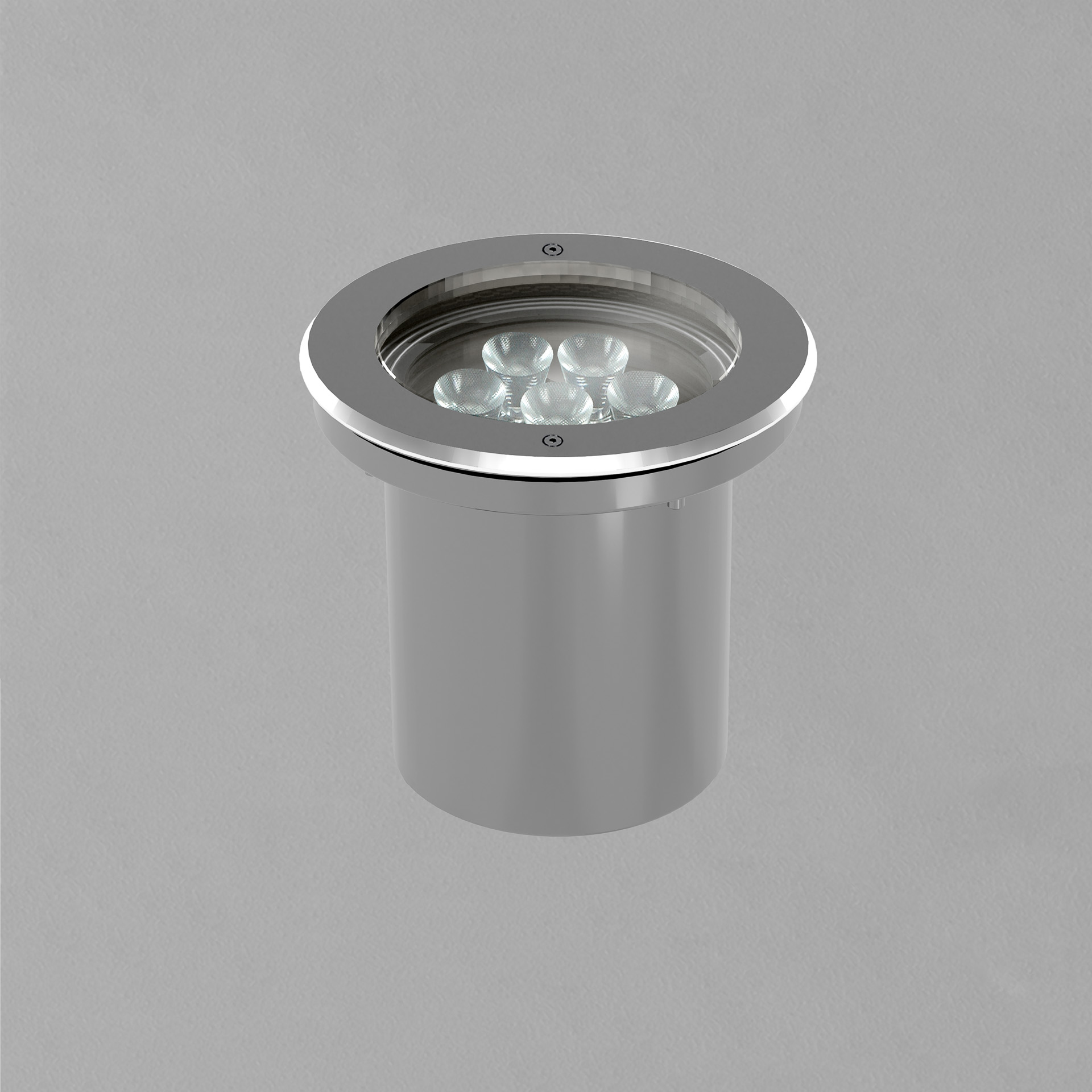

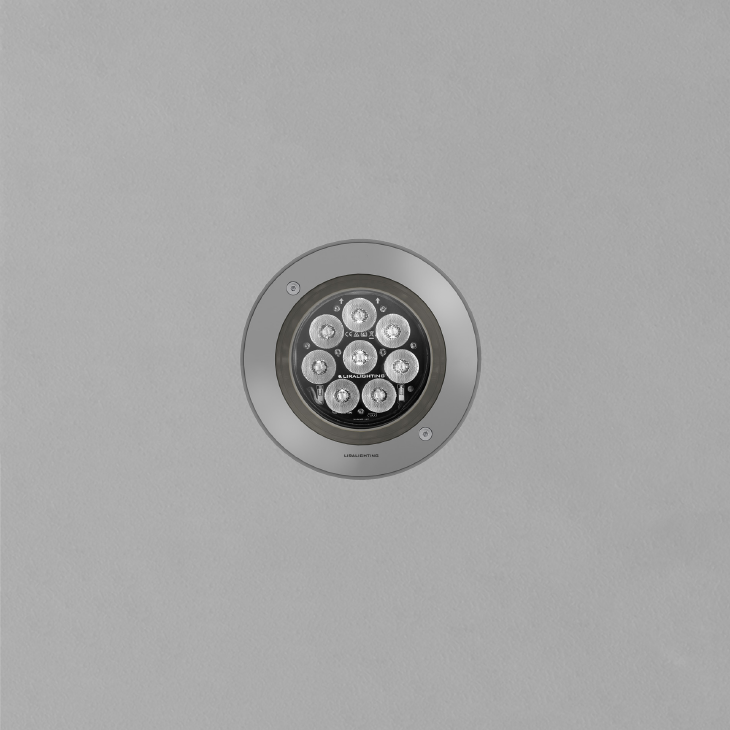

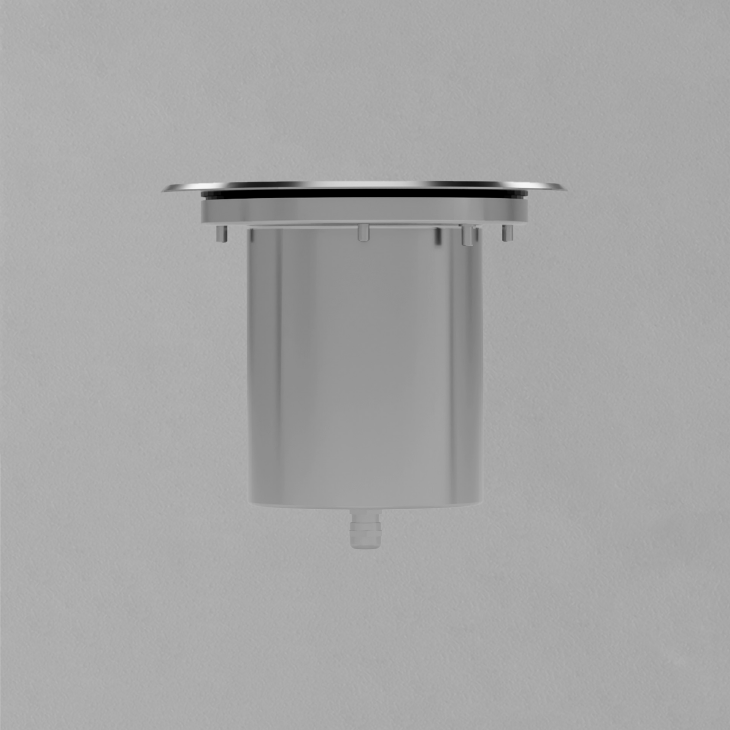

INX 175 In-Ground is a recessed luminaire designed for installation in a dedicated mounting box. Equipped with 8 mm tempered glass, it ensures high resistance to pressure and mechanical damage.
The luminaire is rated for loads of up to 5 tonnes at a speed of 30 km/h, making it suitable for circulation areas and heavily used outdoor environments. With IP67 and IK10 ratings, it provides reliable illumination of façades, trees, and architectural elements in public spaces and pedestrian routes.
E - electronics
0 - on/off
D - DALI
L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
02 – asymmetrical
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Box dimensions |
|---|---|---|---|---|---|
| 9540.02EL | 1376lm | 12W | 115lm/W | 2700K | 300x380x200mm |
| 9540.03EL | 1434lm | 12W | 120lm/W | 3000K | 300x380x200mm |
| 9540.04EL | 1493lm | 12W | 124lm/W | 4000K | 300x380x200mm |
Accessories
