Technical data
General data:
luminaire body:
aluminum
mounting type:
wall mounted
ingress protection IP:
IP20
operating temperature range:
od -20° do +45°
lifetime L80B10:
100 000h
Optical data:
optical system:
transparent diffuser
material:
PMMA
light emmission:
direct
light distribution:
symmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>80 (on request: CRI>90)
tolerance of luminous flux:
+/-10%
colour tolerance:
3SDCM
Electrical data:
nominal voltage:
220-240V
nominal frequency:
50-60Hz
protection class:
I
contains light source:
YES
dimming:
DALI, Casambi
connection:
wire: 3x1,5mm2 , (5x1,5mm2 for DALI)
Product description

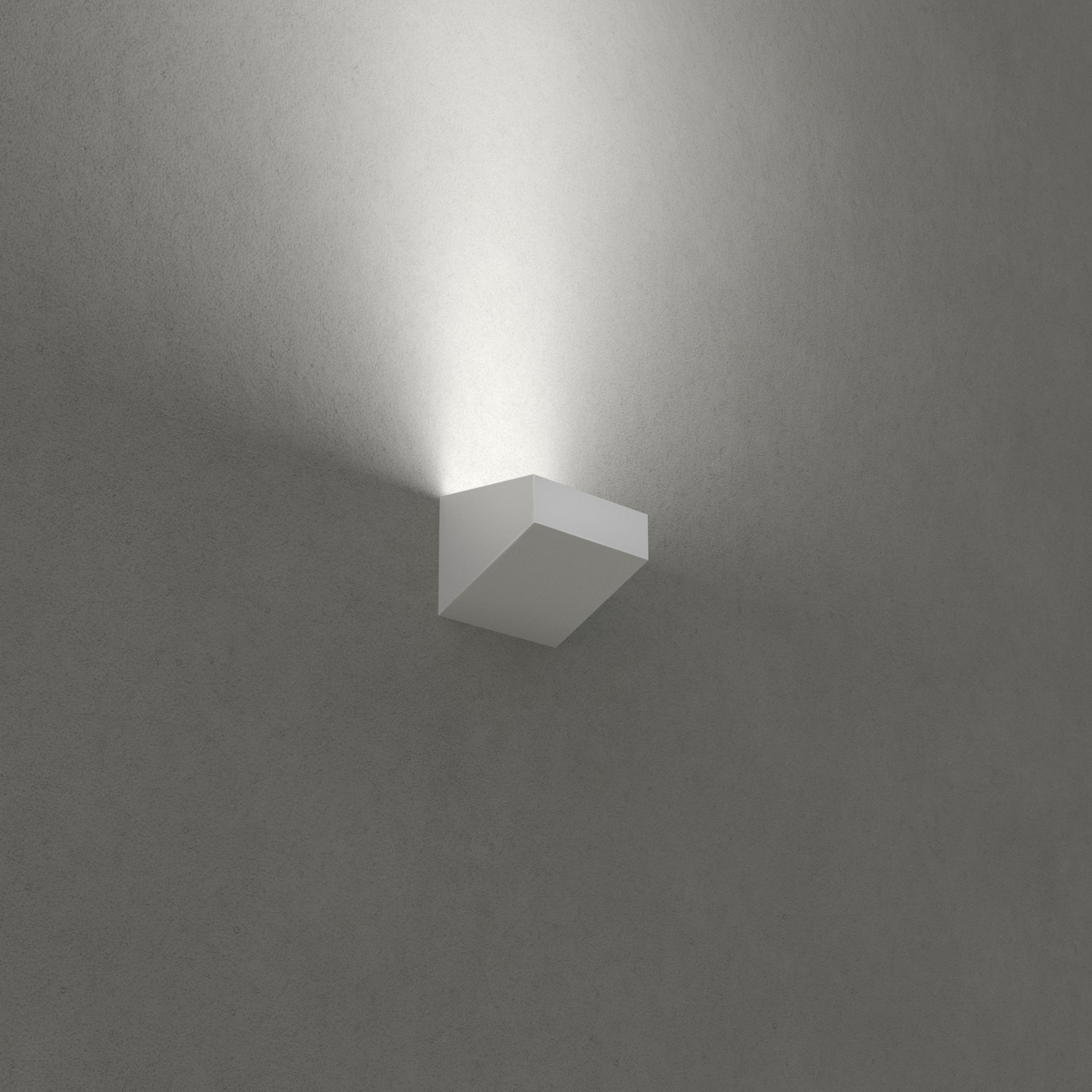

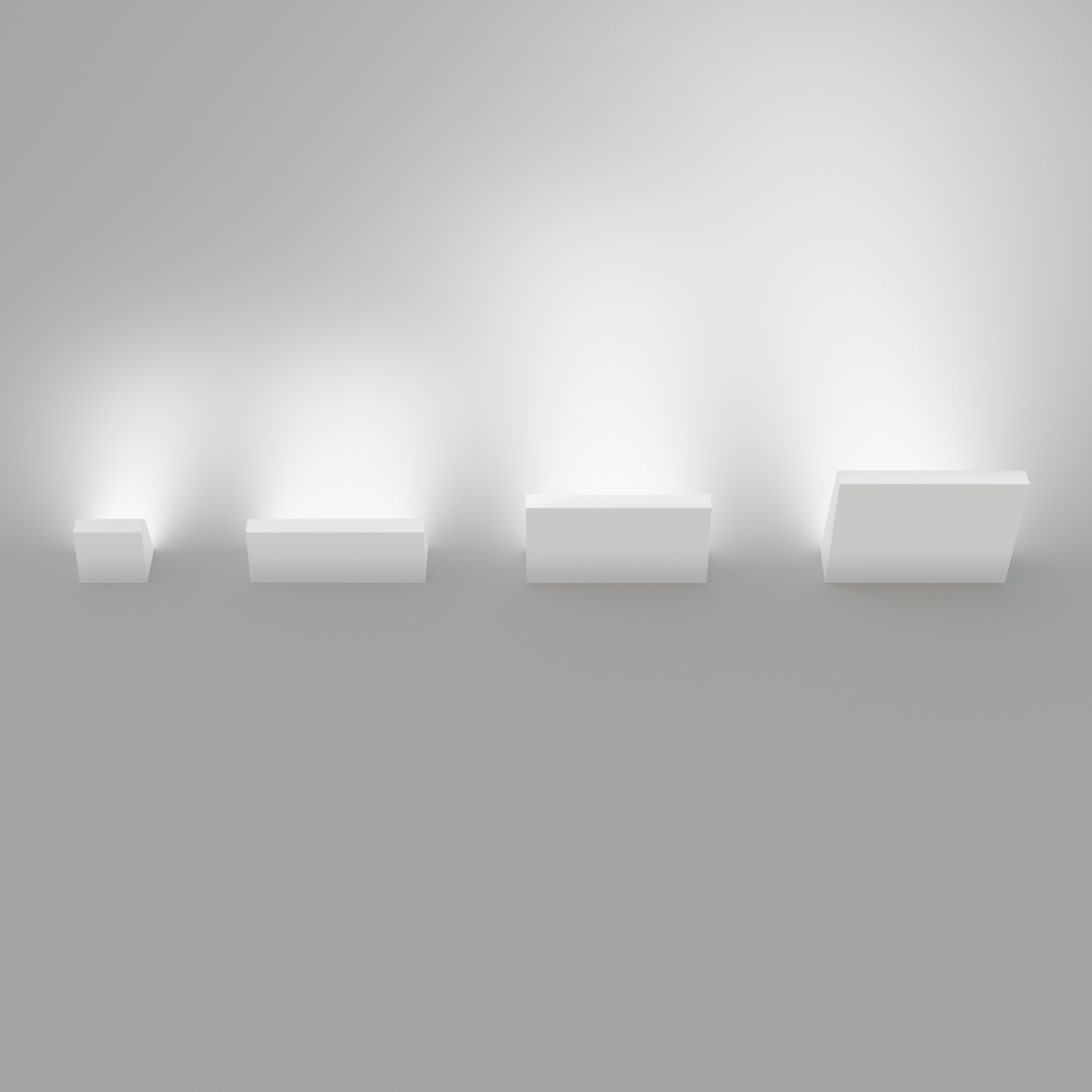

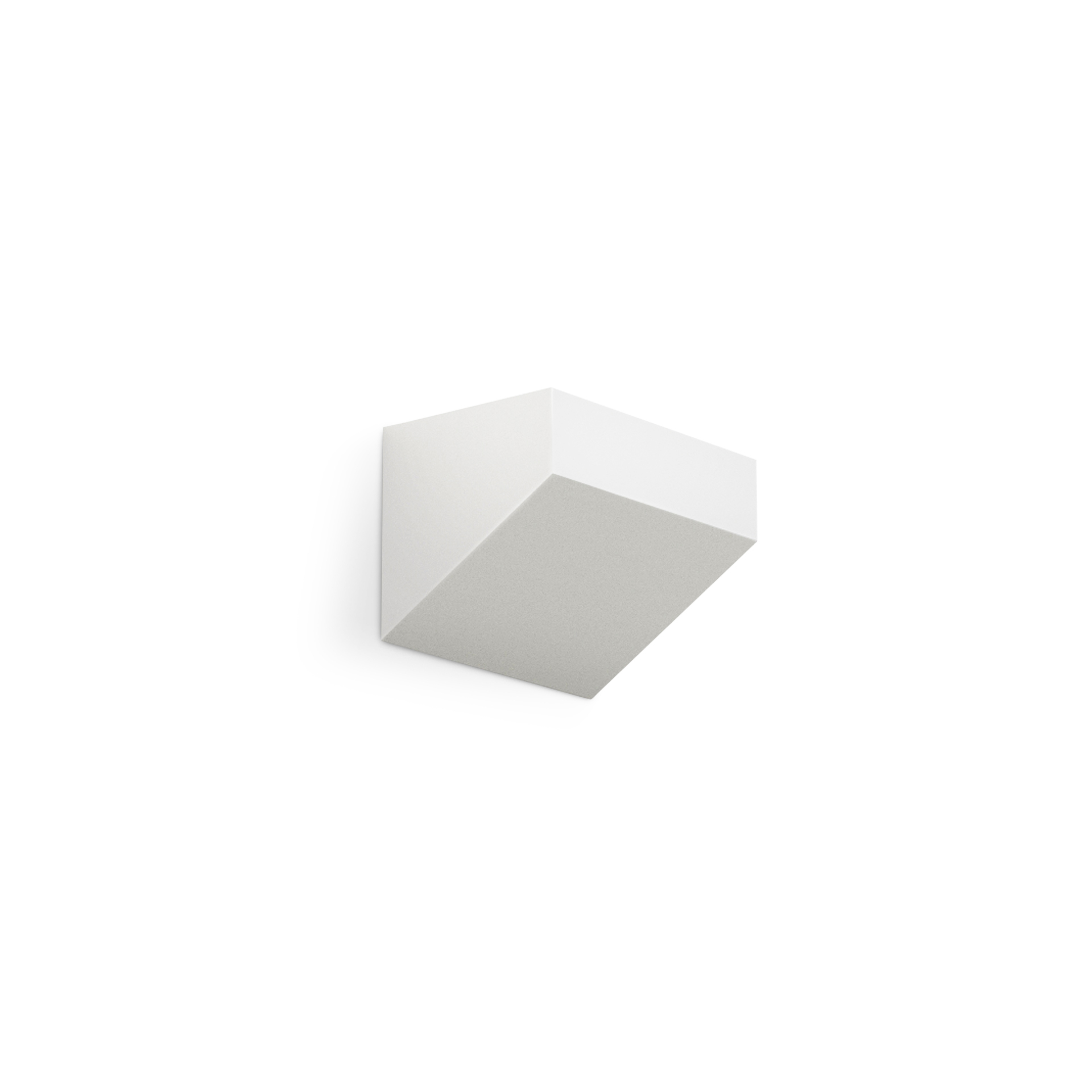

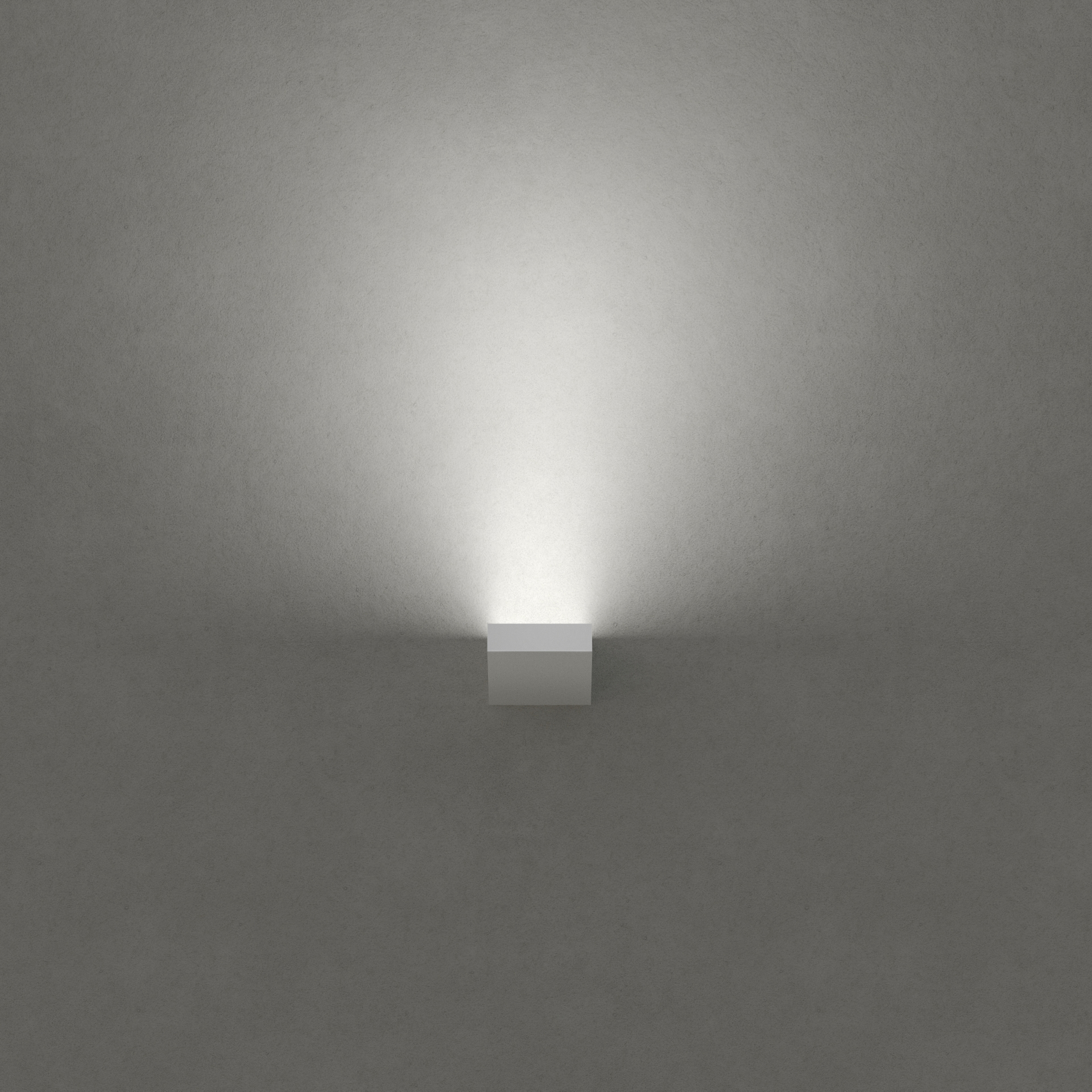

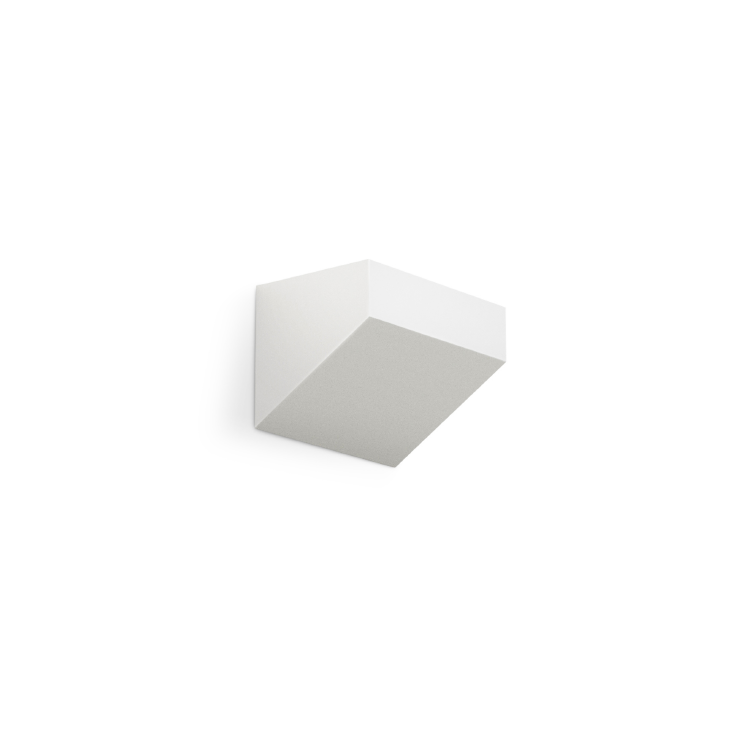

PICO are compact wallwasher luminaires with high luminous efficiency, designed to achieve an indirect lighting effect. With concealed light sources, they provide uniform illumination without glare. Available in three sizes and various power options, they allow precise adaptation to project requirements. Versions with symmetrical light distribution are perfect for highlighting wall, ceiling, and vault surfaces. This solution ensures subtle and modern lighting effects. The luminaires provide functional and efficient illumination.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
C - color
E- electronics
0- On-Off
D- DALI
C-CASAMBI
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature |
|---|---|---|---|---|
| 7027.02EC | 683lm | 6W | 114lm/W | 2700K |
| 7027.03EC | 727lm | 6W | 121lm/W | 3000K |
| 7027.04EC | 774lm | 6W | 129lm/W | 4000K |
| 7028.02EC | 1667lm | 12W | 139lm/W | 2700K |
| 7028.03EC | 1773lm | 12W | 148lm/W | 3000K |
| 7028.04EC | 1886lm | 12W | 157lm/W | 4000K |
| 7029.02EC | 3206lm | 25W | 128lm/W | 2700K |
| 7029.03EC | 3411lm | 25W | 136lm/W | 3000K |
| 7029.04EC | 3629lm | 25W | 145lm/W | 4000K |
