Technical data

General data:

Luminaire body:
stainless steel 1.4301, electropolished
Mounting type :
recessed
Ingress protection IP:
67
Operating temperature range :
from -40° to +45°
Lifetime L80B10:
100 000h
Impact protection IK :
10

Electrical data:

Nominal voltage :
220-240V AC
Nominal frequency :
50-60Hz
Protection class :
I
Connection :
wire 3x1,5mm², (5x1,5mm² for DALI)
Wiring :
standard
Connection wire :
0,5m
Dimming :
ON-OFF, DALI
Power supply :
inside the luminaire

Optical data:

Optical system :
lens
Material :
PMMA
Aperture:
12mm tempered glass
Light emission :
direct
Light distribution :
symmetrical

Lighting data:

Light source :
LED
Colour temperature :
2700K, 3000K, 4000K(on request: 6500K, amber, red, blue, green)
Colour rendering index :
CRI>80 (on request: CRI>90)
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%

Product description

Luminaires from the INX series are designed for operation in the most demanding outdoor environments. Made of electropolished stainless steel 1.4301, they provide maximum resistance to corrosion and salinity, weather conditions, and mechanical damage, while offering a refined, high-quality surface finish. Electropolishing not only enhances the aesthetic of the luminaires but also increases the material’s resistance to dirt and aggressive environmental conditions.

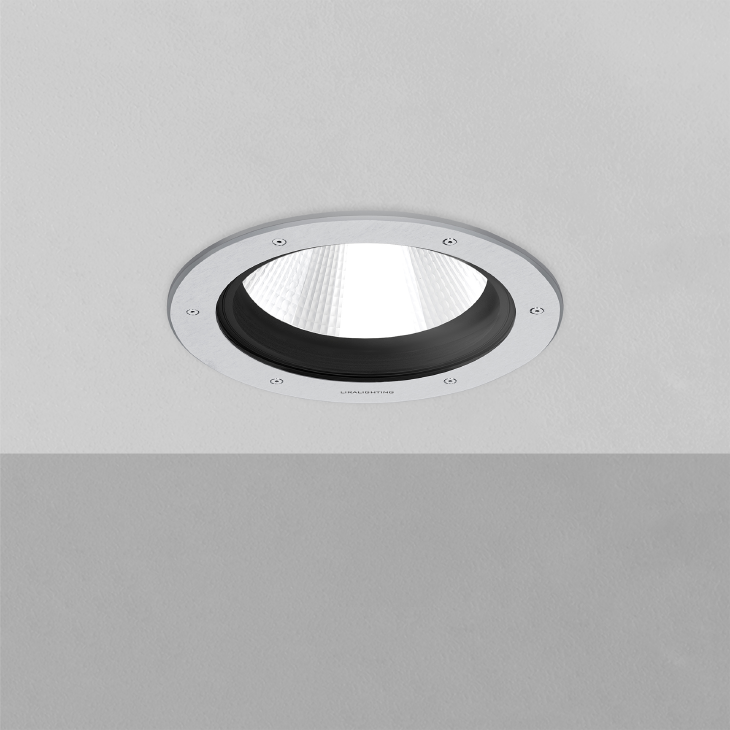

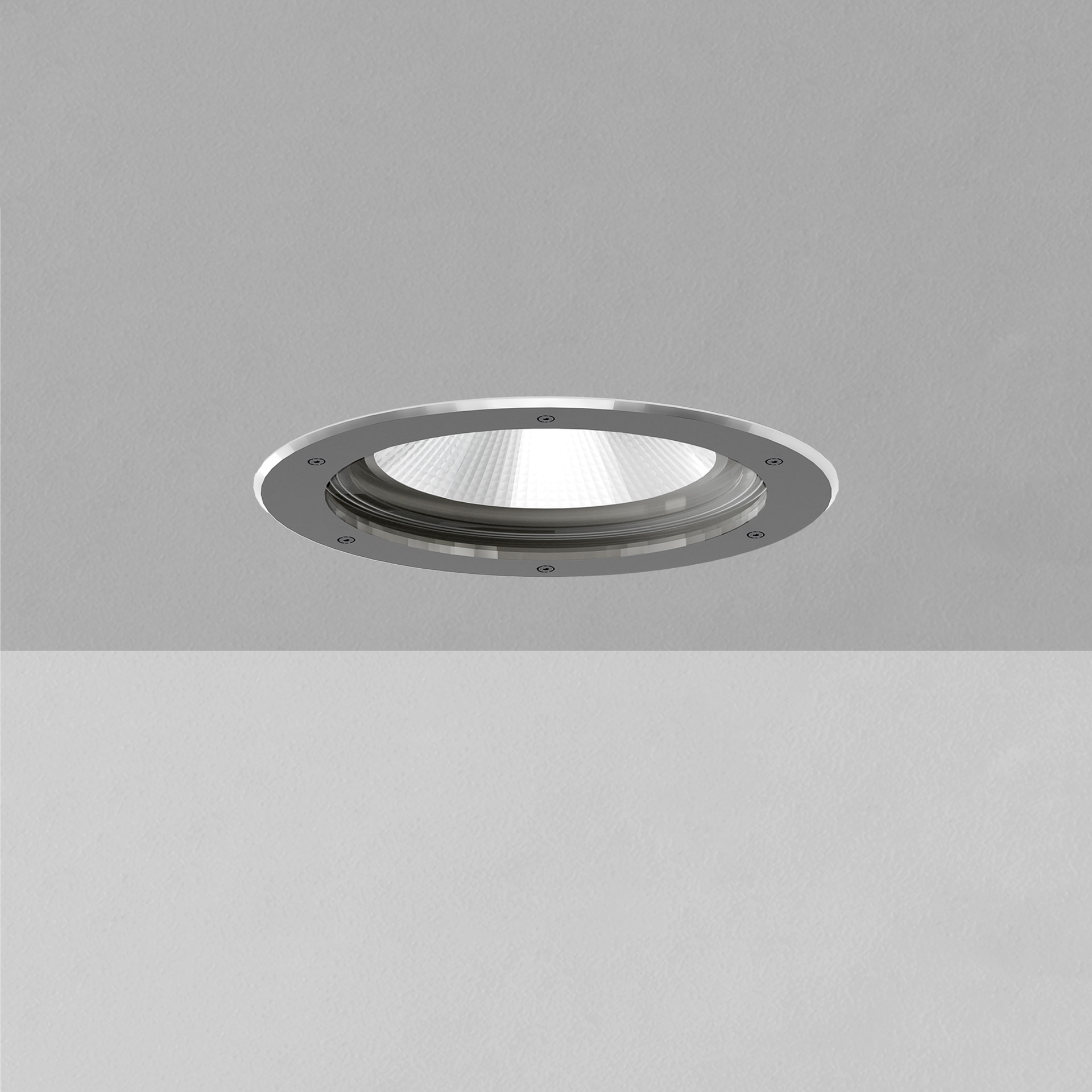

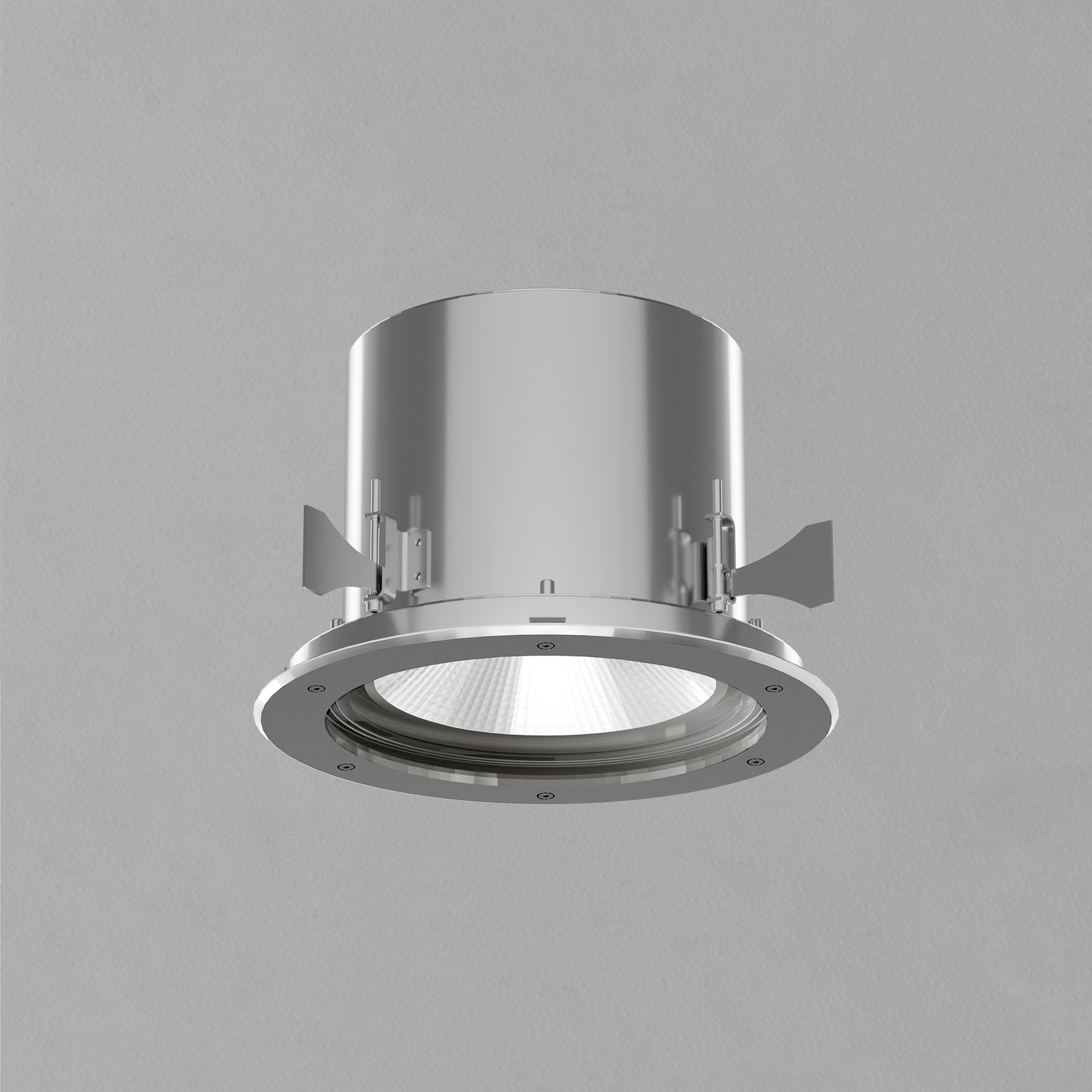

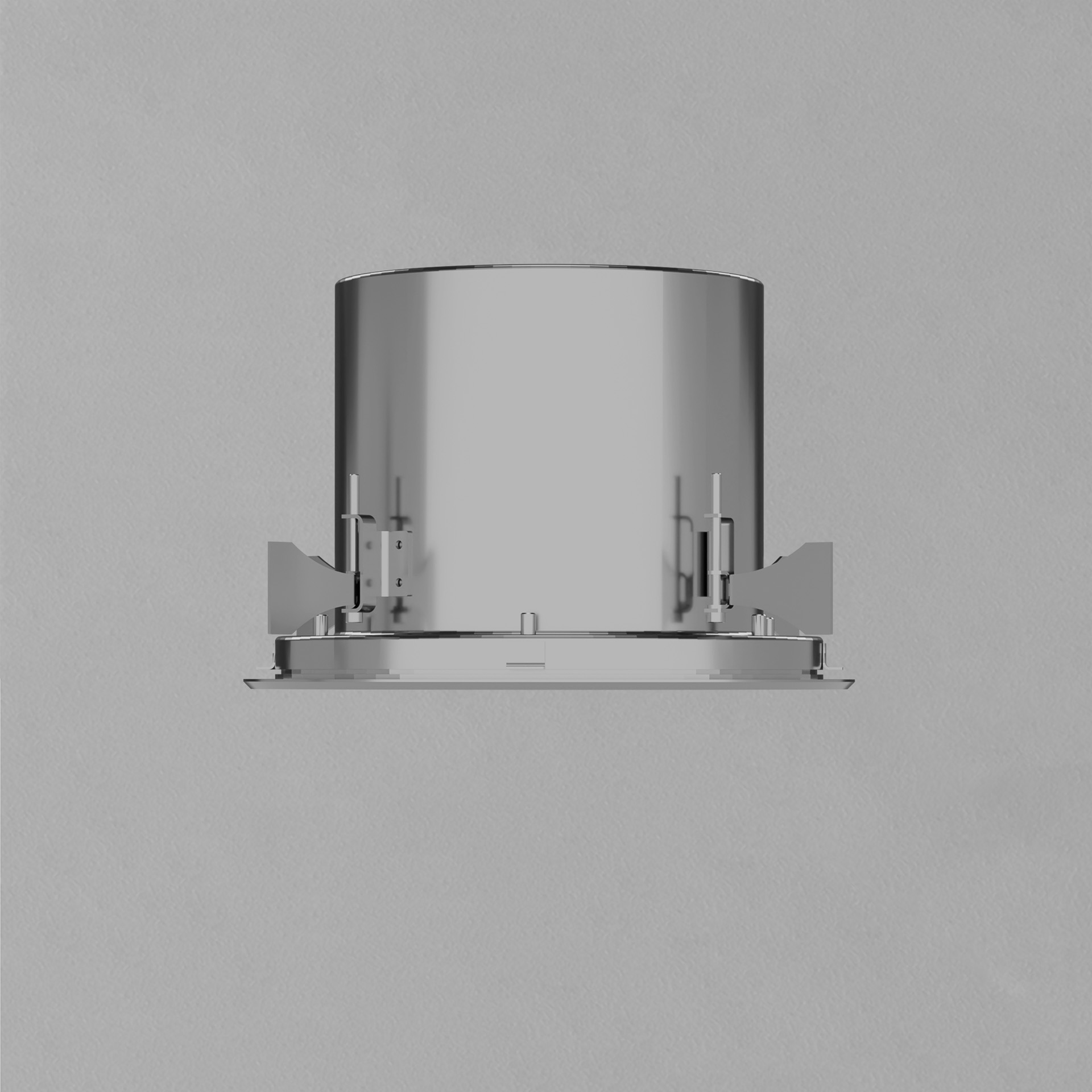

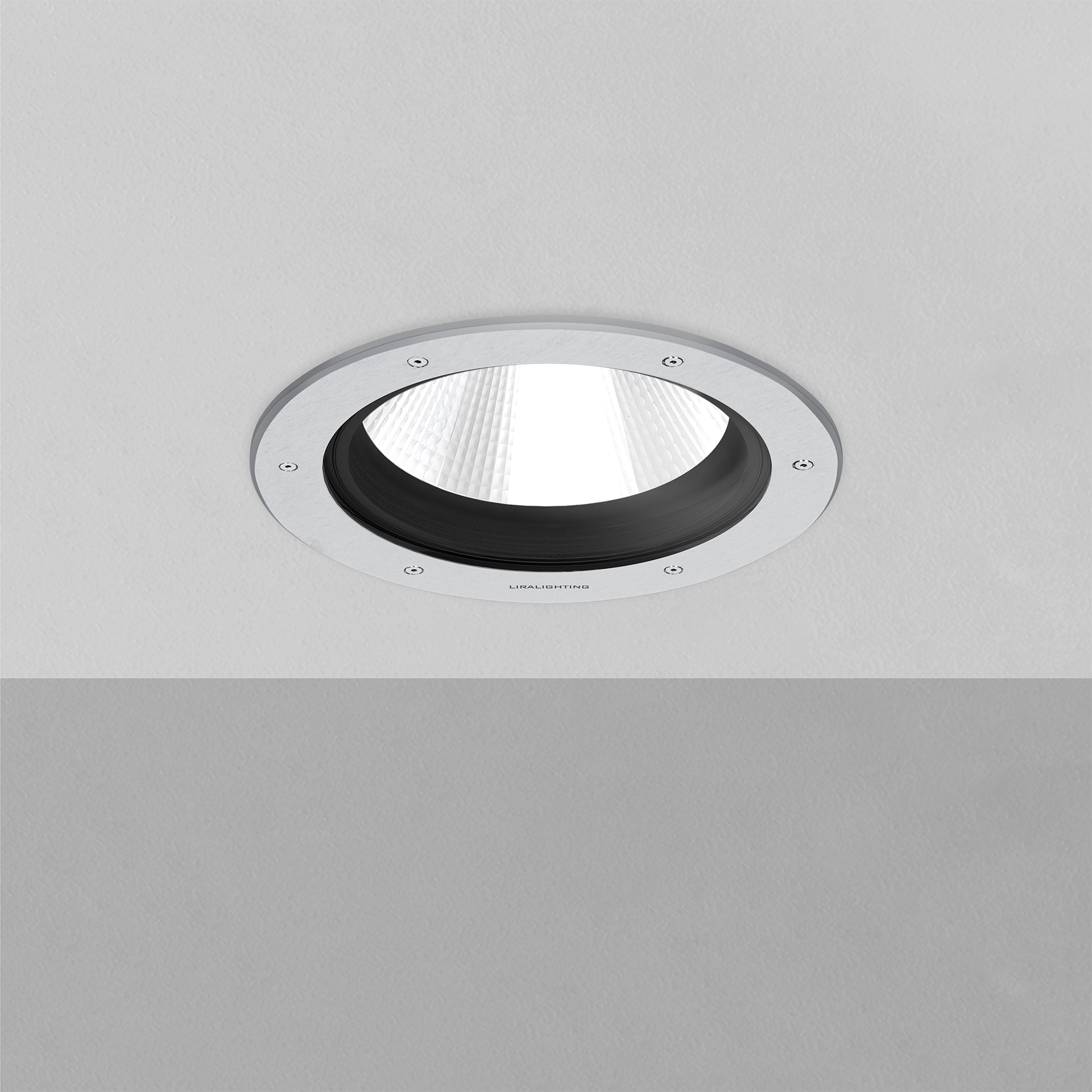

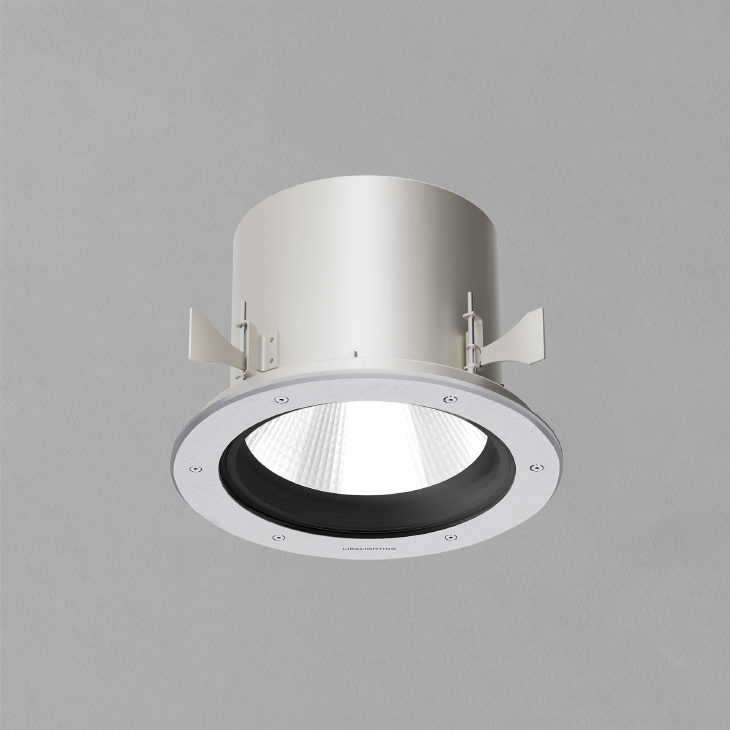

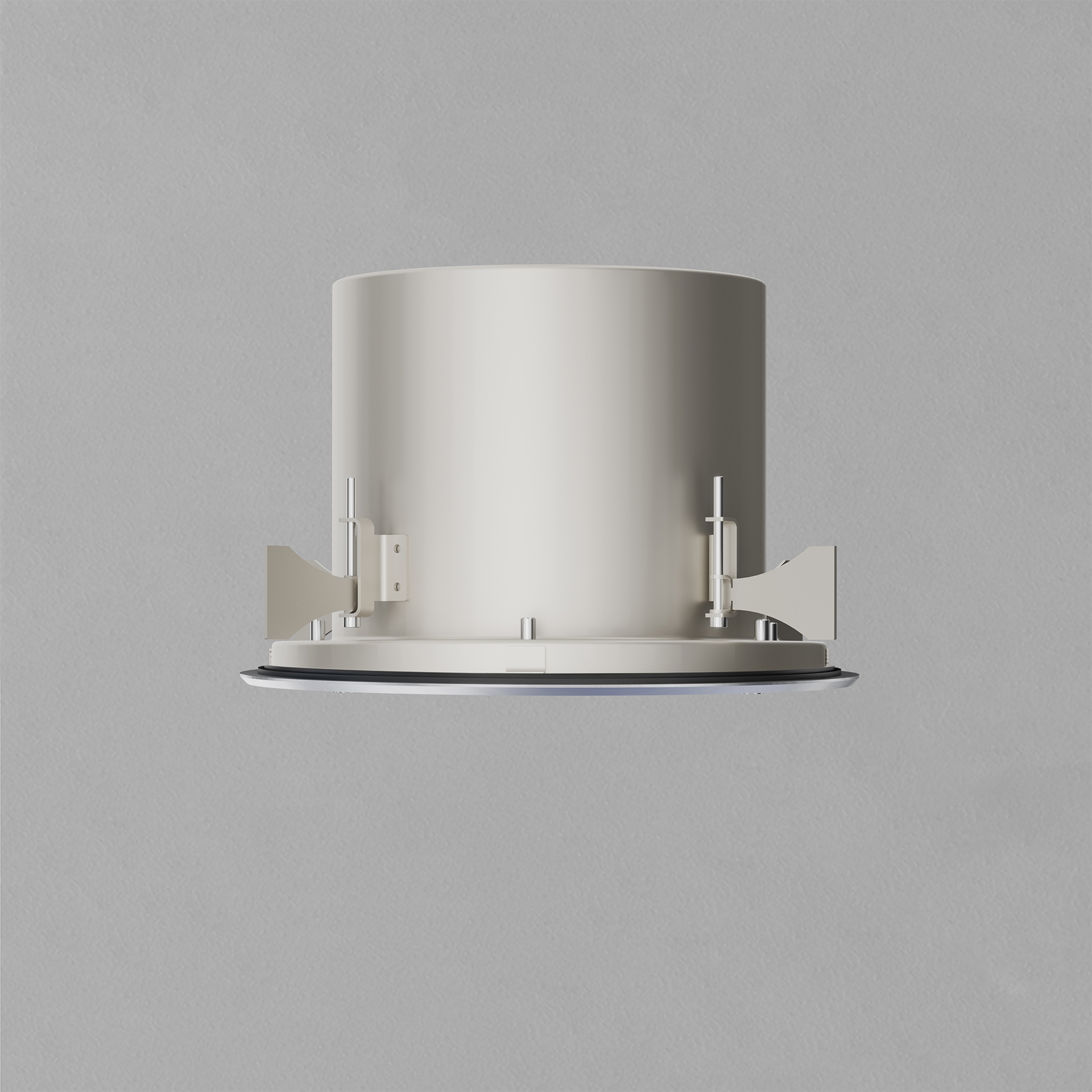

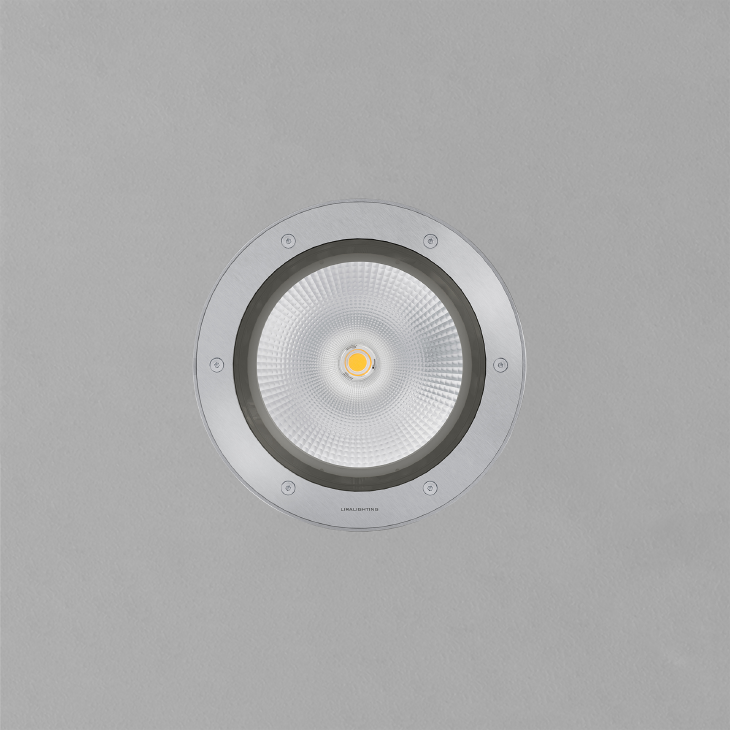

INX 225 sownlight is a recessed outdoor spotlight that provides precise, downward-directed light. The ability to select appropriate optics allows for accurate tailoring of the light’s character and distribution to the specific requirements of each project. It blends perfectly with modern architecture, offering durable and aesthetically pleasing illumination for façades and outdoor spaces. Equipped with 8 mm thick tempered glass, it delivers high resistance to pressure and mechanical damage. With IP67 ingress protection and IK10 impact resistance, the luminaire can be safely installed along pedestrian routes and in public spaces, ensuring reliable lighting of façades, greenery, and architectural elements even under intensive use.

E - electronics
0 - on/off
D - DALI



L - beam angle
60 - 60°



C - colour

Catalogue code Luminaire light flux Power Effectiveness Color temperature Box dimensions
9549.02ELC 3602lm 25W 156lm/W 2700K 300x380x200mm
9549.03ELC 3753lm 25W 156lm/W 3000K 300x380x200mm
9549.04ELC 3909lm 25W 156lm/W 4000K 300x380x200mm

Accessories

connector IP68 3-pole
catalogue code 124.00
connector IP68 5-pole
catalogue code 125.00

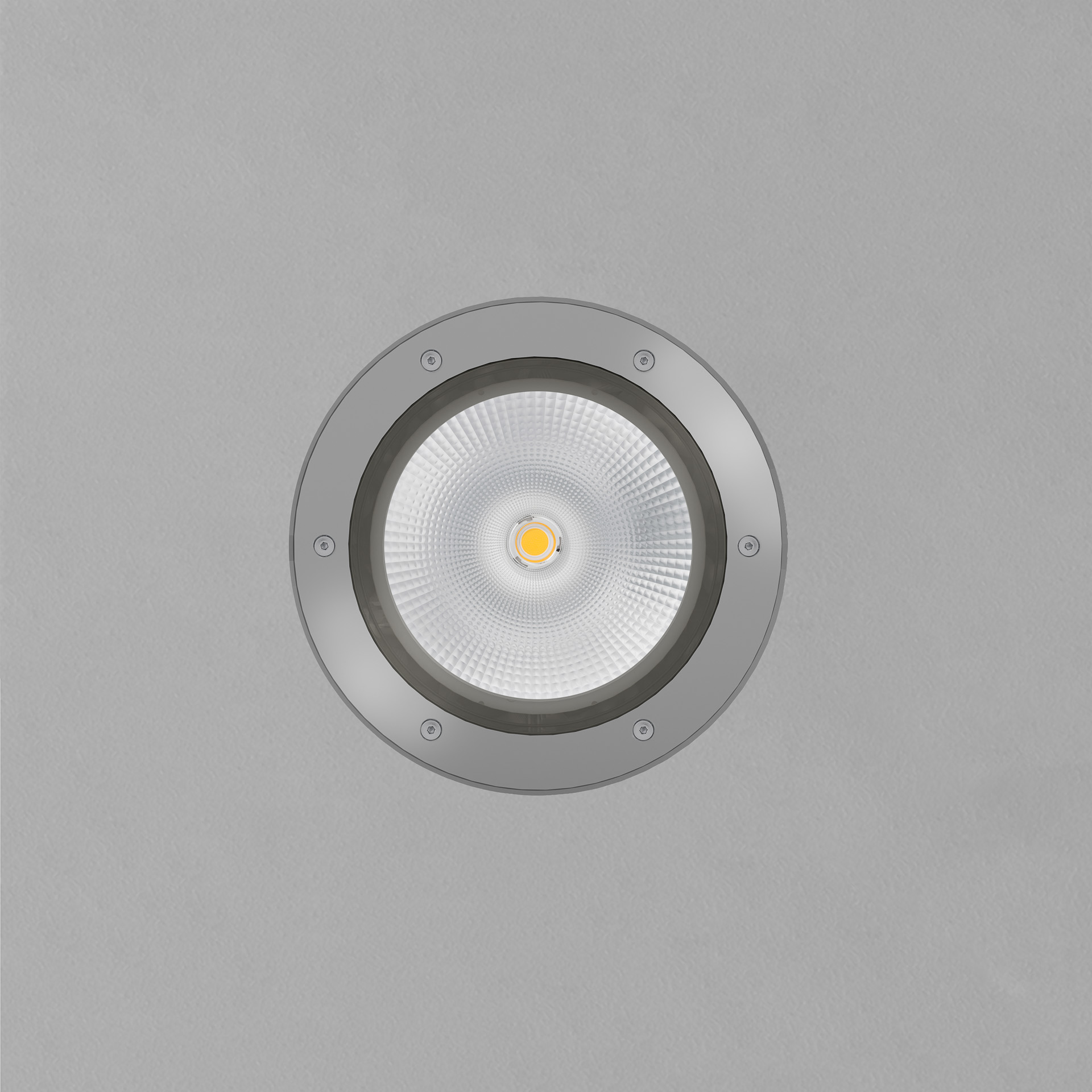

honeycomb (anti-glare)
catalogue code 90.06
