Pixy Mix 737W

Technical data

General data:

Mounting type:

recessed

Luminaire body:

aluminum

Operating temperature range:

from -20° to +35°

Lifetime L80B10:

100 000h

Ingress protection IP:

IP20

Optical data:

Contains light source:

yes

Protection class:

III

Optics:

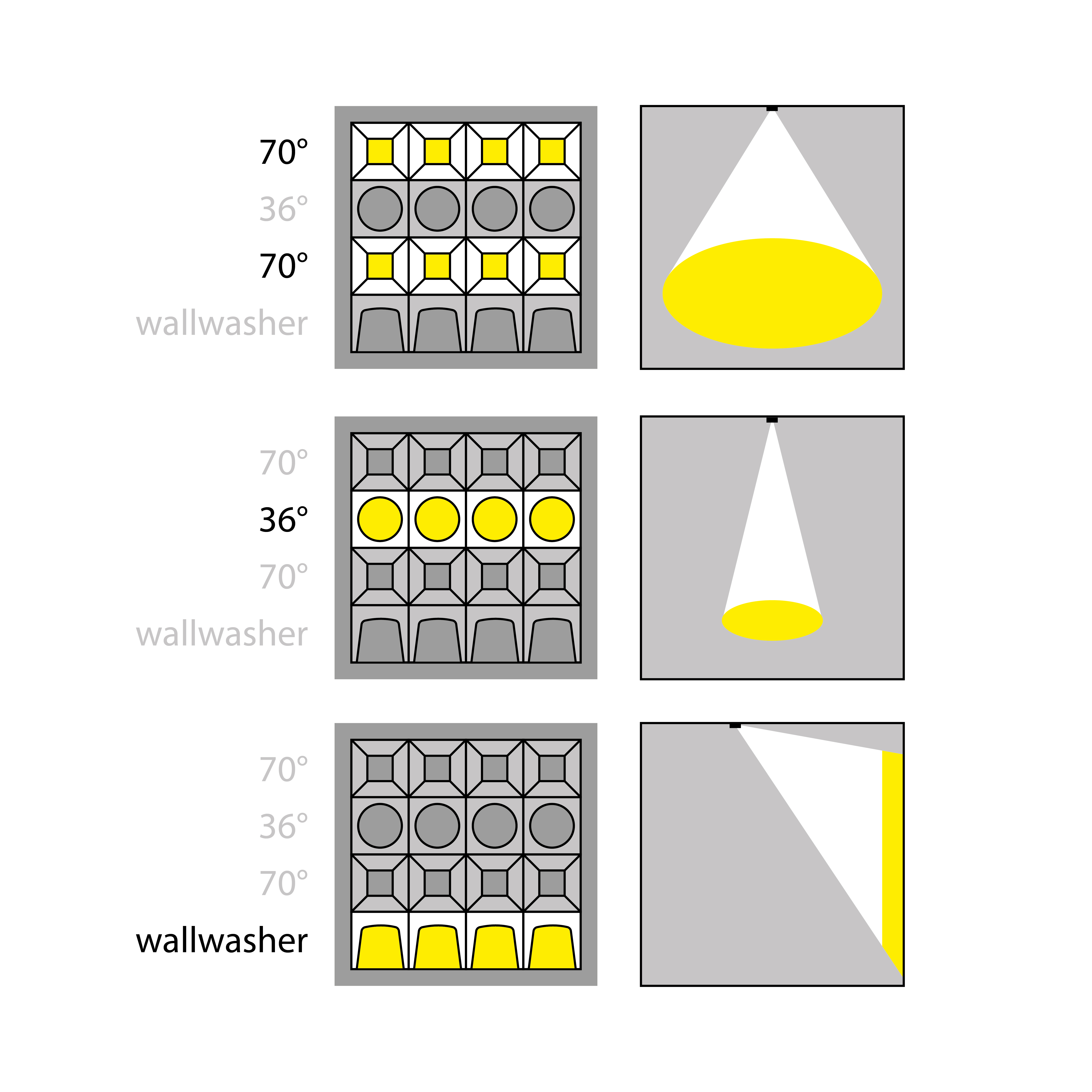

70° / 36° / 70° / wallwasher

Lighting :

Colour rendering index:

CRI≥80 (on request: CRI≥90)

Type of source:

LED

Tolerance of luminous flux:

SDCM<3

Electrical data:

Nominal frequency:

48V DC

Nominal voltage:

Dimming:

DALI, Casambi

Downloads

Product data sheet LDT files Declaration of conformity Assembly, use and maintenance instructions

Product description

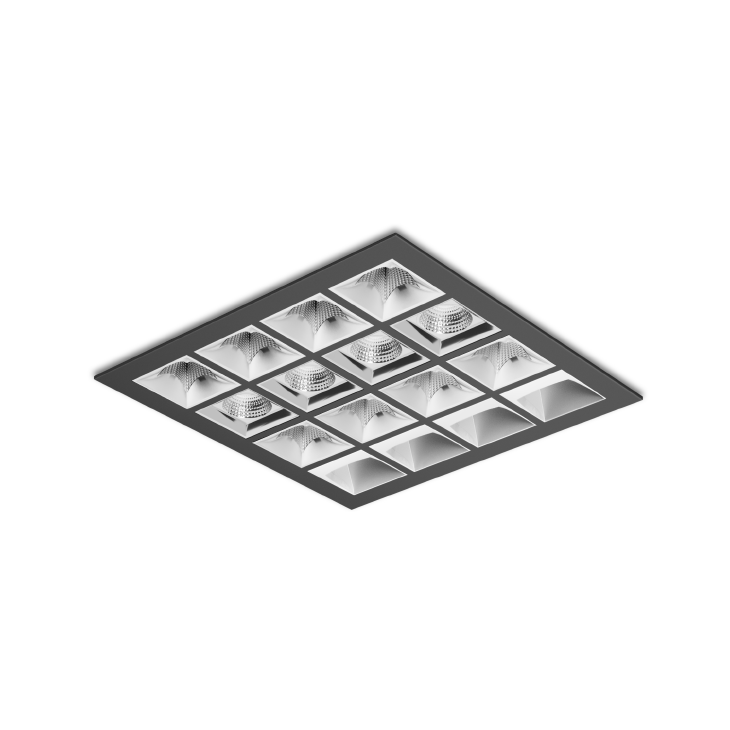

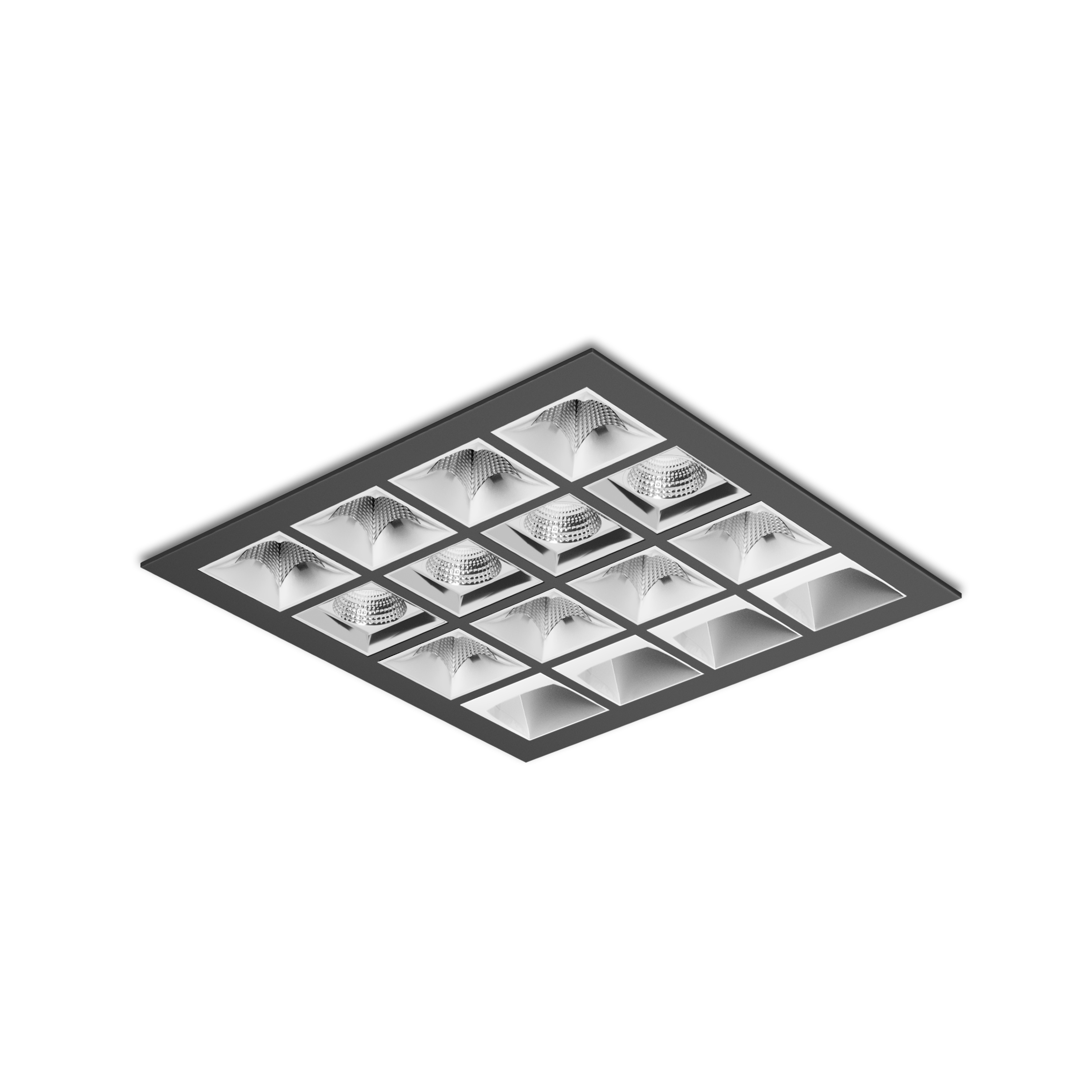

PIXY MIX is a family of recessed luminaires created for demanding architectural and lighting projects.

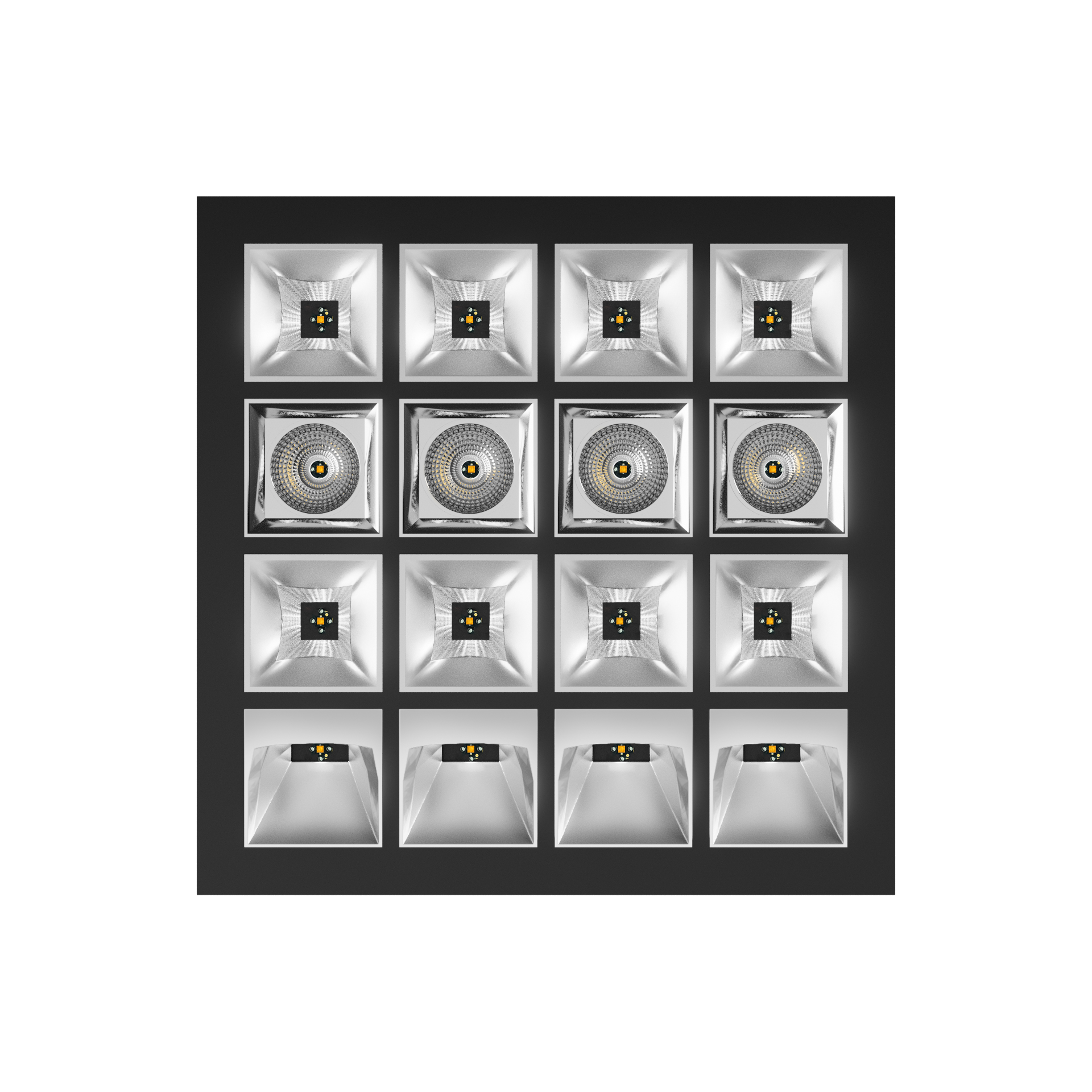

• PIXY MIX offers the possibility of individual optical configuration within a single luminaire — allowing it to be perfectly tailored to the character of the interior.
• The luminaires are equipped with an optical system refined for precise light characteristics — either symmetrical or asymmetrical — ensuring perfect control over the light distribution.
• Compatibility with DALI-2 and Casambi control systems allows for easy integration into smart lighting installations.
• The PIXY MIX mounting system is designed for practicality: spring clips and tool-free installation enable quick and easy fitting in suspended ceilings.
• PIXY MIX performs perfectly in commercial spaces, offices, galleries, retail environments, hotels, as well as exhibition areas and conference rooms — anywhere aesthetics, visual comfort, and flexibility matter.
