Technical data
General data:
Optical data:
Lighting data:
Electrical data:
Downloads
Product description

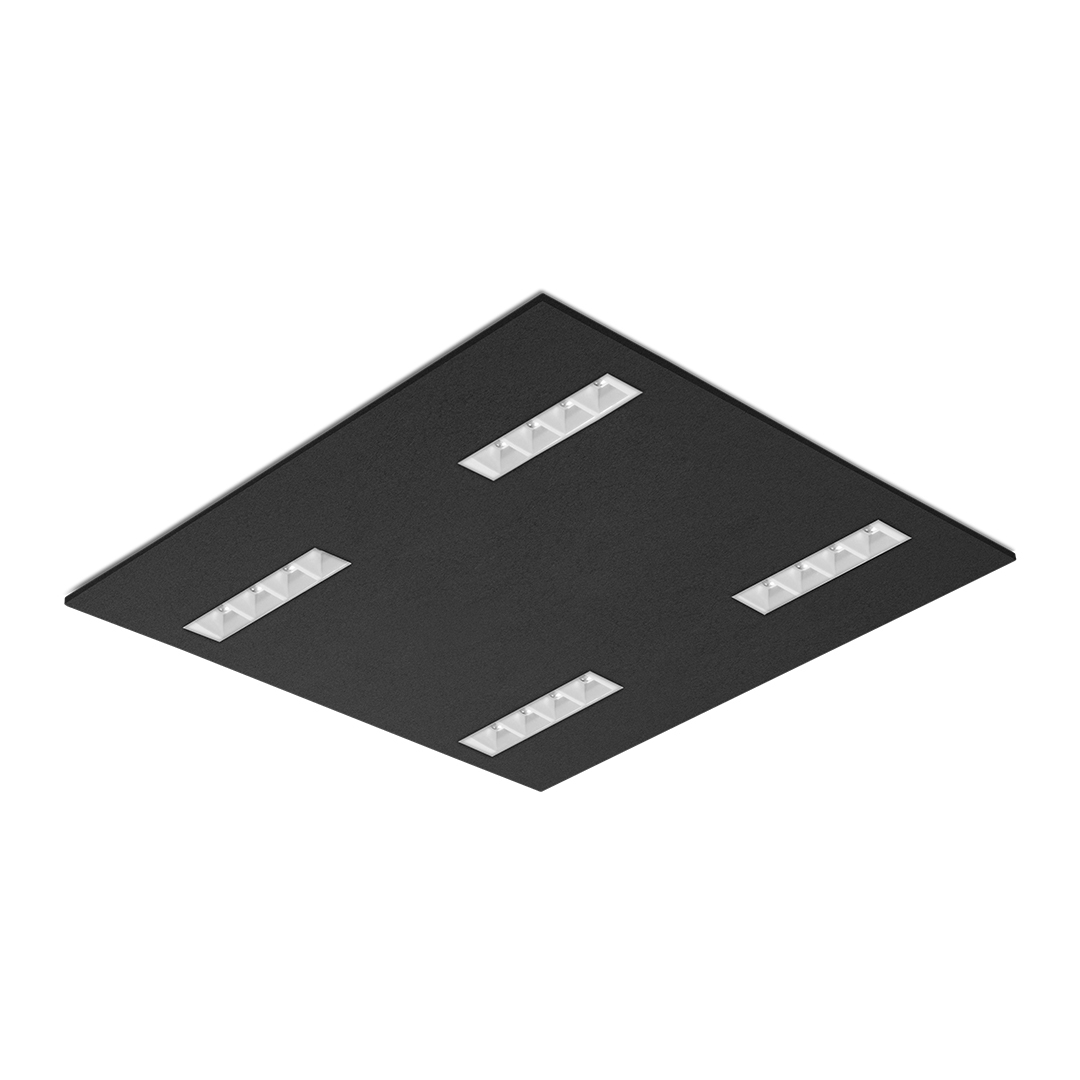

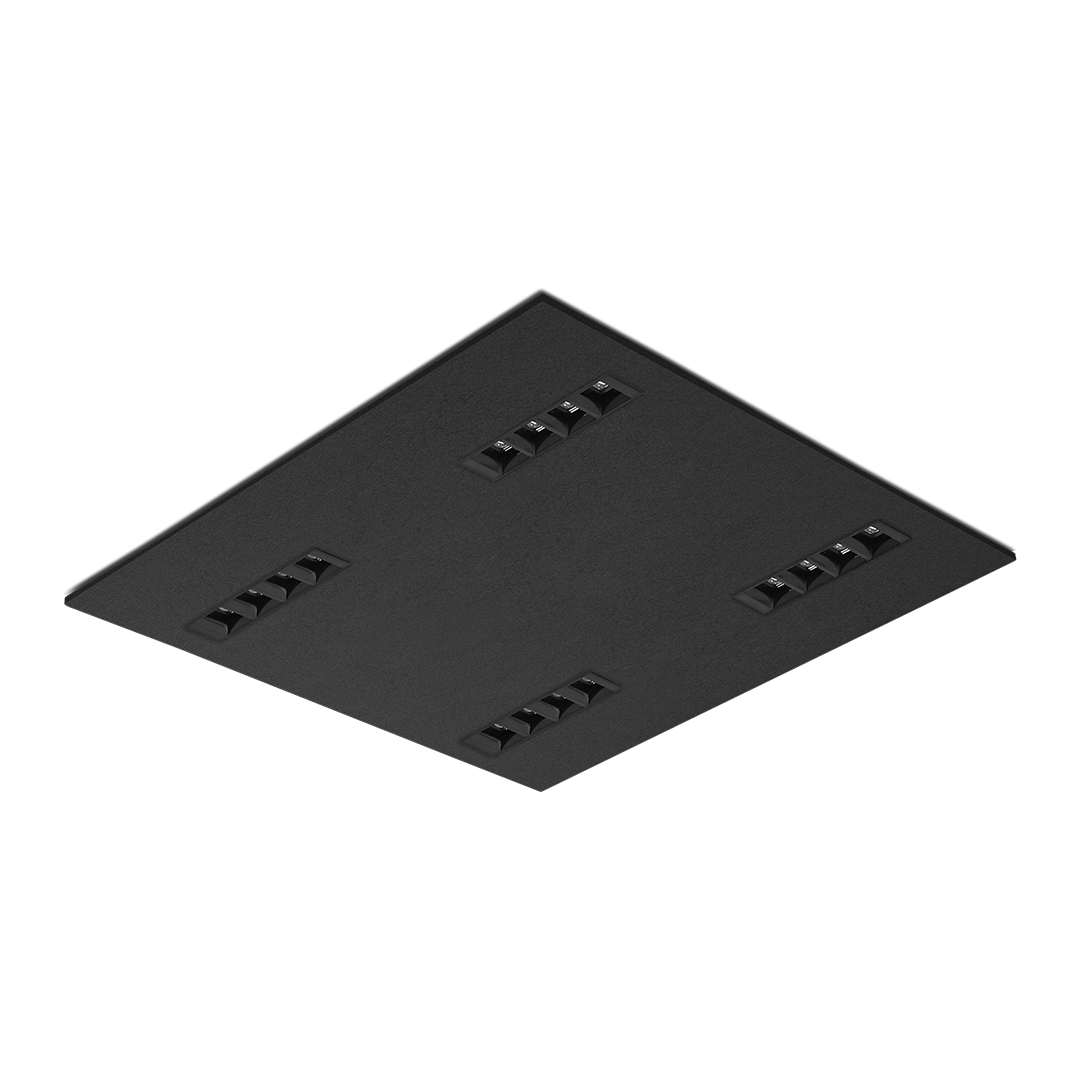

The ML luminaire is a modern solution that combines excellent lighting performance with acoustic enhancement capabilities. It features a lightweight construction and offers quick and easy installation. The housing is made from durable steel sheet, and the reflector is available in two colors: white and black.
Its optical system ensures high lighting efficiency with a low glare index (UGR<15), promoting visual comfort. Available light color options include 3000K and 4000K with CRI≥80 (CRI≥90 available upon request). Control options include on/off, DALI, and Casambi, with ActiveAhead available on demand.
The use of high-quality acoustic materials enables effective sound absorption, echo reduction, and noise control.
This luminaire is an ideal solution for offices, conference rooms, and lecture halls—environments where both lighting quality and acoustics are essential. Its elegant design complements modern interior arrangements.
Available product colors
-
greyP1 finish of the material -
dark greyP2 finish of the material -
dark greenP3 finish of the material
C-colour
E- electronics
0- On-Off
D- DALI
C- Casambi
L – lenses
50 – 50°
80 – 80°
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Beam angle | UGR |
|---|---|---|---|---|---|---|
| na zapytanie | 1676lm | 14W | 3000K | ≥80 | black reflector | <15 |
| na zapytanie | 1783lm | 14W | 4000K | ≥80 | black reflector | <15 |
| na zapytanie | 1783lm | 14W | 3000K | ≥80 | white reflector | <16 |
| na zapytanie | 1897lm | 14W | 4000K | ≥80 | white reflector | <16 |
| na zapytanie | 2347lm | 18W | 3000K | ≥80 | black reflector | <16 |
| na zapytanie | 2497lm | 18W | 4000K | ≥80 | black reflector | <16 |
| na zapytanie | 2497lm | 18W | 3000K | ≥80 | white reflector | <17 |
| na zapytanie | 2656lm | 18W | 4000K | ≥80 | white reflector | <17 |
