Technical data
General data:
Luminaire body:
aluminum
Mounting type:
on an adjustable holder, to the ground
Ingress protection IP:
66
Operating temperature range:
from -40° to +45°
Lifetime L80B10 :
100 000h
Impact protection IK:
07
Electrical data:
Nominal voltage:
220-240V AC; 24V DC
Nominal frequency:
50-60Hz; DC
Luminaire nominal power:
2W, 3W
Protection class:
I, III
Connection:
wire 3x1mm2
Wiring:
through, standard
Connection wire:
0,5m
Dimming:
ON- OFF
Power supply:
inside the luminaire
Optical data:
Optical system:
lens
Material:
PC
Light emission:
direct
Light distribution:
symmetrical
Lighting data:
Light source:
LED
Luminous flux from luminaire 2W, 3W:
153 lm, 306 lm
Luminous efficacy from luminaire 2W, 3W:
146 lm/W
Colour temperature:
2700K, 3000K, 4000K (option: 6500K)
Colour rendering index:
CRI>80 (options: CRI>90)
Colour tolerance SDCM:
SDCM<3
Tolerance of luminous flux:
+/-10%
Product description

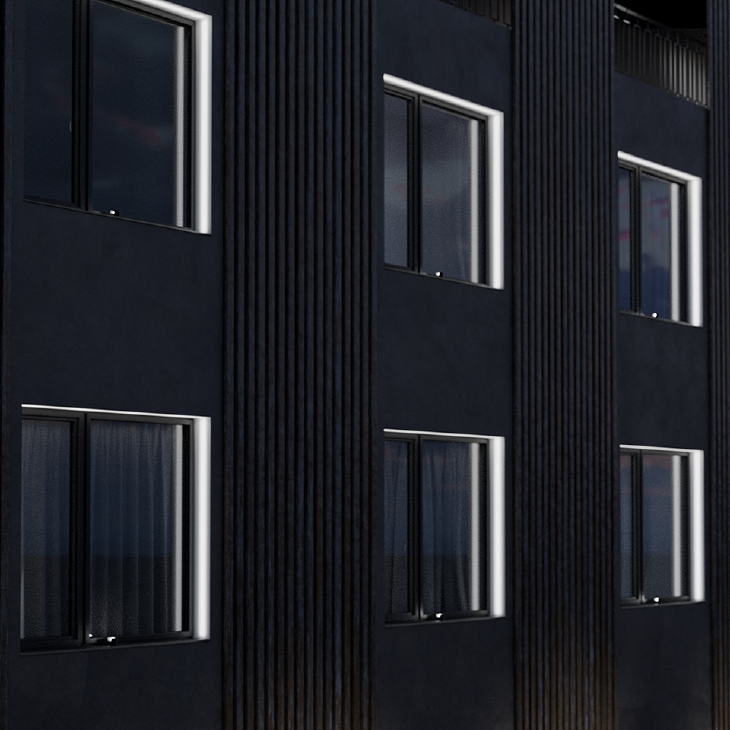

UFO is an outdoor luminaire with specialized optics designed to illuminate window recesses and facade elements. The luminaire distribute the light around the recess, creating a beautiful effect, giving lighting and decoration at the same time. The high protection class IP66 gives the luminaire high resistance to bad weather conditions, moisture and dust. Thanks to the adjustable handle, it is possible to precisely adjust the direction of the light beam.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
L- beam angle
31- 165°x3°
W - wiring
T - through
S - standard
C - colour
E- electronics
0- On-Off
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Dimensions | Box dimensions |
|---|---|---|---|---|---|---|---|
| 9182.02ELCW | 134lm | 2W | 2700K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9182.03ELCW | 144lm | 2W | 3000K | ≥80 | 0,7kg | Ø 90mm, H= | 200x200x200mm |
| 9182.04ELCW | 153lm | 2W | 4000K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.02ELCW | 268lm | 3W | 2700K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.03ELCW | 288lm | 3W | 3000K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.04ELCW | 307lm | 3W | 4000K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.120LCW | 268lm | 3W(24V) | 2700K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.130LCW | 288lm | 3W(24V) | 3000K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
| 9183.140LCW | 307lm | 3W(24V) | 4000K | ≥80 | 0,7kg | Ø 90mm, H=75mm | 200x200x200mm |
Accessories
connector IP68 3-pole
catalogue code 124.00
embranchment IP67
catalogue code 90.10
