Technical data
General data:
Luminaire body:
aluminium
Mounting type :
surface mounted
Operating temperature range :
from -20˚C to +40˚C
Lifetime L80B10:
100 000 h
Ingress protection:
IP 44
Optical data:
Optical system :
microprism
Material :
PMMA
Light emission :
direct
Light distribution :
symmetrical
Lighting data:
Light source :
LED
Colour rendering index :
CRI>90
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%
Electrical data:
Nominal voltage :
220-240V AC
Nominal frequency :
50-60 Hz
Protection :
II
Dimming :
DALI, CASAMBI, on/off
Downloads
Product description

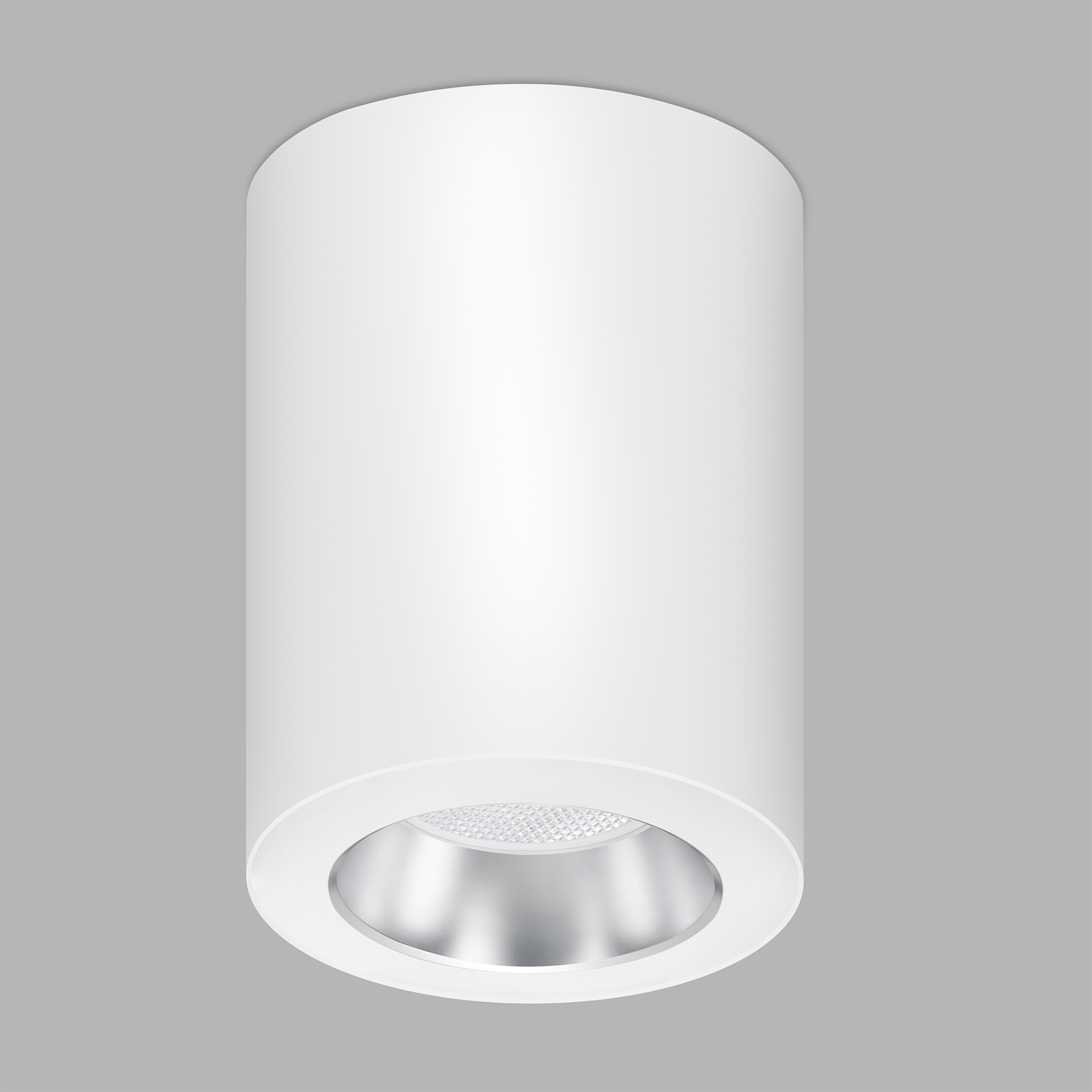

Lux is an effective, versatile downlight. In a harmonious and aesthetic way, they fill a clean space on the ceiling. A specially designed optical system ensures even light distribution without a point effect. Equipping the luminaire with functional apertures increases its light parameters. The luminaires provide luminance control at the UGR<13 level for selected options, which ensures comfortable lighting solutions. Thanks to the above-mentioned factors, the areas of application of luminaires from commercial and service facilities, communication routes, guesthouses and hotels as well as residential apartments have been increased.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
E- electronics
0- on-off
D- DALI
C- CASAMBI
L- beam angle
90 – 90°
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | UGR |
|---|---|---|---|---|---|
| 4094.52EL | 518lm | 7W | 80lm/W | 2700K | <19 |
| 4094.53EL | 540lm | 7W | 80lm/W | 3000K | <19 |
| 4094.54EL | 562lm | 7W | 80lm/W | 4000K | <19 |
| 4095.52EL | 1140lm | 15W | 83lm/W | 2700K | <22 |
| 4095.53EL | 1188lm | 15W | 83lm/W | 3000K | <22 |
| 4095.54EL | 1238lm | 15W | 83lm/W | 4000K | <22 |
| 4096.52EL | 1561lm | 19W | 89lm/W | 2700K | <23 |
| 4096.53EL | 1626lm | 19W | 89lm/W | 3000K | <23 |
| 4096.54EL | 1694lm | 19W | 89lm/W | 4000K | <23 |
