Technical data
General data:
luminaire body:
aluminum
mounting type:
wall mounted
ingress protection IP:
67
operating temperature range:
from -40° to +45°
lifetime L80B10:
100 000h
impact protection IK:
10
Optical data:
optical system:
lens
material:
PMMA
light emmission:
direct
light distribution:
symmetrical, asymmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>70, CRI>80 (options: CRI>90)
tolerance of luminous flux:
+/-10%
colour tolerance:
SDCM<3
colour temperature:
2200K, 2700K, 3000K, 4000K (option: 6500K)
Electrical data:
nominal voltage:
220-240V AC; 24V DC
nominal frequency:
50-60Hz; DC
protection class:
I; III
contains light source:
yes
dimming:
ON-OFF
connection:
wire 3x1mm2: 2x1mm2
wiring:
standard
connection wire:
0,25m
power supply:
inside the luminaire
Product description

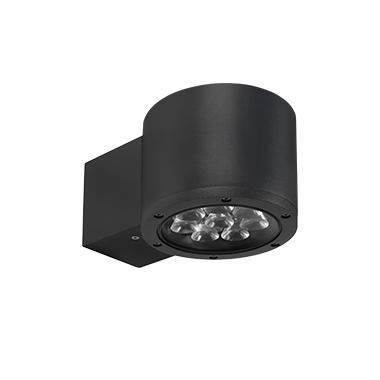

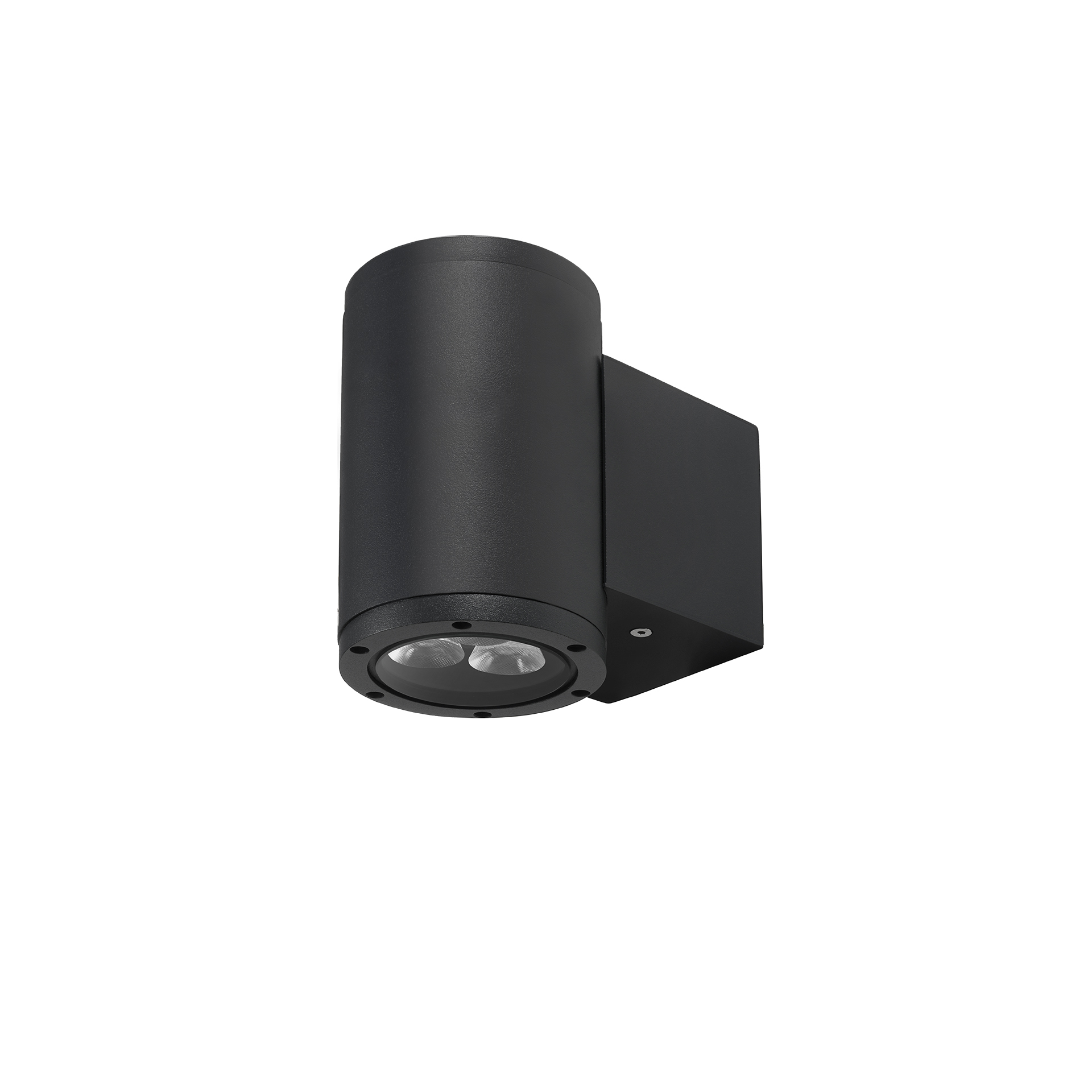

The Bira outdoor wall light is a high-quality façade luminaire available in down and up/down-lighting variants. The series includes models of various sizes, allowing for the selection of the optimal solution for a specific application.
The luminaire offers a wide range of optics enabling precise control of the light beam. Its IP67-rated construction ensures resistance to atmospheric conditions, allowing reliable operation in demanding outdoor environments
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
C- colour
L – beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
41 – 45x10°
8- 8° wall-washing
45- 45° wall-washing
02- asymmetrical
03- street light
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Box dimensions |
|---|---|---|---|---|---|---|
| 9518.020LC | 2x382lm | 7W | 2700K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.030LC | 2x411lm | 7W | 3000K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.040LC | 2x437lm | 7W | 4000K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.120LC | 2x382lm | 7W(24V) | 2700K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.130LC | 2x411lm | 7W(24V) | 3000K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.140LC | 2x437lm | 7W(24V) | 4000K | ≥80 | 1,75kg | 200x200x200mm |
| 9518.010LC | 2x370lm | 7W | 2200K | ≥70 | 1,75kg | 200x200x200mm |
| 9518.110LC | 2x370lm | 7W (24V) | 2200K | ≥70 | 1,75kg | 200x200x200mm |
Accessories
connector IP68 3-pole
catalogue code 124.00
honeycomb (anti-glare)
catalogue code 90.01
