Technical data
General data:
Luminaire body:
aluminum
Mounting type :
on an adjustable holder, to the ground
Ingress protection IP:
67
Operating temperature range :
from -40° to +55°/50°/40°
Lifetime L80B10:
100 000h
Impact protection IK :
10
Electrical data:
Nominal voltage :
max. 450mA/600mA/950mA
Nominal frequency :
DC
Protection class :
I
Connection :
wire 2x1,5mm2
Wiring :
standard
Connection wire :
1m
Dimming :
ON-OFF, DALI, CASAMBI
Power supply :
ordered separately, not included
Optical data:
Optical system :
lens
Material :
PMMA
Aperture:
toughened glass 12mm thick
Light emission :
direct
Light distribution :
symmetrical, asymmetrical
Lighting data:
Light source :
LED
Colour temperature :
2700K, 3000K, 4000K (options: 6500K, amber, red, blue, green)
Colour rendering index :
CRI>80 (options: CRI>90)
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%
Product description

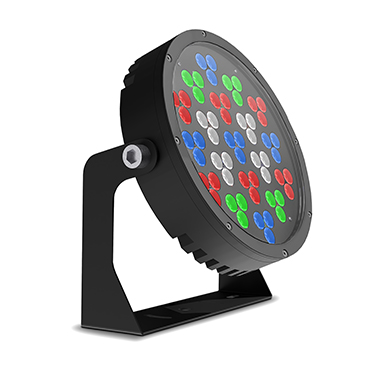

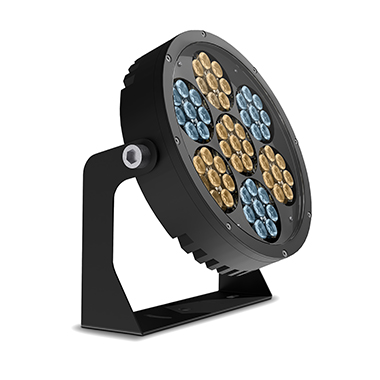

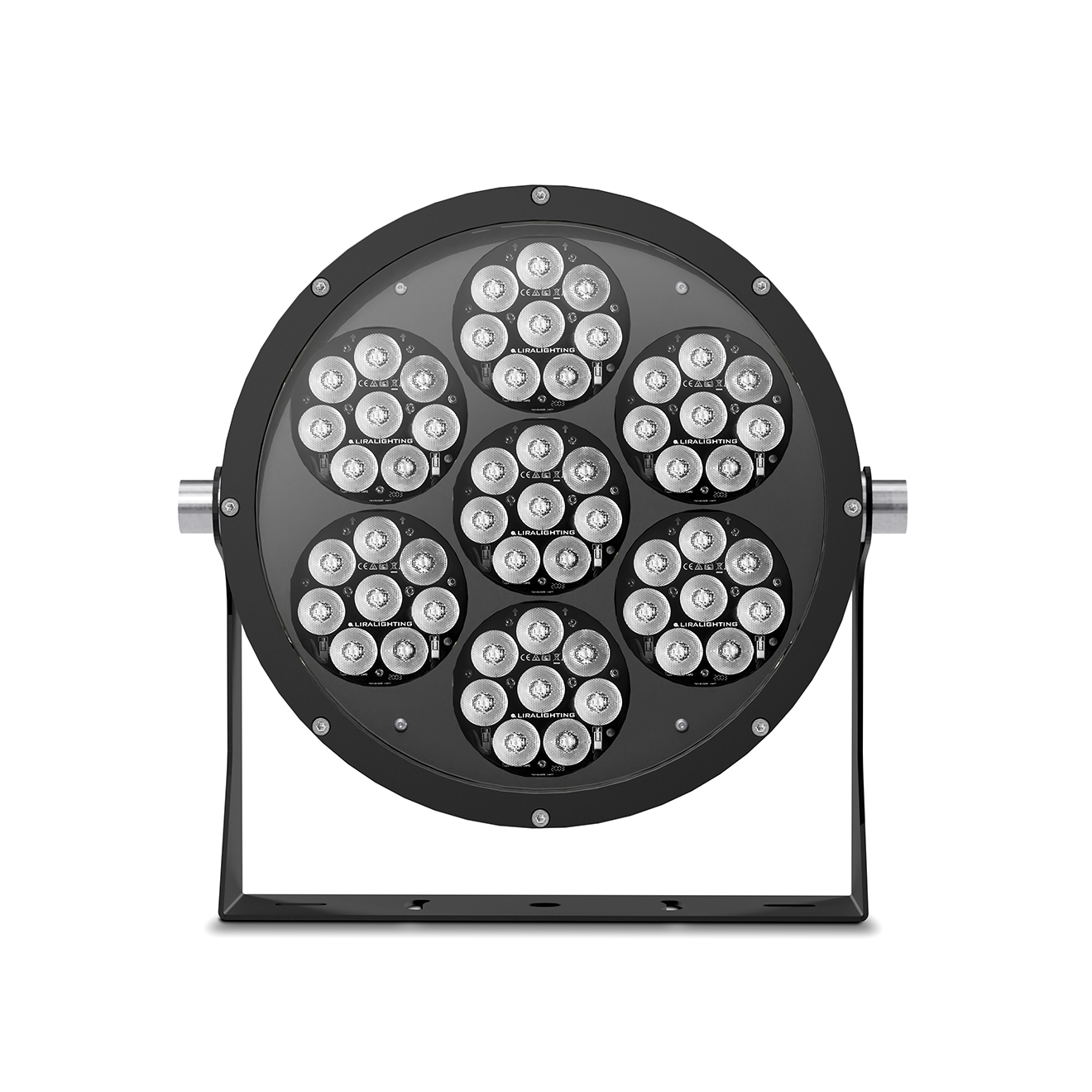

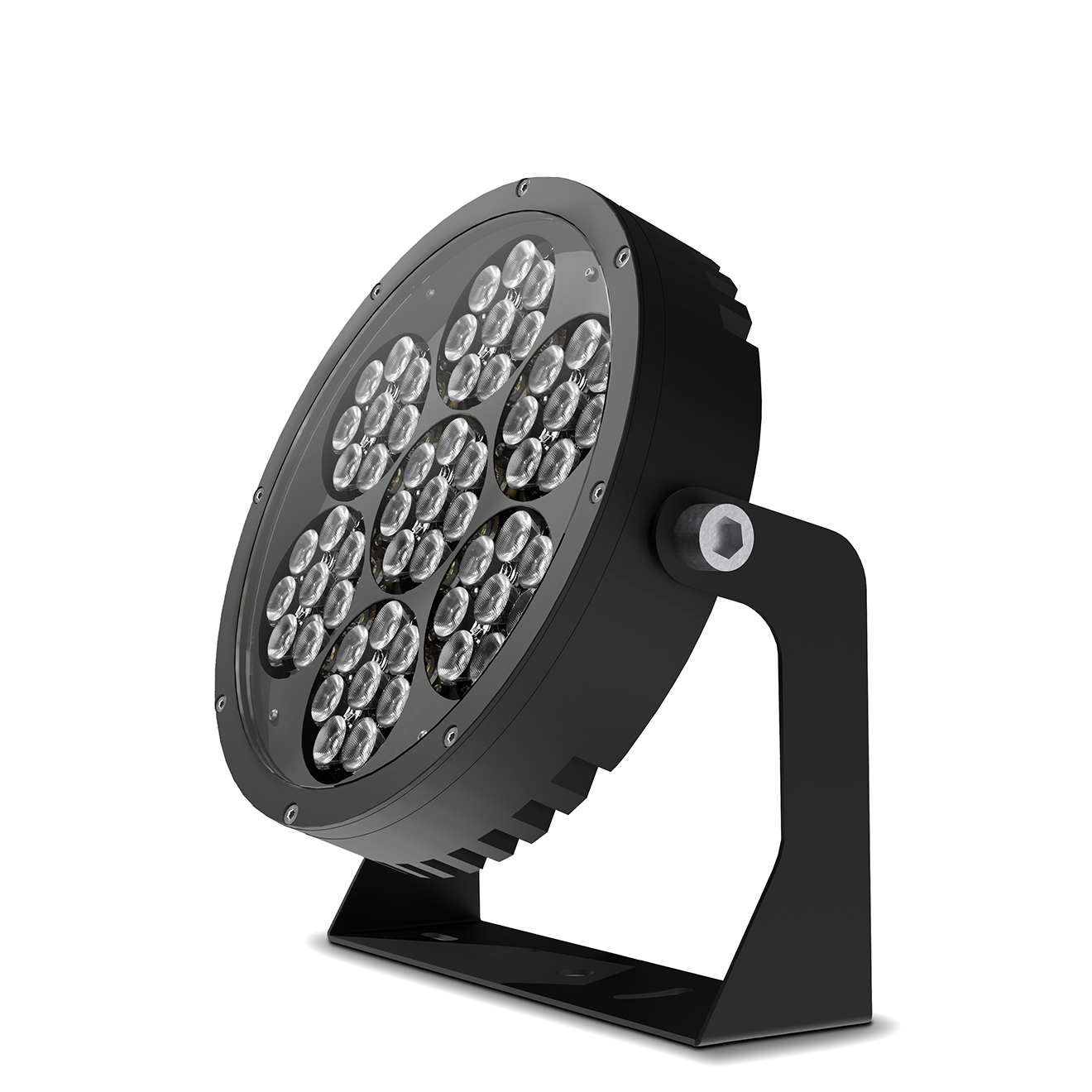

Piston is a luminaire designed to illuminate the facades of historic buildings, modern architecture and elements of urban architecture. A wide selection of optics allows to achieve the designed effect of lighting of the objects. The use of an appropriate lighting control system allows for unique lighting scenes. IP 67 protection class means that the luminaire perfectly withstands tough weather conditions. Piston is a family of luminaires with different power and dimensions while maintaining a uniform design.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
E- electronics
0- on-off
D- Dali
C- Casambi
L - beam angle
10 - 10 °
20 - 20 °
30 - 30 °
40 - 40 °
60 - 60 °
41 - 10°x45° oval
8 - 8 ° wall-washing
45 - 45 ° wall-washing
02 - asymmetrical
C - colour
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature |
|---|---|---|---|---|
| 9555.02ELC | 9635lm | 75W | 128lm/W | 2700K |
| 9555.03ELC | 10036lm | 75W | 134lm/W | 3000K |
| 9555.04ELC | 10454lm | 75W | 139lm/W | 4000K |
| 9556.02ELC | 12846lm | 100W | 128lm/W | 2700K |
| 9556.03ELC | 13381lm | 100W | 134lm/W | 3000K |
| 9556.04ELC | 13939lm | 100W | 139lm/W | 4000K |
| 9557.02ELC | 19323lm | 160W | 121lm/W | 2700K |
| 9557.03ELC | 20128lm | 160W | 126lm/W | 3000K |
| 9557.04ELC | 20967lm | 160W | 131lm/W | 4000K |
Accessories
anti-glare cover 360
catalogue code 90.57C
anti-glare cover 180
catalogue code 90.58C
