Technical data

General data:

Luminaire body:
stainless steel 1.4301, electropolished
Mounting type :
on an adjustable holder, to the ground
Ingress protection IP:
67
Operating temperature range :
from -40° to +45°
Lifetime L80B10:
100 000h

Electrical data:

Nominal voltage :
220-240V AC
Nominal frequency :
50-60Hz
Protection class :
I
Connection :
wire 3x1mm², (5x0,1mm² for DALI)
Wiring :
standard
Connection wire :
0,5m
Dimming :
ON-OFF, DALI
Power supply :
inside the luminaire

Optical data:

Optical system :
lens
Material :
PMMA
Aperture:
12mm tempered glass
Light emission :
direct
Light distribution :
symmetrical, asymmetrical

Lighting data:

Light source :
LED
Colour temperature :
2700K, 3000K, 4000K(on request: 6500K, amber, red, blue, green)
Colour rendering index :
CRI>80 (on request: CRI>90)
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%

Downloads

Product data sheet LDT files Declaration of conformity Declaration of conformity Assembly, use and maintenance instructions

Product description



Luminaires from the INX series are designed for operation in the most demanding outdoor environments. Made of electropolished stainless steel 1.4301, they provide maximum resistance to corrosion and salinity, weather conditions, and mechanical damage, while offering a refined, high-quality surface finish. Electropolishing not only enhances the aesthetic of the luminaires but also increases the material’s resistance to dirt and aggressive environmental conditions.

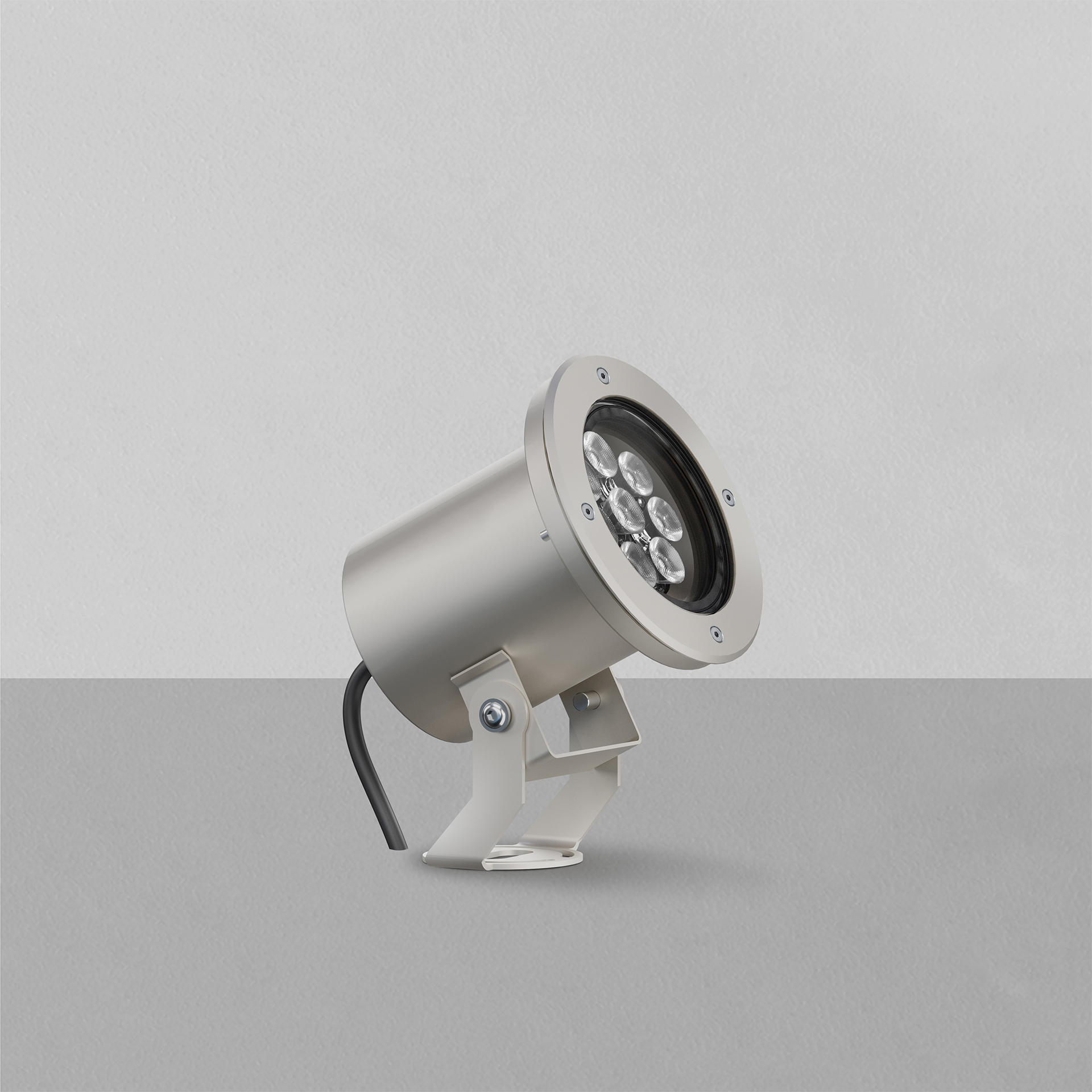

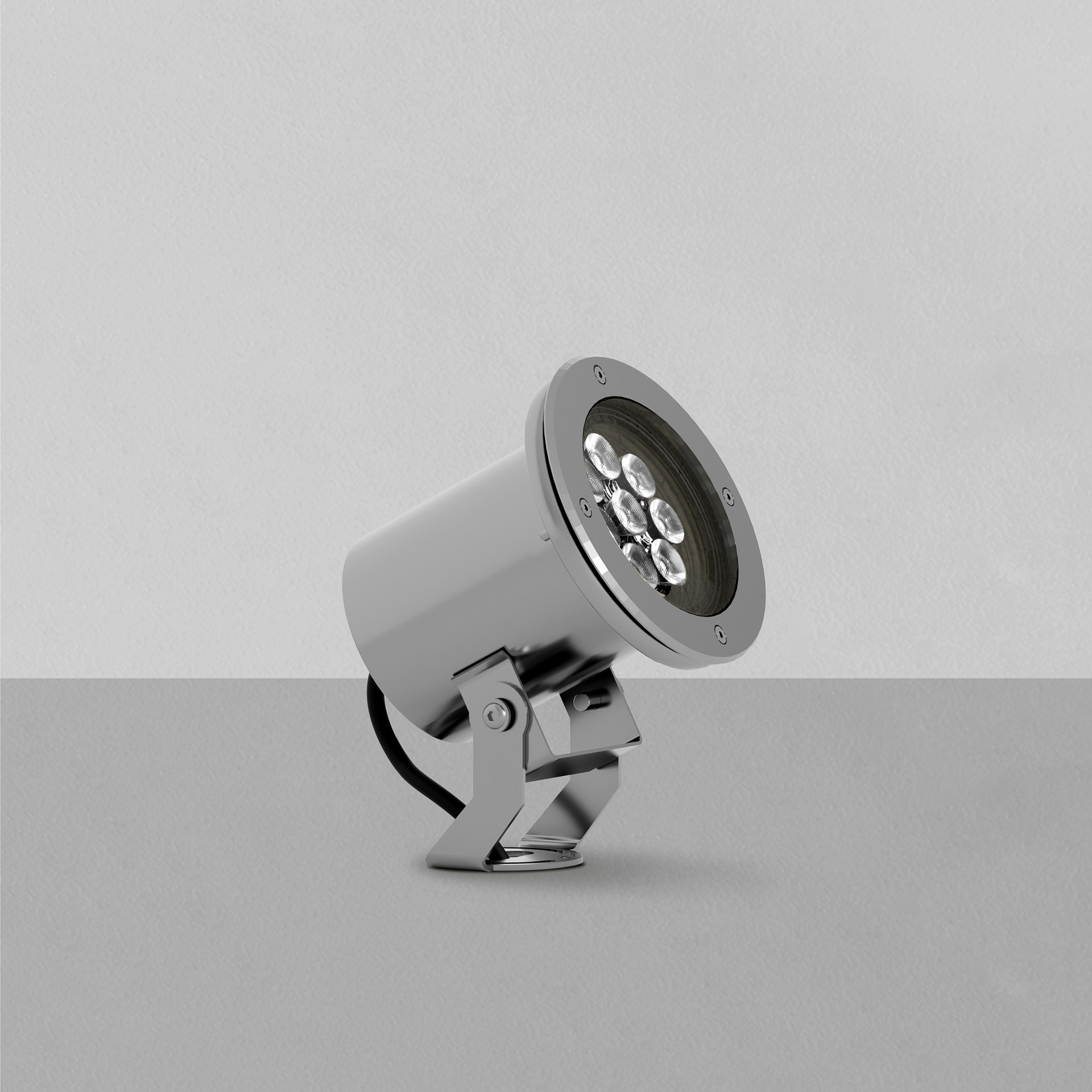

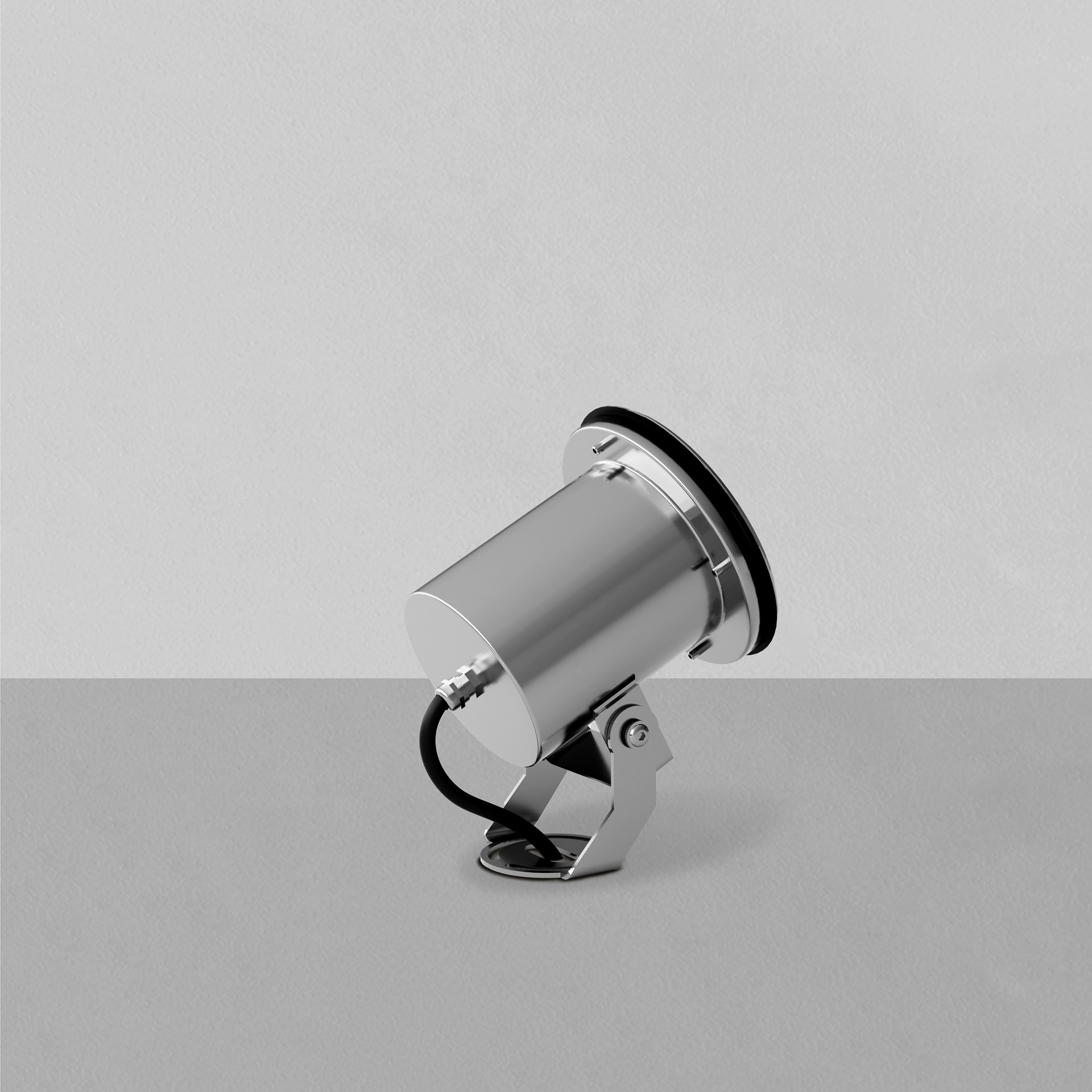

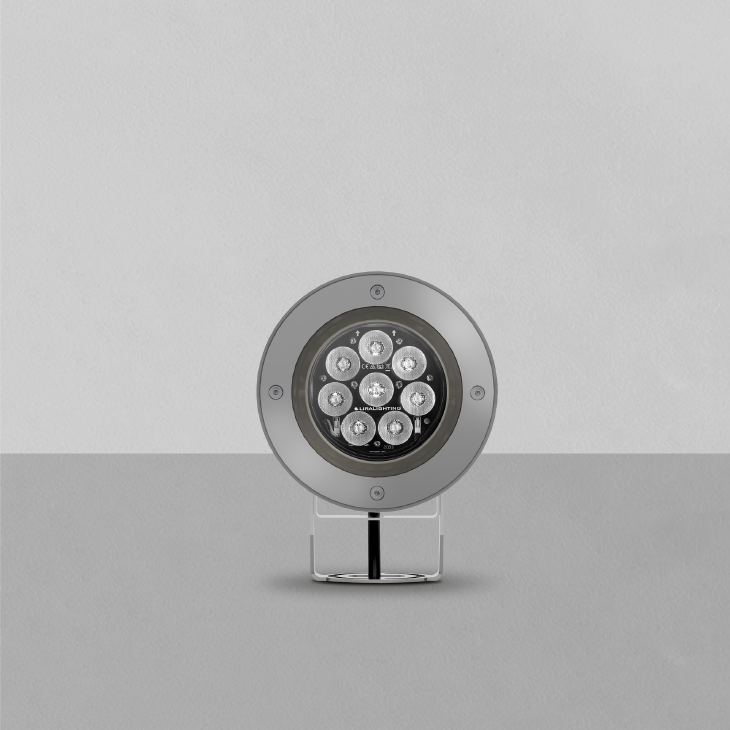

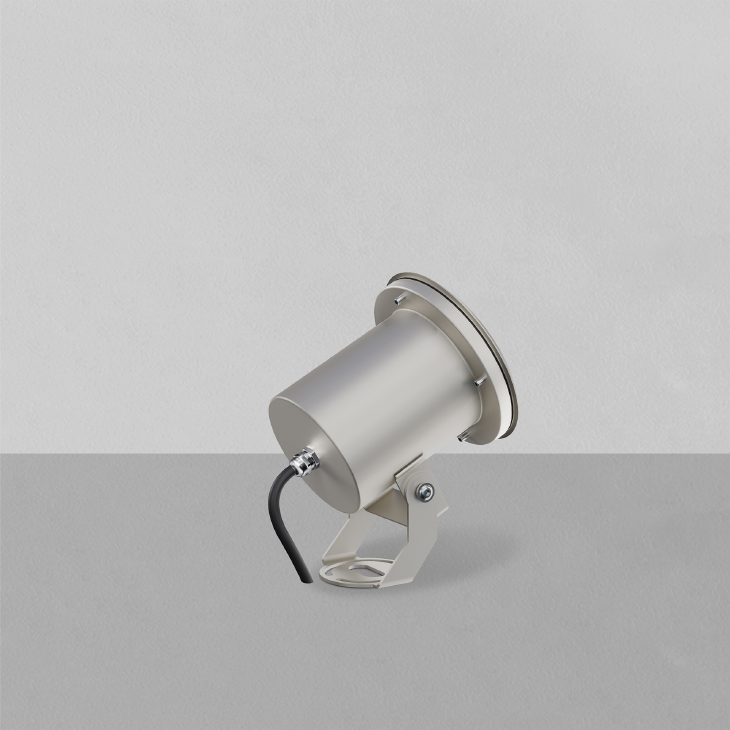

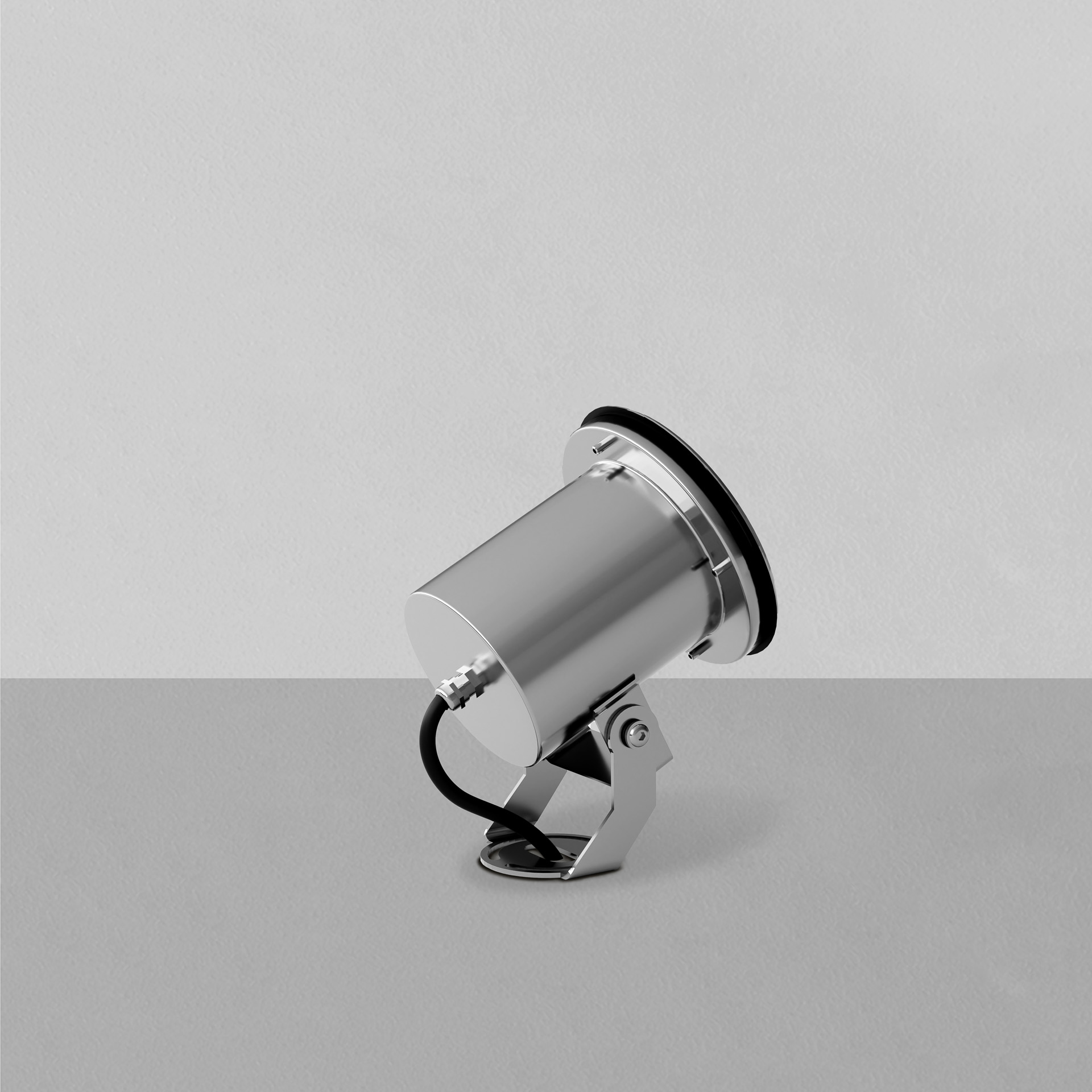

INX 175 Floodlight is a precision outdoor projector intended for accent and task lighting of architecture, façades, and greenery. The luminaire performs exceptionally well in projects where reliability, durability, and controlled light distribution are essential.

With IP67 and IK10 ratings, the INX 175 luminaires are suitable for use in public spaces, circulation areas, around architectural structures, and in locations exposed to intensive use.

Available product colors

Standard:
  • inox satin
    IS
    recommended
On request:
  • white
    on request
  • grey
    on request
  • anthracite
    on request
  • black
    on request

E - electronics
0 - on/off
D - DALI



L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
​60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
02 – asymmetrical



C - colour

Catalogue code Luminaire light flux Power Effectiveness Color temperature Box dimensions
9528.02ELC 1376lm 12W 115lm/W 2700K 300x380x200mm
9528.03ELC 1434lm 12W 120lm/W 3000K 300x380x200mm
9528.04ELC 1493lm 12W 124lm/W 4000K 300x380x200mm

Accessories

connector IP68 3-pole
catalogue code 124.00
connector IP68 5-pole
catalogue code 125.00
honeycomb (anti-glare)
catalogue code 90.04
Anchor 200
catalogue code 90.36
bracket for mounting the luminaire to the ground
catalogue code 90.42C
base/ cover
catalogue code 90.44C
luminaire holder for mounting a maximum of two luminaires on tube
catalogue code on tube: Ø60mm 90.39C; Ø76mm 90.51C; Ø100mm 90.52C
bracket for mounting the luminaire to the tree
catalogue code 90.46C
Expand accessories

Product data sheet

Select indexes and their data to appear on the PDF.

Generate PDF
Selected Catalogue code Luminaire light flux Power Effectiveness Color temperature Box dimensions
9528.02ELC 1376lm 12W 115lm/W 2700K 300x380x200mm
9528.03ELC 1434lm 12W 120lm/W 3000K 300x380x200mm
9528.04ELC 1493lm 12W 124lm/W 4000K 300x380x200mm
