Ufo rgbw lv

Technical data

General data:

Luminaire body:

aluminum

Mounting type:

on an adjustable holder, to the ground

Ingress protection IP:

Operating temperature range:

from -40° to +45°

Lifetime L80B10 :

100 000h

Odporność na uderzenia IK:

Electrical data:

Nominal voltage:

max. 4x350mA, max. 4x3V DC

power supply/driver:

to be ordered separately

Luminaire nominal power:

Protection class:

III

Connection:

wire 8x03mm2

Wiring:

standard

Connection wire:

0,5m

Dimming/power supply p. 310, 312:

ON-OFF, DALI, DMX, CASAMBI

Optical data:

Optical system:

lens

Material:

Light emission:

direct

Light distribution:

symmetrical

Lighting data:

Light source:

LED

Luminous flux from luminaire RGBW:

200 lm

Tolerance of luminous flux:

+/-10%

Downloads

Product data sheet Assembly, use and maintenance instructions Declaration of Comformity 3D models LDT files wiring diagrams- dwg file wiring diagrams- pdf file

Product description

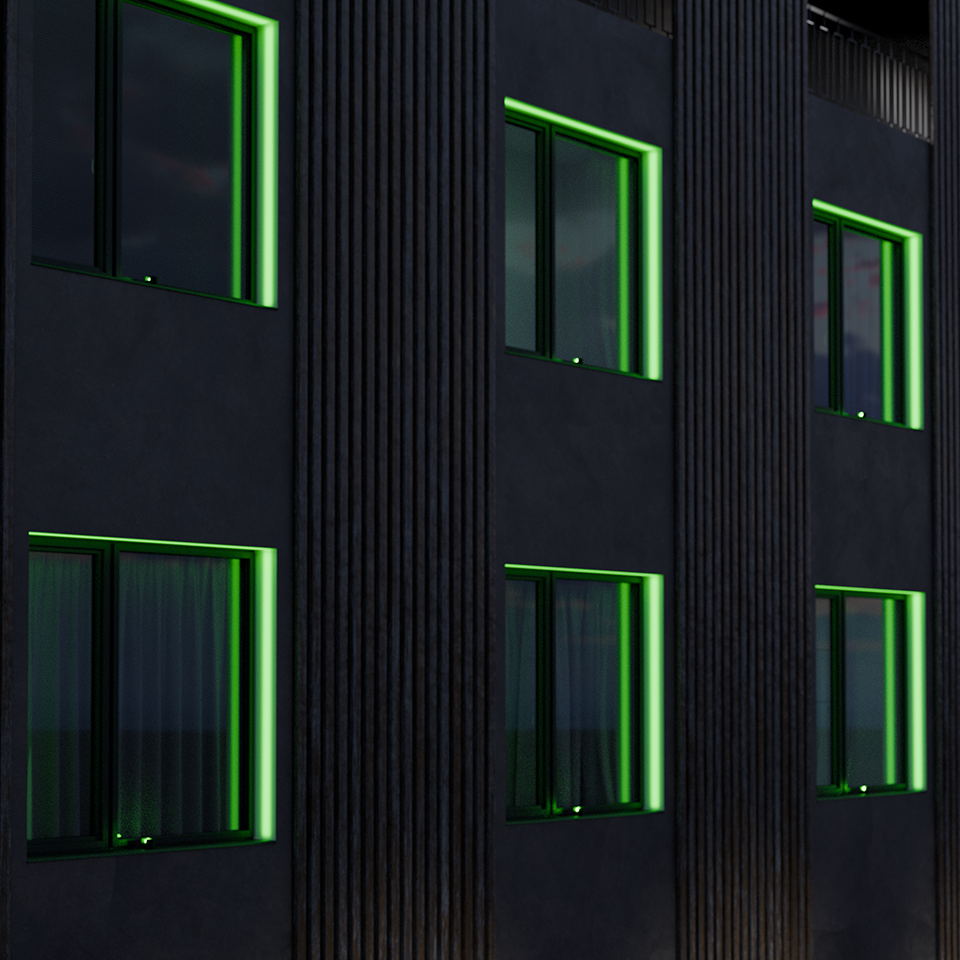

UFO is an outdoor luminaire with specialized optics designed to illuminate window recesses and facade elements. The luminaire distribute the light around the recess, creating a beautiful effect, giving lighting and decoration at the same time. The high protection class IP66 gives the luminaire high resistance to bad weather conditions, moisture and dust. Thanks to the adjustable handle, it is possible to precisely adjust the direction of the light beam.
