Technical data
General data:
luminaire body:
aluminum
mounting type:
wall recessed
ingress protection IP:
66
operating temperature range:
from -40° to +45°
lifetime L80B10:
100 000h
impact protection IK:
10
Optical data:
optical system:
milk diffuser
material:
glass
light emmi:
direct
light distribution:
asymmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>80
tolerance of luminous flux:
+/-10%
colour tolerance:
SDCM<3
Electrical data:
nominal voltage:
220-240V AC
nominal frequency:
50-60Hz
protection class:
I
contains light source:
yes
connection:
wire 3x1mm2 (5x0,75mm2 for DALI)
wiring:
through, standard
connection wire:
0,5m
power supply:
inside the luminaire

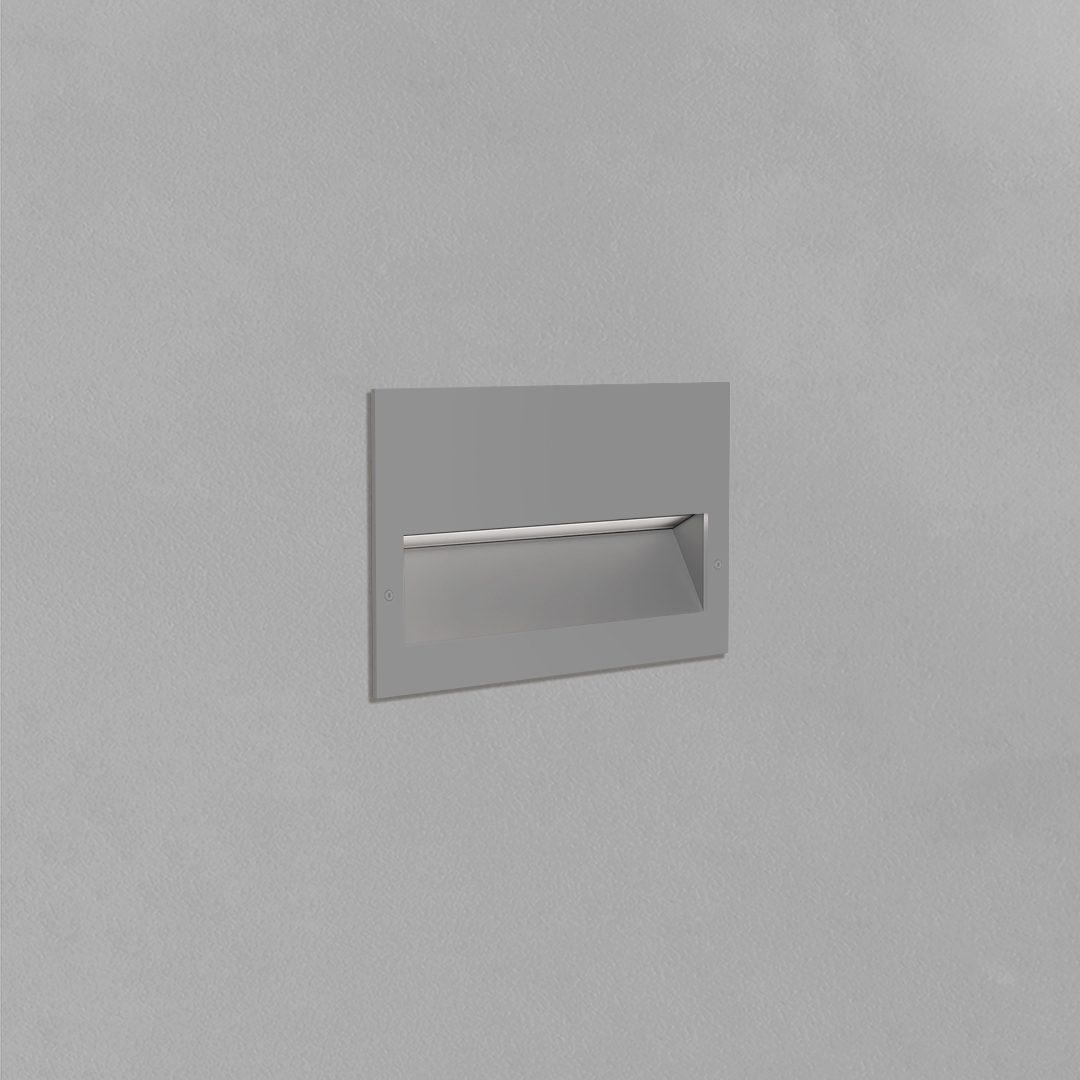

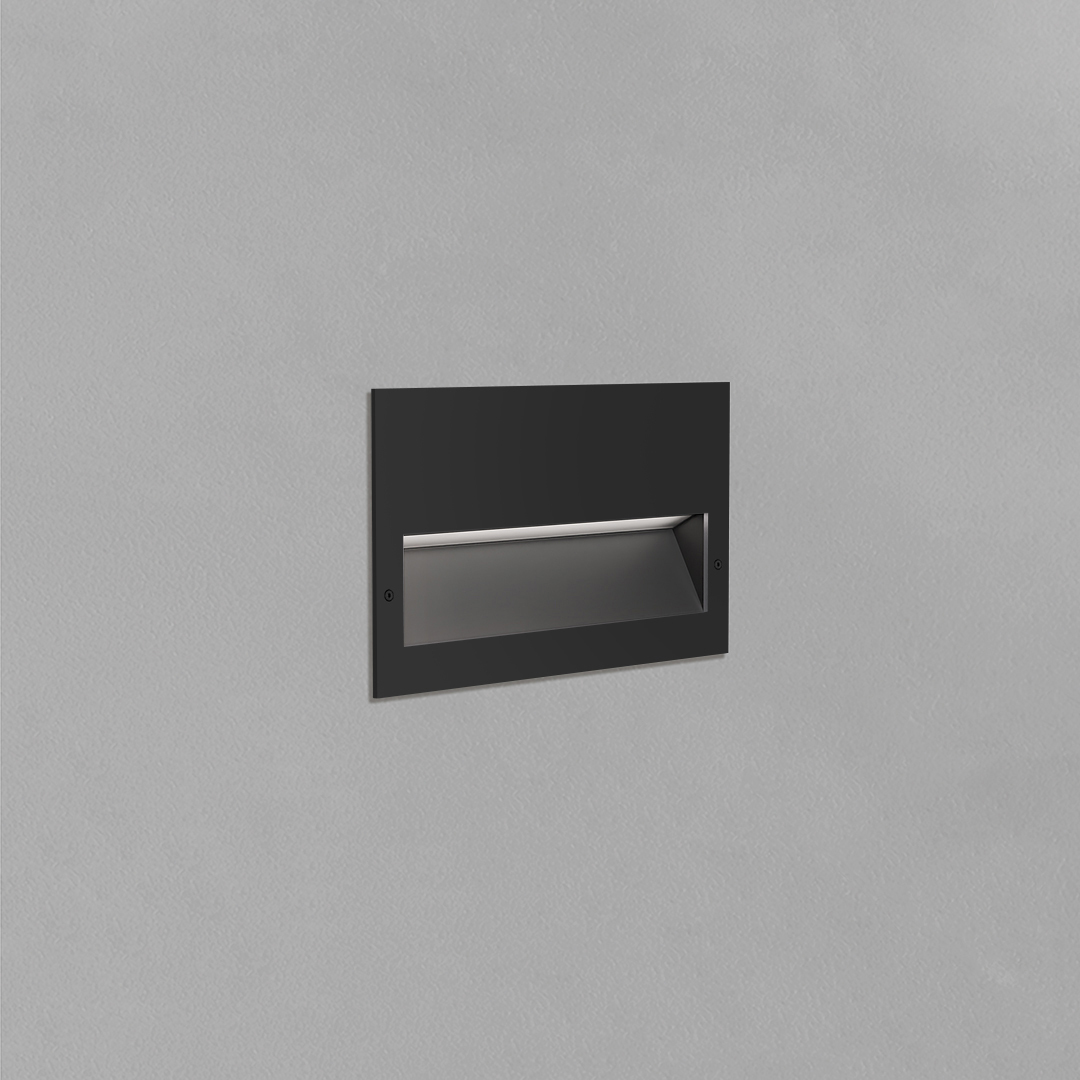

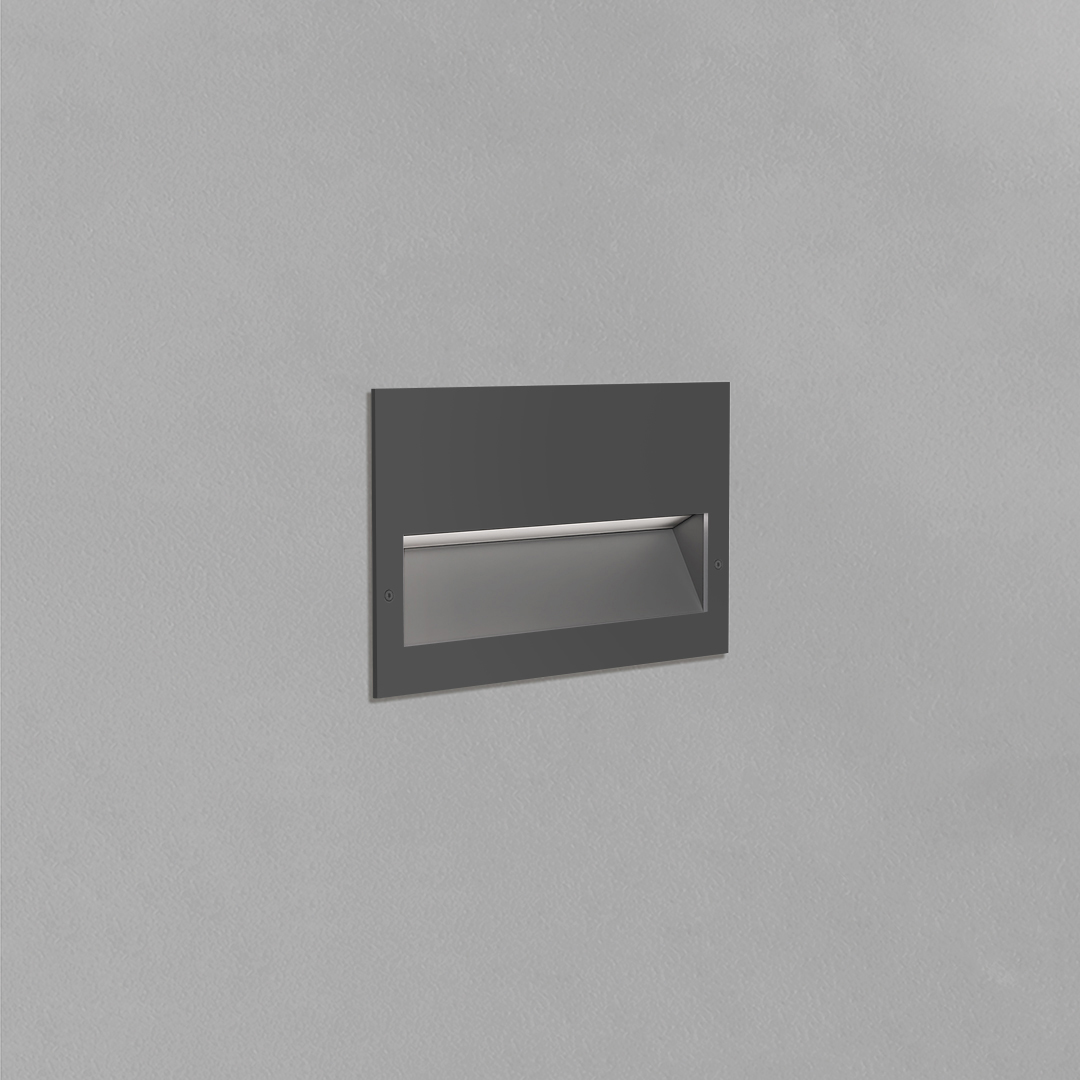

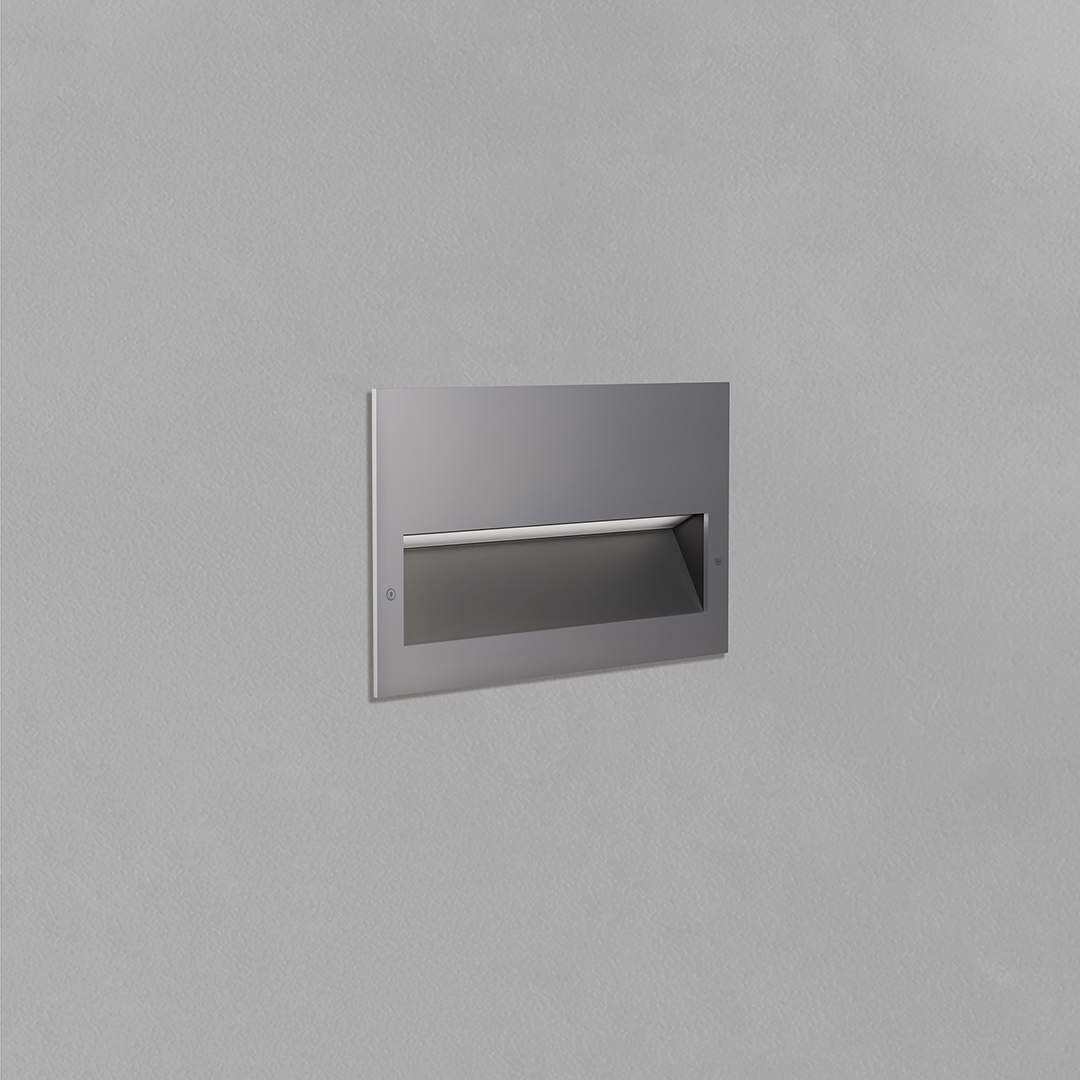

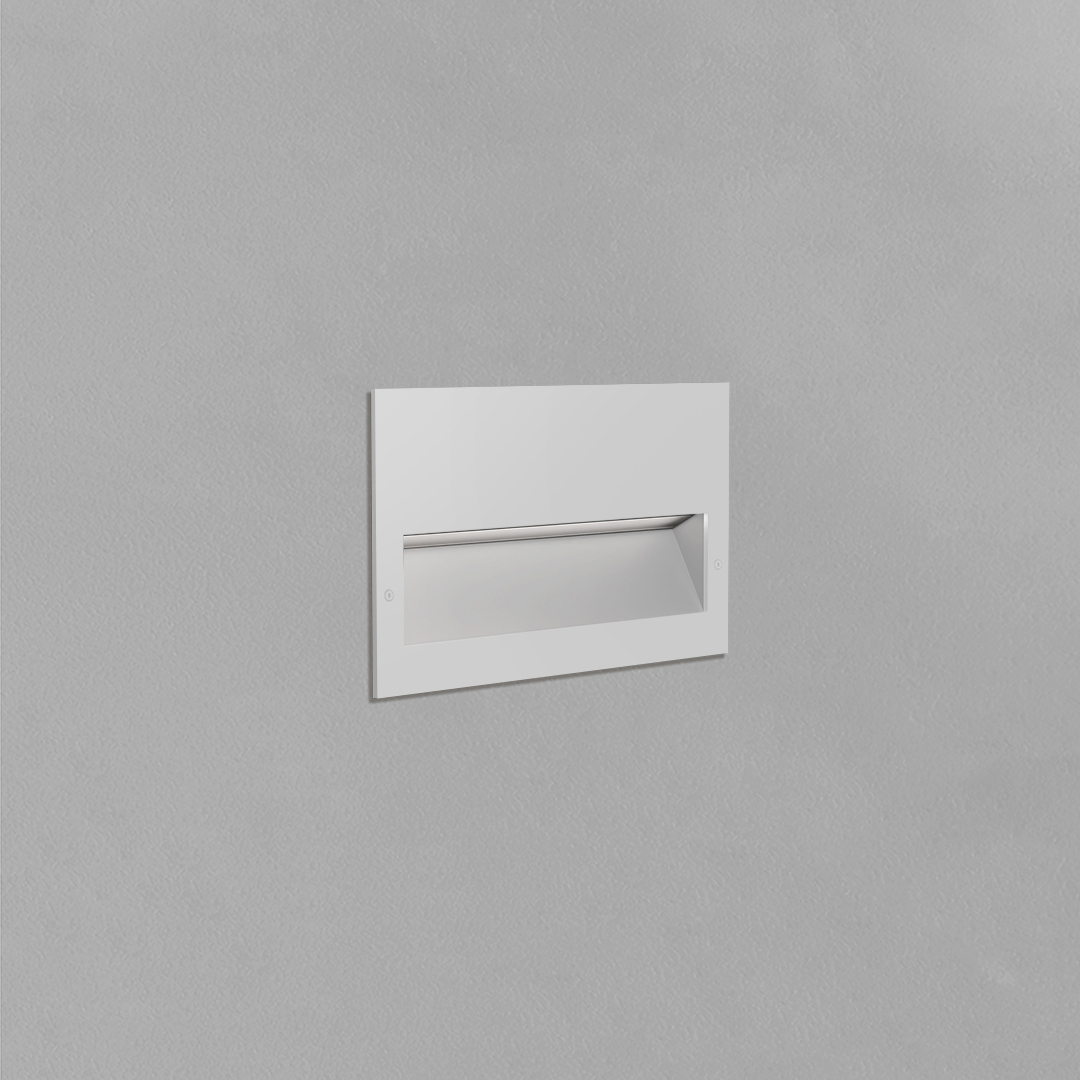

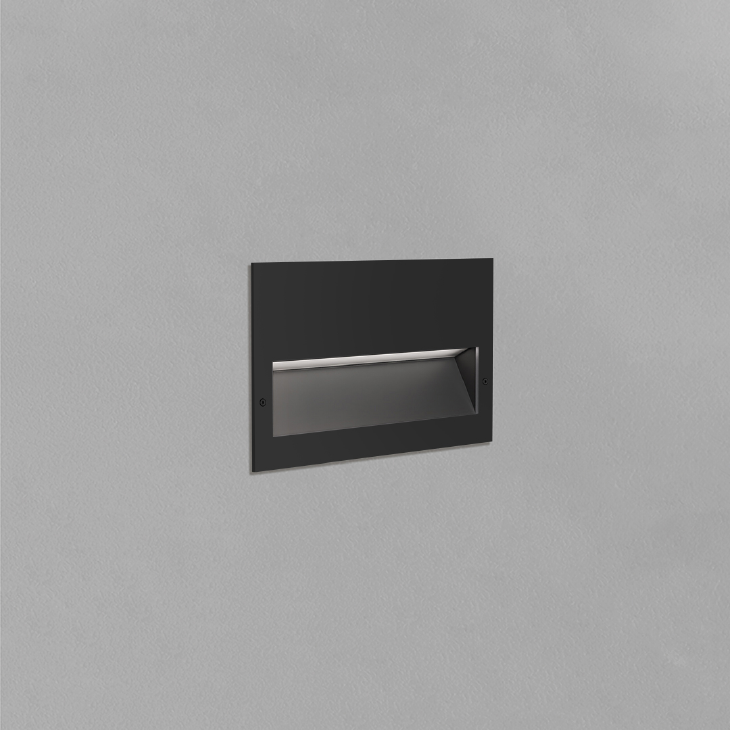

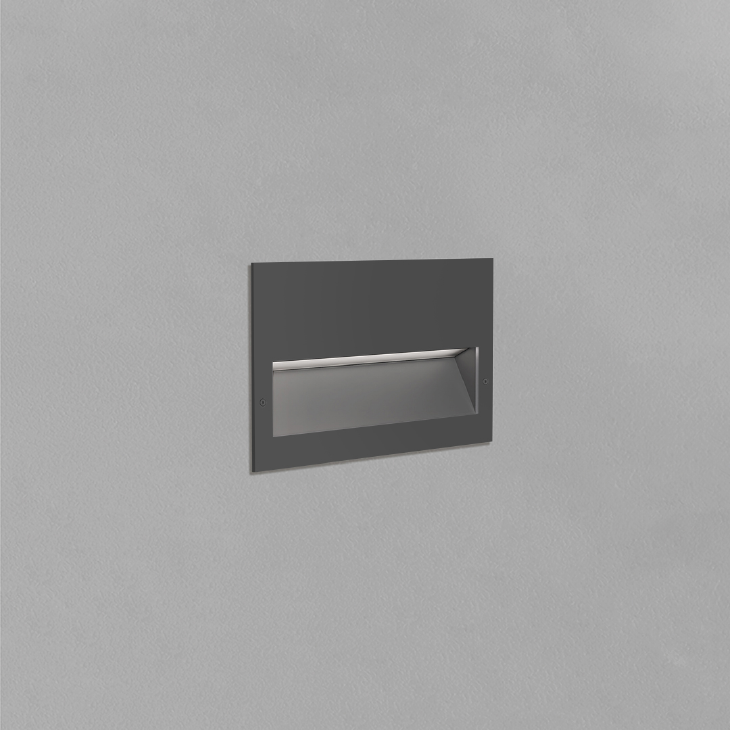

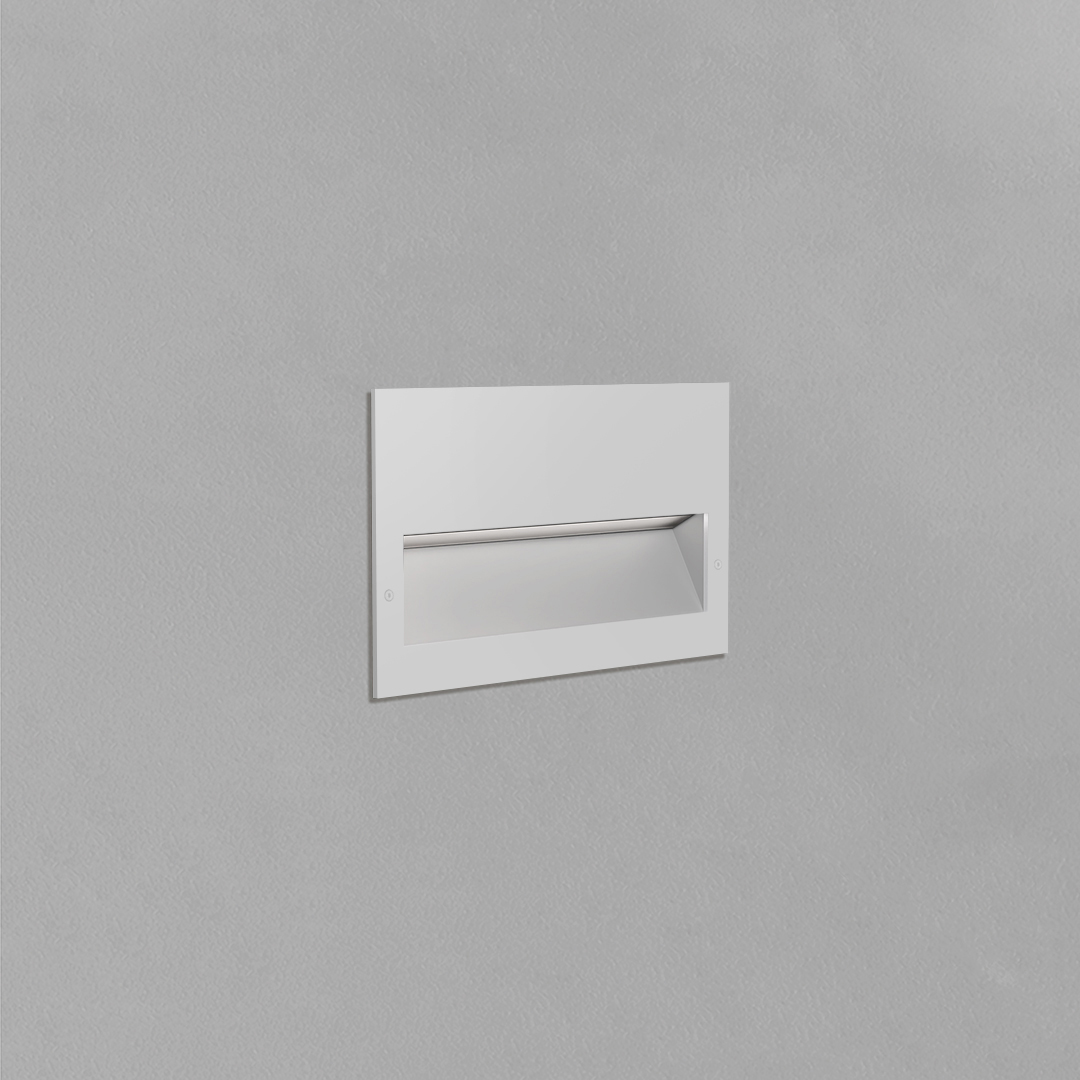

Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05 -
inox00
E- electronics
O- on-off
D- Dali
C - colour
W - wiring
T - through
S - standard
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Weight |
|---|---|---|---|---|---|
| na zapytanie | 173lm | 4W | 43lm/W | 2700K | 4,6kg |
| na zapytanie | 184lm | 4W | 46lm/W | 3000K | 4,6kg |
| na zapytanie | 196lm | 4W | 49lm/W | 4000K | 4,6kg |
| na zapytanie | 376lm | 9W | 42lm/W | 2700K | 4,6kg |
| na zapytanie | 400lm | 9W | 44lm/W | 3000K | 4,6kg |
| na zapytanie | 425lm | 9W | 47lm/W | 4000K | 4,6kg |
