Technical data

General data:

Mounting type:
suspended
Luminaire body:
aluminum
operating temperature range:
from -20° to +35°
lifetime L80B10:
100 000h

Electrical data:

nominal voltage:
230-240V AC
Nominal freguency:
50-60Hz
Ingress protection IP:
IP40
protection class:
I
Contains light source:
yes
Dimming:
DALI, Casambi, on-off

Optical data:

optical system:
microprismatic diffuser
material:
PMMA
light distribution:
symmetrical

Lighting data:

colour rendering index:
CRI≥80 (on request: CRI≥90)
glare indicator UGR:
19
Type of source:
LED

Downloads

Product data sheet LDT File Assembly, use and maintance instructions Declaration of Comformity 3d models

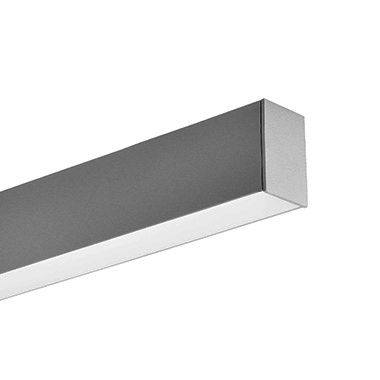

Product description

The luminaire is made of die extruded aluminum profile. Cover caps without visible screws. Independent spacing of mounting elements and suspension. Unified glare rating UGR (4H8H) < 19. Luminance value ≥65° <3000 cd/m².


Available product colors

Standard:
  • white
    03
  • grey
    06
  • black
    05
  • anthracite
    70
Catalogue code Luminaire light flux Power Color temperature CRI/RA Weight Dimensions Box dimensions UGR
on request 1654lm 16W 3000K ≥80 3,8kg L= 1126, W=79, H=89mm 1150x90x140mm <19
on request 1723lm 16W 4000K ≥80 3,8kg L=1126 , W=79, H=89mm 1150x90x140mm <19
on request 2071lm 20W 3000K ≥80 4,5kg L= 1406, W=79, H=89mm 1430x90x140mm <19
on request 2158lm 20W 3000K ≥80 4,5kg L= 1406, W=79, H=89mm 1430x90x140mm <19
on request 2482lm 24W 3000K ≥80 6,1kg L= 1686, W=79, H=89mm 1710x90x140mm <19
on request 2586lm 24W 4000K ≥80 6,1kg L= 1686, W=79, H=89mm 1710x90x140mm <19
on request 2896lm 28W 3000K ≥80 7kg L=1967, W=79, H=89mm 1990x90x140mm <19
on request 3017lm 28W 4000K ≥80 7kg L=1967, W=79, H=89mm 1990x90x140mm <19
on request 3309lm 32W 3000K ≥80 8kg L=2247, W=79, H=89mm 2270x90x140mm <19
on request 3448lm 32W 4000K ≥80 8kg L=2247, W=79, H=89mm 2270x90x140mm <19
on request 3724lm 36W 3000K ≥80 9kg L=2527, W=79, H=89mm 2550x90x140mm <19
on request 3878lm 36W 4000K ≥80 9kg L=2527, W=79, H=89mm 2550x90x140mm <19
on request 4137lm 40W 3000K ≥80 10kg L=2807, W=79, H=89mm 2830x90x140mm <19
on request 4309lm 40W 4000K ≥80 10kg L=2807, W=79, H=89mm 2830x90x140mm <19
on request 4551lm 44W 3000K ≥80 11kg L=3087, W=79, H=89mm 3110x90x140mm <19
on request 4740lm 44W 4000K ≥80 11kg L=3087, W=79, H=89mm 3110x90x140mm <19
on request 4964lm 48W 3000K ≥80 12kg L=3367, W=79, H=89mm 3390x90x140mm <19
on request 5171lm 48W 4000K ≥80 12kg L=3367, W=79, H=89mm 3390x90x140mm <19
Expand

Photometric body

Photometric body

Product data sheet

Select indexes and their data to appear on the PDF.

Generate PDF
Selected Catalogue code Luminaire light flux Power Color temperature CRI/RA Weight Dimensions Box dimensions UGR
on request 1654lm 16W 3000K ≥80 3,8kg L= 1126, W=79, H=89mm 1150x90x140mm <19
on request 1723lm 16W 4000K ≥80 3,8kg L=1126 , W=79, H=89mm 1150x90x140mm <19
on request 2071lm 20W 3000K ≥80 4,5kg L= 1406, W=79, H=89mm 1430x90x140mm <19
on request 2158lm 20W 3000K ≥80 4,5kg L= 1406, W=79, H=89mm 1430x90x140mm <19
on request 2482lm 24W 3000K ≥80 6,1kg L= 1686, W=79, H=89mm 1710x90x140mm <19
on request 2586lm 24W 4000K ≥80 6,1kg L= 1686, W=79, H=89mm 1710x90x140mm <19
on request 2896lm 28W 3000K ≥80 7kg L=1967, W=79, H=89mm 1990x90x140mm <19
on request 3017lm 28W 4000K ≥80 7kg L=1967, W=79, H=89mm 1990x90x140mm <19
on request 3309lm 32W 3000K ≥80 8kg L=2247, W=79, H=89mm 2270x90x140mm <19
on request 3448lm 32W 4000K ≥80 8kg L=2247, W=79, H=89mm 2270x90x140mm <19
on request 3724lm 36W 3000K ≥80 9kg L=2527, W=79, H=89mm 2550x90x140mm <19
on request 3878lm 36W 4000K ≥80 9kg L=2527, W=79, H=89mm 2550x90x140mm <19
on request 4137lm 40W 3000K ≥80 10kg L=2807, W=79, H=89mm 2830x90x140mm <19
on request 4309lm 40W 4000K ≥80 10kg L=2807, W=79, H=89mm 2830x90x140mm <19
on request 4551lm 44W 3000K ≥80 11kg L=3087, W=79, H=89mm 3110x90x140mm <19
on request 4740lm 44W 4000K ≥80 11kg L=3087, W=79, H=89mm 3110x90x140mm <19
on request 4964lm 48W 3000K ≥80 12kg L=3367, W=79, H=89mm 3390x90x140mm <19
on request 5171lm 48W 4000K ≥80 12kg L=3367, W=79, H=89mm 3390x90x140mm <19

Similar products

Crack tunable white

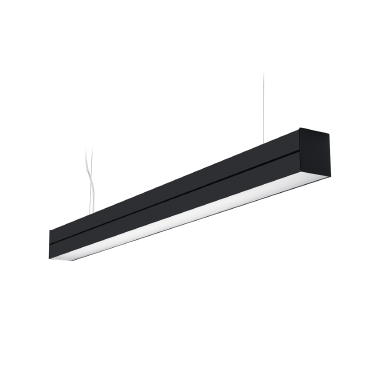

CRACK OFFICE UGR<22
