Technical data
General data:
luminaire :
aluminum
mounting type:
foundation
ingress protection IP:
IP65
operating temperature range:
from -20℃ to +45℃
lifetime L80B10:
100 000h
impact protection IK:
IK08
Optical data:
optical system:
lens
material:
PMMA
light emmission:
direct
light distribution:
symmetrical, street, park
Lighting data:
type of source:
LED
colour rendering index:
CRI>70
tolerance of luminous flux:
SDCM<3
colour tolerance:
+/-10%
Electrical data:
nominal voltage:
220-240V AC
nominal frequency:
50-60Hz
protection class:
I
contains light source:
yes
dimming:
ON-OFF
connection:
connector in a box
wiring:
through
power supply:
inside the luminaire
Downloads
Product description
The economical outdoor light pole Eliza is the perfect choice for those seeking a stylish, durable, and cost-effective lighting solution. It is suitable for both private gardens and commercial spaces, enhancing the aesthetics and functionality of the illuminated areas.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
C - colour
L - lenses to choose:

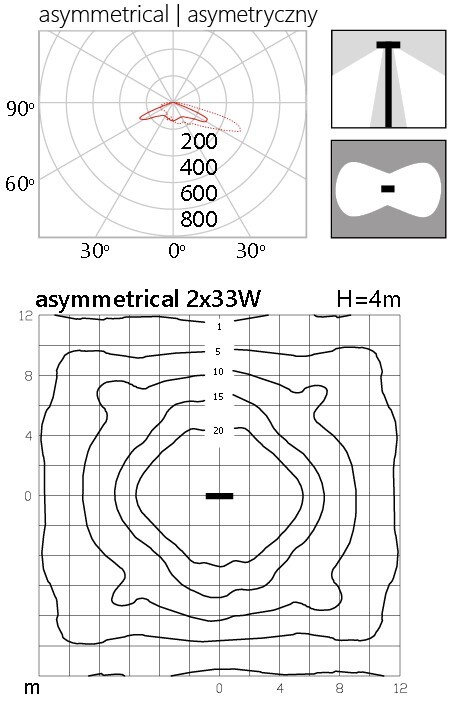

02 - asymmetric floodlighting distribution

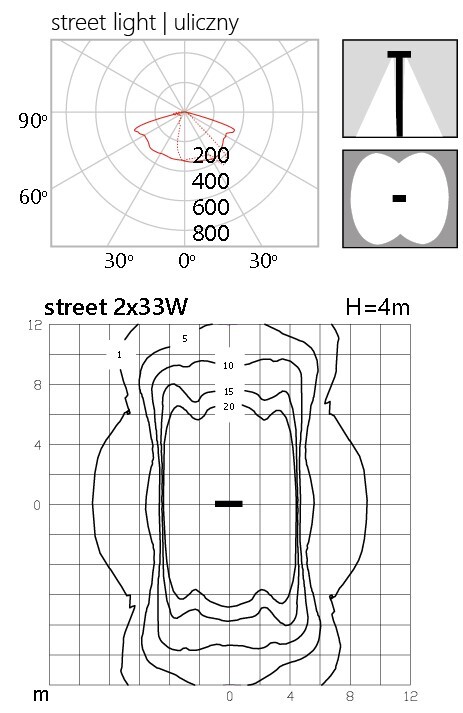

03 - street lighting distribution

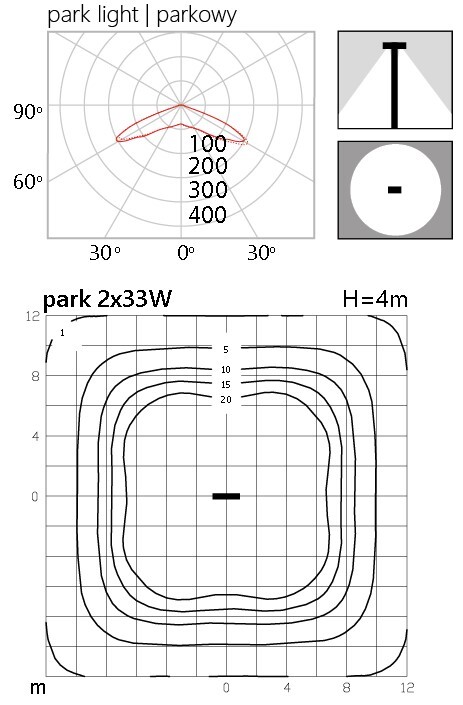

04 - park lighting distribution
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Dimensions |
|---|---|---|---|---|---|
| 9480.330LC | 2x4625lm | 66W | 140lm/W | 3000K | 3000mm |
| 9480.340LC | 2x4818lm | 66W | 146lm/W | 4000K | 3000mm |
Accessories
foot cover
cod number 90.48C
foundation
cod number 1300.1000
