INX 225 FLOODLIGHT

Technical data

General data:

Luminaire body:

stainless steel 1.4301, electropolished

Mounting type :

on an adjustable holder, to the ground

Ingress protection IP:

Operating temperature range :

from -40° to +45°

Lifetime L80B10:

100 000h

Impact protection IK :

Electrical data:

Nominal voltage :

220-240V AC

Nominal frequency :

50-60Hz

Protection class :

Connection :

wire 3x1mm², (5x0,1mm² for DALI)

Wiring :

standard

Connection wire :

0,5m

Dimming :

ON-OFF, DALI

Power supply :

inside the luminaire

Optical data:

Optical system :

lens

Material :

PMMA

Aperture:

12mm tempered glass

Light emission :

direct

Light distribution :

symmetrical

Lighting data:

Light source :

LED

Colour temperature :

2700K, 3000K, 4000K(on request: 6500K, amber, red, blue, green)

Colour rendering index :

CRI>80 (on request: CRI>90)

Colour tolerance SDCM :

SDCM<3

Tolerance of luminous flux :

+/-10%

Downloads

Product data sheet LDT files Declaration of conformity Assembly, use and maintenance instructions

Product description

Luminaires from the INX series are designed for operation in the most demanding outdoor environments. Made of electropolished stainless steel 1.4301, they provide maximum resistance to corrosion and salinity, weather conditions, and mechanical damage, while offering a refined, high-quality surface finish. Electropolishing not only enhances the aesthetic of the luminaires but also increases the material’s resistance to dirt and aggressive environmental conditions.

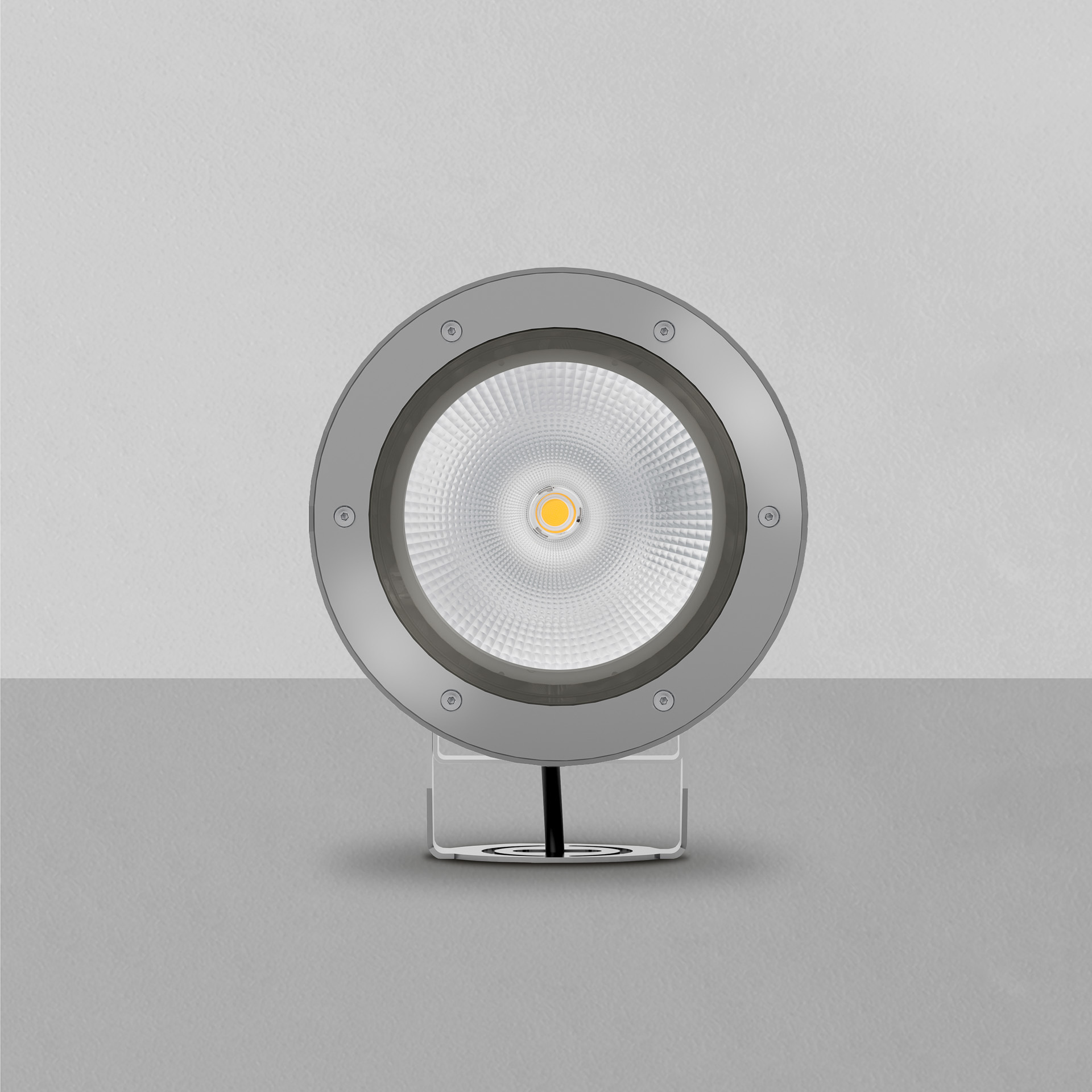

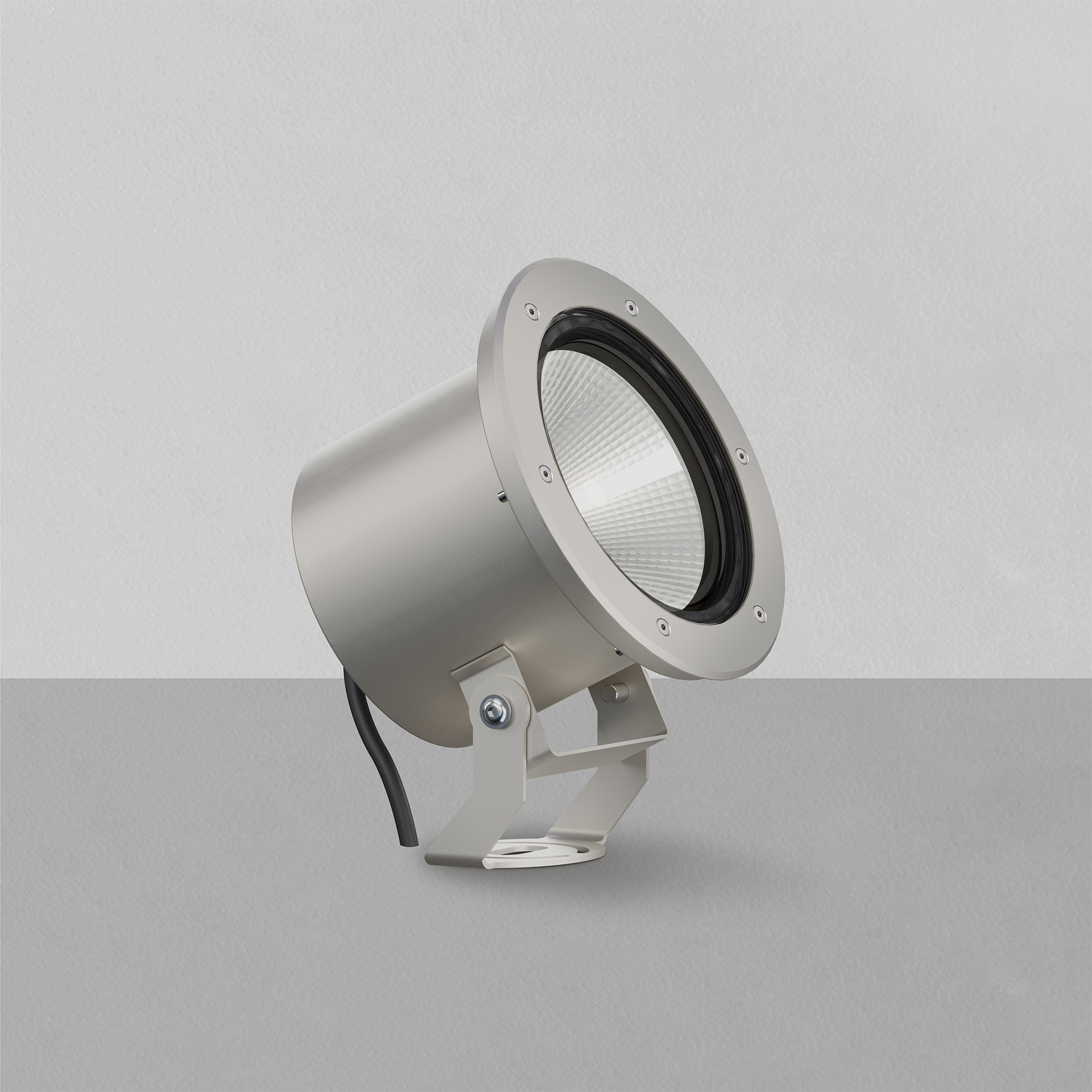

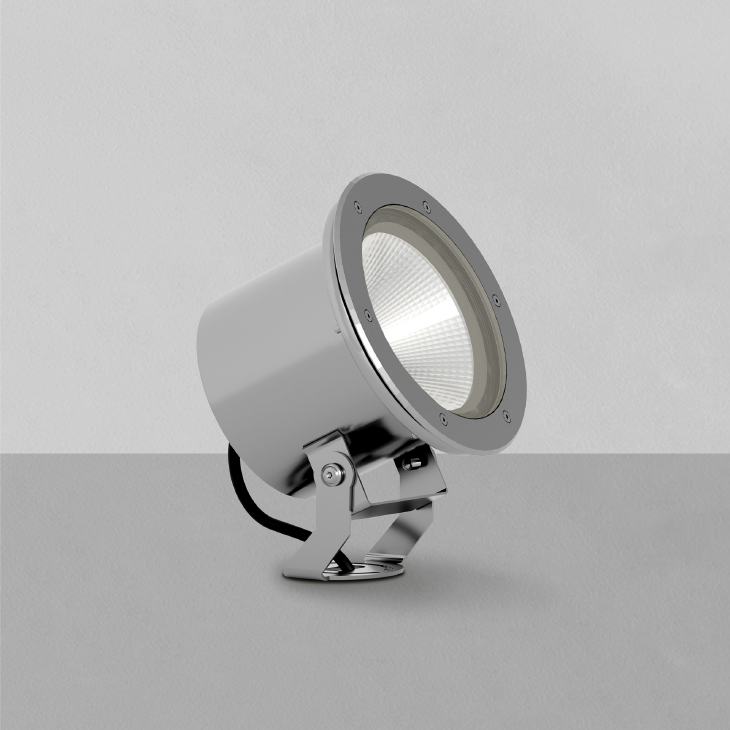

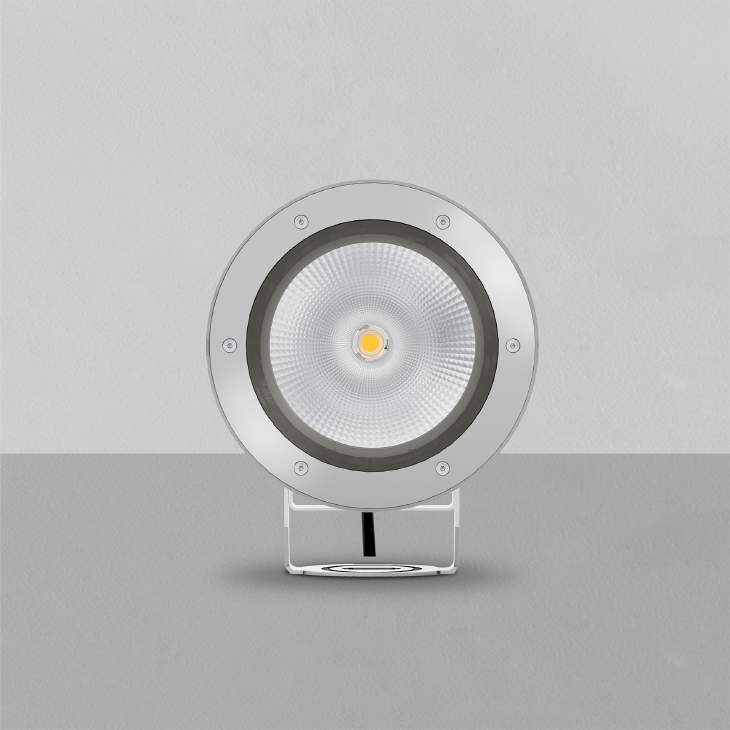

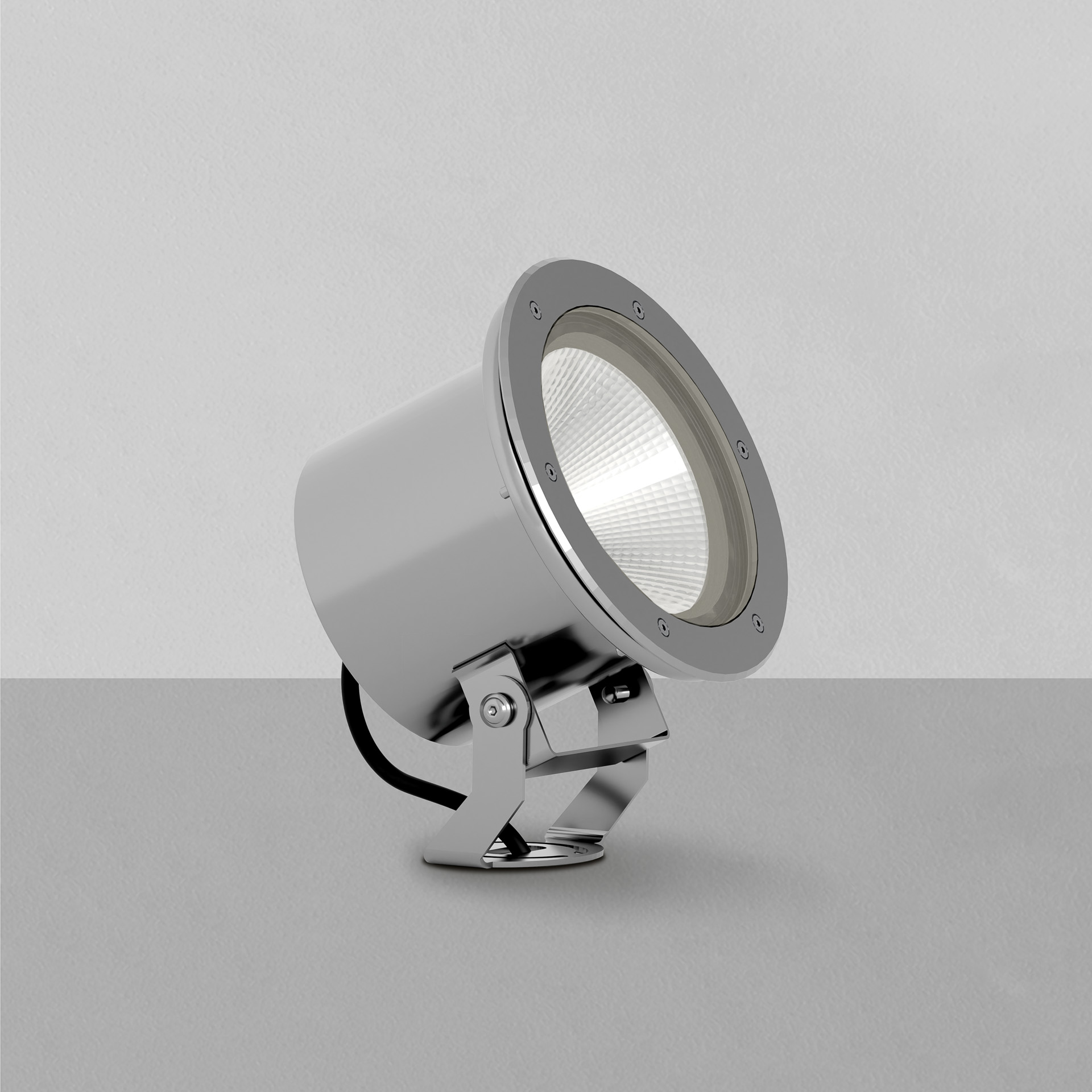

INX 225 Floodlight is a precision outdoor projector intended for accent and task lighting of architecture, façades, and greenery. The luminaire performs exceptionally well in projects where reliability, durability, and controlled light distribution are essential.

With IP67 and IK10 ratings, the INX 225 luminaires are suitable for use in public spaces, circulation areas, around architectural structures, and in locations exposed to intensive use.
