Technical data
General data:
luminaire body:
aluminum
mounting type:
wall mounted
ingress protection IP:
67
operating temperature range:
from -40° to +45°
lifetime L80B10:
100 000h
impact protection IK:
10
Optical data:
optical system:
lens
material:
PMMA
light emmission:
direct
light distribution:
symmetrical, asymmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>80 (options: CRI>90)
tolerance of luminous flux:
+/-10%
colour tolerance:
SDCM<3
colour temperature:
2700K, 3000K, 4000K (option: 6500K)
Electrical data:
nominal voltage:
220-240V AC
nominal frequency:
50-60Hz
protection class:
I
contains light source:
yes
dimming:
ON-OFF, DALI
connection:
wire 3x1mm2 (5x1mm2 for DALI)
wiring:
standard
connection wire:
0,25m
power supply:
inside the luminaire
Product description

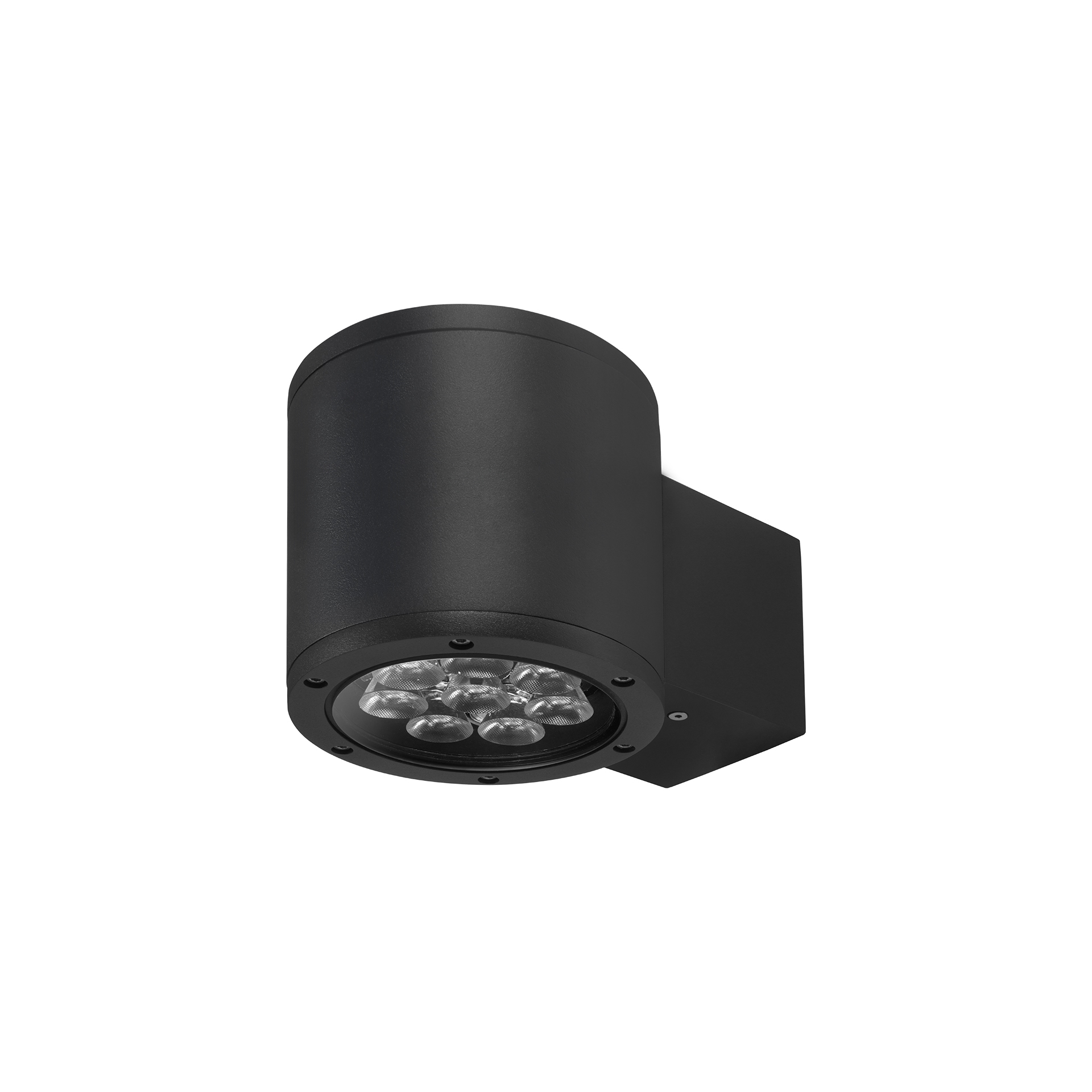

The Bira outdoor wall light is a high-quality façade luminaire available in down and up/down-lighting variants. The series includes models of various sizes, allowing for the selection of the optimal solution for a specific application.
The luminaire offers a wide range of optics enabling precise control of the light beam. Its IP67-rated construction ensures resistance to atmospheric conditions, allowing reliable operation in demanding outdoor environments
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
E- electronics 230V
O- on-off
D-DALI
L - beam angle
10 - 10 °
20 - 20 °
30 - 30 °
40 - 40 °
60 - 60 °
41 - 10 °x 45 °
8 - 8 ° wall-washing
45 - 45 ° wall-washing
02 - asymmetrical
03- street light
C - colour
| Catalogue code | Luminaire light flux | Power | Color temperature | Box dimensions |
|---|---|---|---|---|
| 9521.02ELC | 2x1018lm | 2x8W | 2700K | 250x250x150mm |
| 9521.03ELC | 2x1095lm | 2x8W | 3000K | 250x250x150mm |
| 9521.04ELC | 2x1165lm | 2x8W | 4000K | 250x250x150mm |
Accessories
connector IP68 3-pole
catalogue code 124.00
honeycomb (anti-glare)
catalogue number 90.04
