Technical data
General data:
Luminaire body:
aluminum/inox
Mounting type:
in-ground
Ingress protection IP:
67
Operating temperature range:
from -40° do +45°
Lifetime L80B10 :
100 000h
Impact protection IK:
10
Electrical data:
Nominal voltage 22W:
350mA, max. 65V DC
Nominal voltage 44W:
700mA, max. 65V DC
Nominal frequency:
22W, 44W
Protection class:
III
Connection:
wire 2x1mm2
Wiring:
standard
Connection wire:
0,5m
Dimming/power supply p. 307:
ON-OFF, DALI, DMX, CASAMBI
Optical data:
Optical system:
lens
Material:
PMMA
Light emission:
direct
Light distribution:
symmetrical, asymmetrical
Lighting data:
Light source:
LED
Luminous flux from luminaire 22W,44W:
3205 lm, 6409 lm
Luminous efficacy from luminaire 22W,44W:
146 lm/W
Colour temperature:
2700K, 3000K, 4000K (options: 6500K, amber, red, blue, green)
Colour rendering index:
CRI>80 (options: CRI>90)
Colour tolerance SDCM:
SDCM<3
Tolerance of luminous flux:
+/-10%
Product description

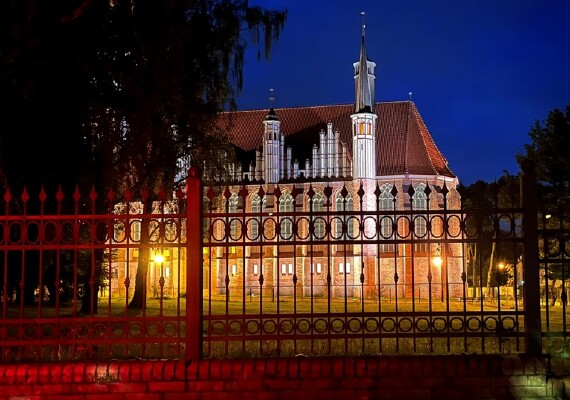

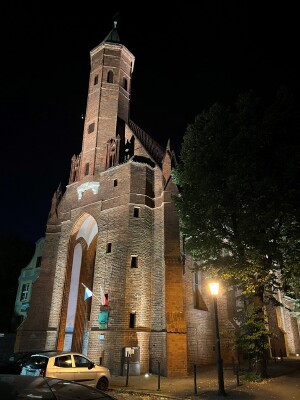

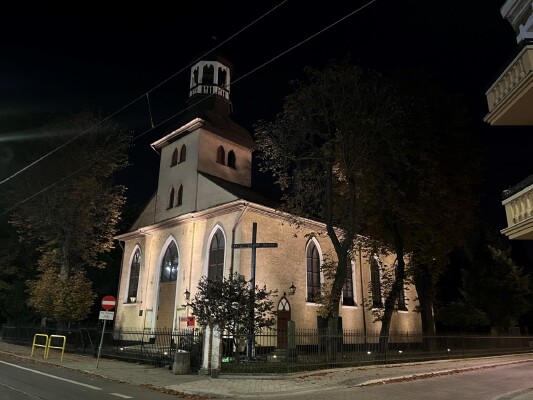

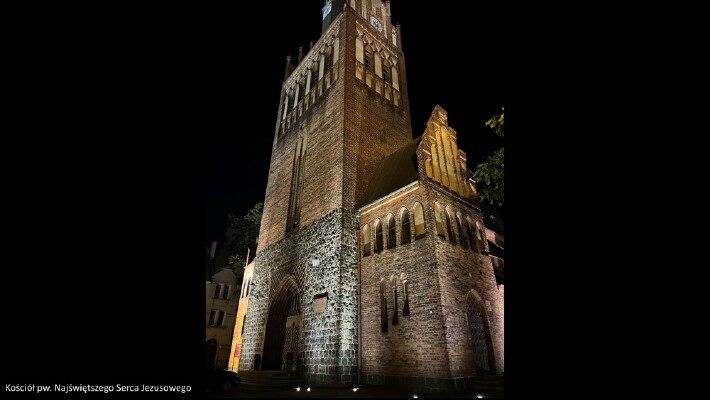

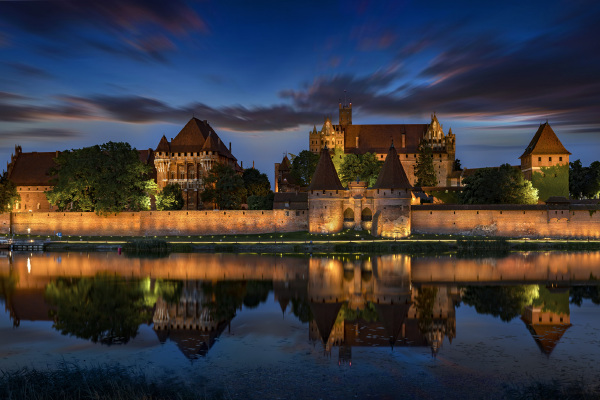

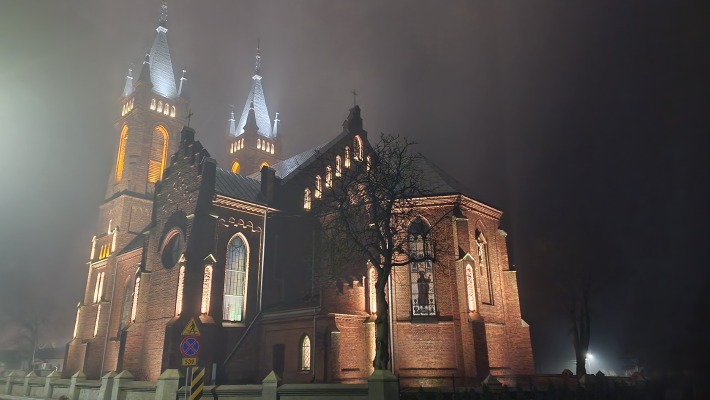

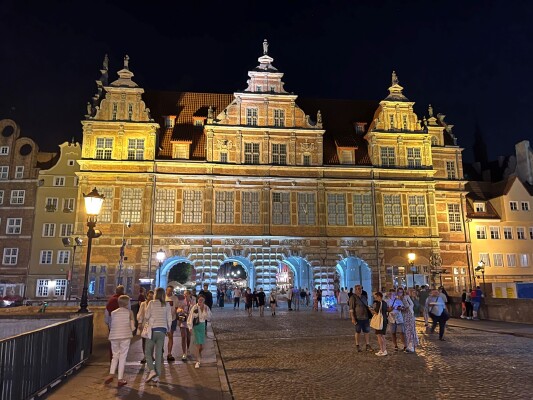

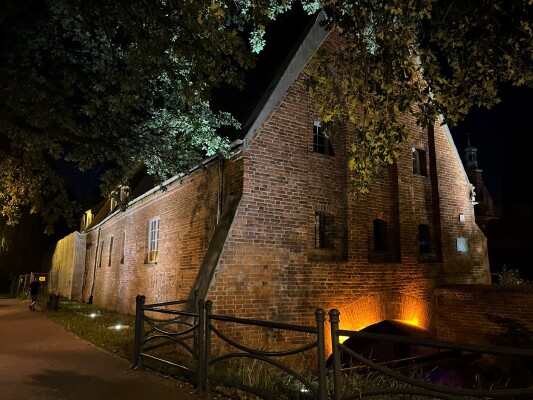

Naik is an uplight luminaire for easy installation in sidewalks, promenades and squares. Perfect to illuminate building facade and other architectural elements. The IP 67 protection class means that the luminaire perfectly withstands harsh weather conditions. The luminaire structure is resistant to mechanical factors – impact resistance class IK 10. Housing made of aluminum, outer ring - stainless steel. 8mm toughened glass. The Naik luminaire makes it possible to design dynamic light scenes.
L – beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
41 – 45x10°
8- 8° wall-washing
45- 45° wall-washing
02- asymmetrical
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Dimensions | Box dimensions |
|---|---|---|---|---|---|---|---|
| 90201.236201L | 2802lm | 22W | 2700K | ≥80 | 7,5kg | Ø260H=101mm | 300x300x180mm |
| 90201.336201L | 3012lm | 22W | 3000K | ≥80 | 7,5kg | Ø260H=101mm | 300x300x180mm |
| 90201.436201L | 3205lm | 22W | 4000K | ≥80 | 7,5kg | Ø260H=101mm | 300x300x180mm |
| 90201.260201L | 5603lm | 44W | 2700K | ≥80 | 7,5kg | Ø260H=101mm | 300x300x180mm |
| 90201.360201L | 6025lm | 44W | 3000K | ≥80 | 7,5kg | Ø200H=101mm | 300x300x180mm |
| 90201.460201L | 6409lm | 44W | 4000K | ≥80 | 7,5kg | Ø200H=101mm | 300x300x180mm |
Accessories
connector IP68 3-pole
catalogue code 124.00
embranchment IP67
catalogue code 90.10
honeycomb (anti-glare)
catalogue code 90.07
square frame
catalogue code 90.33
