Technical data
General data:
Electrical data:
Optical data:
Lighting data:
Product description
Luminaires from the INX series are designed for operation in the most demanding outdoor environments. Made of electropolished stainless steel 1.4301, they provide maximum resistance to corrosion and salinity, weather conditions, and mechanical damage, while offering a refined, high-quality surface finish. Electropolishing not only enhances the aesthetic of the luminaires but also increases the material’s resistance to dirt and aggressive environmental conditions.

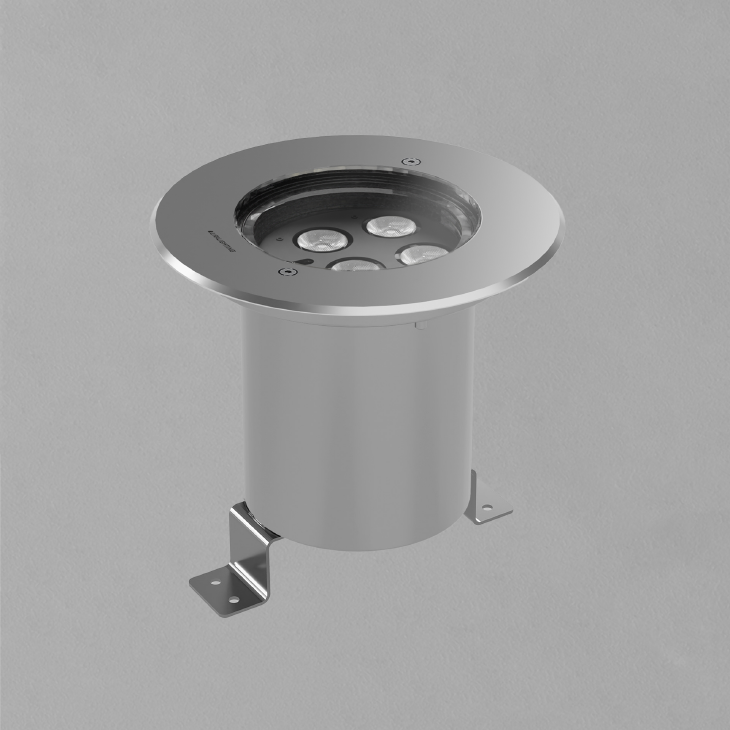

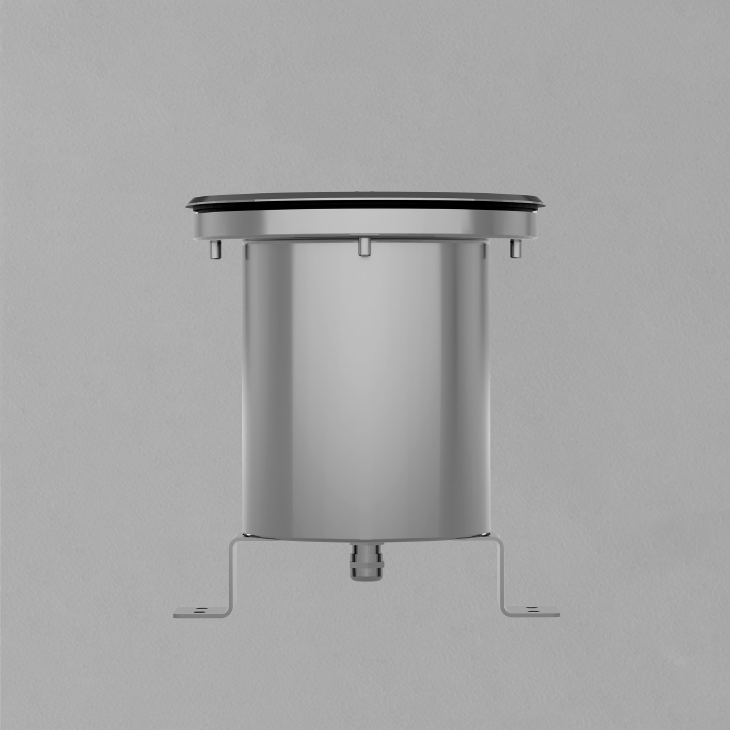

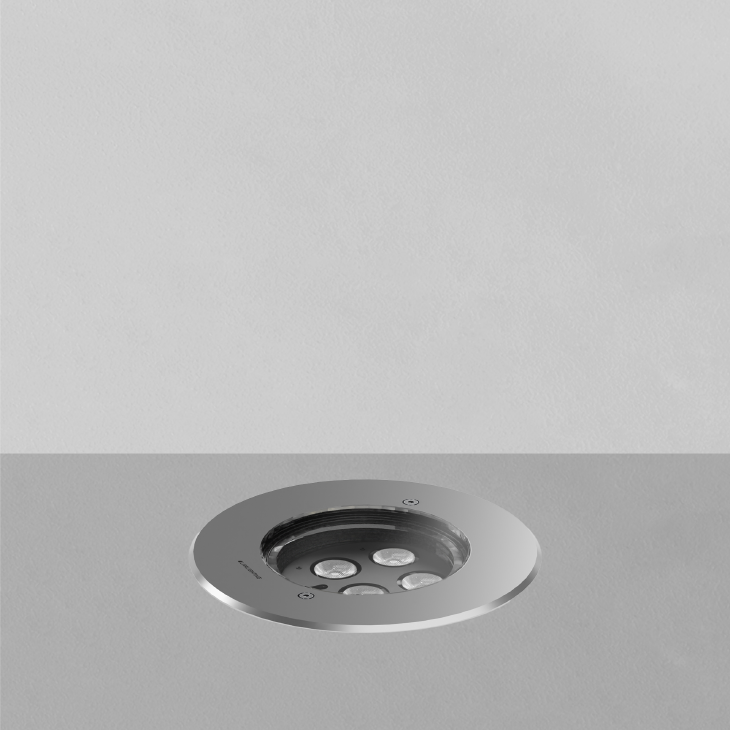

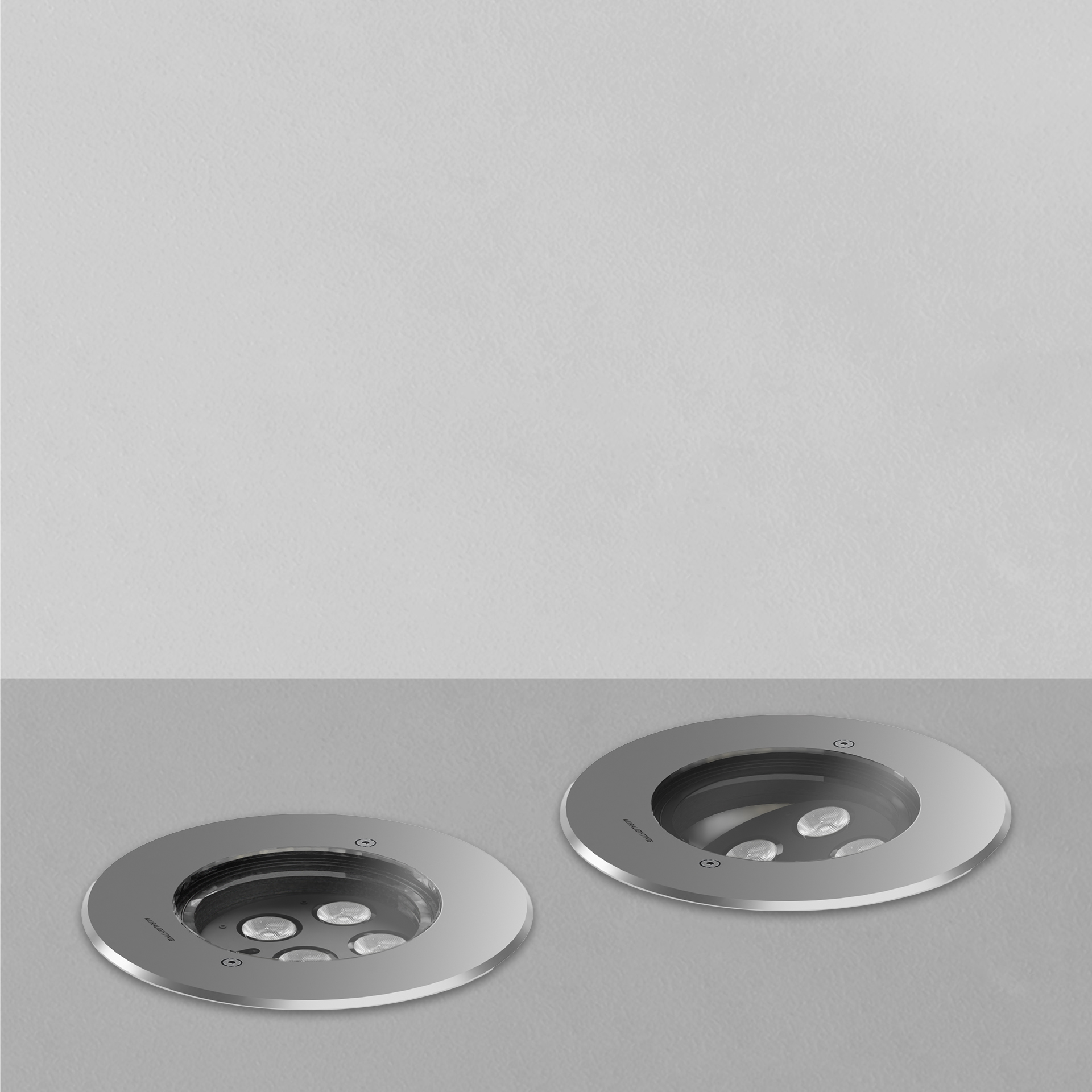

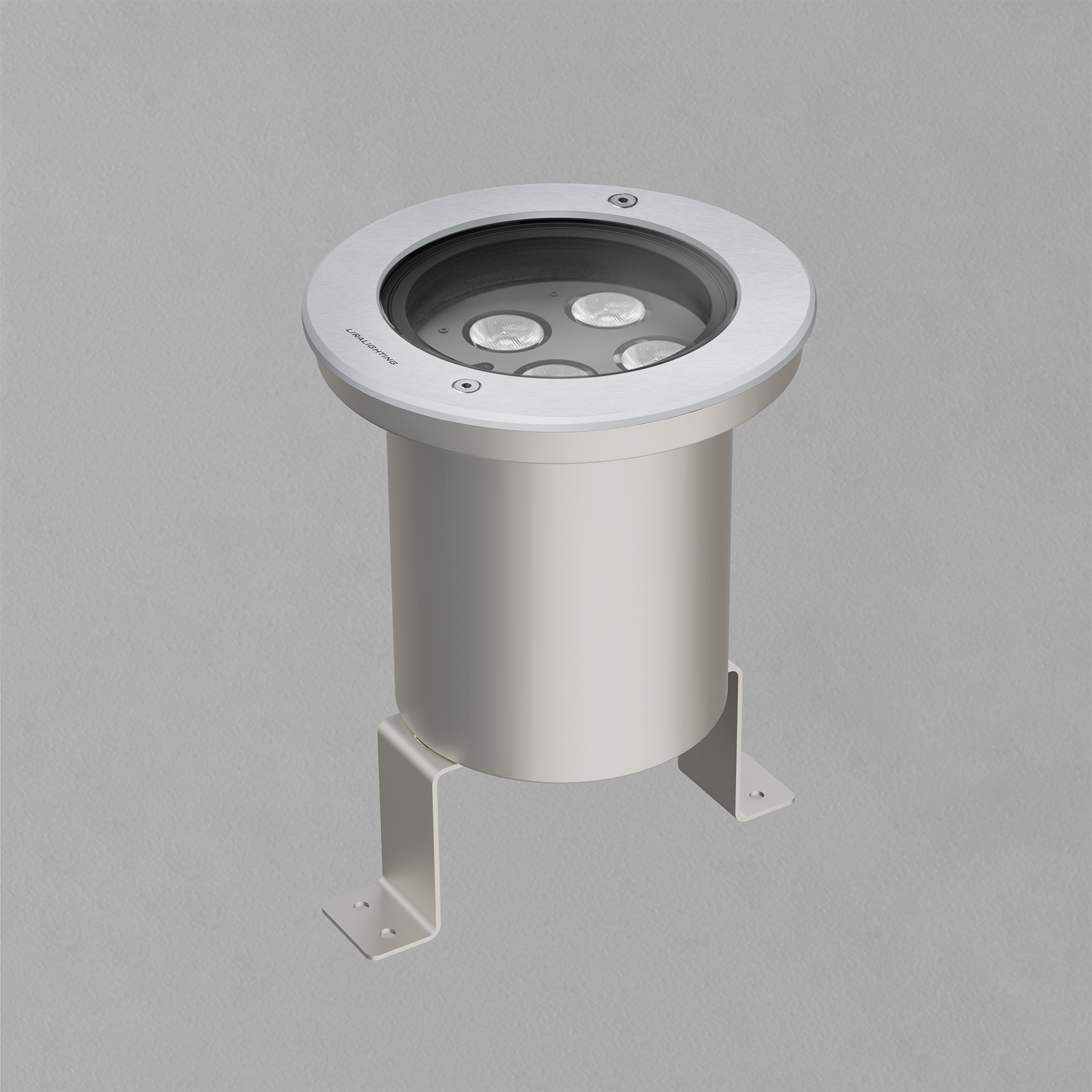

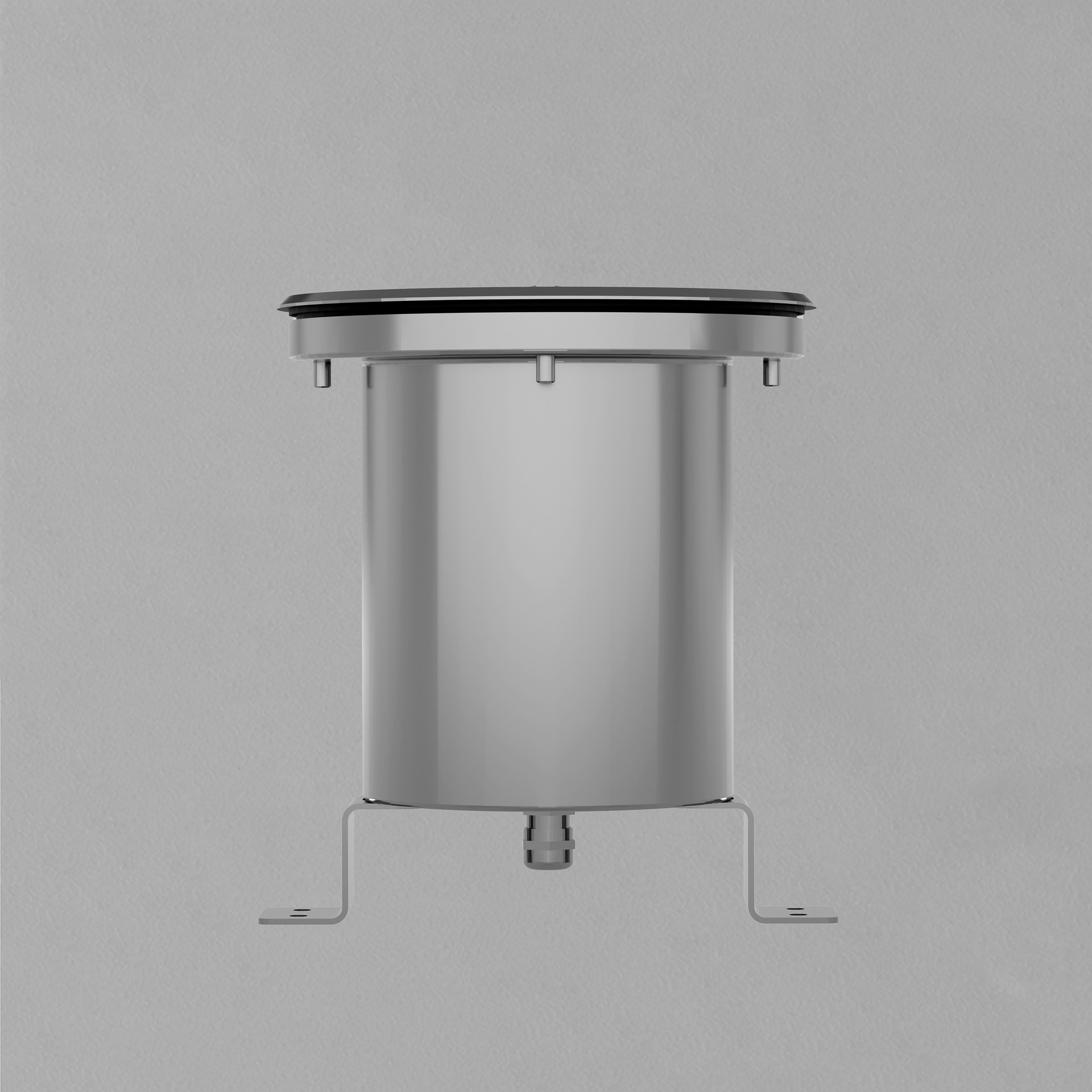

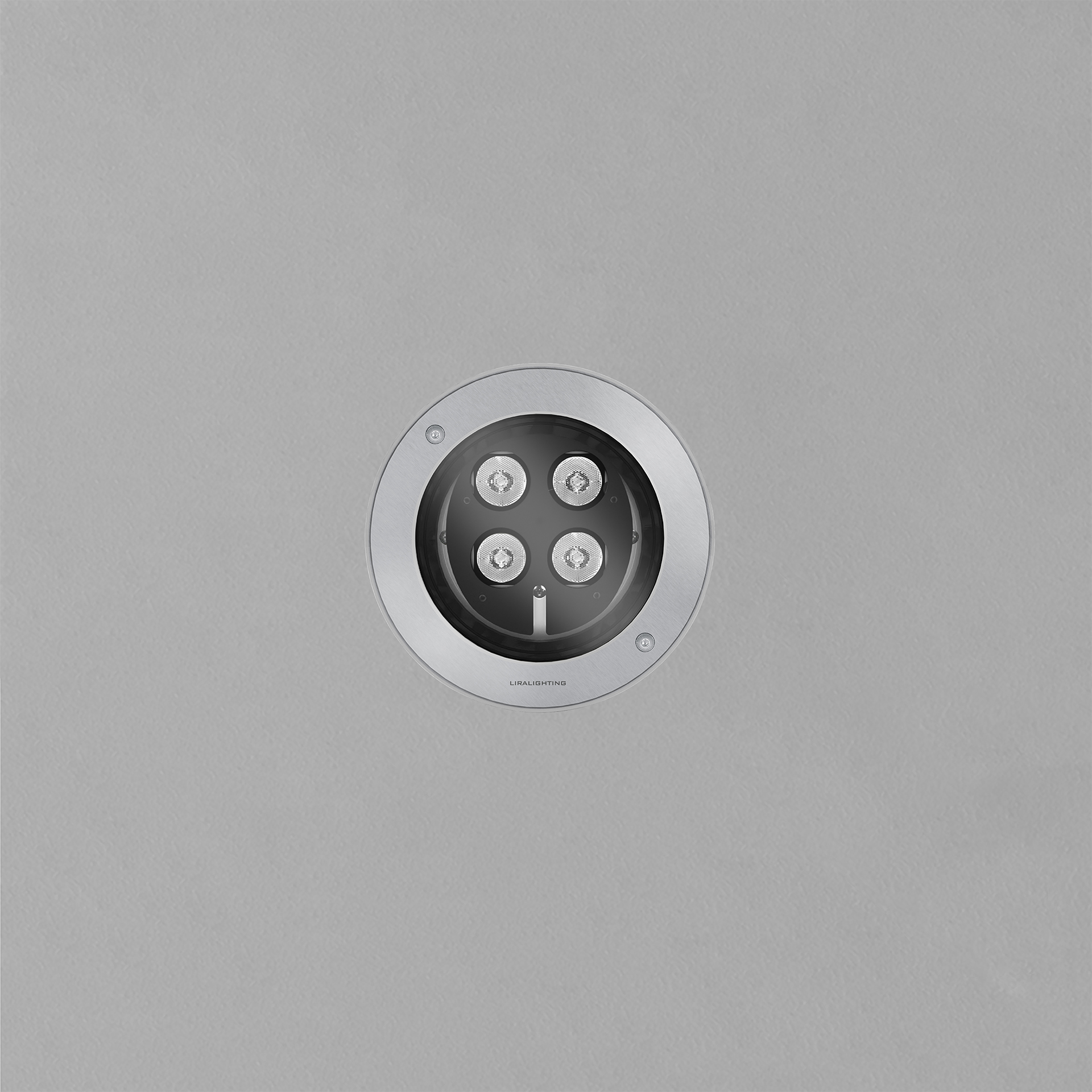

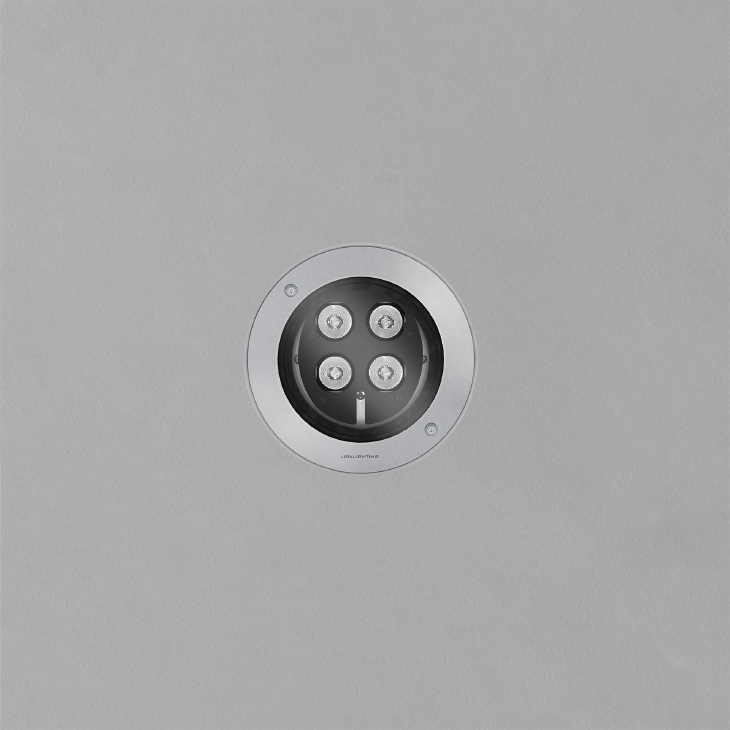

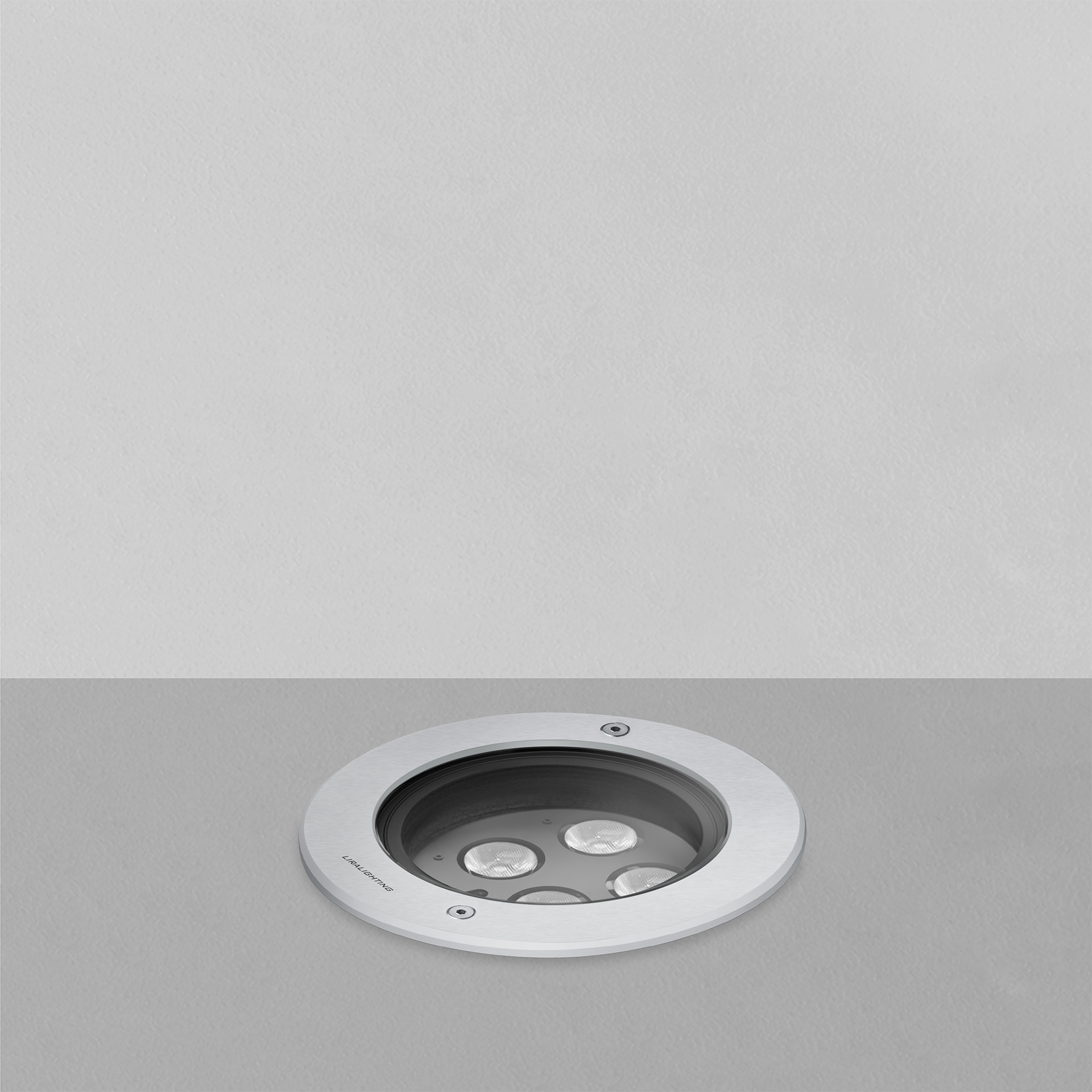

INX 175 MOVE IN-GROUND is an in-ground luminaire featuring advanced technology that allows independent adjustment of the light direction. Thanks to an adjustable mounting plate, the user can precisely set the beam angle within 0–30° in the vertical axis and up to 60° in both directions of the horizontal axis, enabling accurate adaptation of the lighting effect — from subtle highlighting of details to strong architectural accents. With IP67 ingress protection and IK10 impact resistance, the luminaire can be safely installed in pedestrian routes and public spaces, ensuring reliable illumination of façades, greenery, and architectural elements even under intensive use.
E - electronics
0 - on/off
D - DALI
L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
02 – asymmetrical
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Box dimensions |
|---|---|---|---|---|---|
| 9542.02EL | 1059lm | 9W | 118lm/W | 2700K | 300x380x200mm |
| 9542.03EL | 1103lm | 9W | 123lm/W | 3000K | 300x380x200mm |
| 9542.04EL | 1148lm | 9W | 128lm/W | 4000K | 300x380x200mm |
