Technical data
General data:
Luminaire body:
aluminum/inox
Mounting type:
in-ground
Ingress protection IP:
67
Zakres temperatury pracy:
from -40° to +45°
Lifetime L80B10:
100 000h
impact protection IK:
10
Electrical data:
Nominal voltage:
220-240V AC
Nominal freguency:
50-60Hz
luminaire nominal power:
9W
Protection class:
I
Connection wire:
wire 3x0,75mm2 (5x0,75mm2 for DALI)
Wiring:
through, standard
connection wire:
0,5m
dimming:
ON-OFF, DALI
power supply:
inside the luminaire
Optical data:
Optical system:
lens
Material:
PMMA
Light emission:
direct
Light distribution:
asymmetrical
Lighting data:
Light source:
LED
Colour rendering index:
CRI>80
Colour tolerance SDCM:
SDCM<3
Tolerance of luminous flux:
+/-10%
Other data:
On request:
CRI>80, 6500K, amber, red, blue, green
Product description

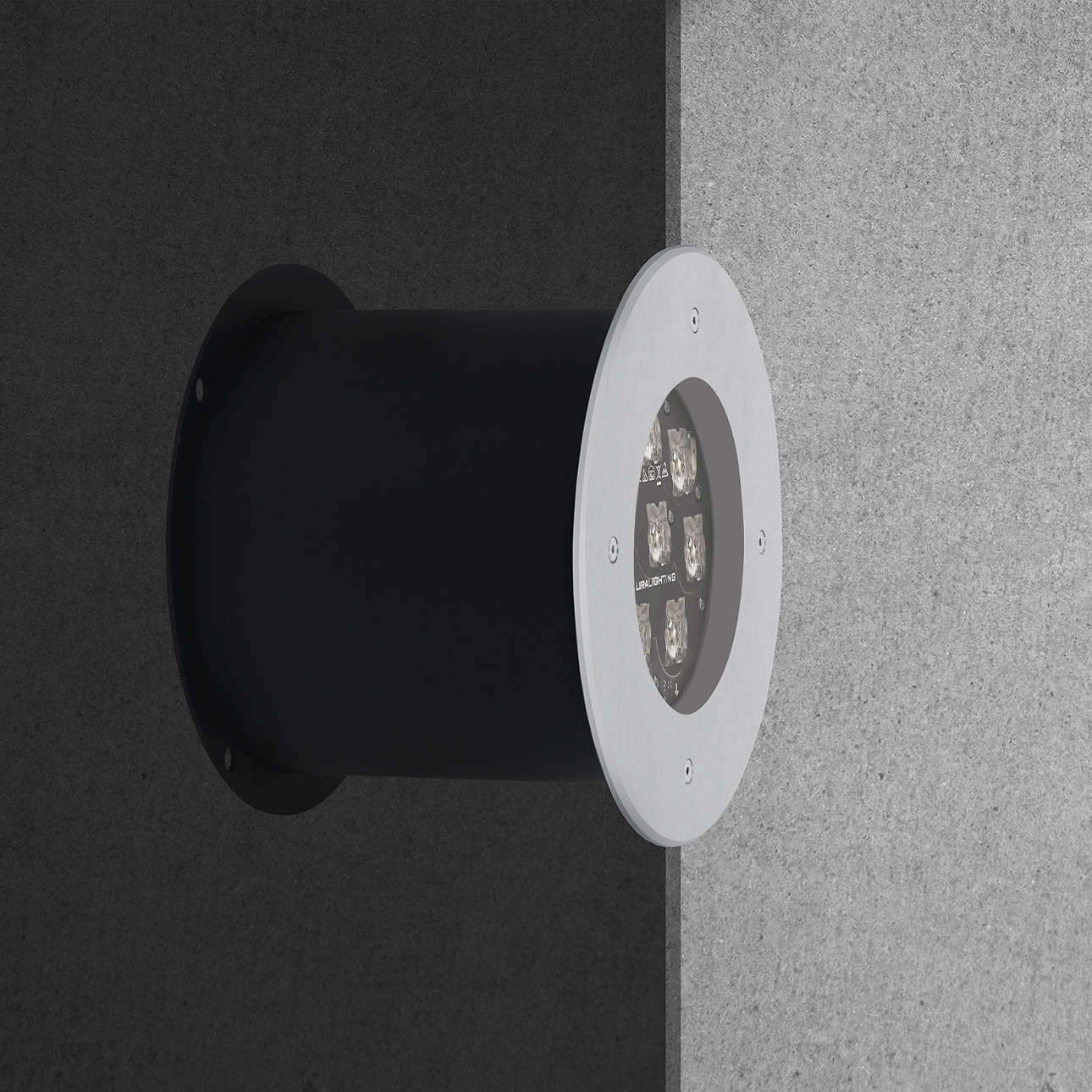

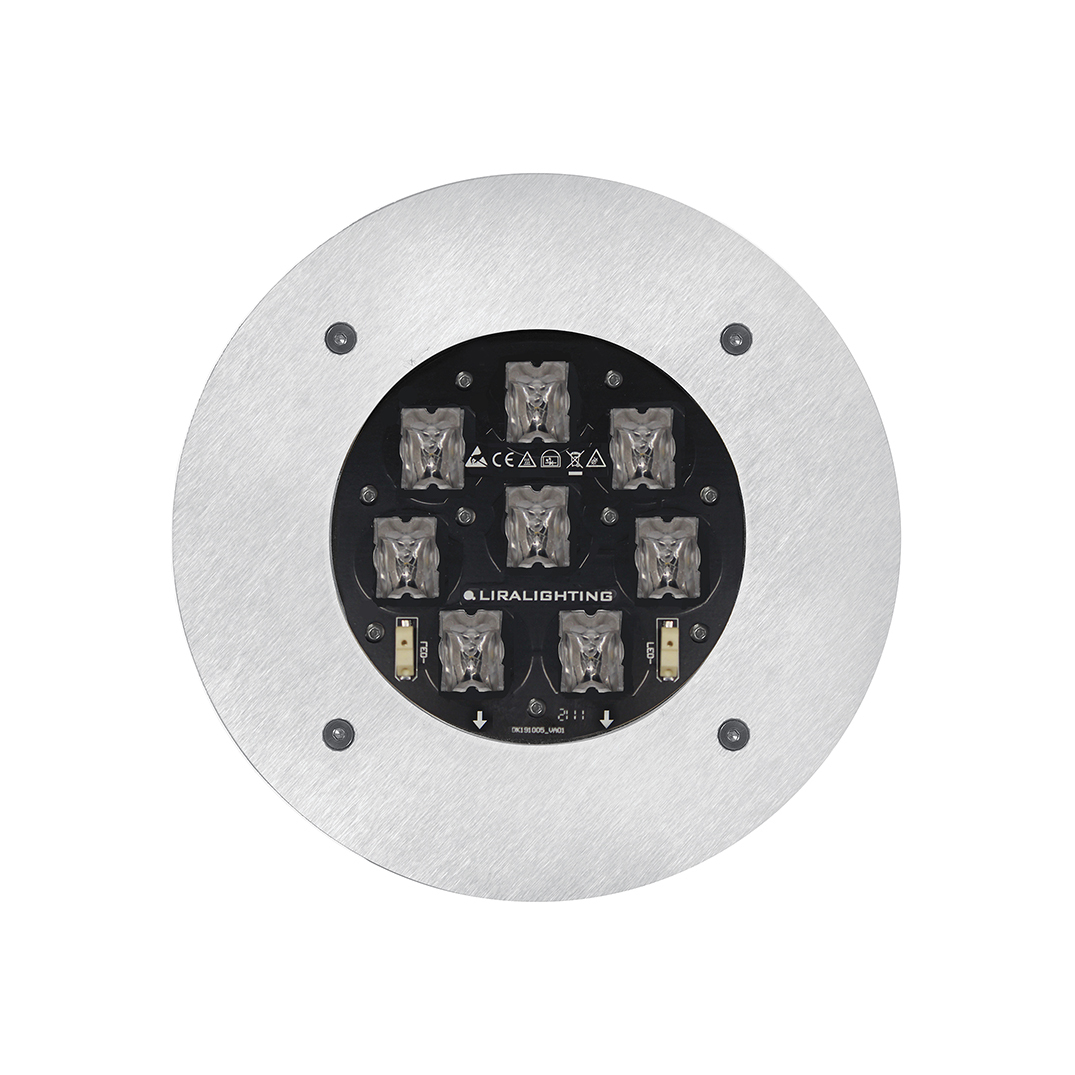

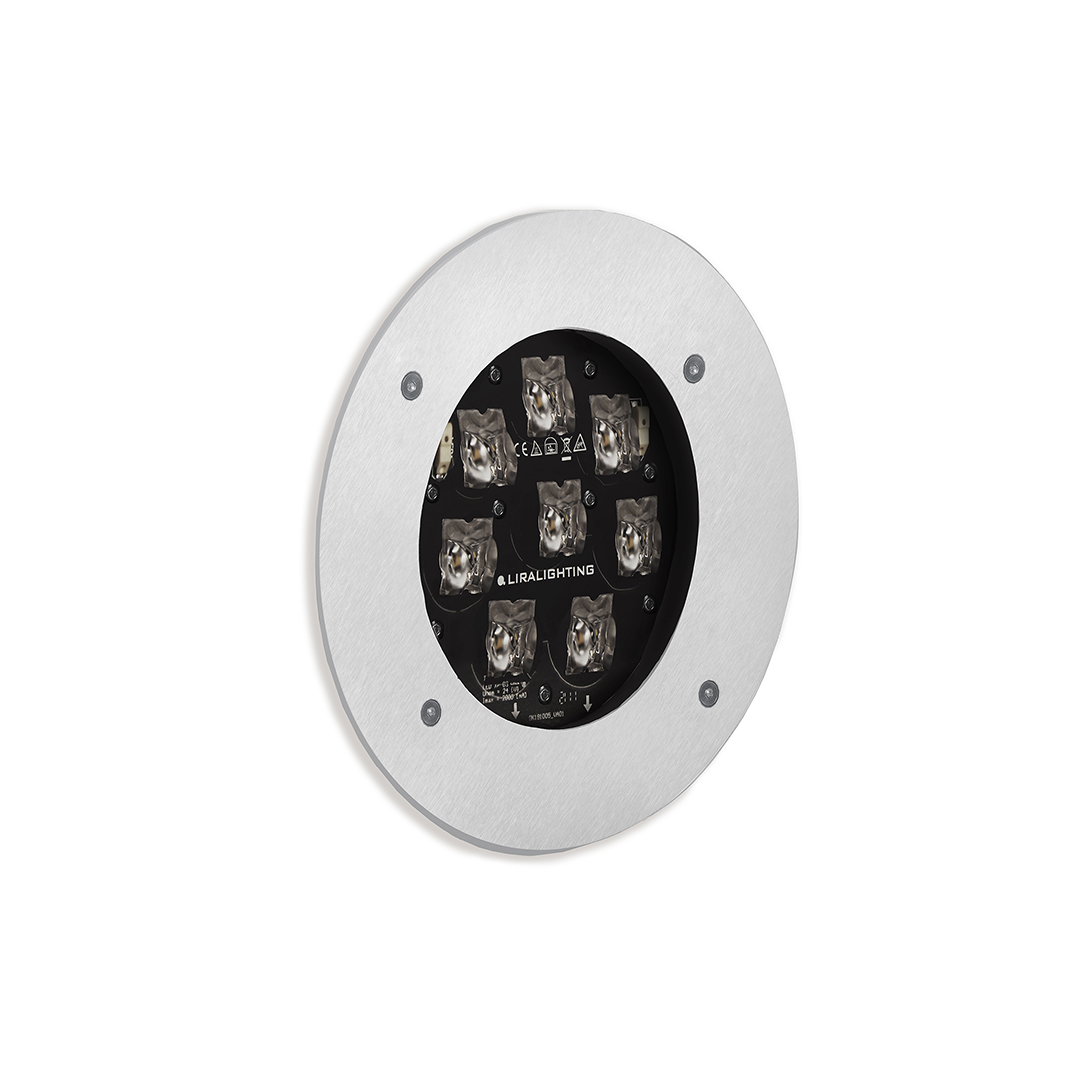

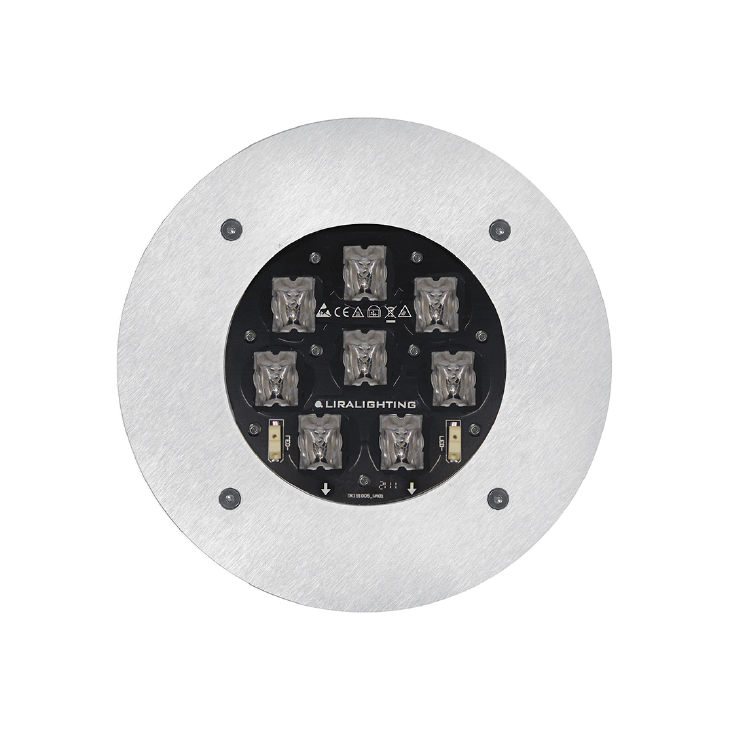

Dwell is a luminaire mounted in the wall for lighting driveways, walls, stairs. Ingress protection IP67 makes the luminaire perfectly withstand weather conditions. Luminaire body made of aluminum, outer ring made of stainless steel. Tempered glass 8mm.
Available product colors
Standard:
-
inox08 -
white03 -
grey06 -
anthracite70 -
black05
E- electronics
O- on-off
D- DALI
C- colour
L- beam angle
02- asymmetrical
W- wiring
T- through
S- standard
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Box dimensions |
|---|---|---|---|---|---|---|
| 9181.02ELCW | 523lm | 9W | 2700K | ≥80 | 3,5kg | 250x250x150mm |
| 9181.03ELCW | 545lm | 9W | 3000K | ≥80 | 3,5kg | 250x250x150mm |
| 9181.04ELCW | 568lm | 9W | 4000K | ≥80 | 3,5kg | 250x250x150mm |
Photometric body
Accessories
connector IP 68 3-pole
catalugue number 124.00
honeycomb (anti-glare)
catalugue number 90.04
