Technical data

General data:

Luminaire body:
steel
Mounting type :
recessed
Ingress protection IP:
IP44 / IP20
Operating temperature range :
from -20°C to +40°C
Lifetime L80B10:
100 000h

Electrical data:

Nominal voltage :
220-240V AC
Nominal frequency :
50-60 Hz
Protection class :
II
Dimming :
on-off, DALI, CASAMBI

Optical data:

Optical system :
reflector
Aperture:
microprismatic diffuser
Light emission :
direct
Light distribution :
symmetrical

Lighting data:

Light source :
LED
Colour rendering index :
CRI>90
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%

Product description

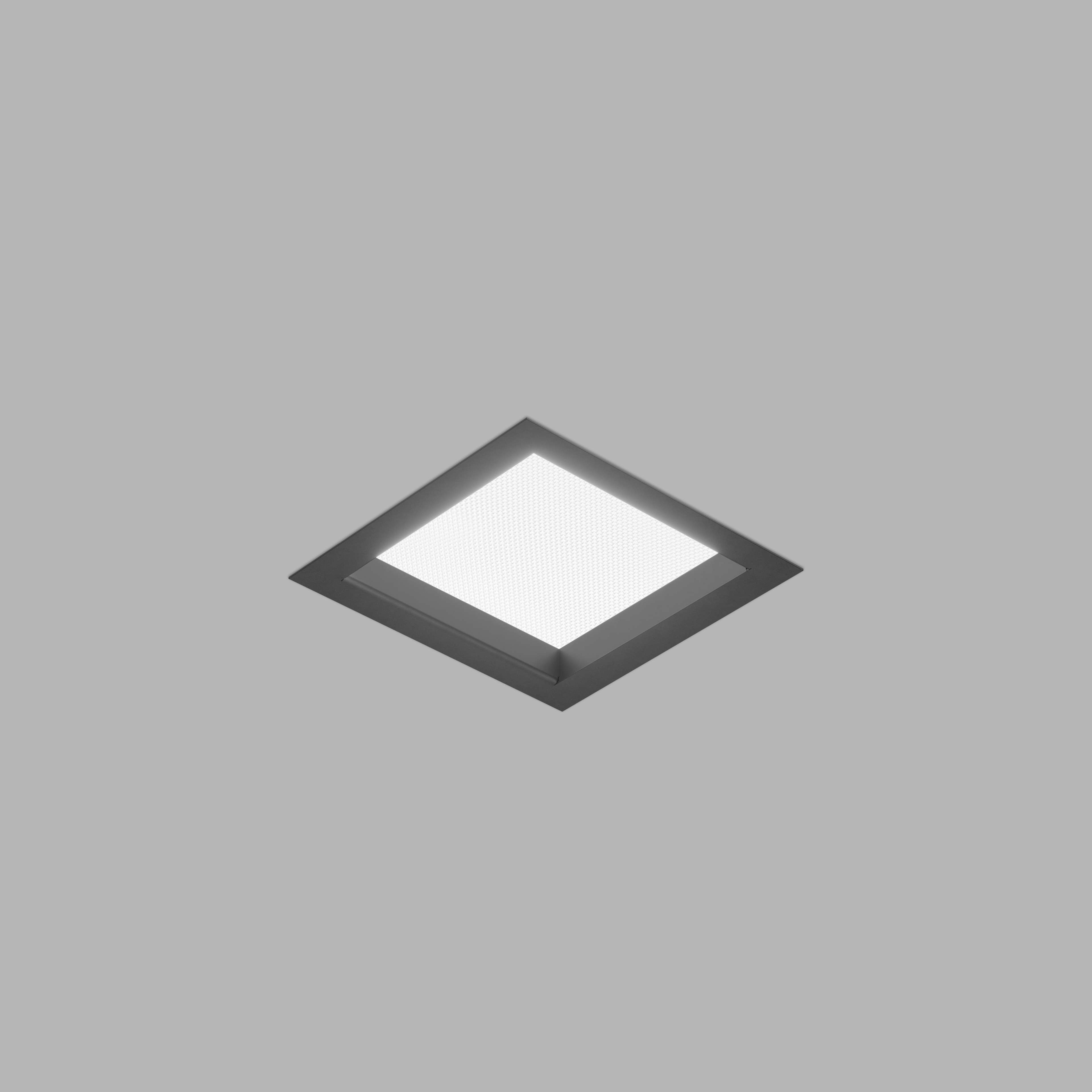

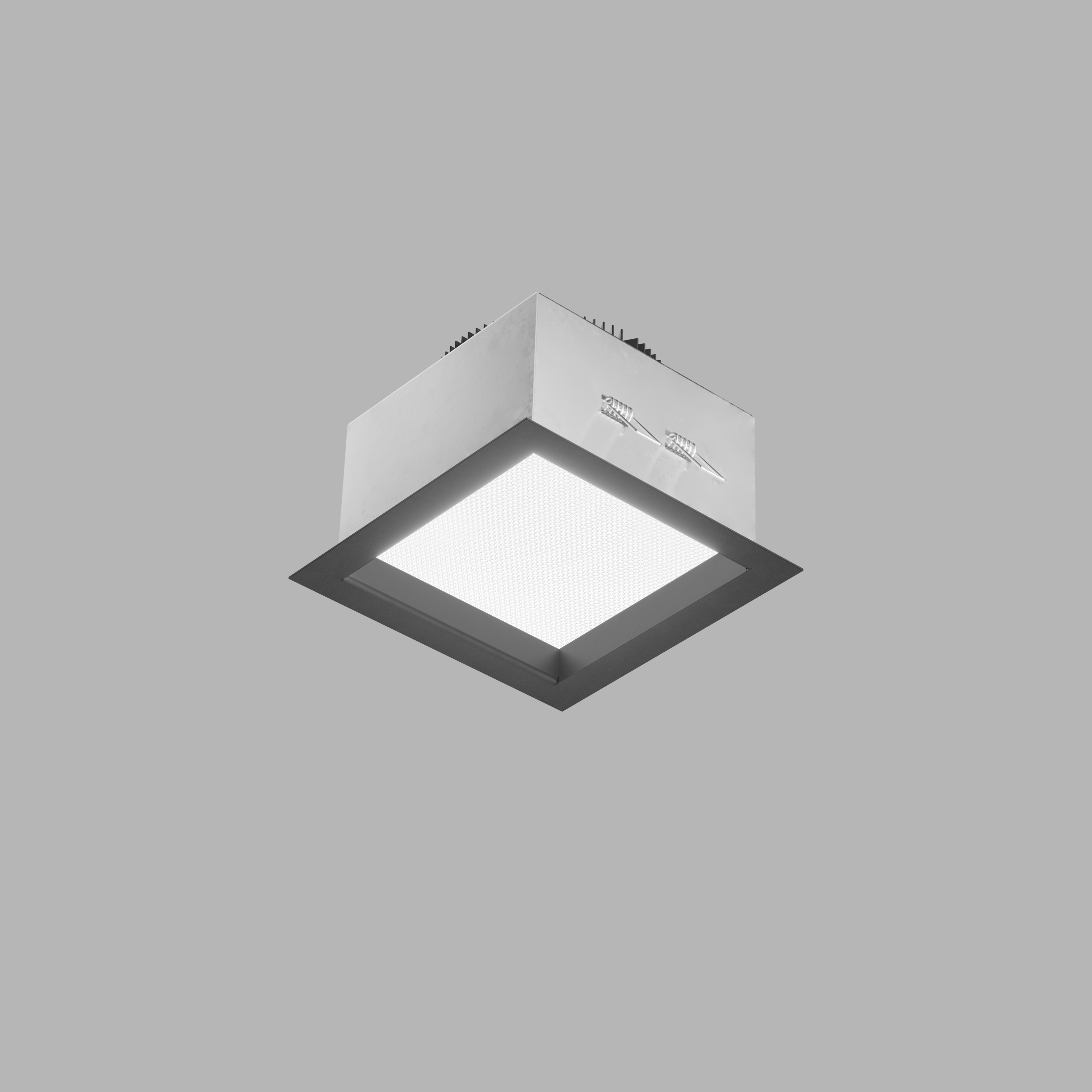

SDL is a modern square downlight designed for seamless integration with interior architecture.
Available in multiple sizes, it allows precise adaptation to the scale and rhythm of the designed space.
The deeply recessed light source reduces glare and ensures high visual comfort.
The option to choose between a microprismatic or opal diffuser makes it possible to tailor the light characteristics to the functional and visual requirements of the project.

SDL is well suited for office, hotel, and commercial buildings, as well as contemporary architectural projects where clear form and precise light control are essential.

Available product colors

Standard:
  • white
    03
  • grey
    06
  • anthracite
    70
  • black
    05

E - electronics

0 - on-off

D - DALI

C - CASAMBI



C - colour

Catalogue code Luminaire light flux Power Effectiveness Color temperature
4105.52EC 1402lm 12W 117lm/W 2700K
4105.53EC 1445lm 12W 120lm/W 3000K
4105.54EC 1554lm 12W 130lm/W 4000K
4106.52EC 1970lm 18W 109lm/W 2700K
4106.53EC 2031lm 18W 113lm/W 3000K
4106.54EC 2183lm 18W 121lm/W 4000K
4107.52EC 2708lm 25W 108lm/W 2700K
4107.53EC 2791lm 25W 112lm/W 3000K
4107.54EC 3001lm 25W 120lm/W 4000K
4108.52EC 3909lm 39W 100lm/W 2700K
4108.53EC 4333lm 39W 103lm/W 3000K
4108.54EC 4030lm 39W 111lm/W 4000K
