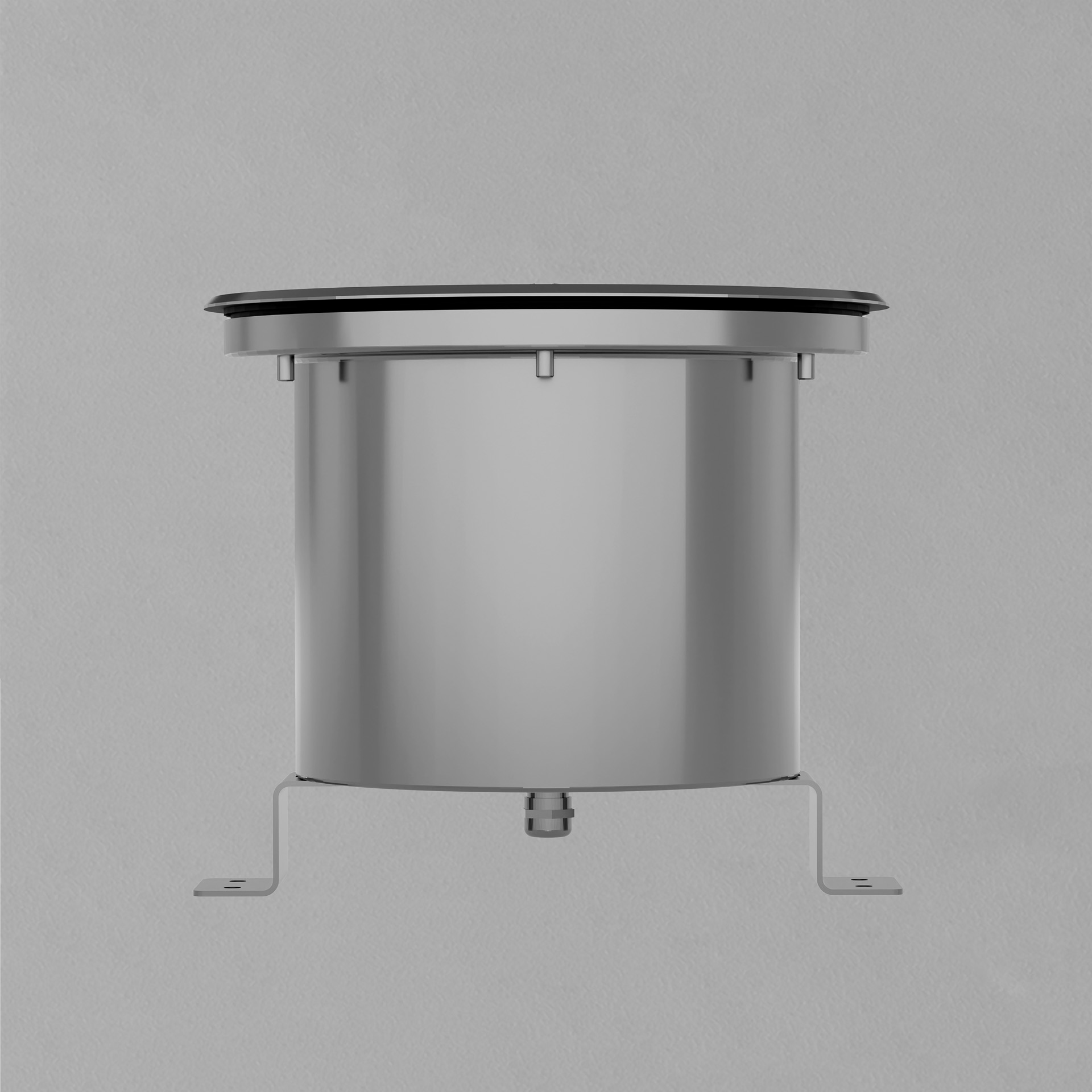

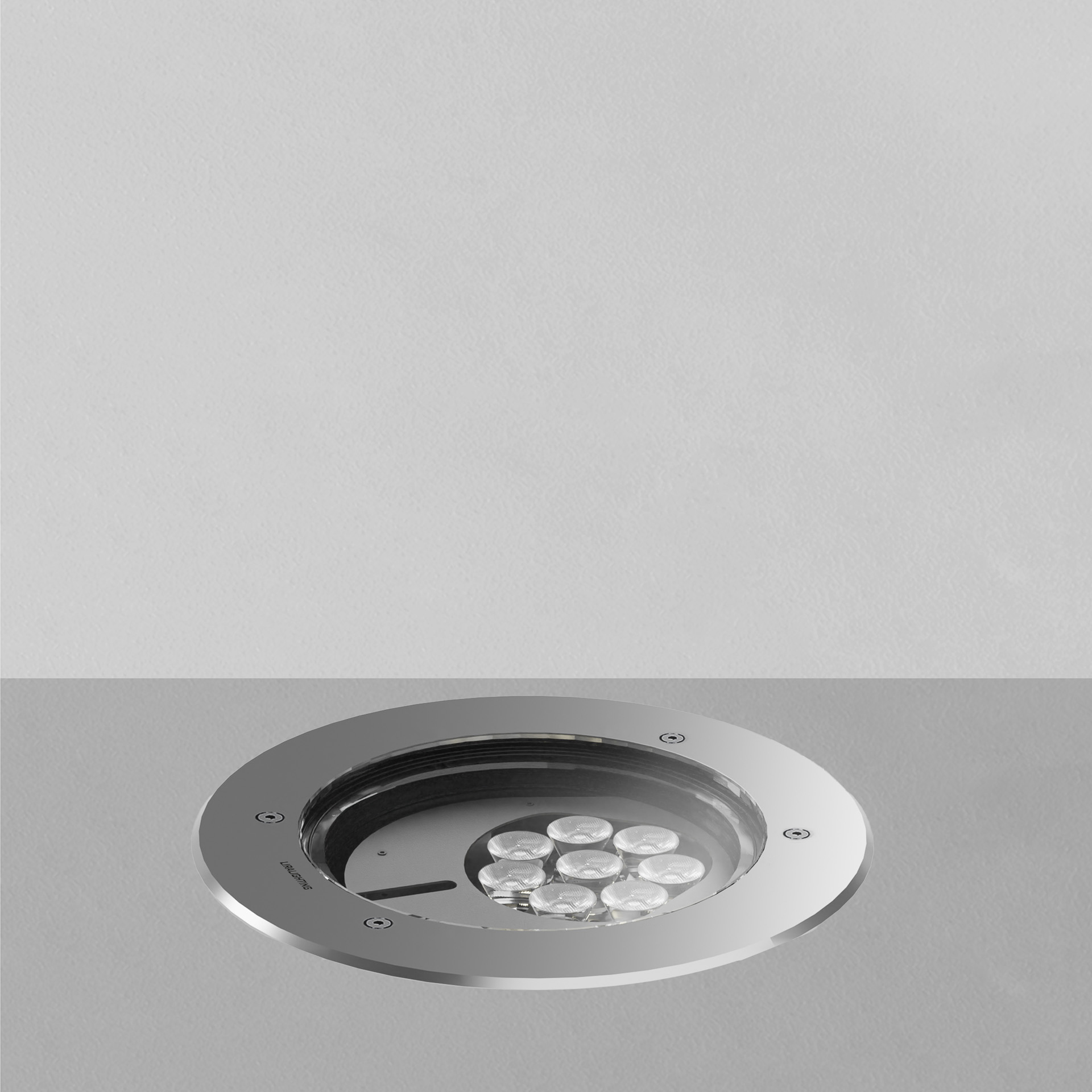

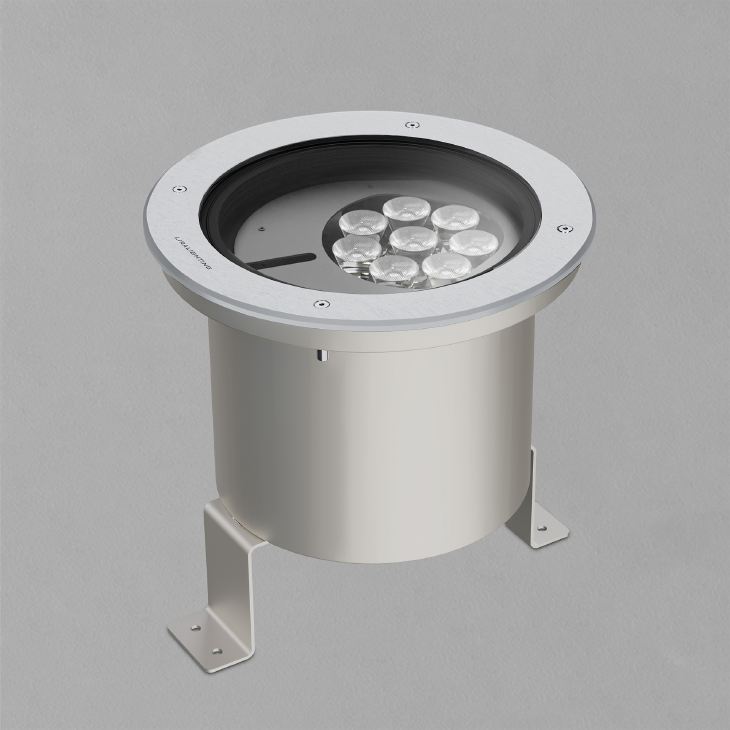

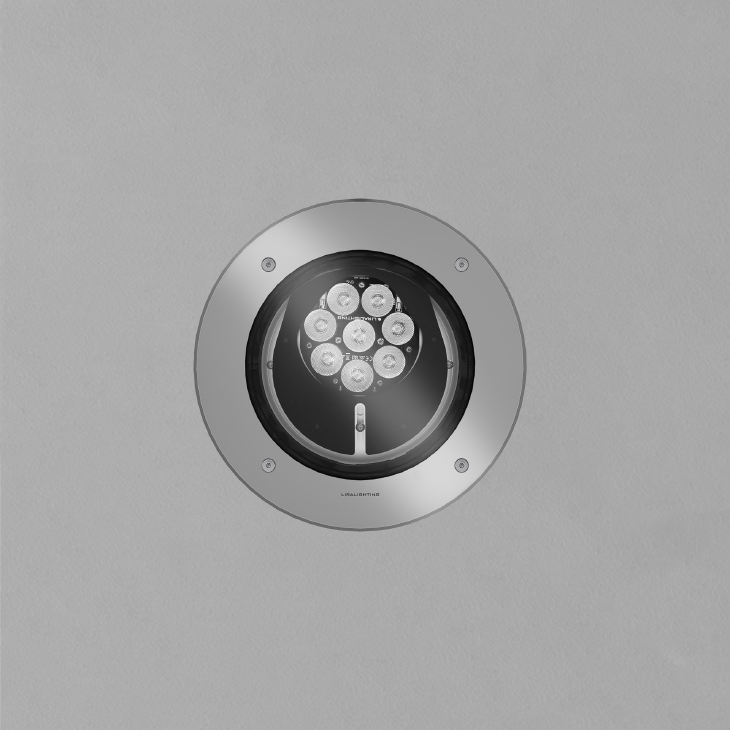

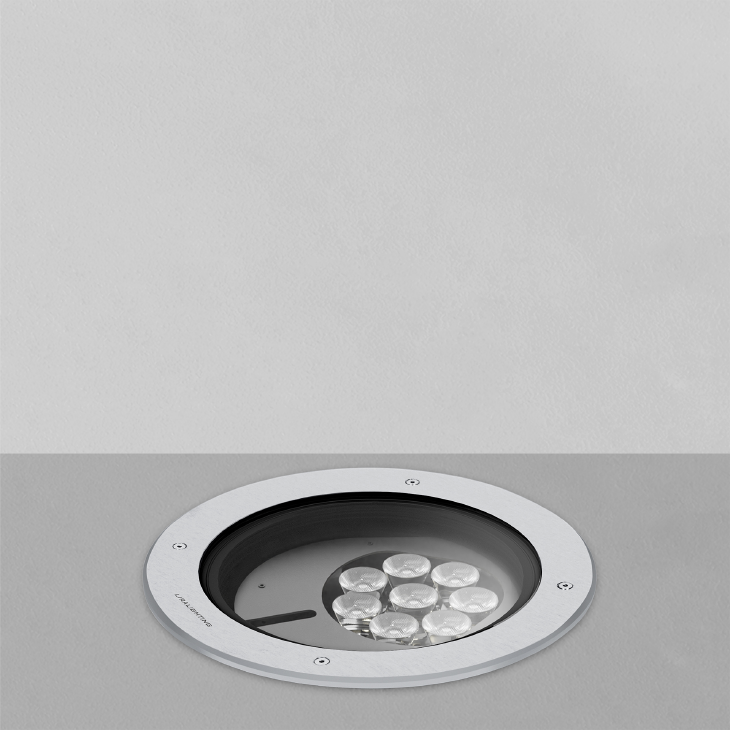

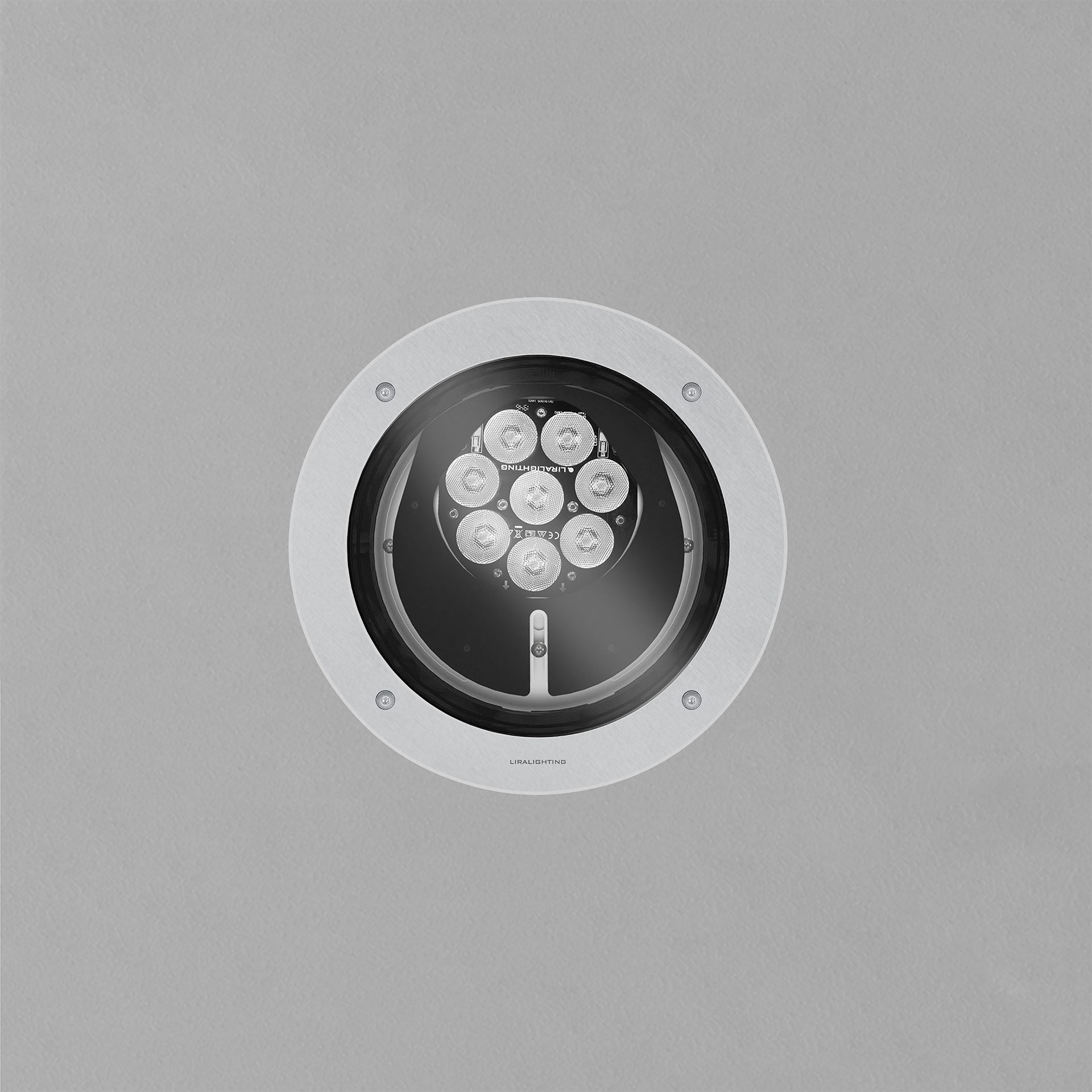

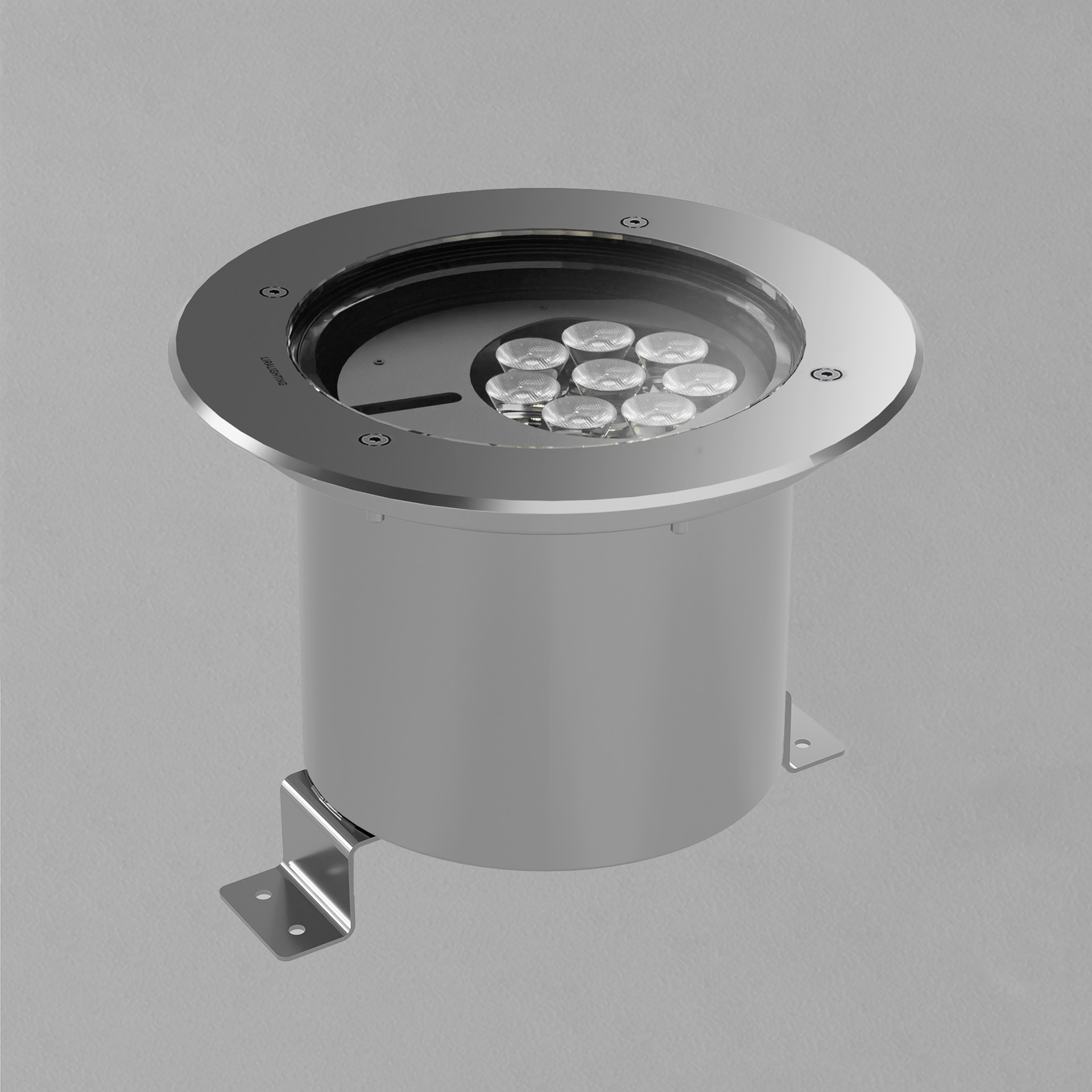

Technical data
General data:
Luminaire body:
stainless steel 1.4301, electropolished
Mounting type :
in-ground for direct burial
Ingress protection IP:
67
Operating temperature range :
from -40° to +45°
Lifetime L80B10:
100 000h
Impact protection IK :
10
Electrical data:
Nominal voltage :
220-240V AC
Nominal frequency :
50-60Hz
Protection class :
I
Connection :
wire 3x1mm², (5x0,1mm² for DALI)
Wiring :
standard
Connection wire :
0,5m
Dimming :
ON-OFF, DALI
Power supply :
inside the luminaire
Optical data:
Optical system :
lens
Material :
PMMA
Aperture:
15mm tempered glass
Light emission :
direct
Light distribution :
symmetrical, asymmetrical
Lighting data:
Light source :
LED
Colour temperature :
2700K, 3000K, 4000K(on request: 6500K, amber, red, blue, green)
Colour rendering index :
CRI>80 (on request: CRI>90)
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%
E - electronics
0 - on/off
D - DALI
L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
02 – asymmetrical
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Box dimensions |
|---|---|---|---|---|---|
| 9543.02EL | 2141lm | 17W | 126lm/W | 2700K | 300x380x200mm |
| 9543.03EL | 2230lm | 17W | 131lm/W | 3000K | 300x380x200mm |
| 9543.04EL | 2323lm | 17W | 137lm/W | 4000K | 300x380x200mm |
Accessories
connector IP68 3-pole
catalogue code 124.00
connector IP68 5-pole
catalogue code 125.00
honeycomb (anti-glare)
catalogue code 90.06
