Technical data

General data:

Luminaire body:
steel
Mounting type :
recessed
Ingress protection IP:
IP44 / IP20
Operating temperature range :
from -20°C to +40°C
Lifetime L80B10:
100 000h

Electrical data:

Nominal voltage :
220-240V AC
Nominal frequency :
50-60 Hz
Protection class :
II
Dimming :
on-off, DALI, CASAMBI

Optical data:

Optical system :
reflector
Aperture:
opal diffuser
Light emission :
direct
Light distribution :
symmetrical

Lighting data:

Light source :
LED
Colour rendering index :
CRI>90
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%

Product description

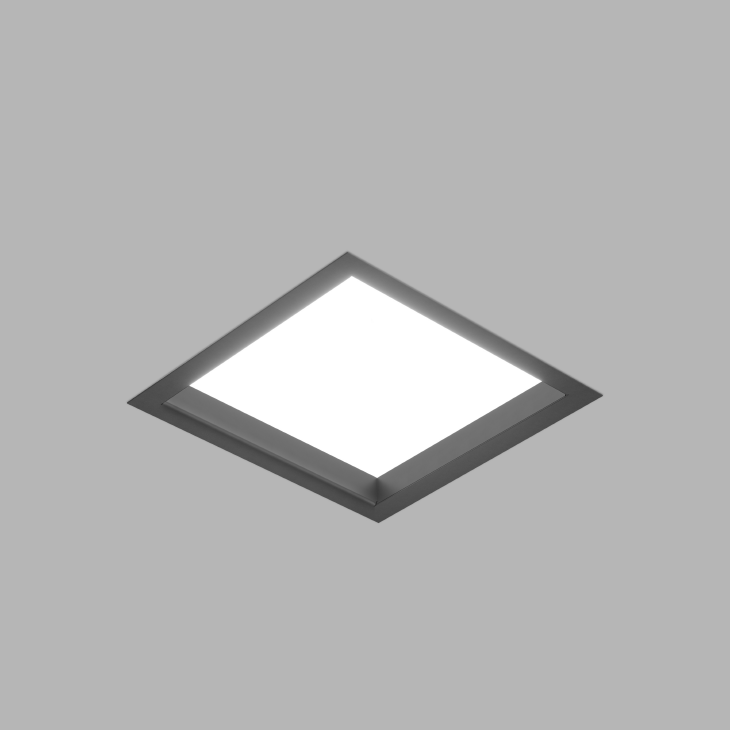

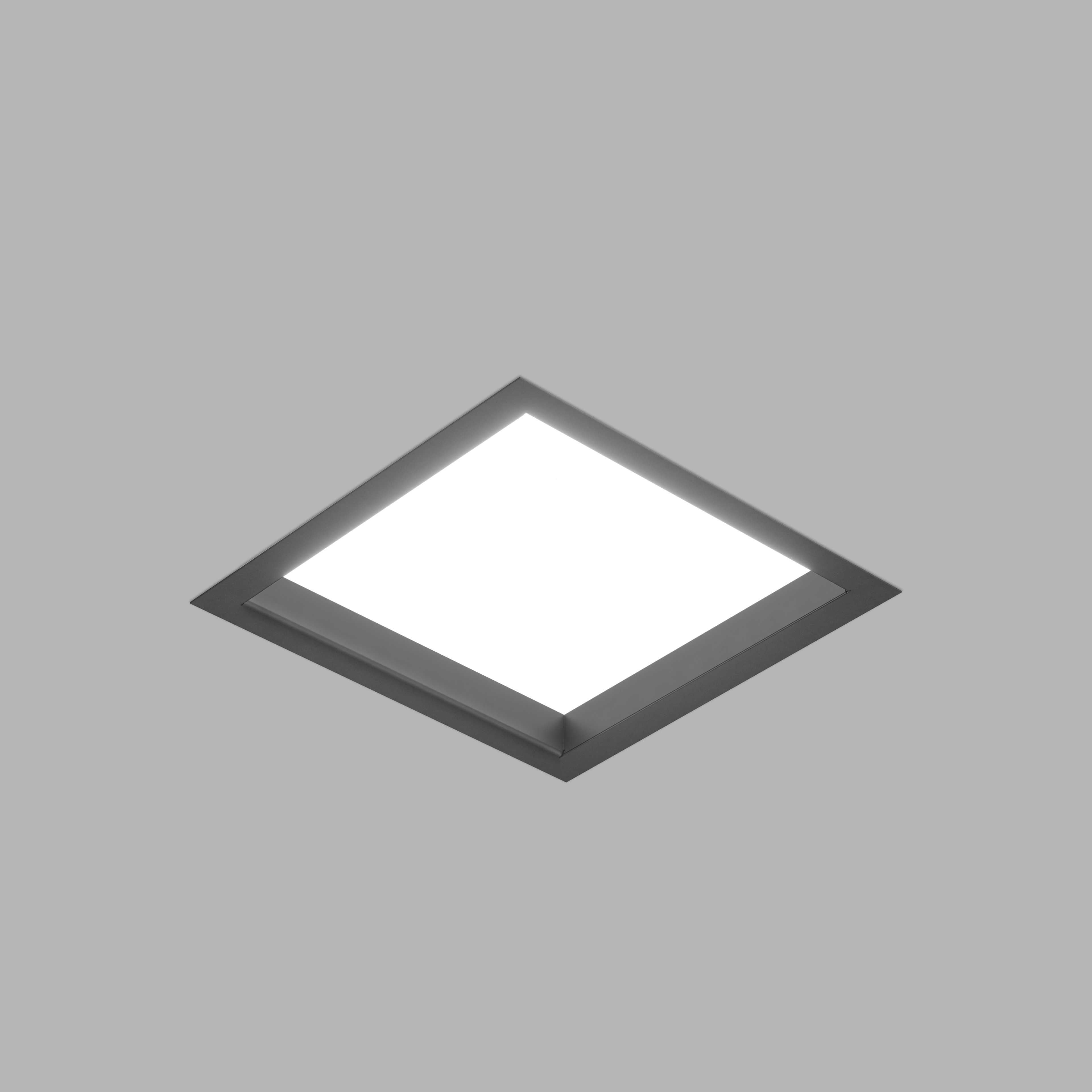

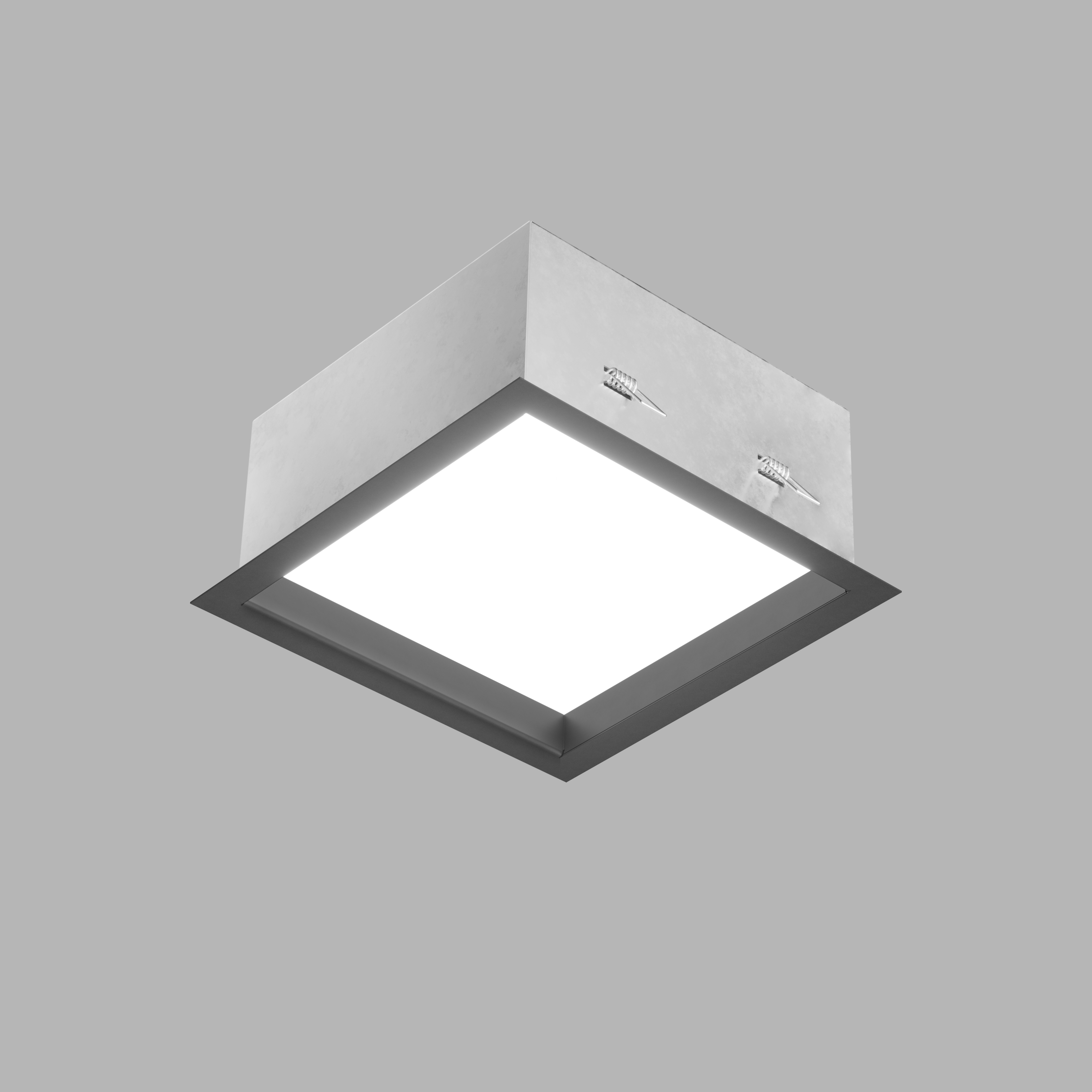

SDL is a modern square downlight designed for seamless integration with interior architecture.
Available in multiple sizes, it allows precise adaptation to the scale and rhythm of the designed space.
The deeply recessed light source reduces glare and ensures high visual comfort.
The option to choose between a microprismatic or opal diffuser makes it possible to tailor the light characteristics to the functional and visual requirements of the project.

SDL is well suited for office, hotel, and commercial buildings, as well as contemporary architectural projects where clear form and precise light control are essential.

Available product colors

Standard:
  • white
    03
  • grey
    06
  • anthracite
    70
  • black
    05

E - electronics

0 - on-off

D - DALI

C - CASAMBI



C - colour

Catalogue code Luminaire light flux Power Effectiveness Color temperature
4109.42EC 1705lm 12W 142lm/W 2700K
4109.43EC 1758lm 12W 147lm/W 3000K
4109.44EC 1890lm 12W 158lm/W 4000K
4110.42EC 2396lm 18W 133lm/W 2700K
4110.43EC 2470lm 18W 137lm/W 3000K
4110.44EC 2655lm 18W 148lm/W 4000K
4111.42EC 3293lm 25W 132lm/W 2700K
4111.43EC 3395lm 25W 136lm/W 3000K
4111.44EC 3650lm 25W 146lm/W 4000K
4112.42EC 4755lm 39W 122lm/W 2700K
4112.43EC 4901lm 39W 126lm/W 3000K
4112.44EC 5270lm 39W 135lm/W 4000K
4113.42EC 5724lm 50W 114lm/W 2700K
4113.43EC 5901lm 50W 118lm/W 3000K
4113.44EC 6346lm 50W 127lm/W 4000K
