Technical data
General data:
Mounting type:
mounting base
Luminaire body:
aluminum
Operating temperature range:
from -20℃ to +45℃
Lifetime L80B10:
100 000h
Ingress protection IP:
IP65
mpact protection IK:
IK08
Optical data:
Light distribution:
symmetrical, street, park
Contains light source:
yes
Optical system:
lens
Material:
PMMA
Protection class:
I
Lighting data:
Colour rendering index:
CRI>70
Type of source:
LED
Electrical data:
Nominal voltage:
220-240V AC
Nominal frequency:
50-60Hz
Dimming:
ON-OFF
supply box:
inside the luminaire
wiring:
through
tolerance of luminous flux:
SDCM<3
colour tolerance SDCM:
+/-10%
light emission:
direct
Product description
The economical outdoor light pole Eliza is the perfect choice for those seeking a stylish, durable, and cost-effective lighting solution. It is suitable for both private gardens and commercial spaces, enhancing the aesthetics and functionality of the illuminated areas.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
C - colour
L - lenses to choose:

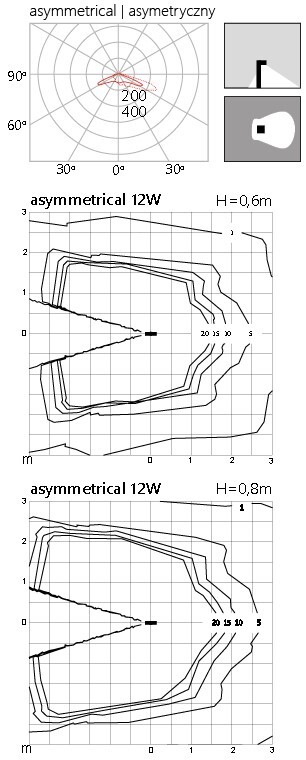

02 - asymmetric floodlighting distribution

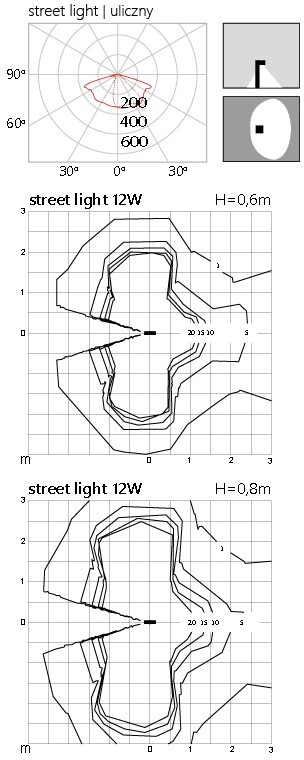

03 - street lighting distribution

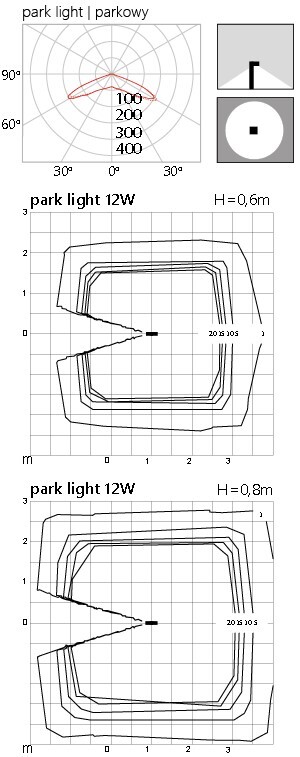

04 - park lighting distribution
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Dimensions |
|---|---|---|---|---|---|
| 9433.430LC | 1844lm | 12W | 154 lm/W | 3000K | 400mm |
| 9433.440LC | 1920lm | 12W | 160 lm/W | 4000K | 400mm |
Accessories
Ground foundation Type B
cod number 90.16.13
