Dwell 50 LV

Technical data

General data:

Mounting type:

in-ground

Luminaire body:

aluminum/inox

operating temperature range:

from -40° to +45°

Ingress protection:

Lifetime L80B10:

100 000h

impact protection IK:

Electrical data:

Nominal voltage:

350mA, max. 3V DC

luminaire nominal power:

Protection class:

III

Connection wire:

wire 2x1mm2

Wiring:

standard

dimming/power supply see wiring doagrams:

ON-OFF, DALI, DMX, CASAMBI

Optical data:

Optical system:

lens

Material:

PMMA

Light emission:

direct

Light distribution:

asymmetrical

Lighting data:

Light source:

LED

Colour rendering index:

CRI>80

colour tolerance SDCM:

SDCM<3

Tolerance of luminous flux:

+/-10%

Other data:

On request:

CRI>90, :6500K, amber, red, blue, green

Downloads

Product data sheet Assembly, use and maintenance instructions 3D models wiring diagrams- dwg file declaration of comformity LDT files wiring diagrams- pdf file

Product description

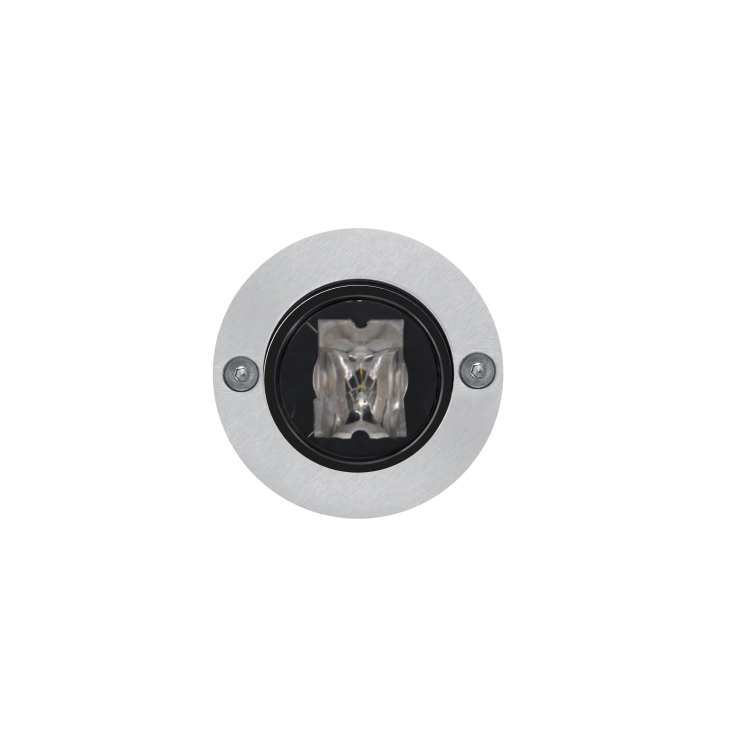

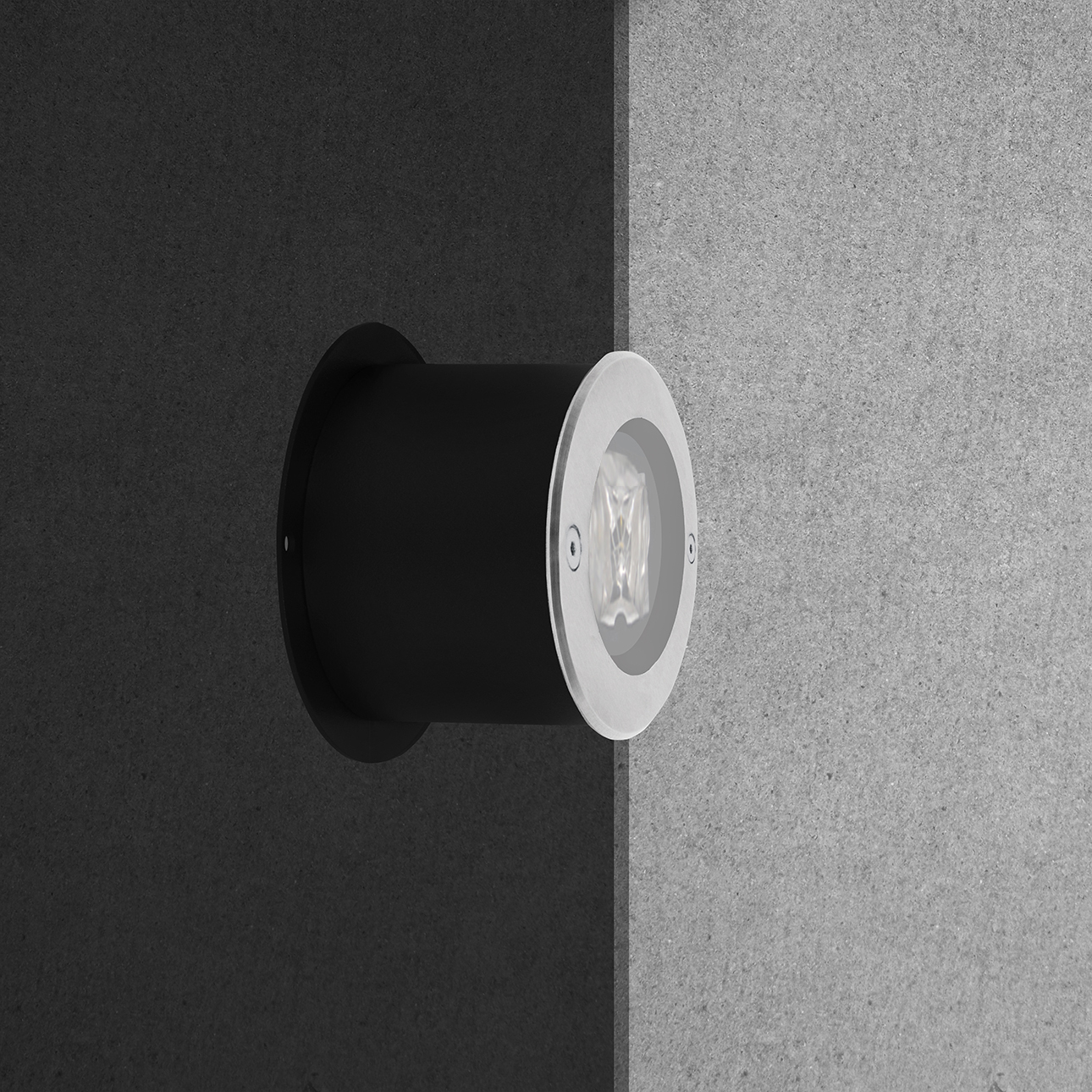

Dwell is a luminaire mounted in the wall for lighting driveways, walls, stairs. Ingress protection IP67 makes the luminaire perfectly withstand weather conditions. Luminaire body made of aluminum, outer ring made of stainless steel. Tempered glass 8mm.
