Technical data
General data:
Mounting type:
in-ground
Luminaire body:
aluminium/inox
Operating temperature range:
from -40° to +40°
Ingress protection IP:
67
Lifetime L80B10:
100 000h, 60 000h
impact protection IK:
10
Electrical data:
Nominal voltage:
220-240V AC
Nominal freguency:
50-60Hz
luminaire nominal power:
4W
Protection class:
I
Connection wire:
wire 3x0,75mm2
Wiring:
through, standard
connection wire:
0,5m
dimming:
ON-OFF
power supply:
inside the luminaire
Optical data:
Optical system:
lens
Material:
PMMA
Light emission:
direct
Light distribution:
asymmetrical
Lighting data:
Light source:
LED
Wskaźnik oddawania barw:
CRI>80
colour tolerance SDCM:
SDCM<3
Tolerance of luminous flux:
+/-10%
Other data:
On request:
CRI>90, 6500K, amber, red, blue, green
Product description

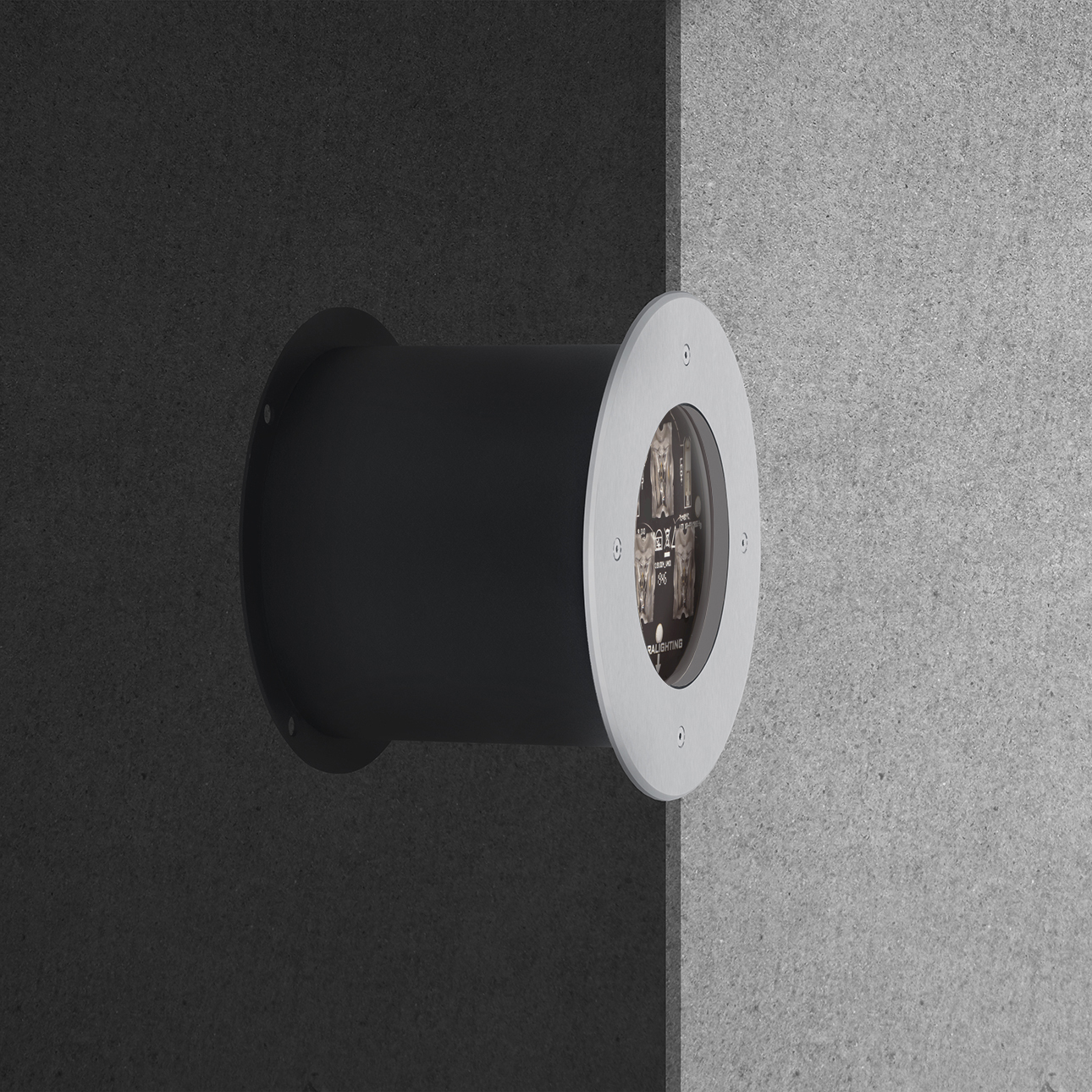

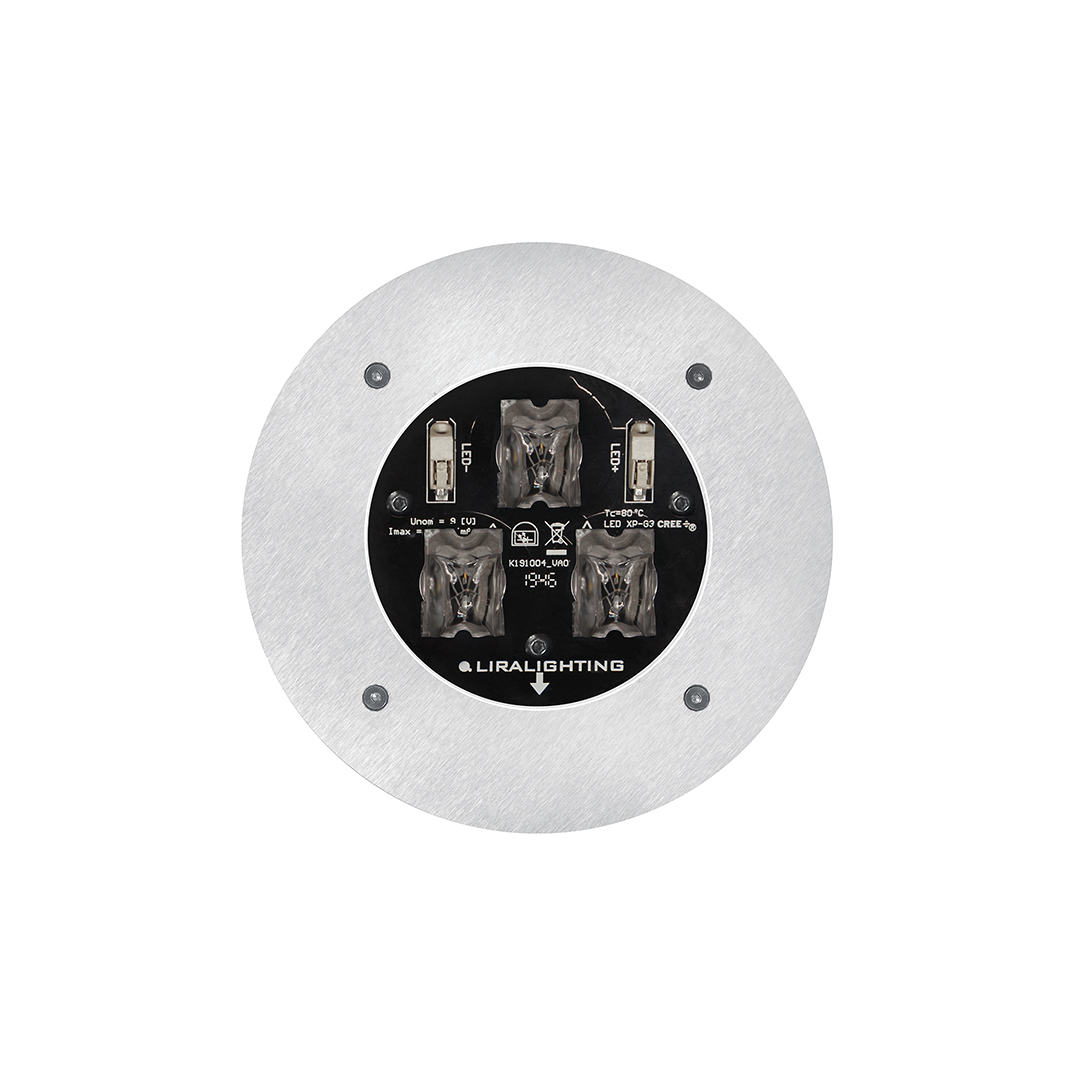

Dwell is a luminaire mounted in the wall for lighting driveways, walls, stairs. Ingress protection IP67 makes the luminaire perfectly withstand weather conditions. Luminaire body made of aluminum, outer ring made of stainless steel. Tempered glass 8mm.
Available product colors
Standard:
-
inox08 -
white03 -
grey06
-
anthracite70 -
black05
E- electronics
O- on-off
C- colour
L- beam angle
02- asymmetrical
W- wiring
T- through
S- standard
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Box dimensions |
|---|---|---|---|---|---|---|
| 9180.02ELCW | 169lm | 4W | 2700K | ≥80 | 1,9kg | 200x200x200mm |
| 9180.03ELCW | 204lm | 4W | 3000K | ≥80 | 1,9kg | 200x200x200mm |
| 9180.04ELCW | 213lm | 4W | 4000K | ≥80 | 1,9kg | 200x200x200mm |
Photometric body
Accessories
connector IP 68 3-pole
catalugue number 124.00
Honey comb (antiglare)
catalugue number 90.01
