Technical data
General data:
Luminaire body:
stainless steel 1.4301, electropolished
Mounting type :
in-ground for installation in a box
Ingress protection IP:
67
Operating temperature range :
from -40° to +45°
Lifetime L80B10:
100 000h
Impact protection IK :
10
Electrical data:
Nominal voltage :
48V
Nominal frequency :
DC
Protection class :
III
Connection :
wire 2x1mm², DMX in, DMX out
Wiring :
standard
Connection wire :
0,5m
Dimming :
DMX (driver with RDM inside the luminaire)
Power supply :
inside the luminaire
Optical data:
Optical system :
lens
Material :
PMMA
Aperture:
15mm tempered glass
Light emission :
direct
Light distribution :
symmetrical
Lighting data:
Light source :
LED
Colour rendering index :
CRI>80 (on request: CRI>90)
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%
L - beam angle
10 – 10°
20 – 20°
30 – 30°
40 – 40°
60 – 60°
8 – 8° wall-washing
41 – 10°x45° oval horizontal
42 – 10°x45° oval vertical
45 – 45° wall-washing
| Catalogue code | Luminaire light flux | Power | Effectiveness | Box dimensions |
|---|---|---|---|---|
| 9536.1L | 1419lm | 16W | 89lm/W | 400x400x280mm |
Accessories

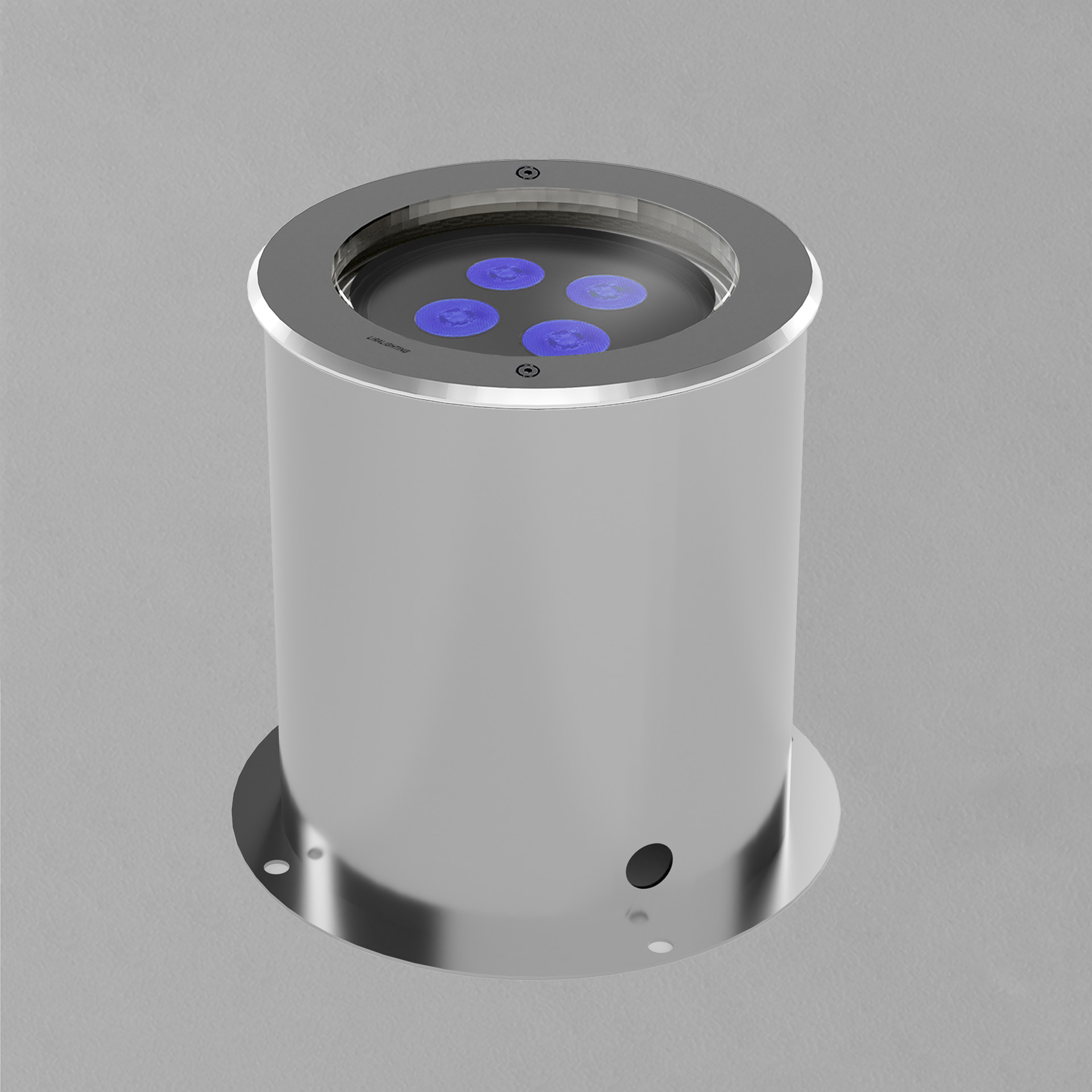

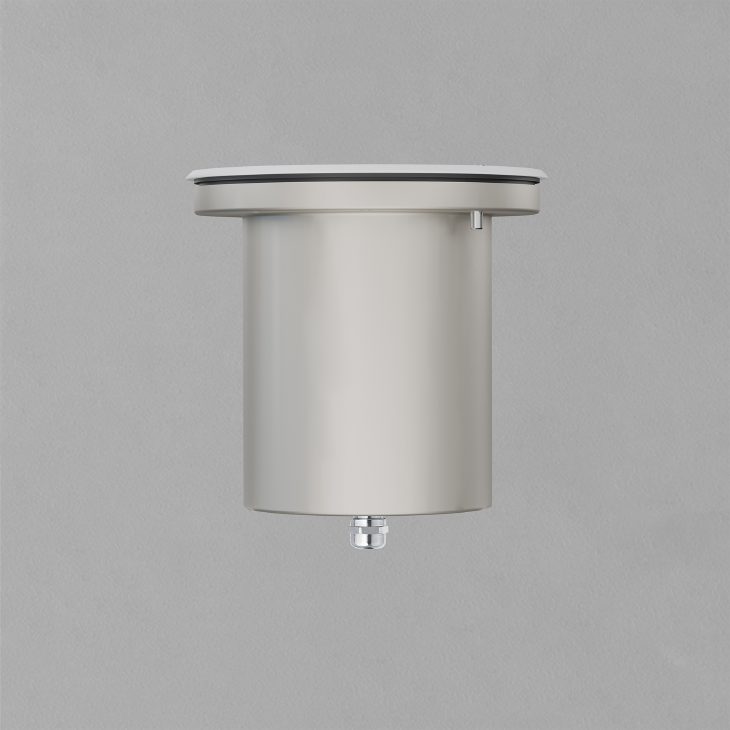

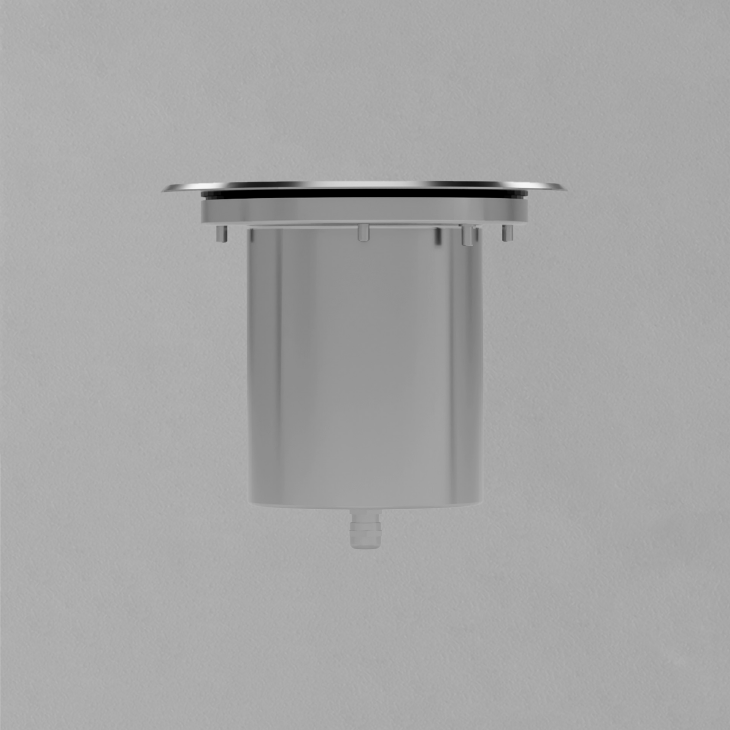

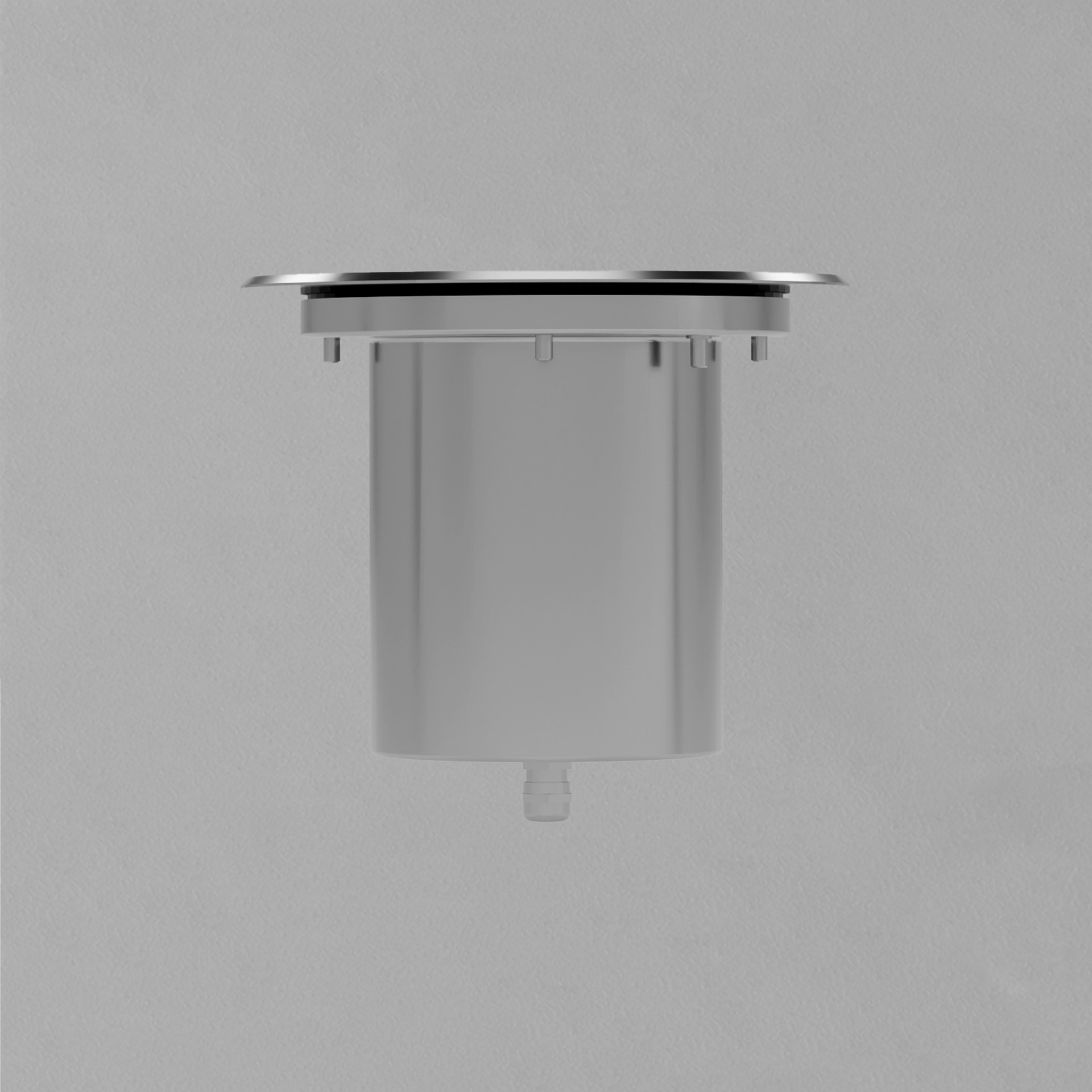

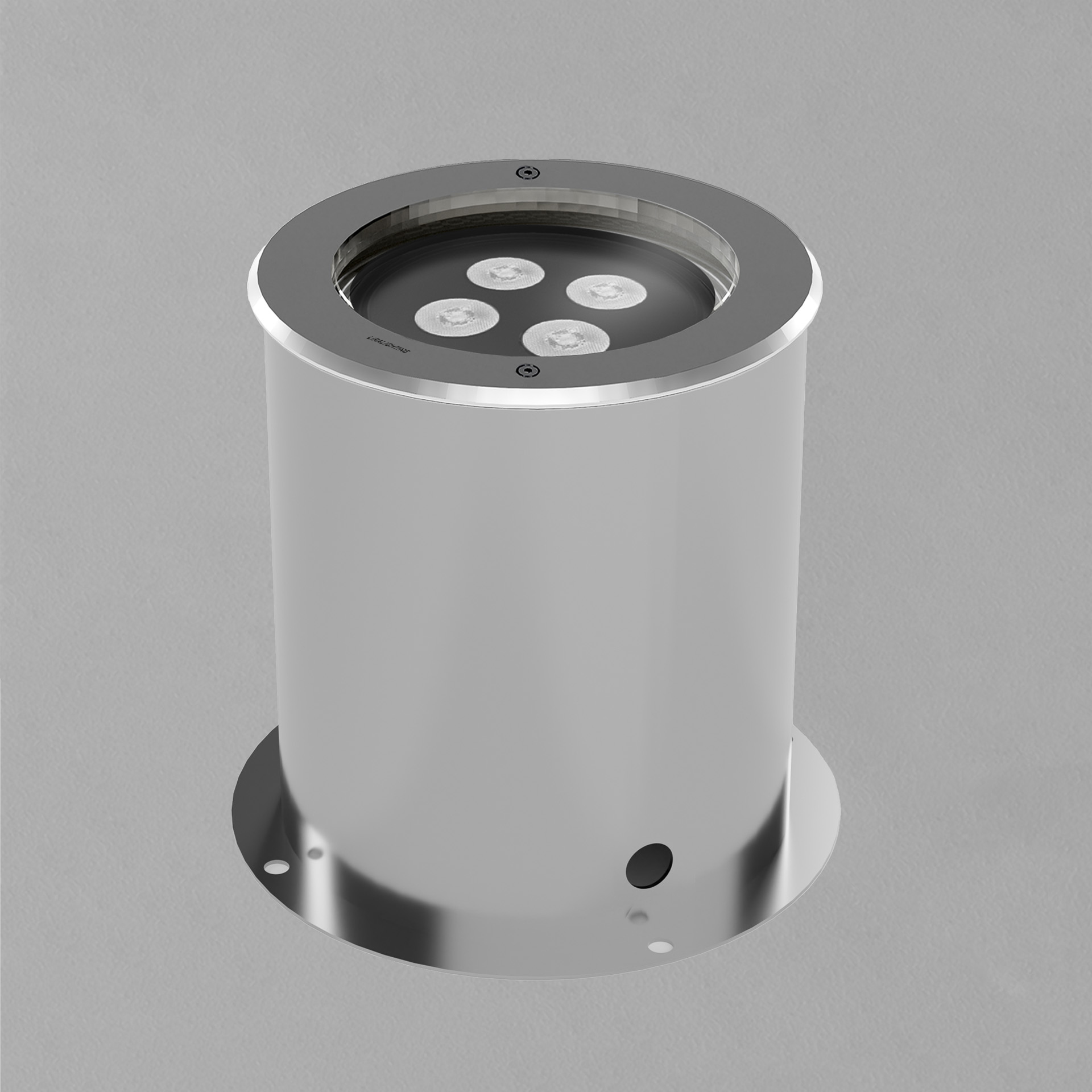

mounting box
catalogue code on request
connector IP68 3-pole
catalogue code 124.00
connector IP68 5-pole
catalogue code 125.00
honeycomb (anti-glare)
catalogue code 90.04
