Technical data
General data:
luminaire body:
aluminum
mounting type:
wall mounted
ingress protection IP:
67
operating temperature range:
from -40° to +45°
lifetime L80B10:
100 000h
impact protection IK:
10
Optical data:
optical system:
lens
material:
PMMA
light emmission:
direct
light distribution:
symmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>70, CRI>80 (options: CRI>90)
tolerance of luminous flux:
+/-10%
colour tolerance:
SDCM<3
colour temperature:
2200K, 2700K, 3000K, 4000K (on request: 6500K)
Electrical data:
nominal voltage:
220-240V AC; 24V DC
nominal frequency:
50-60Hz; DC
protection class:
I; III
contains light source:
yes
dimming:
ON-OFF
connection:
3x1mm2, 2x1mm2
wiring:
standard
connection wire:
0,25m
power supply:
inside the luminaire
Product description

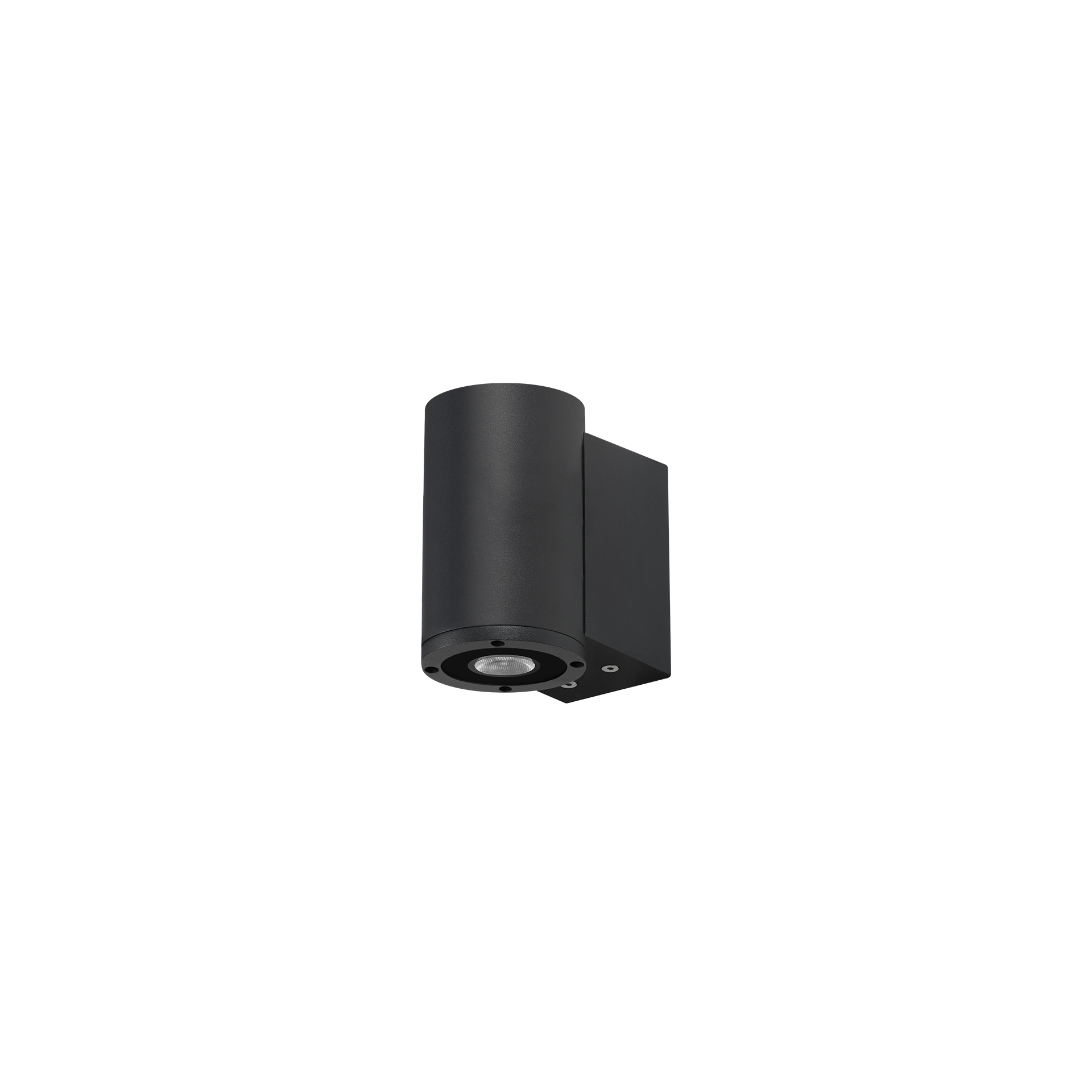

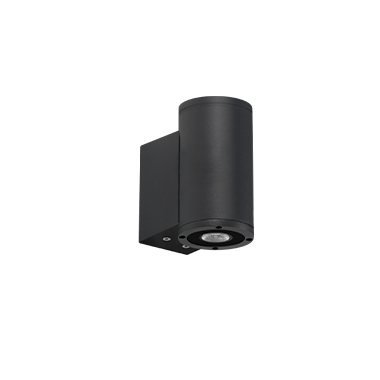

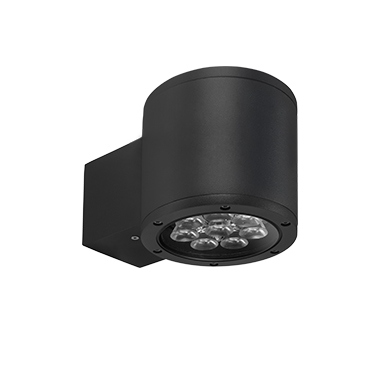

The Bira outdoor wall light is a high-quality façade luminaire available in down and up/down-lighting variants. The series includes models of various sizes, allowing for the selection of the optimal solution for a specific application.
The luminaire offers a wide range of optics enabling precise control of the light beam. Its IP67-rated construction ensures resistance to atmospheric conditions, allowing reliable operation in demanding outdoor environments
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
C- colour
L – lens
10 – 10°
20 – 20°
60 – 60°
41 – 45x10° oval
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Weight | Box dimensions |
|---|---|---|---|---|---|---|
| 9512.020LC | 120lm | 2W (230V) | 2700K | ≥80 | 0,35kg | 200x200x200mm |
| 9512.030LC | 125lm | 2W (230V) | 3000K | ≥80 | 0,35kg | 200x200x200mm |
| 9512.040LC | 130lm | 2W (230V) | 4000K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.020LC | 240lm | 3W (230V) | 2700K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.030LC | 250lm | 3W (230V) | 3000K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.040LC | 261lm | 3W (230V) | 4000K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.120LC | 240lm | 3W (24V) | 2700K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.130LC | 250lm | 3W (24V) | 3000K | ≥80 | 0,35kg | 200x200x200mm |
| 9513.140LC | 261lm | 3W (24V) | 4000K | ≥80 | 0,35kg | 200x200x200mm |
| 9512.010LC | 116lm | 2W (230V) | 2200K | ≥70 | 0,35kg | 200x200x200mm |
| 9513.010LC | 232lm | 3W (230V) | 2200K | ≥70 | 0,35kg | 200x200x200mm |
| 9513.110LC | 232lm | 3W (24V) | 2200K | ≥70 | 0,35kg | 200x200x200mm |
