INX 225 SURFACE

Technical data

General data:

Luminaire body:

stainless steel 1.4301, electropolished

Mounting type :

surface mounted

Ingress protection IP:

Operating temperature range :

from -40° to +45°

Lifetime L80B10:

100 000h

Impact protection IK :

Electrical data:

Nominal voltage :

220-240V AC

Nominal frequency :

50-60Hz

Protection class :

Connection :

wire 3x1mm², (5x0,1mm² for DALI)

Wiring :

standard

Connection wire :

0,5m

Dimming :

ON-OFF, DALI

Power supply :

inside the luminaire

Optical data:

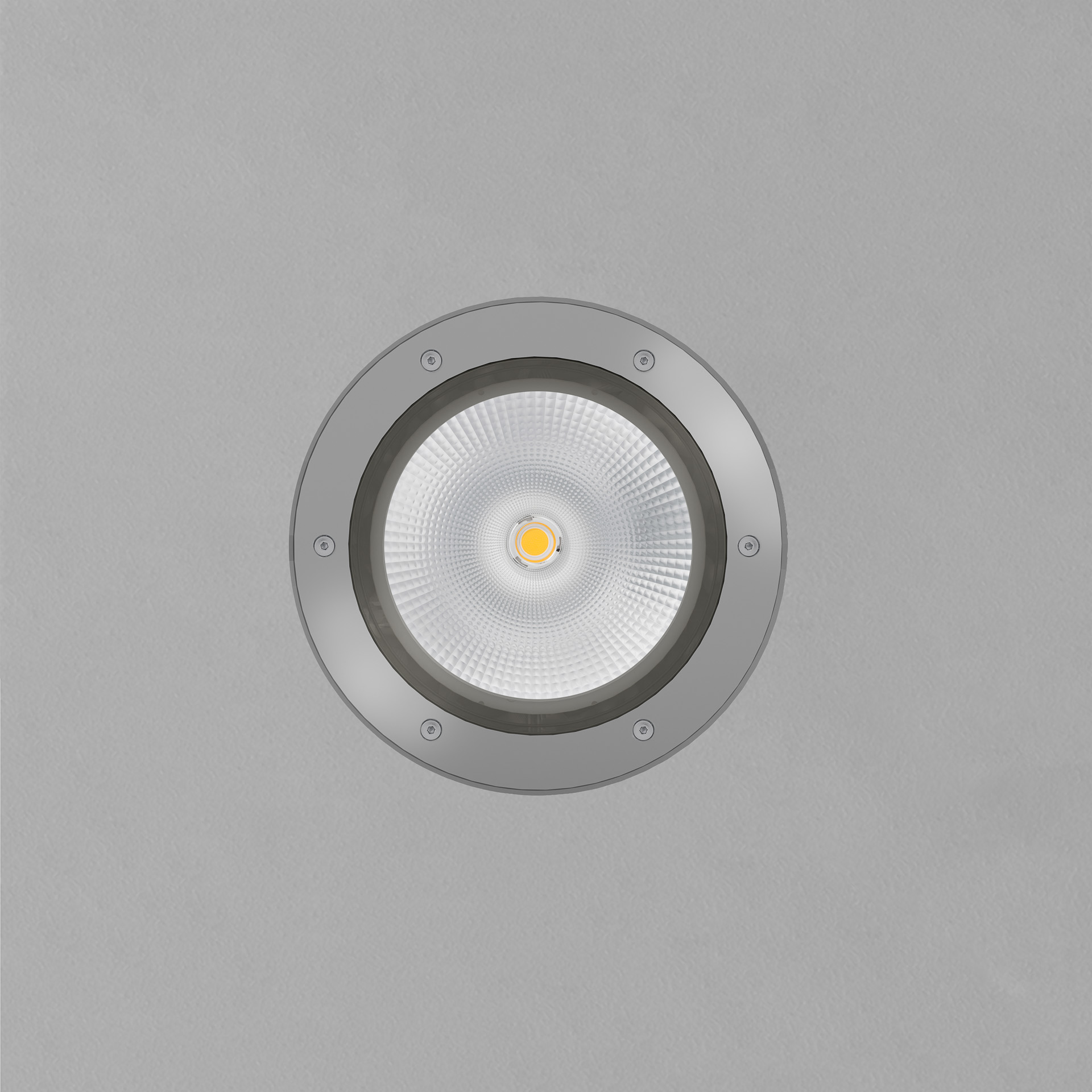

Optical system :

lens

Material :

PMMA

Aperture:

12mm tempered glass

Light emission :

direct

Light distribution :

symmetrical

Lighting data:

Light source :

LED

Colour temperature :

2700K, 3000K, 4000K(on request: 6500K, amber, red, blue, green)

Colour rendering index :

CRI>80 (on request: CRI>90)

Colour tolerance SDCM :

SDCM<3

Tolerance of luminous flux :

+/-10%

Downloads

Product data sheet Declaration of conformity

Product description

Luminaires from the INX series are designed for operation in the most demanding outdoor environments and manufactured from electropolished stainless steel 1.4301 for maximum resistance and durability.

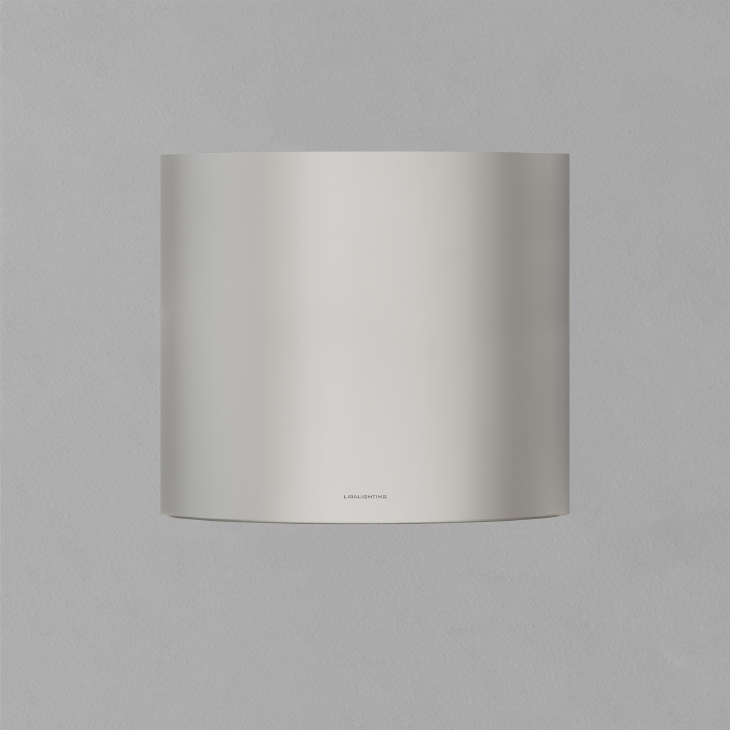

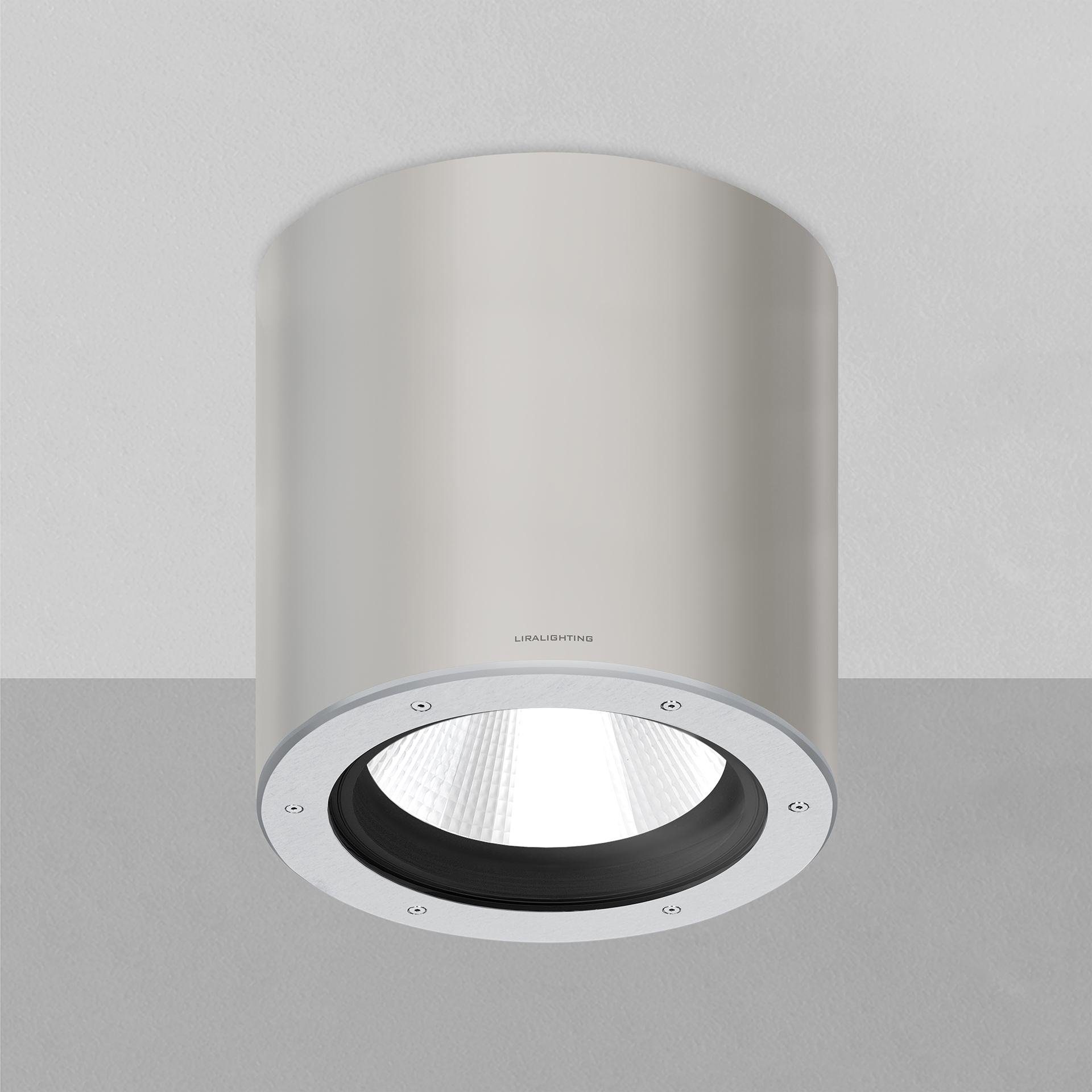

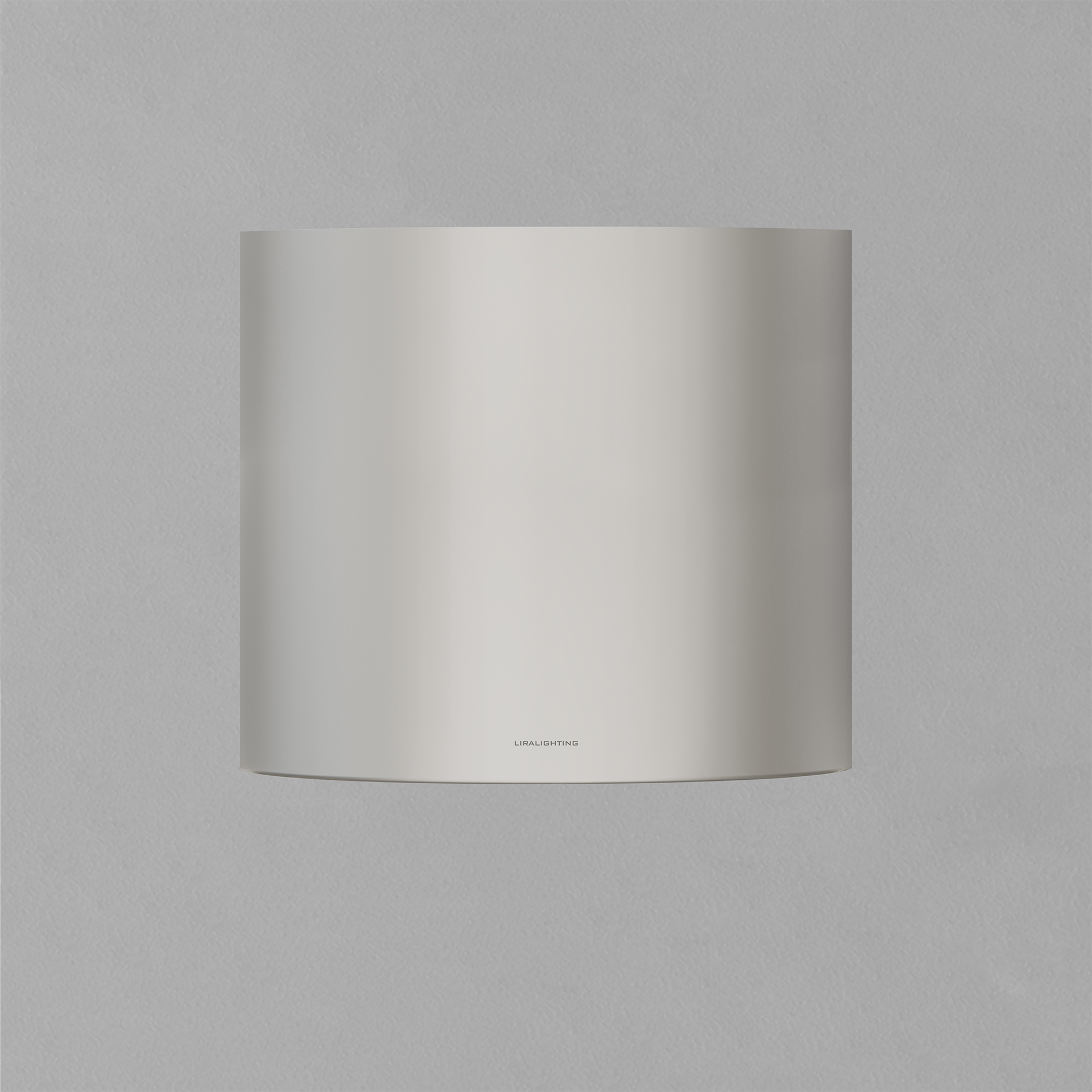

INX 225 Surface is a surface-mounted architectural luminaire designed for installation on solid surfaces. It integrates perfectly with contemporary architecture, providing durable and aesthetically refined illumination of façades and outdoor spaces.

High IP67 tightness and IK10 mechanical resistance enable safe installation in pedestrian routes and public areas. The option to select appropriate optics allows precise adjustment of light distribution to the requirements of a specific project.
