Technical data
General data:
Luminaire body:
steel
Mounting type :
recessed
Ingress protection IP:
IP44 / IP20
Operating temperature range :
from -20°C to +40°C
Lifetime L80B10:
100 000h
Electrical data:
Nominal voltage :
220-240V AC
Nominal frequency :
50-60 Hz
Protection class :
II
Dimming :
on-off, DALI, CASAMBI
Optical data:
Optical system :
reflector
Aperture:
opal diffuser
Light emission :
direct
Light distribution :
symmetrical
Lighting data:
Light source :
LED
Colour rendering index :
CRI>90
Colour tolerance SDCM :
SDCM<3
Tolerance of luminous flux :
+/-10%
Downloads
Product description

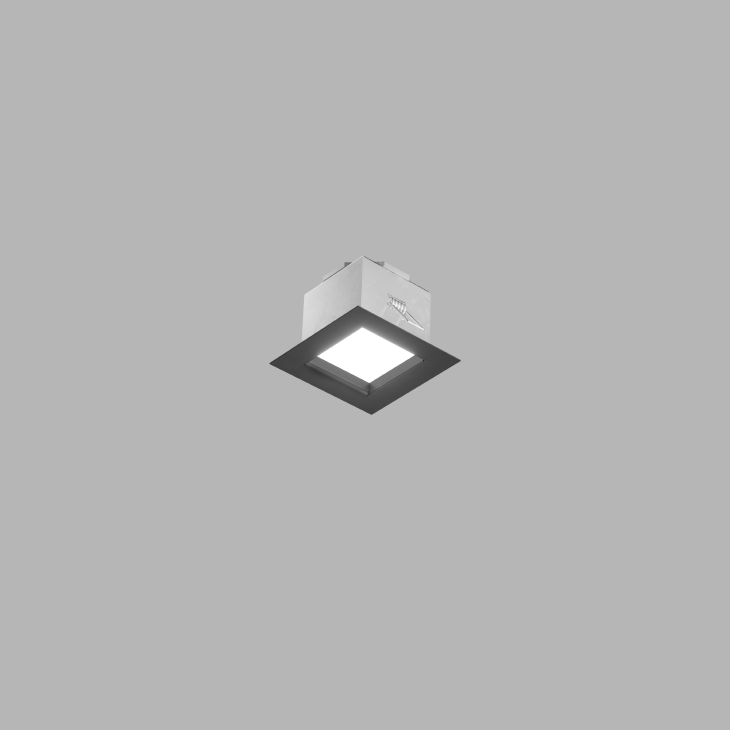

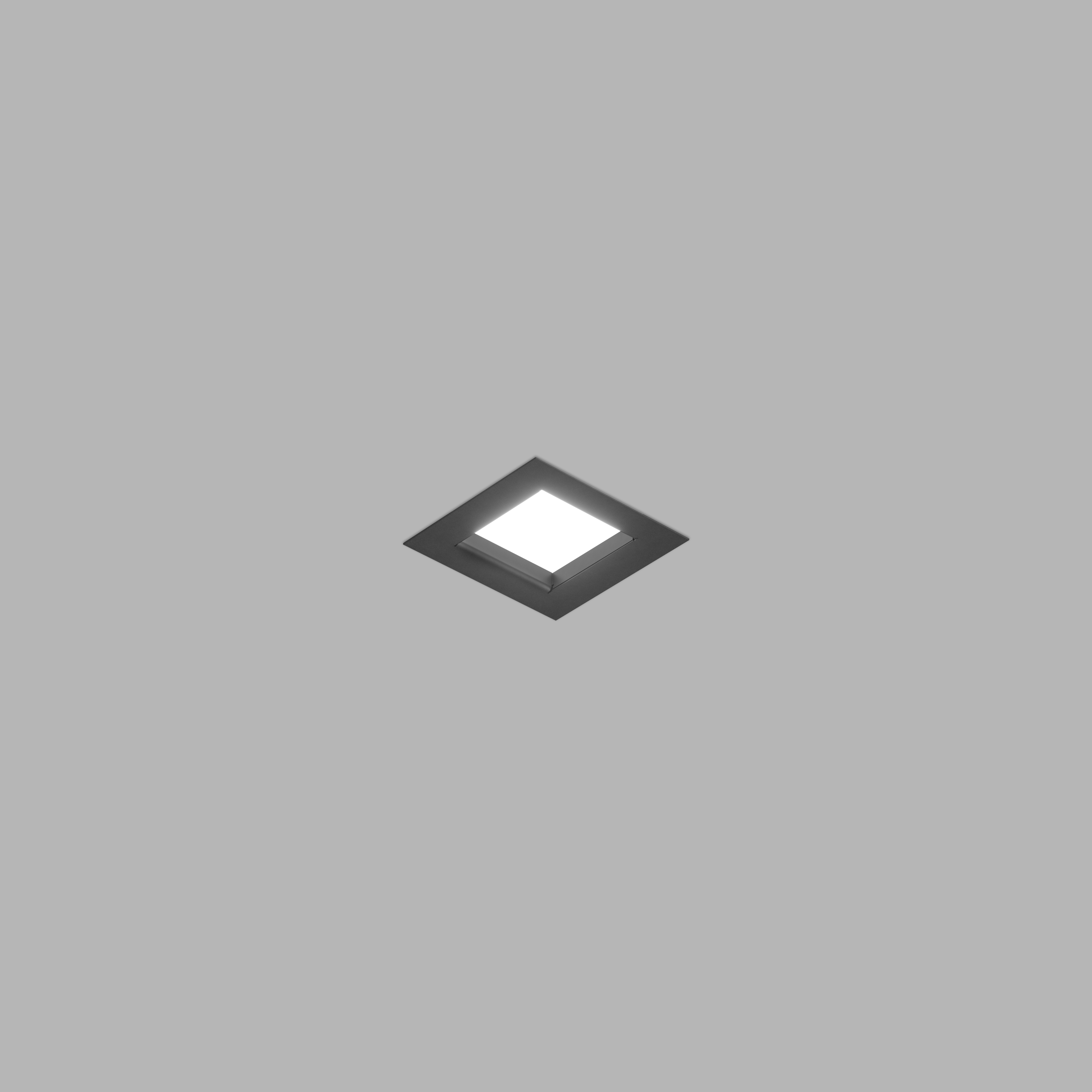

SDL is a modern square downlight designed for seamless integration with interior architecture.
Available in multiple sizes, it allows precise adaptation to the scale and rhythm of the designed space.
The deeply recessed light source reduces glare and ensures high visual comfort.
The option to choose between a microprismatic or opal diffuser makes it possible to tailor the light characteristics to the functional and visual requirements of the project.
SDL is well suited for office, hotel, and commercial buildings, as well as contemporary architectural projects where clear form and precise light control are essential.
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
E - electronics
0 - on-off
D - DALI
C - CASAMBI
C - colour
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature |
|---|---|---|---|---|
| 4101.42EC | 506lm | 6W | 84lm/W | 2700K |
| 4101.43EC | 521lm | 6W | 87lm/W | 3000K |
| 4101.44EC | 560lm | 6W | 93lm/W | 4000K |
| 4102.42EC | 838lm | 9W | 93lm/W | 2700K |
| 4102.43EC | 863lm | 9W | 96lm/W | 3000K |
| 4102.44EC | 929lm | 9W | 103lm/W | 4000K |
