Technical data
General data:
Luminaire body:
artificial material, aluminium
Mounting type :
surface mounted
Ingress protection IP:
IP44/IP20
Electrical data:
Nominal voltage :
220-240V
Nominal frequency :
50-60Hz
Protection class :
I
Optical data:
Light emission :
direct
Light distribution :
symmetrical
Lenses available:
60°, 90°
Lighting data:
Light source :
LED
Colour rendering index :
CRI>80
Downloads
Product description

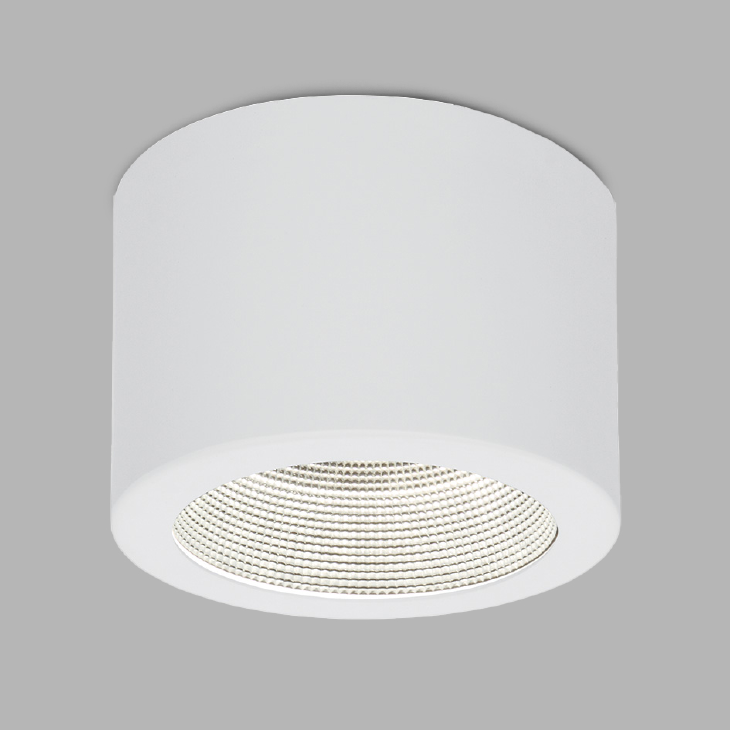

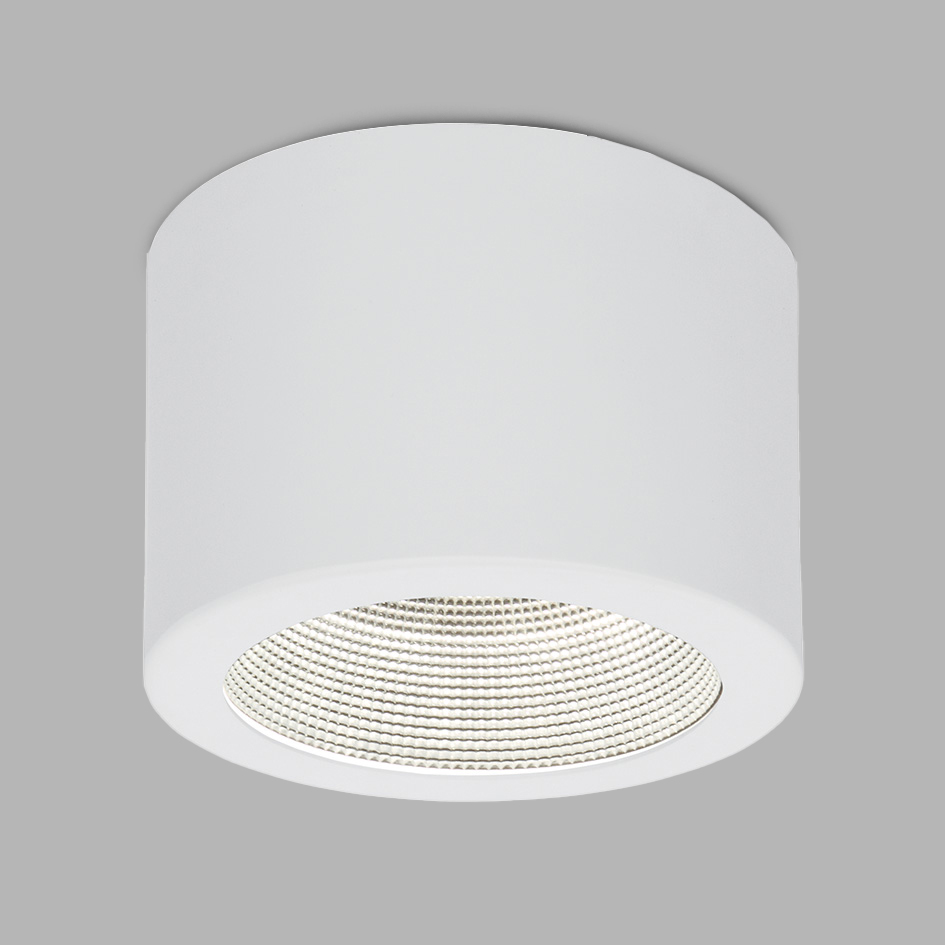

Easy to install, surface mounted downlight is equipped with a reflector for proper light distribution. The choice of two light beam angles, allows to illuminate the selected area. This luminaire can be used in communication routes, conference rooms, shops, offices and residental buildings.
Available product colors
Standard:
-
white03 -
black05
E- electronics
0- on-off
D- DALI
L- beam angle
60 – 60°
90 – 90°
C – choose color
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Weight | Box dimensions | UGR |
|---|---|---|---|---|---|---|---|
| 4060.03ELC | 2160lm | 20W | 113lm/W | 3000K | 1,00kg | 250x250x150mm | <19 |
| 4060.04ELC | 2250lm | 20W | 113lm/W | 4000K | 1,00kg | 250x250x150mm | <19 |
| 4061.03ELC | 3053lm | 30W | 106lm/W | 3000K | 1,00kg | 250x250x150mm | <20 |
| 4061.04ELC | 3180lm | 30W | 106lm/W | 4000K | 1,00kg | 250x250x150mm | <20 |
