Technical data
General data:
Luminaire body:
aluminum
Mounting type :
recessed
Ingress protection IP:
IP20
Electrical data:
Nominal voltage :
220-240V AC
Nominal frequency :
50-60Hz
Protection class :
I
Dimming :
on/off, DALI
Optical data:
Light emission :
direct
Light distribution :
symmetrical
Lighting data:
Light source :
LED
Downloads
Available product colors
Standard:
-
white03 -
grey06 -
anthracite70 -
black05
E- electronics
0- On-Off
D- DALI
L - lens
60 - 60°
C - colour

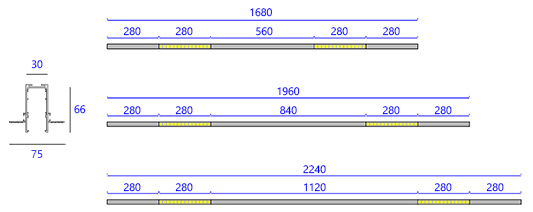

| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Dimensions |
|---|---|---|---|---|---|
| 1025.062E.20LC | 1475lm | 14W | 105lm/W | 2700K | 1680mm |
| 1025.063E.20LC | 1387lm | 14W | 99lm/W | 3000K | 1680mm |
| 1025.064E.20LC | 1304lm | 14W | 93lm/W | 4000K | 1680mm |
| 1025.072E.20LC | 1475lm | 14W | 105lm/W | 2700K | 1960mm |
| 1025.073E.20LC | 1387lm | 14W | 99lm/W | 3000K | 1960mm |
| 1025.074E.20LC | 1304lm | 14W | 93lm/W | 4000K | 1960mm |
| 1025.082E.20LC | 1475lm | 14W | 105lm/W | 2700K | 2240mm |
| 1025.083E.20LC | 1387lm | 14W | 99lm/W | 3000K | 2240mm |
| 1025.084E.20LC | 1304lm | 14W | 93lm/W | 4000K | 2240mm |
