Technical data
General data:
luminaire body:
steel, acoustic material
mounting type:
plasterboard ceiling
ingress protection IP:
IP20
Optical data:
light emmission:
direct
light distribution:
symmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI≥80 (on request: CRI>90)
Electrical data:
nominal voltage:
220-240V
nominal frequency:
50-60Hz
protection class:
I
contains light source:
YES
dimming:
on/off, DALI, Casambi
Downloads
Product description

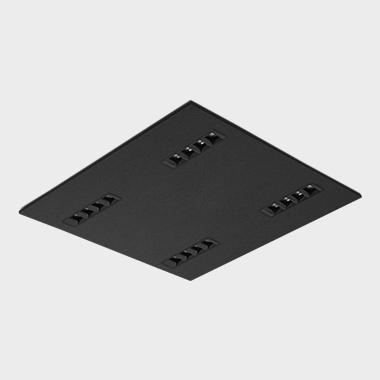

The ML luminaire is characterized by a very light structure and simple and quick assembly. The body is made of steel, painted white. A choice of two colors of the reflectors: white and black. ML includes an optical system that has been developed to ensure maximum lighting efficiency in the workplace while effectively reducing the unwanted glare effect UGR <16. Two color temperatures to choose from: warm (3000K) and neutral white (4000K), CRI≥80 (on request: CRI≥90). Standard dimming: ON-OFF, Dali (Casambi, ActiveAhead on request).
The luminaire is used in demanding offices, conference rooms, lecture halls, and therefore wherever work comfort into its efficiency.
Available product colors
Standard:
-
greyP1 finish of the material -
dark greyP2 finish of the material -
dark greenP3 finish of the material
C-colour
E- electronics
0- On-Off
D- DALI
C- Casambi
L – lenses
50 – 50°
80 – 80°
| Catalogue code | Luminaire light flux | Power | Color temperature | CRI/RA | Beam angle | UGR |
|---|---|---|---|---|---|---|
| na zapytanie | 3813lm | 28W | 3000K | ≥80 | black reflector | <16 |
| na zapytanie | 4057lm | 28W | 4000K | ≥80 | black reflector | <16 |
| na zapytanie | 4094lm | 28W | 3000K | ≥80 | white reflector | <17 |
| na zapytanie | 4355lm | 28W | 4000K | ≥80 | white reflector | <17 |
| na zapytanie | 5338lm | 38W | 3000K | ≥80 | black reflector | <17 |
| na zapytanie | 5679lm | 38W | 4000K | ≥80 | black reflector | <17 |
| na zapytanie | 5732lm | 38W | 3000K | ≥80 | white reflector | <18 |
| na zapytanie | 6098lm | 38W | 4000K | ≥80 | white reflector | <18 |
