Technical data
General data:
luminaire :
aluminum
mounting type:
wall monuted
ingress protection IP:
66
operating temperature range:
from -40° to +45°
lifetime L80B10:
100 000h
impact protection IK:
10
Optical data:
optical system:
milk diffuser
material:
glass
light emmission:
direct
light distribution:
asymmetrical
Lighting data:
type of source:
LED
colour rendering index:
CRI>80
tolerance of luminous flux:
+/-10%
colour tolerance:
SDCM<3
Electrical data:
nominal voltage:
220-240V AC
nominal frequency:
50-60Hz
protection class:
I
contains light source:
yes
connection:
wire 3x1mm2 (5x0,75mm2 for DALI)
wiring:
through, standard
connection wire:
0,5m
power supply:
inside the luminaire
Product description

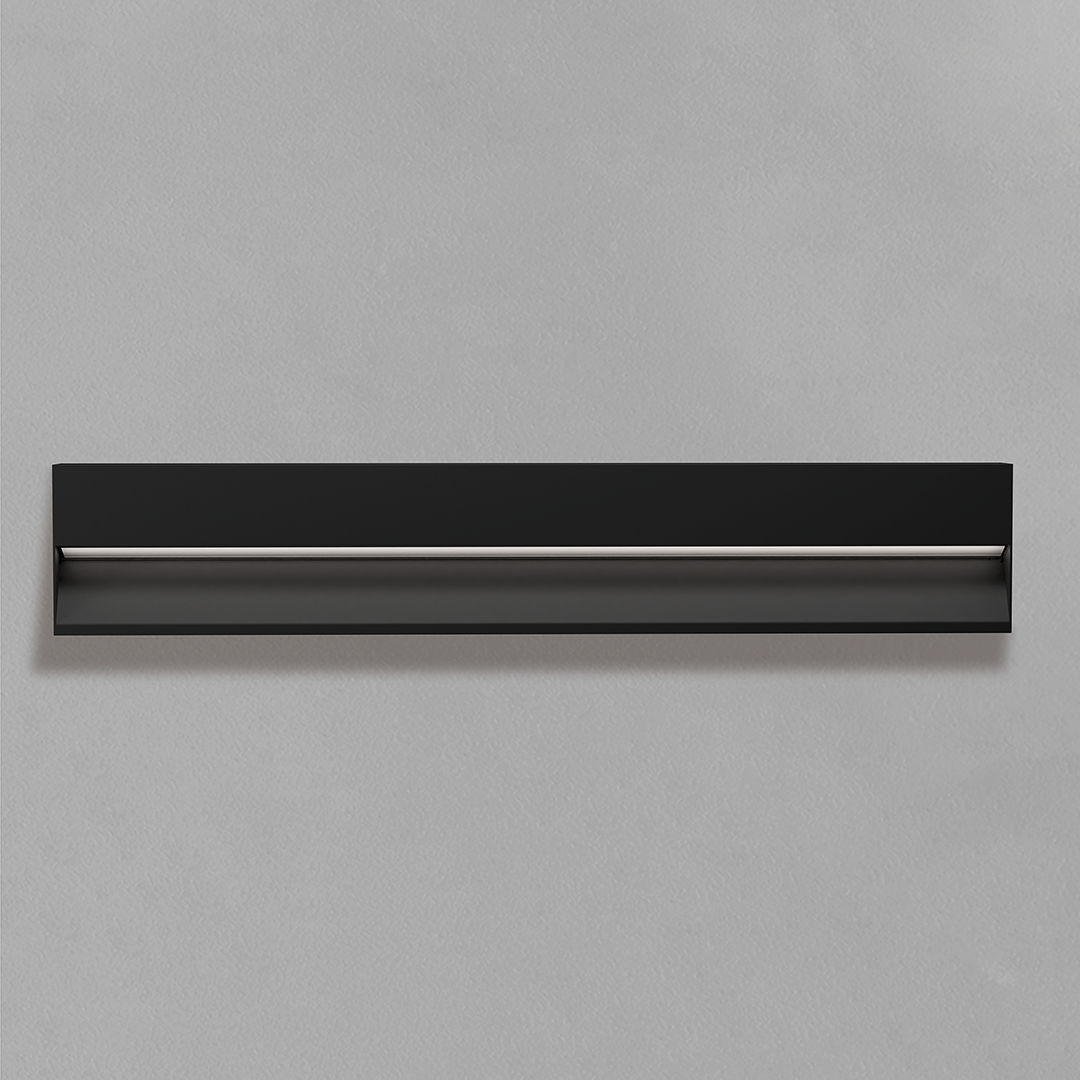

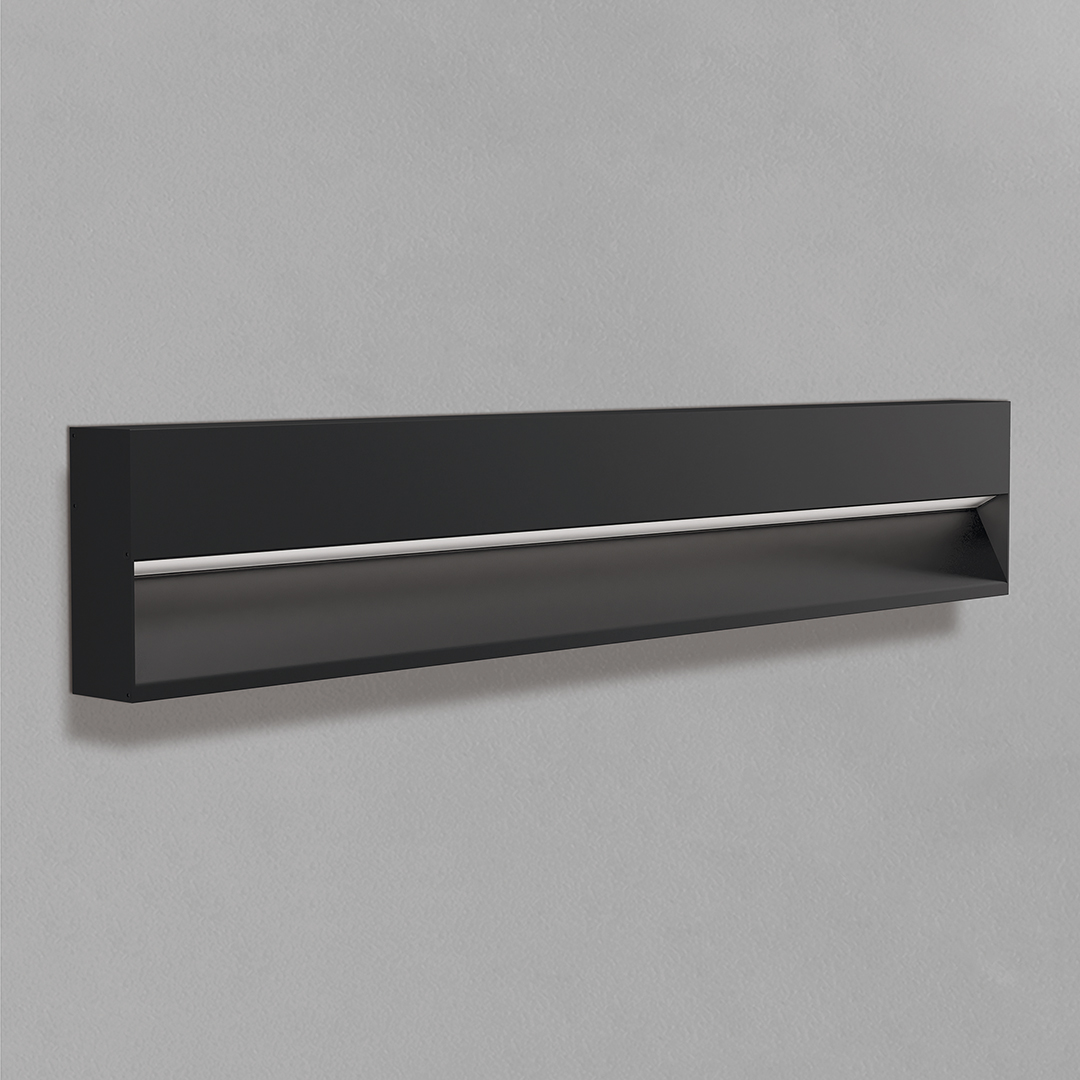

ELMO is a wall-mounted luminaire designed for outdoor applications. The luminaire emits directional light downwards, allowing for precise illumination of selected areas. It features a high ingress protection rating (IP65), making it resistant to outdoor conditions. Available in various lengths and wattages, it can be tailored to suit different lighting projects. A recessed version is also available, expanding its range of applications. ELMO is ideal for lighting facades, entrance areas, terraces, and pathways.
Available product colors
Standard:
-
anthracite70 -
black05
E- electronics
O- on-off
D- Dali
C - colour
W - wiring
T - through
S - standard
| Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | Weight |
|---|---|---|---|---|---|
| 9504.02ECW | 519lm | 10W | 52lm/W | 2700K | 4,8kg |
| 9504.03ECW | 552lm | 10W | 55lm/W | 3000K | 4,8kg |
| 9504.04ECW | 587lm | 10W | 59lm/W | 4000K | 4,8kg |
| 9505.02ECW | 1127lm | 26W | 43lm/W | 2700K | 4,8kg |
| 9505.03ECW | 1199lm | 26W | 46lm/W | 3000K | 4,8kg |
| 9505.04ECW | 1275lm | 26W | 49lm/W | 4000K | 4,8kg |
