Technical data
General data:
Electrical data:
Optical data:
Lighting data:
Product description

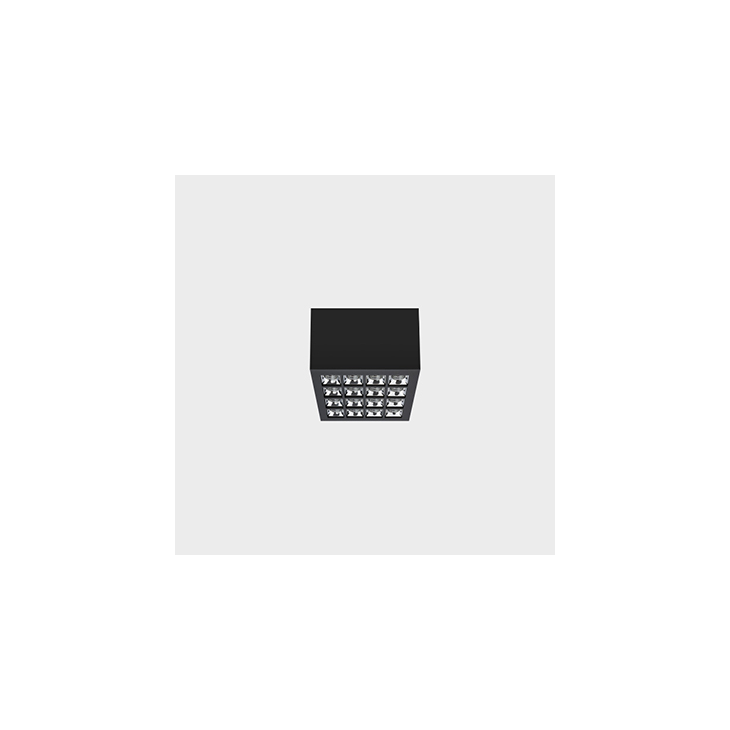

Pixy is a range of luminaires that provide uniform room lighting without glare - glare rating UGR<17. Three color temperatures to choose from: 2700K, 3000K, 4000K, CRI>80 (CRI>90 on request), and a 36° beam angle. The luminaire is characterized by its lightweight construction. With just a 48mm recess depth, Pixy is a compact luminaire perfectly suited for installation in areas with limited space.
Pixy wallwasher is a luminaire enriched with an innovative optical system that precisely directs the light beam onto the wall, providing uniform illumination across its entire height and width. With just a 48mm recess depth, Pixy is a compact luminaire perfectly suited for installation in spaces with limited room.
Available product colors
-
white03
-
grey06
-
anthracite70
-
black05
E- electronics
0- On-Off
D- DALI
C-CASAMBI
C - colour
![](/var/cache/image/resources/PIXY/Pixy-4x4/obraz_2024-02-29_111220877-1.png)
Catalogue code | Luminaire light flux | Power | Effectiveness | Color temperature | UGR |
---|---|---|---|---|---|
5107.02E36C | 2774lm | 25W | 120lm/W | 2700K | <17 |
5107.03E36C | 2890lm | 25W | 120lm/W | 3000K | <17 |
5107.04E36C | 3010lm | 25W | 120lm/W | 4000K | <17 |
