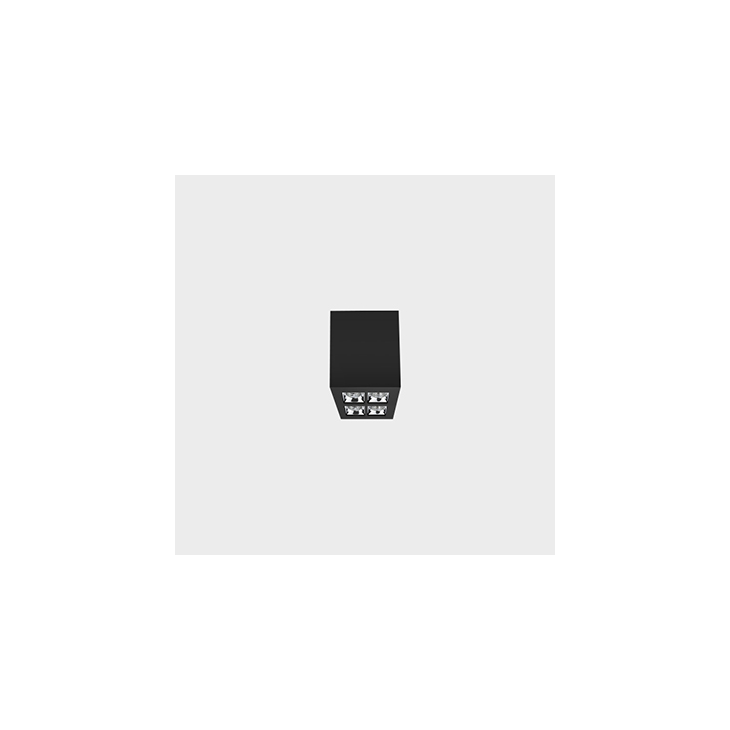

Pixy 22 UGR<17

choose the optic ➔

Technical data

General data:

Luminare body:

aluminium

Mounting:

surface mounted

Ingress protection IP:

IP20

Operating temperature range:

from -20° to +35°

Lifetime L80B10:

100 000h

Electrical data:

Nominal voltage:

230-240V AC

Nominal freguency:

50-60Hz

Protection class:

Contains light source:

yes

Dimming:

DALI, Casambi, on-off

Optical data:

Optical system:

lens

Lenses available:

36°

Lighting data:

Light source:

LED

Colour rendering index:

CRI>80 (on request: CRI>90)

Colour tolerance SDCM:

SDCM<3

Downloads

Product data sheet Declaration of Comformity Assembly, use and maintance instructions

Product description

Pixy is a range of luminaires that provide uniform room lighting without glare - glare rating UGR<17. Three color temperatures to choose from: 2700K, 3000K, 4000K, CRI>80 (CRI>90 on request), and a 36° beam angle. The luminaire is characterized by its lightweight construction. With just a 48mm recess depth, Pixy is a compact luminaire perfectly suited for installation in areas with limited space.

Pixy wallwasher is a luminaire enriched with an innovative optical system that precisely directs the light beam onto the wall, providing uniform illumination across its entire height and width. With just a 48mm recess depth, Pixy is a compact luminaire perfectly suited for installation in spaces with limited room.
